Terenz

Listview column cut text direction

12 posts in this topic

Hello, is hard to examplain so i'll do it with images:

In a ListView you have a colum with a text:


If you make the column smaller then the text the three dots appear:


"My very long item" and the ... and "about AUTOIT!" is hidden

So the question is, is possible to "hide" the text on the left side instead on the right side, like the image?


"My very long item" is hidden, the ... and you can see "about AUTOIT!"

Thanks for all the help


Nothing is so strong as gentleness. Nothing is so gentle as real strength



Share this post


Link to post
Share on other sites



Terenz,

Adding the $WS_EX_LAYOUTRTL extended style to the ListView does that - but it also reverses the entire ListView so you will have to change the column order. :)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Melba thanks but doesn't seem like i have asked, the dots are always on the right side:



Nothing is so strong as gentleness. Nothing is so gentle as real strength



Share this post


Link to post
Share on other sites

Terenz,

It works when I add that extended style or I would not have suggested it. Please post the code you are using so I perhaps can why it is not working for you. :)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

#5 ·  Posted (edited)

#include <GUIConstantsEx.au3>
#include <ListViewConstants.au3>
#include <WindowsConstants.au3>
#include <GuiListView.au3>

$Form = GUICreate("Form1", 443, 291, 197, 150)
$ListView = GUICtrlCreateListView("MYCAPTION", 8, 8, 289, 201, -1, $WS_EX_LAYOUTRTL)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 0, 100)
GUICtrlCreateListViewItem("My very long item about AUTOIT!", $ListView)
GUISetState(@SW_SHOW)

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch
WEnd

Edited by Terenz

Nothing is so strong as gentleness. Nothing is so gentle as real strength



Share this post


Link to post
Share on other sites

Terenz,

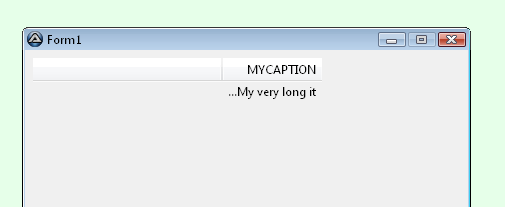

This is what I get: post-38576-0-67672100-1391620122_thumb.p

But looking more closely I see that you still do not get the part of the text that you require. :(

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

That's normal Windows behavior, there's no DT_START_ELLIPSIS constant that would control that.


If I posted any code, assume that code was written using the latest release version unless stated otherwise. Also, if it doesn't work on XP I can't help with that because I don't have access to XP, and I'm not going to.
Give a programmer the correct code and he can do his work for a day. Teach a programmer to debug and he can do his work for a lifetime - by Chirag Gude
How to ask questions the smart way!

I hereby grant any person the right to use any code I post, that I am the original author of, on the autoitscript.com forums, unless I've specifically stated otherwise in the code or the thread post. If you do use my code all I ask, as a courtesy, is to make note of where you got it from.

Back up and restore Windows user files _Array.au3 - Modified array functions that include support for 2D arrays.  -  ColorChooser - An add-on for SciTE that pops up a color dialog so you can select and paste a color code into a script.  -  Customizable Splashscreen GUI w/Progress Bar - Create a custom "splash screen" GUI with a progress bar and custom label.  -  _FileGetProperty - Retrieve the properties of a file  -  SciTE Toolbar - A toolbar demo for use with the SciTE editor  -  GUIRegisterMsg demo - Demo script to show how to use the Windows messages to interact with controls and your GUI.  -   Latin Square password generator

Share this post


Link to post
Share on other sites

Ok, i know is the normal behavor but do you think guys is possible or not?


Nothing is so strong as gentleness. Nothing is so gentle as real strength



Share this post


Link to post
Share on other sites

Terenz,

No, I do not believe that it is.* I think you had best rewrite the text to get the part you want to see at the beginning. ;)

M23

* Just sticking my neck out so someone can come along and prove me wrong! :D


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Anything is possible, the question becomes how much effort are you willing to put in to make it. You can constantly monitor the column width with _GUICtrlListView_GetColumnWidth, get the text's width with StringLen, and when the StringLen is longer than the column width, completely redraw your listview with item text formatted the way you'd like it. Although, I'd think it would be terribly glitchy and would probably flicker like crazy if not done correctly.


If I posted any code, assume that code was written using the latest release version unless stated otherwise. Also, if it doesn't work on XP I can't help with that because I don't have access to XP, and I'm not going to.
Give a programmer the correct code and he can do his work for a day. Teach a programmer to debug and he can do his work for a lifetime - by Chirag Gude
How to ask questions the smart way!

I hereby grant any person the right to use any code I post, that I am the original author of, on the autoitscript.com forums, unless I've specifically stated otherwise in the code or the thread post. If you do use my code all I ask, as a courtesy, is to make note of where you got it from.

Back up and restore Windows user files _Array.au3 - Modified array functions that include support for 2D arrays.  -  ColorChooser - An add-on for SciTE that pops up a color dialog so you can select and paste a color code into a script.  -  Customizable Splashscreen GUI w/Progress Bar - Create a custom "splash screen" GUI with a progress bar and custom label.  -  _FileGetProperty - Retrieve the properties of a file  -  SciTE Toolbar - A toolbar demo for use with the SciTE editor  -  GUIRegisterMsg demo - Demo script to show how to use the Windows messages to interact with controls and your GUI.  -   Latin Square password generator

Share this post


Link to post
Share on other sites

The problem is i can really "cut" the text because i need it in the entire way, but for a "matter of readability" if i can see the last part instead of all the text is better. Thanks to both for the suggestion


Nothing is so strong as gentleness. Nothing is so gentle as real strength



Share this post


Link to post
Share on other sites

Terenz,

Add another hidden column to the ListView which contains the entire text and then you can just display a partial text in the visible column: ;)

#include <GUIConstantsEx.au3>
#include <GuiListView.au3>

$sFullText = "My very long item about AutoIt"
$sShortText = "..." & StringRight($sFullText, 7)

$Form = GUICreate("Form1", 443, 291, 197, 150)
$ListView = GUICtrlCreateListView("MYCAPTION|My very long item about AutoIt", 8, 8, 289, 201)
GUICtrlCreateListViewItem($sShortText & "|" & $sFullText, $ListView)

$cButton = GUICtrlCreateButton("Read item", 10, 250, 80, 30)

GUISetState(@SW_SHOW)

; Hide extra column
_GUICtrlListView_HideColumn($ListView, 1)

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $cButton
            ; But you can still read it
            MsgBox($MB_SYSTEMMODAL, "Read", _GUICtrlListView_GetItemText($ListView, 0, 1))
    EndSwitch
WEnd
Good enough? :)
