InunoTaishou

Gui List?

5 posts in this topic

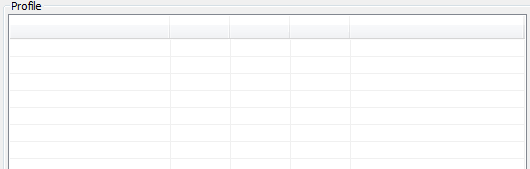

So there used to be a <illegal name on the autoit forum> that I used to use and i love how the GUI is setup for storing profiles and showing values in, what looks like, the gui list

I've tried GuiCtrlCreateListView(& Item) but it doesn't really match up. It sounds really picky, I know, but I like the coumn/row line seperation so it creates boxes

And then after that I need it so that while the GUI is active it keeps the first button (run) highlighted

I'm wanting to store a whole bunch of documents in it. Type the first few letters of the file name from the gui, Enter and it opens.

So it'd be something like

File name | path | Date modified | File extension (.pdf, .txt, etc)

#include <ButtonConstants.au3>
#include <GUIConstantsEx.au3>
#include <GUIListBox.au3>
#include <WindowsConstants.au3>
#include <GUIListView.au3>
Global $var2,$var3,$var4,$var22,$var33,$var44,$var222,$var333,$var444
#Region ### START Koda GUI section ### Form=
$frmMain = GUICreate("Bot", 600, 400, 500, 197)
$grpFiles = GUICtrlCreateGroup("Scripts", 5, 50, 510, 155)
$lstFiles = GUICtrlCreateListView("File name | path | Date modified | File extension", 10, 66, 500, 100)
$file1 = GUICtrlCreateListViewItem("C:\Tests|" & $var2 & "|" & $var22 & $var222,$lstScripts)
$file2 = GUICtrlCreateListVIewItem("D:\Test|" & $var3 & "|" & $var33 & $var333,$lstScripts)
$file3 = GUICtrlCreateListViewItem("C:\Test|" & $var4 & "|" & $var44 & $var444,$lstScripts)
$open = GUICtrlCreateButton("Open", 10, 168, 75, 33)
$aFile = GUICtrlCreateButton("Add File", 95, 168, 75, 33)
$tabLog = GUICtrlCreateTab(10, 207, 510, 155)
GUICtrlCreateTabItem("Common Log")
GUISetState(@SW_SHOW,$frmMain)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_Event_Close
            Exit
        Case $open
            _open()
        Case $aFile
            _aFile()
    EndSwitch
WEnd

post-75010-0-01096800-1403589377_thumb.p

Share this post


Link to post
Share on other sites



InunoTaishou,

Is there actually a question in there or are we supposed to read your mind as to exactly what you want? :huh:

Some possible solutions to the implicit questions in your post:



- 1. A ListView does give you "the column/row line separation so it creates boxes" look that you desire - particularly if you use the $LVS_EX_GRIDLINES style.

- 2. Using the $BS_DEFPUSHBUTTON style on the "Run" button should help with the "while the GUI is active it keeps the first button (run) highlighted" problem - and the "[press] Enter and it opens" one too.

- 3. As for "Type the first few letters of the file name from the gui" - I imagine you will have to search the ListView using _GUICtrlListView_GetItemText and then highlight the first/best match as you add characters to the search input.

I hope this is of some help. If you want to be more specific about exactly what you want to do, we can probably offer better focused help. ;)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Here is correction of your GUI part GUICtrlCreateListViewItem()

#include <ButtonConstants.au3>
#include <GUIConstantsEx.au3>
#include <GUIListBox.au3>
#include <WindowsConstants.au3>
#include <GUIListView.au3>

Global $var2,$var3,$var4,$var22,$var33,$var44,$var222,$var333,$var444

$var3 = 'D:\Test\'
$var33 = '2013-12-31'
$var333 = 'DOC'

#Region ### START Koda GUI section ### Form=
$frmMain = GUICreate("Bot", 600, 400, 500, 197)
$grpFiles = GUICtrlCreateGroup("Scripts", 5, 50, 510, 155)
$lstFiles = GUICtrlCreateListView("File name|path|Date modified|File extension", 10, 66, 500, 100)
$file1 = GUICtrlCreateListViewItem("file1.txt|C:\Tests\|2014-06-24|TXT",$lstFiles)
$file2 = GUICtrlCreateListVIewItem("file2.DOC|" & $var3 & "|" & $var33 & "|" & $var333,$lstFiles)
$open = GUICtrlCreateButton("Open", 10, 168, 75, 33)
$aFile = GUICtrlCreateButton("Add File", 95, 168, 75, 33)
$tabLog = GUICtrlCreateTab(10, 207, 510, 155)
GUICtrlCreateTabItem("Common Log")
GUISetState(@SW_SHOW,$frmMain)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_Event_Close
            Exit
;~         Case $open
;~             _open()
;~         Case $aFile
;~             _aFile()
    EndSwitch
WEnd

Share this post


Link to post
Share on other sites

Sorry if I wasn't specific enough, it was really late, but you completely nailed it Melba :)

And thanks Zedna, I was just using the random path to see what the List looks like, if I want to add 500 files I don't want 500 $var's lol I'll be using _GUICtrlListView_AddArray and then probably something with iniwrite to save the select file information

One more question while I'm here, which is better/faster/more efficient for buttons: OnEventMode or Select...Case?

#include <ButtonConstants.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GUIListBox.au3>
#include <GUIListView.au3>
#include <GuiButton.au3>

#Region ### START Koda GUI section ### Form=
$frmMain = GUICreate("Bot", 600, 400, 500, 197)
$grpFiles = GUICtrlCreateGroup("", 5, 50, 510, 155)
$lstFiles = GUICtrlCreateListView("", 10, 66, 500, 100,$LVS_EX_Gridlines)
_GUICtrlListView_SetExtendedListViewStyle($lstFiles, BitOR($LVS_EX_FULLROWSELECT,$LVS_EX_Gridlines))
$open = _GUICtrlButton_Create($frmMain,"Open", 10, 168, 75, 33,$BS_DEFPUSHBUTTON)
_GUICtrlListView_AddColumn($lstFiles,"File name",100)
_GUICtrlListView_AddColumn($lstFiles,"Path",150)
_GUICtrlListView_AddColumn($lstFiles,"Date Modified",100)
_GUICtrlListView_AddColumn($lstFiles,"Extension",75)
$aFile = _GUICtrlButton_Create($frmMain,"Add File", 95, 168, 75, 33)
$tabLog = GUICtrlCreateTab(10, 207, 510, 155)
GUICtrlCreateTabItem("Common Log")
GUISetState(@SW_SHOW,$frmMain)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_Event_Close
            Exit
        Case $open
        Case $aFile
    EndSwitch
WEnd

Share this post


Link to post
Share on other sites

InunoTaishou,

Nice to see the crystal ball is in good working order! :D

As to which AutoIt mode is "better" - this is completely subjective and depends on the particular script. If you search you will find a number of threads where this has been discussed at length, but personally I tend to use MessageLoop mode unless there is a very good reason not to do so. And before you ask, the Interrupting a running function tutorial in the Wiki shows a very good one! ;)

M23
