Transparent Form and PNG

Recommended Posts

x001z

HI!

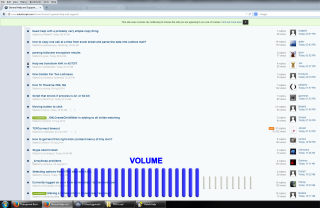

I want to make a volume OSD, I made a pic to explain what I want to do.

post-33047-0-45234500-1407890373_thumb.p



I'm tryin to use a png files and a transparent backgound but i can make it wok, search a lot but still can make it.

Try to load the png with transparency to a ctrlpic and can make it transparent but not the form

Tried load the png without the control pic but the image completely dissapear.

Made the form transparent but not the pic control background, the las thing i did was...

using icons udf and excample from here

#Include <Icons.au3>
#include <WindowsConstants.au3>
#include <GDIPlus.au3>
#include <GuiConstantsEx.au3>


Global $hGraphic,$hGUI

$Main_Gui = GUICreate("", 400, 400, 20, 20, $WS_POPUP, $WS_EX_TOOLWINDOW + $WS_EX_TOPMOST)

$But1 = GUICtrlCreateButton(" Exit ", 100, 100, 80, 21)
$Info_Edit = GUICtrlCreateEdit("A few words to start off with", 80, 150, 300, 220)



$sPng = "barra2.png"

; $Form = GUICreate('Test', 253, 244)

$Pic1 = GUICtrlCreatePic('', 0, 0, 193, 184)
GUICtrlSetBkColor($Pic1, $GUI_BKCOLOR_TRANSPARENT)


GUISetState()


_SetImage($Pic1, $sPng)


GUISetControlsVisible($Main_Gui)


GUISetState()

While 1
    If GUIGetMsg() = $But1 Then Exit
WEnd


Func GUISetControlsVisible($hWnd)
    Local $aM_Mask, $aCtrlPos, $aMask, $aLastID

    $aM_Mask = DllCall("gdi32.dll", "long", "CreateRectRgn", "long", 0, "long", 0, "long", 0, "long", 0)
    $aLastID = DllCall("user32.dll", "int", "GetDlgCtrlID", "hwnd", GUICtrlGetHandle(-1))

    For $i = 3 To $aLastID[0]
        $aCtrlPos = ControlGetPos($hWnd, '', $i)
        If Not IsArray($aCtrlPos) Then ContinueLoop

        $aMask = DllCall("gdi32.dll", "long", "CreateRectRgn", _
            "long", $aCtrlPos[0], _
            "long", $aCtrlPos[1], _
            "long", $aCtrlPos[0] + $aCtrlPos[2], _
            "long", $aCtrlPos[1] + $aCtrlPos[3])
        DllCall("gdi32.dll", "long", "CombineRgn", "long", $aM_Mask[0], "long", $aMask[0], "long", $aM_Mask[0], "int", 2)
    Next
    DllCall("user32.dll", "long", "SetWindowRgn", "hwnd", $hWnd, "long", $aM_Mask[0], "int", 1)
EndFunc

only the button and the edit are transparent but the pic control, can someone point me to the right direction, I'm not seen it :(

Thanks in advance.
