Trax

ListView Cosmetics

5 posts in this topic

I have a three column ListView. All three columns are linked. The only scroll bar that is "active" is on column one. The scroll bar is also on column 2 and 3 but doesn't work (as was intended). Is there any way to turn off the scroll bar on columns 2 and 3 so it isn't even visible?

Share this post


Link to post
Share on other sites



Trax,

I have never seen a ListView with scrollbars for each column. Can you please post the code you are using to create it. :wacko:

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <EditConstants.au3>
#include <Constants.au3>
#include <GUIListBox.au3>
#include <GUIEdit.au3>
#include <GuiListView.au3>
#include <Array.au3>
#include <ButtonConstants.au3>
#include <ScrollBarConstants.au3>
#include <MsgBoxConstants.au3>
#include <Misc.au3>
#include <File.au3>
#include <GuiScrollBars.au3>
#include <GuiHeader.au3>

Local $Index, $LV1, $LV2, $LV3, $L1_EX, $L2_EX, $L3_EX

Create_Listview()

While 1
   Sleep(5000)
WEnd

Func Create_Listview()
    Local $Index, $LV1, $LV2, $LV3, $L1_EX, $L2_EX, $L3_EX
    $GUIhandle = GUICreate("ListView", 680, 575, -1, -1, $WS_SIZEBOX + $WS_SYSMENU + $WS_MAXIMIZEBOX + $WS_MINIMIZEBOX) ;creates the parent window
    $List1 = GUICtrlCreateListView("Computer Name ", 20, 35, 300, 448, -1, $LVS_EX_DOUBLEBUFFER)
    $cLabel_1 = GUICtrlCreateLabel("", 20, 35, 300, 448)
    GUICtrlSetState($cLabel_1, $GUI_DISABLE)
    GUICtrlSetResizing($cLabel_1, $GUI_DOCKAUTO)
    GUICtrlSetBkColor($cLabel_1, $GUI_BKCOLOR_TRANSPARENT)
    _GUICtrlListView_SetExtendedListViewStyle($List1, $LVS_EX_TWOCLICKACTIVATE)
    $List2 = GUICtrlCreateListView("Date/Time", 355, 35, 190, 450, -1, $LVS_EX_DOUBLEBUFFER)
    $cLabel_2 = GUICtrlCreateLabel("", 355, 35, 190, 450)
    GUICtrlSetState($cLabel_2, $GUI_DISABLE)
    GUICtrlSetResizing($cLabel_2, $GUI_DOCKAUTO)
    GUICtrlSetBkColor($cLabel_2, $GUI_BKCOLOR_TRANSPARENT)
    $List3 = GUICtrlCreateListView("RPM", 574, 35, 95, 450, -1, $LVS_EX_DOUBLEBUFFER)
    $cLabel_3 = GUICtrlCreateLabel("", 574, 35, 95, 450)
    GUICtrlSetState($cLabel_3, $GUI_DISABLE)
    GUICtrlSetResizing($cLabel_3, $GUI_DOCKAUTO)
    GUICtrlSetBkColor($cLabel_3, $GUI_BKCOLOR_TRANSPARENT)
    GUISetState(@SW_SHOW) ;shows the GUI window
    For $Index = 0 To 50
        _GUICtrlListView_AddItem($List1, "Name " & $Index)
        _GUICtrlListView_AddItem($List2, "1:00 pm")
        _GUICtrlListView_AddItem($List3, $Index)
    Next

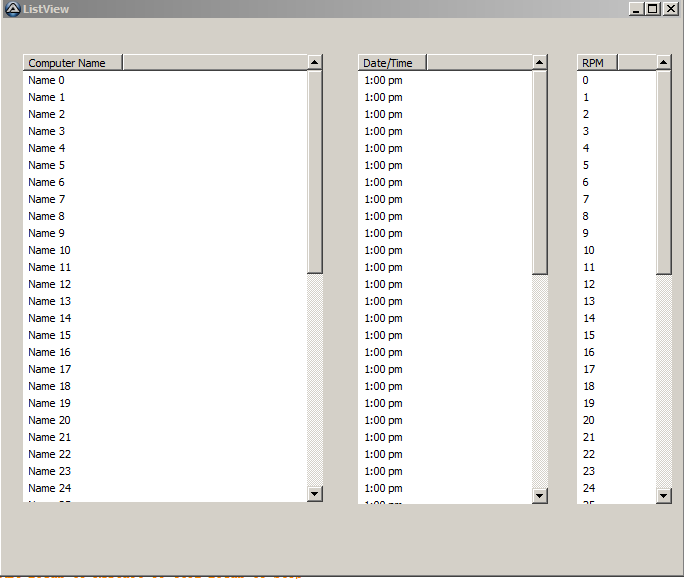

EndFunThe code and the screenshot are attached.

The code and the screenshot are attached. Column 2 and 3 are linked to column 1 so what I ultimately want to do is get rid of the scroll bar all together on columns 2 and 3. I would also like to take the headers on all three columns to the full column width right off the bat if that is possible. Thanks!

post-86678-0-29962100-1414786952_thumb.p

Share this post


Link to post
Share on other sites

Trax,

That is 3 separate ListViews. If they are all linked, why not make them into a single ListView like this? :huh:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GuiListView.au3>

Create_Listview()

While 1
   Sleep(5000)
WEnd

Func Create_Listview()
    Local $LV1
    $GUIhandle = GUICreate("ListView", 680, 575, -1, -1, $WS_SIZEBOX + $WS_SYSMENU + $WS_MAXIMIZEBOX + $WS_MINIMIZEBOX) ;creates the parent window

    $List1 = GUICtrlCreateListView("Computer Name|Date/Time|RPM", 20, 35, 580, 448, -1, $LVS_EX_DOUBLEBUFFER)
    _GUICtrlListView_SetColumnWidth($List1, 0, 300)
    _GUICtrlListView_SetColumnWidth($List1, 1, 190)
    _GUICtrlListView_SetColumnWidth($List1, 2, 73)

    $cLabel_1 = GUICtrlCreateLabel("", 20, 35, 580, 448)
    GUICtrlSetState($cLabel_1, $GUI_DISABLE)
    GUICtrlSetResizing($cLabel_1, $GUI_DOCKAUTO)
    GUICtrlSetBkColor($cLabel_1, $GUI_BKCOLOR_TRANSPARENT)
    _GUICtrlListView_SetExtendedListViewStyle($List1, $LVS_EX_TWOCLICKACTIVATE)

    GUISetState(@SW_SHOW) ;shows the GUI window

    For $Index = 0 To 50
        GUICtrlCreateListViewItem("Name " & $Index & "|1:00 pm|" & $Index, $List1)
    Next

EndFunc
Now you have the one scrollbar you wanted. :)
