How to define/display extended Unicode character?

Recommended Posts

qwert

Sorry if the answer to this is widely known ... but I can’t find it. I need to display some of the extended characters that are available in certain fonts (... "the ones that support unicode", I suppose is the way to describe them.)  I can see the character in the Character Map, but I can't get any charcter with a numeric value above 255 to display.



I could list all the things I’ve tried that didn’t work, but that would only confuse readers.

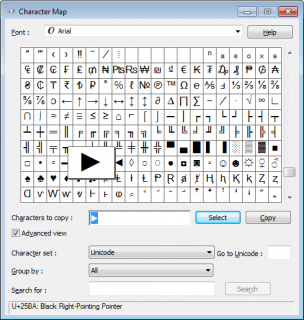

What’s the proper way to display Arial Right-Pointing Pointer in a label control? (i.e., GUICtrlCreateLabel)



post-29172-0-43837100-1421951909_thumb.p

Share this post


Link to post
Share on other sites
Melba23

qwert,

Use ChrW: ;)

#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>

$hGUI = GUICreate("Test", 500, 500)

GUICtrlCreateLabel(ChrW(0x25BA), 10, 10, 50, 50) ; <<<<<<<<<<<<<<<<<<<<<<<<<<<<
GUICtrlSetFont(-1, 32)

GUISetState()

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch
WEnd
M23
  • Like 1

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
qwert

Addendum

For anyone interested in using extended characters, I want to mention that Lucida Sans Unicode offers some interesting symbols at the end of its character set.



For reference, here's an example of use:

GUICtrlCreateLabel(ChrW(0x25B7), 8, 70, 14, 18)
GUICtrlSetFont(-1, 12, 400, 0, "Lucida Sans Unicode")

 post-29172-0-45073000-1421988839_thumb.p
