Is this possible? A multi box GUICtrlCreateGroup

8 posts in this topic

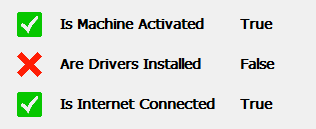

i was loooking to emphasize some tick boxes so i thought of doing this around them to define them better

I can do it in a function i guess with a lot of copy/paste there will be 18 or so to do

So i just wondered if there was an easier way?

#include <GUIConstantsEx.au3>

Example()

Func Example()
    GUICreate("My GUI group") ; will create a dialog box that when displayed is centered

local $group = GUICtrlCreateGroup("", 30, 100, 50, 50)
DllCall("UxTheme.dll", "int", "SetWindowTheme", "hwnd", GUICtrlGetHandle($group), "wstr", 0, "wstr", 0)
$group = GUICtrlCreateGroup("", 30, 142, 50, 50)
DllCall("UxTheme.dll", "int", "SetWindowTheme", "hwnd", GUICtrlGetHandle($group), "wstr", 0, "wstr", 0)

    GUISetState(@SW_SHOW) ; will display an empty dialog box

    ; Loop until the user exits.
    While 1
        Switch GUIGetMsg()
            Case $GUI_EVENT_CLOSE
                ExitLoop
        EndSwitch
    WEnd
EndFunc   ;==>Example



Share this post


Link to post
Share on other sites



Chimaera,

I would do something with labels like this: :)

#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>

Example()

Func Example()
    GUICreate("My GUI group")

    $cCheck_1 = _CreateHilightCheck(30, 100, 50, 50)

    $cCheck_2 = _CreateHilightCheck(30, 148, 50, 50)

    GUISetState(@SW_SHOW)

    While 1
        Switch GUIGetMsg()
            Case $GUI_EVENT_CLOSE
                ExitLoop
            Case $cCheck_1
                MsgBox($MB_SYSTEMMODAL, "Check", "Check 1 actioned")
            Case $cCheck_2
                MsgBox($MB_SYSTEMMODAL, "Check", "Check 2 actioned")
        EndSwitch
    WEnd
EndFunc   ;==>Example

Func _CreateHilightCheck($iX, $iY, $iW, $iD)

    GUICtrlCreateLabel("", $iX, $iY, $iW, $iD)
    GUICtrlSetBkColor(-1, 0)
    GUICtrlSetState(-1, $GUI_DISABLE)
    GUICtrlCreateLabel("", $iX + 1, $iY + 1, $iW - 2, $iD - 2)
    GUICtrlSetState(-1, $GUI_DISABLE)
    Return GUICtrlCreateCheckbox("", $iX + 17, $iY + 17, 17, 17)

EndFunc
M23

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

#3 ·  Posted (edited)

Sorry i may have mislead you a little there

Tick boxes like green ticks but not in a box the Group is intended to be kinda a box

What im after is still a decorative feature with nothing inside it

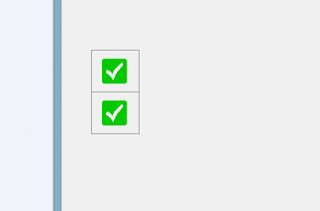

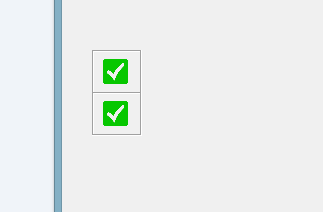

like this


Edited by Chimaera

Share this post


Link to post
Share on other sites

Chimaera,

You certainly have confused me. What exactly do you want? :wacko:

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Chimaera,

Then just remove the GUICtrlCreateCheckbox line and add a GUICtrlGetPic one in its place :)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

#8 ·  Posted (edited)

Chimaera,

Then GUICtrlCreateIcon would be the function to use. :)

M23

Edited by Melba23
Fixed BB tags
