qwert

Unwanted transparency processing ... turn off?

7 posts in this topic

Recently, I moved some bitmap images from being referenced disk files with statements like:

GUICtrlCreatePic(@ScriptDir & “Image.bmp", 100, 20, 200, 60)

to being installed in the EXE by AutoItWrapper’s Add File feature ... and then being displayed with ResourceEx UDF:

$hBmp = _Resource_Get(“IMAGE”, $RT_BITMAP)

_Resource_SetBitmapToCtrlID($Pic, $hBmp)



The file referencing worked fine. But lo and behold, some of the “embedded” bitmaps displayed with missing areas—transparent pixels. (BTW, my main GUI is not a layered GUI, which my understanding is that is required for transparent image effects.)



“Hmmm.” Then I remembered the about the “first pixel” method of displaying transparent images. A detailed investigation of exactly the color value of the pixels revealed they were all the same: 0xF0F0F0.  “Hmmm ... That’s the color of the default GUI background on Windows 7.”  Yet these exact bitmaps displayed fine when coming from their own BMP files.



Digging a little deeper (into ResourcesEx) I noted two things:

 • kernel32.dll and user32.dll calls are made to display the images

 • the wide(W) version of parameters are used in the calls. For example:

$aResult = DllCall("user32.dll", "handle", "LoadImageW", "handle", $hInstance, "wstr", $bmp, "uint", $IMAGE_BITMAP, "int", 0, "int", 0, "uint", 0)



Here’s an msdn reference:

https://msdn.microsoft.com/en-us/library/windows/desktop/ms648045%28v=vs.85%29.aspx?f=255&MSPPError=-2147217396

In particular, note the complexity of msdn’s description of the processing of the color parameters.



And here’s a discussion regarding the differences in the Wide and Normal parameters:

http://www.cplusplus.com/forum/articles/16820/



So, my questions are:

Is it possible that the last user32 call parameter (fuLoad [in]) is being misformatted?

And mainly:  Is it possible to entirely disable image transparency processing for a GUI?



I realize it’s almost impossible to figure some of these things out, so I’m not expecting a fix ... not really. But I wanted to bring this case to light just in case someone else encounters it.



I’ve worked around my immediate problem by changing all 0xF0F0F0 bits to 0xF0F0F1. But I would like to be able to turn off transparency processing completely to avoid any future problems.



Thanks in advance to anyone who is able to shed some light on this.

Share this post


Link to post
Share on other sites



@qwert: do you have a small reproducer?


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites

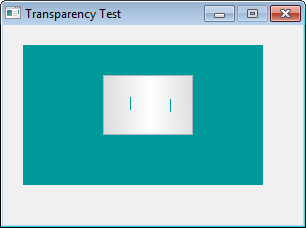

Here's a small example using a gradient BMP.  The two "defects" are where the gradient passes through the 0xF0F0F0 color value.

#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_Res_Fileversion=1.1.1.1
#AutoIt3Wrapper_Res_requestedExecutionLevel=asInvoker
#AutoIt3Wrapper_Res_File_Add=D:\Au3 Scripts\My Forum Contribs\Test BMP.bmp, RT_BITMAP, IMAGE
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <ResourcesEx.au3>

$GUI = GUICreate("Transparency Test", 300, 200)
$Label = GUICtrlCreateLabel("", 20, 20, 240, 140)
GUICtrlSetBkColor(-2, 0x009999)
$Pic = GUICtrlCreatePic("", 100, 50, 90, 60)
$hBmp = _Resource_Get("IMAGE", $RT_BITMAP)
_Resource_SetBitmapToCtrlID($Pic, $hBmp)

GUISetState(@SW_SHOW)

While 1
    $GUIGetMsg = GUIGetMsg()
    Switch $GUIGetMsg
        Case $GUI_EVENT_CLOSE
        Exit
    EndSwitch
WEnd


Test BMP.bmp

Share this post


Link to post
Share on other sites

Well, _Resource_Get doesn't exists in ResourcesEx.au3. I have to use _Resource_GetAsBitmap instead but the result looks good for me.

Tested on Win 8.1 x64 using latest stable / beta.



Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites

Wow.

The change you've made does work.

But I'm confused by it.

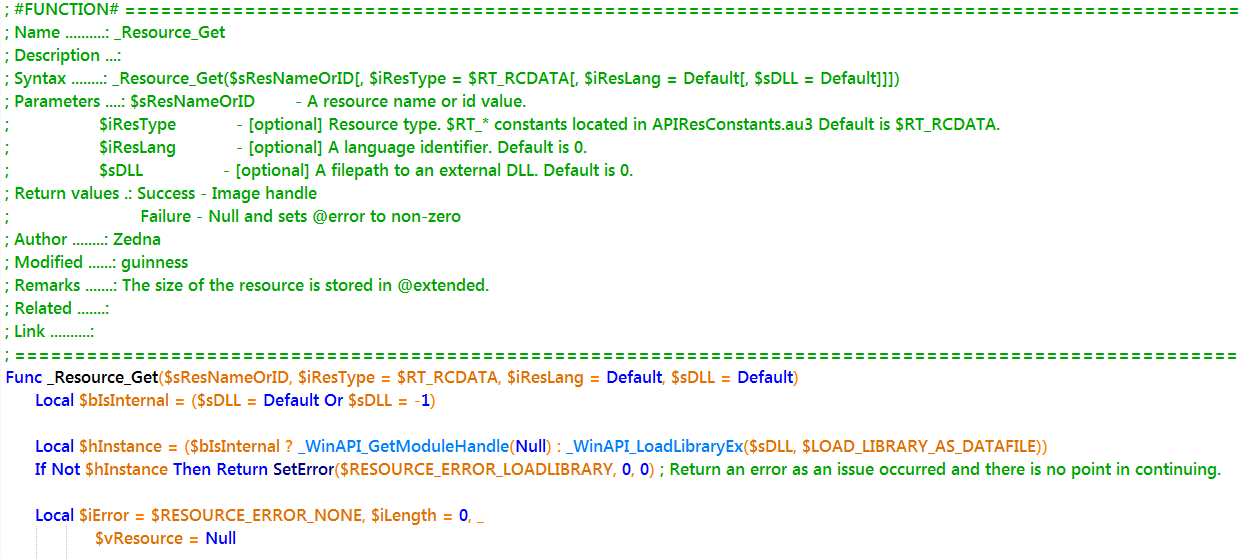

_Resource_Get() does exist in the copy of ResourcesEX.au3 that I have (v3.3.12.0, I thought) and is called immediately by _Resouce_GetAsImage() ... which is the function called immediately by _Resouce_GetAsBitmap():

Func _Resource_GetAsBitmap($sResNameOrID, $iResType = $RT_RCDATA, $sDLL = Default)
    Local $hImage = _Resource_GetAsImage($sResNameOrID, $iResType, $sDLL)
    Local $iError = @error
    Local $iLength = @extended
    Return SetError($iError, $iLength, (($iError = $RESOURCE_ERROR_NONE) ? _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage) : 0)) ; hBitmap type.
EndFunc   ;==>_Resource_GetAsBitmap
:
:
V
Func _Resource_GetAsImage($sResNameOrID, $iResType = $RT_RCDATA, $sDLL = Default)
    If $iResType = Default Then $iResType = $RT_RCDATA
    Local $vResource = _Resource_Get($sResNameOrID, $iResType, 0, $sDLL)
    Local $iError = @error
    Local $iLength = @extended

    Local $hImage = 0
    If $iError = $RESOURCE_ERROR_NONE And $iLength > 0 Then
        If $iResType = $RT_BITMAP Then
            ; $vResource is hBitmap type.
            $hImage = _GDIPlus_BitmapCreateFromHBITMAP($vResource)
        Else
            ; $vResource is memory pointer.
            Local $hData = _MemGlobalAlloc($iLength, $GMEM_MOVEABLE)
            Local $pData = _MemGlobalLock($hData)
            _MemMoveMemory($vResource, $pData, $iLength)
            _MemGlobalUnlock($hData)
            Local $pStream = _WinAPI_CreateStreamOnHGlobal($hData)
            $hImage = _GDIPlus_BitmapCreateFromStream($pStream) ; hImage type
            _WinAPI_ReleaseStream($pStream)
        EndIf
    EndIf
    Return SetError($iError, $iLength, $hImage)
EndFunc   ;==>_Resource_GetAsImage

Return _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage) seems to be the difference.

In what slight way does an HBITMAP differ from the bitmap in $hImage?  Both of them display, as we've shown.

I do appreciate that you've figured this out.  I'm just confused by what I'm seeing.

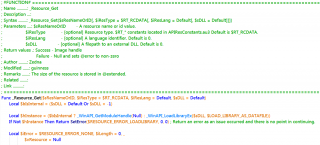

post-29172-0-20994800-1429788192_thumb.p

Share this post


Link to post
Share on other sites

The difference between $hHBitmap and $hImage is simple:

$hHBitmap is a GDI bitmap and

$hImage is a GDIPlus bitmap.

Both are not compatible with each other and GUI elements need a GDI bitmap not in GDIPlus format!

_GDIPlus_BitmapCreateHBITMAPFromBitmap creates a GDI bitmap from a GDIPlus bitmap which can be send to the control.


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites

#7 ·  Posted (edited)

GUI elements need a GDI bitmap not in GDIPlus format!

I want to put that up in lights.

In 7 years of using AU3 and bitmaps, I've never seen that simple fact stated.

Thanks, UEZ, for making it clear.

Edited by qwert
