Mingre

Edit control showing line number

7 posts in this topic

Hello, is there a way to make an edit control like that in SciTe

Thank you!

Share this post


Link to post
Share on other sites



Hello, I searched thru the help file about RichEdit but didn't find what I've been looking for. Or if I missed it, will you direct me to the function you're referring? Thanks.

Share this post


Link to post
Share on other sites

#include <GuiRichEdit.au3>
_GUICtrlRichEdit_Create ( $hWnd, $sText, $iLeft, $iTop [, $iWidth = 150 [, $iHeight = 150 [, $iStyle = -1 [, $iExStyle = -1]]]] )



Examplein the help file:

#include <GUIConstantsEx.au3>
#include <GuiRichEdit.au3>
#include <WindowsConstants.au3>

Example()

Func Example()
    Local $hGui, $hRichEdit, $iMsg
    $hGui = GUICreate("Example (" & StringTrimRight(@ScriptName, StringLen(".exe")) & ")", 320, 350, -1, -1)
    $hRichEdit = _GUICtrlRichEdit_Create($hGui, "This is a test.", 10, 10, 300, 220, _
            BitOR($ES_MULTILINE, $WS_VSCROLL, $ES_AUTOVSCROLL))
    _GUICtrlRichEdit_AppendText($hRichEdit, @CRLF & "This is more text")
    GUISetState(@SW_SHOW)

    While True
        $iMsg = GUIGetMsg()
        Select
            Case $iMsg = $GUI_EVENT_CLOSE
                _GUICtrlRichEdit_Destroy($hRichEdit) ; needed unless script crashes
                ; GUIDelete()   ; is OK too
                Exit
        EndSelect
    WEnd
EndFunc   ;==>Example

may i know what exactly you want.Are you trying to make an editor like scite


No matter whatever the challenge maybe control on the outcome its on you its always have been.

MY UDF: Transpond UDF (Sent vriables to Programs) , Utter UDF (Speech Recognition)

Share this post


Link to post
Share on other sites

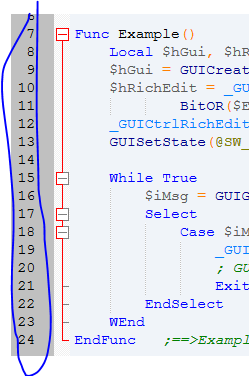

Hello, sorry If I wasn't clear but this is what I would like to do. :(

hh.thumb.PNG.5dd9314f733342b1000e780ba88



Share this post


Link to post
Share on other sites

#7 ·  Posted (edited)

mingre,

This is how I did it some years ago:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>

#Include <GuiEdit.au3>

;Global $bEditMode = True

Global $iLineCount = 0 ; Keep a global count so we can check if it has changed

$hGUI = GUICreate("Test", 200, 200)

$cEdit_Num = GUICtrlCreateEdit("", 10, 13, 25, 165, BitOR($ES_AUTOVSCROLL, $ES_READONLY), 0)
GUICtrlSetState(-1, $GUI_DISABLE)
GUICtrlSetData(-1, "1")
GUICtrlSetBkColor(-1, 0xC0DCC0)

$cEdit_Main = GUICtrlCreateEdit("", 36, 10, 96, 175)
GUICtrlSetResizing(-1, $GUI_DOCKLEFT + $GUI_DOCKRIGHT + $GUI_DOCKTOP + $GUI_DOCKBOTTOM)
GUICtrlCreateLabel("", 10, 164, 25, 11)
GUICtrlSetBkColor(-1, 0xC0DCC0)

GUISetState(@SW_SHOW)

AdlibRegister("_LineNum", 100)

$sStuff = ""
For $i = 1 To 20
    GUICtrlSetData($cEdit_Main, "Blah " & $i & @CRLF, 1)
    Sleep(250)
Next

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch



WEnd



Func _LineNum() ; line numbering
    Local $iCount = _GUICtrlEdit_GetLineCount ($cEdit_Main)

    ;Check if the number of lines has changed in $cEdit_Main
    ;since this function was last called
    If $iCount <> $iLineCount Then
        ;save the new count to the global variable
        $iLineCount = $iCount

        Local $iNumCount = _GUICtrlEdit_GetLineCount ($cEdit_Num)
        If $iLineCount > $iNumCount Then
            For $i = $iNumCount + 1 To $iLineCount

                _GUICtrlEdit_AppendText ($cEdit_Num, @CRLF & $i)
            Next
        ElseIf $iLineCount < $iNumCount Then
            $text = GUICtrlRead($cEdit_Num)
            For $i = $iNumCount To $iLineCount + 1 Step -1
                $text = StringReplace($text,@CRLF & $i,"")
            Next
            GUICtrlSetData($cEdit_Num, $text)
        EndIf

    EndIf

    Local $iFirstVisMain = _GUICtrlEdit_GetFirstVisibleLine ($cEdit_Main)
    Local $iFirstVisNum = _GUICtrlEdit_GetFirstVisibleLine ($cEdit_Num)
    If $iFirstVisMain <> $iFirstVisNum Then
        _GUICtrlEdit_LineScroll($cEdit_Num, 0, $iFirstVisMain - $iFirstVisNum)
    EndIf
EndFunc

I will look at how I might update the code to use a message handler rather than Adlib.

M23

Edit: And here it is:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>

#Include <GuiEdit.au3>

; Create flag
$bEditChanged = False

Global $iLineCount = 0 ; Keep a global count so we can check if it has changed

$hGUI = GUICreate("Test", 200, 200)

$cEdit_Num = GUICtrlCreateEdit("", 10, 13, 25, 165, BitOR($ES_AUTOVSCROLL, $ES_READONLY), 0)
GUICtrlSetState(-1, $GUI_DISABLE)
GUICtrlSetData(-1, "1")
GUICtrlSetBkColor(-1, 0xC0DCC0)

$cEdit_Main = GUICtrlCreateEdit("", 36, 10, 96, 175)
GUICtrlSetResizing(-1, $GUI_DOCKLEFT + $GUI_DOCKRIGHT + $GUI_DOCKTOP + $GUI_DOCKBOTTOM)
GUICtrlCreateLabel("", 10, 164, 25, 11)
GUICtrlSetBkColor(-1, 0xC0DCC0)

GUISetState(@SW_SHOW)

GUIRegisterMsg($WM_COMMAND, "_WM_COMMAND")

; Example code only ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
$iNewLine = 1
$nBegin = TimerInit()
; End of example code ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch

    ; If flag set
    If $bEditChanged Then
        ; Adjust numbering if required
        _LineNum()
        ; Clear flag
        $bEditChanged = False
    EndIf

; Example code only ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    ; Add 20 lines - once every 250 msecs
    If TimerDiff($nBegin) > 250 And $iNewLine < 20 Then
        ; Add a line to show it working
        GUICtrlSetData($cEdit_Main, "Blah " & $iNewLine & @CRLF, 1)
        ; Increase count
        $iNewLine += 1
        ; Reset timer
        $nBegin = TimerInit()
    EndIf
; End of example code ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

WEnd

Func _WM_COMMAND($hWHnd, $iMsg, $wParam, $lParam)

    ; If it was an update message from the edit
    If _WinAPI_HiWord($wParam) = $EN_CHANGE And _WinAPI_LoWord($wParam) = $cEdit_Main Then
        ; Set the label to the new data
        $bEditChanged = True
    EndIf

EndFunc   ;==>_WM_COMMAND

Func _LineNum() ; line numbering
    Local $iCount = _GUICtrlEdit_GetLineCount ($cEdit_Main)

    ;Check if the number of lines has changed in $cEdit_Main
    ;since this function was last called
    If $iCount <> $iLineCount Then
        ;save the new count to the global variable
        $iLineCount = $iCount
        Local $iNumCount = _GUICtrlEdit_GetLineCount ($cEdit_Num)
        If $iLineCount > $iNumCount Then
            For $i = $iNumCount + 1 To $iLineCount
                _GUICtrlEdit_AppendText ($cEdit_Num, @CRLF & $i)
            Next
        ElseIf $iLineCount < $iNumCount Then
            $text = GUICtrlRead($cEdit_Num)
            For $i = $iNumCount To $iLineCount + 1 Step -1
                $text = StringReplace($text,@CRLF & $i,"")
            Next
            GUICtrlSetData($cEdit_Num, $text)
        EndIf
    EndIf
    Local $iFirstVisMain = _GUICtrlEdit_GetFirstVisibleLine ($cEdit_Main)
    Local $iFirstVisNum = _GUICtrlEdit_GetFirstVisibleLine ($cEdit_Num)
    If $iFirstVisMain <> $iFirstVisNum Then
        _GUICtrlEdit_LineScroll($cEdit_Num, 0, $iFirstVisMain - $iFirstVisNum)
    EndIf
EndFunc



Edited by Melba23
