ice2921

Map Network Drive With Password Prompt

13 posts in this topic

Hello,

I feel as though this may be an easy question for you experts out there, but Ill ask anyway. I would like to utilize AutoIT for script that would prompt a user for their username and password. I know that this can done a variety of ways, but I am unsure what the easiest rout is. The computers that the script will be running from are on a WORKGROUP and not part of the domain that has network shares.

Ive been looking at this script that member Zedna wrote, but I tested it and it didn't seem like it was working from a computers outside the domain.

#AutoIt3Wrapper_icon=your_icon.ico
#AutoIt3Wrapper_Run_Obfuscator=y
#obfuscator_parameters=/striponly
#NoTrayIcon

#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#include <GuiStatusBar.au3>

Global $ext = StringRight(@ScriptName, 4) ; .exe or .au3
Global $ini = StringReplace(@ScriptName,$ext,'.ini')

Global $ini_device = IniRead($ini, "Options", "Device", "X:")
Global $ini_share = IniRead($ini, "Options", "Share", "\\filerserver\")
If StringRight($ini_share, 1) <> "\" Then $ini_share &= "\"

$Form1 = GUICreate("Connect To Your Drive", 265, 140)
$username_id = GUICtrlCreateInput("", 88, 16, 153, 21)
$password_id = GUICtrlCreateInput("", 87, 44, 153, 21, $ES_PASSWORD)
GUICtrlCreateLabel("&Username", 24, 16, 52, 17)
GUICtrlCreateLabel("&Password", 26, 46, 50, 17)
$connect = GUICtrlCreateButton("&Connect", 24, 80, 217, 33, BitOr($GUI_SS_DEFAULT_BUTTON, $BS_DEFPUSHBUTTON))
$StatusBar1 = _GUICtrlStatusBar_Create($Form1)
_GUICtrlStatusBar_SetText($StatusBar1, $ini_device & " --> " & $ini_share)
GUISetState(@SW_SHOW)

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $connect
            Connect()
    EndSwitch
WEnd

Func Connect()
    $username = GUICtrlRead($username_id)
    $password = GUICtrlRead($password_id)

    If $username = '' Or $password = '' Then
        MsgBox(16, 'Error', 'Empty username or password')
        Return
    EndIf

    If DriveMapGet($ini_device) <> '' Then ; very fast
        MsgBox(16, 'Error', 'The device is already assigned')
        Return
    EndIf

    GUISetCursor(15,1)
    DriveMapAdd($ini_device, $ini_share & $username, 0, $username, $password) ; slow
    If @error Then
        Switch @error
            Case 1
                $err_message = 'Undefined / Other error. Windows API return code: ' & @extended
            Case 2
                $err_message = 'Access to the remote share was denied'
            Case 3
                $err_message = 'The device is already assigned'
            Case 4
                $err_message = 'Invalid device name'
            Case 5
                $err_message = 'Invalid remote share'
            Case 6
                $err_message = 'Invalid password'
        EndSwitch
        GUISetCursor(2)
        MsgBox(16, 'Error', $err_message)
    Else ; everything OK
        Exit
    EndIf
EndFunc

Share this post


Link to post
Share on other sites



The most super simple way to get user input from a code standpoint is InputBox() but with the GUI creation tools out there you can make a GUI very easily as well and it could be a bit better presentation and give you more options/expandability.



So I would start with basic first, get it working and then improve as needed/desired.

For mapping drives I still use CMD Net Use as DriveMapAdd kind was flaky for me.

;Just an example may not be runnable code
$sUser = InputBox("Input Your Username", "Input Your Username")
$sPass = InputBox("Input Your Password", "Input Your Password")

Run(@ComSpec & " /k Net Use H: \\MyDirectory\Share /Persistent:Yes /User:" & $sUser & " " & $sPass)

Depending on your environment if the connection username is the same as the current user name just use the macro @Username and don't ask the person to enter it.   You can add the @SW_HIDE and such to the cmd so that you do not see the cmd window open briefly.  Etc.

Share this post


Link to post
Share on other sites

So my main issue it that the computers are part of a WORKGROUP and need to authenticate against Active Directory. I do not want to store the password. All I want it to do is prompt for it.

Share this post


Link to post
Share on other sites

Also I though those flags were defined here in the code I originally posted:

DriveMapAdd($ini_device, $ini_share & $username, 0, $username, $password) ; slow



Share this post


Link to post
Share on other sites

Can you try this ?

DriveMapAdd($ini_device, $ini_share & $username, $DMA_AUTHENTICATION)

Don't forget the include AutoItConstants.au3

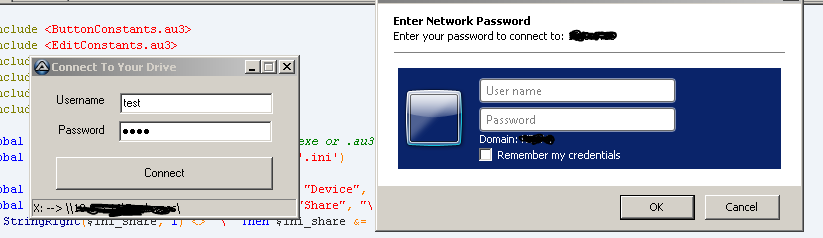

So what its doing now is prompting me twice for credentials. I think its looking for the domain name before the username. See attachmCapture01.thumb.PNG.9e7a1643a09964b56ecdent.

Share this post


Link to post
Share on other sites

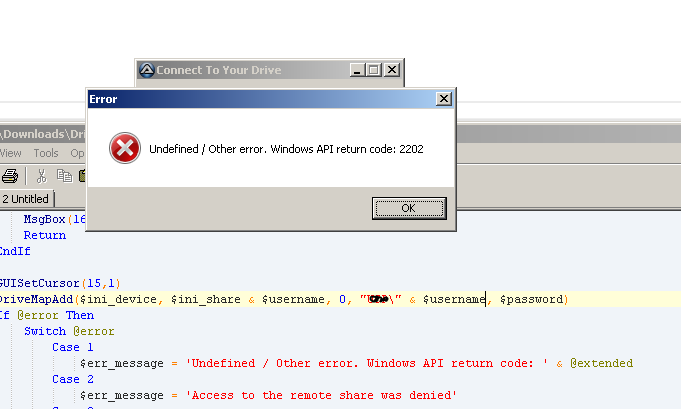

I added the domain name in the "DomainName\" got another errorCapture02.thumb.PNG.fb838998a2b25156257a

Share this post


Link to post
Share on other sites

error 2202 is ERROR_BAD_USERNAME : https://msdn.microsoft.com/en-us/library/windows/desktop/ms681386(v=vs.85).aspx

Can you try with the net use command in a command prompt ? Look at the syntax ViciousXUSMC used in #2, and test with or without the domain name before the username.



Share this post


Link to post
Share on other sites

The most super simple way to get user input from a code standpoint is InputBox() but with the GUI creation tools out there you can make a GUI very easily as well and it could be a bit better presentation and give you more options/expandability.



So I would start with basic first, get it working and then improve as needed/desired.

For mapping drives I still use CMD Net Use as DriveMapAdd kind was flaky for me.

;Just an example may not be runnable code
$sUser = InputBox("Input Your Username", "Input Your Username")
$sPass = InputBox("Input Your Password", "Input Your Password")

Run(@ComSpec & " /k Net Use H: \\MyDirectory\Share /Persistent:Yes /User:" & $sUser & " " & $sPass)

Depending on your environment if the connection username is the same as the current user name just use the macro @Username and don't ask the person to enter it.   You can add the @SW_HIDE and such to the cmd so that you do not see the cmd window open briefly.  Etc.

So I actually got this to work. I no have two questions:

1. How do I suppress the command prompts from coming up?

2. How do I add a share with a space in it. like \\server\my share vs \\server\myshare do I need to use quotes?
