algiuxas

GDIPlus DrawImageRect Problem

4 posts in this topic

#1 ·  Posted (edited)

Hello,

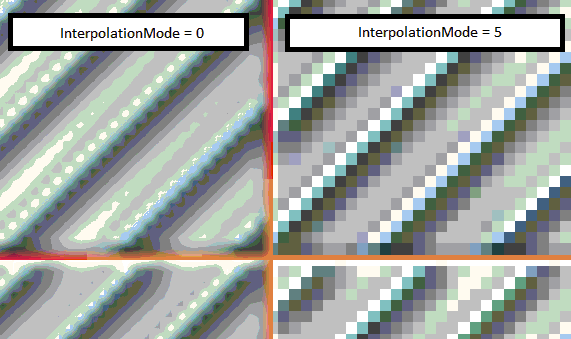

I have problem with _GDIPlus_GraphicsDrawImageRect, here is picture:


I set _GDIPlus_GraphicsSetInterpolationMode to 5.

I can see it moves to top half pixel, and it moves to left half pixel too.

I need to fix space between images, anybody can help me fix it?


Thanks!

Edited by algiuxas


Share this post


Link to post
Share on other sites



Post your code that we can see what you did.


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites

#3 ·  Posted (edited)

Post your code that we can see what you did.

$IMAGE = "test.bmp";DIRECTORY OF VERY SMALL IMAGE(I recommend use 3x3 size image)
$ExitTimer = 12;Exit in 12 secounds

#include <GDIPlus.au3>
#include <Math.au3>
#include <Misc.au3>
#include <GUIConstants.au3>
#include <GUIConstantsEx.au3>
Global $GraphicsSizeX, $GraphicsSizeY, $Font, $GUI, $TestIMAGE, _
    $Graphics, $Bitmap, $GfxCtxt, $BkColor, $SpaceBetweenGUICorners
$SpaceBetweenGUICorners = 64
$BkColor = 0xFF0000
$GraphicsSizeX = 600
$GraphicsSizeY = 600
$Font = "Century Gothic"
$GUI = GUICreate( "TEST", $GraphicsSizeX+$SpaceBetweenGUICorners*2, $GraphicsSizeY+$SpaceBetweenGUICorners*2, -1, -1)
_GDIPlus_Startup()
$TestIMAGE   = _GDIPlus_ImageLoadFromFile($IMAGE)
$Graphics = _GDIPlus_GraphicsCreateFromHWND($GUI)
$Bitmap = _GDIPlus_BitmapCreateFromGraphics($GraphicsSizeX, $GraphicsSizeY, $Graphics)
$GfxCtxt = _GDIPlus_ImageGetGraphicsContext($Bitmap)
GUISetFont(8.5,400,1,$Font)
$Timer = TimerInit()
GUISetState()
Do
    _GDIPlus_GraphicsClear($GfxCtxt, 0xFF000000+$BkColor)
    ;----------------------#1----------------------;
    _GDIPlus_GraphicsSetInterpolationMode ( $GfxCtxt, 5 )
    DrawIMG($TestIMAGE,0,0,$GraphicsSizeX/2,$GraphicsSizeY/2)
    DrawText("#1 InterpolationMode = 5(Nearest-neighbor)",0,0)
    ;----------------------#2----------------------;
    _GDIPlus_GraphicsSetInterpolationMode ( $GfxCtxt, 1 )
    DrawIMG($TestIMAGE,$GraphicsSizeX/2,0,$GraphicsSizeX/2,$GraphicsSizeY/2)
    DrawText("#2 InterpolationMode = 1(Low-quality)",$GraphicsSizeX/2,0)
    ;----------------------#3----------------------;
    _GDIPlus_GraphicsSetInterpolationMode ( $GfxCtxt, 3 )
    DrawIMG($TestIMAGE,0,$GraphicsSizeY/2,$GraphicsSizeX/2,$GraphicsSizeY/2)
    DrawText("#3 InterpolationMode = 3{Bilinear)",0,$GraphicsSizeY/2)
    ;----------------------#4----------------------;
    _GDIPlus_GraphicsSetInterpolationMode ( $GfxCtxt, 5 )
    DrawIMG($TestIMAGE,$GraphicsSizeX/2,$GraphicsSizeY/2,$GraphicsSizeX/2,$GraphicsSizeY/2)
    DrawText("#4 InterpolationMode = 5(Nearest-neighbor)",$GraphicsSizeX/2,$GraphicsSizeY/2)
    ;----------------------------------------------;
    $TimerSec = Round(TimerDiff($Timer)/1000,1)
    If $TimerSec > $ExitTimer then $TimerSec = $ExitTimer
    DrawText($ExitTimer-$TimerSec&"s",0,20)
    _GDIPlus_GraphicsDrawImage($Graphics, $Bitmap, $SpaceBetweenGUICorners, $SpaceBetweenGUICorners)
    Sleep(250)
Until $TimerSec >= $ExitTimer ;Exit after 12 secounds
_GDIPlus_BitmapDispose($Bitmap)
_GDIPlus_Shutdown()
GUIDelete()
exit

Func DrawIMG($IMG,$PosX,$PosY,$SizeX=1,$SizeY=1)
;~  $PosR = IG_GetPosBS($PosX,$PosY)
;~  _GDIPlus_GraphicsDrawImageRect($GfxCtxt, $IMG, $PosR[0], $PosR[1], _
;~      NormalizeGraphicsN($DefSize*$SizeX,0), NormalizeGraphicsN($DefSize*$SizeY,1))
    _GDIPlus_GraphicsDrawImageRect($GfxCtxt, $IMG, $PosX, $PosY, _
        $SizeX, $SizeY)
    _GDIPlus_GraphicsDrawLine($GfxCtxt,$PosX,$PosY,$PosX,$PosY+$SizeY)
    _GDIPlus_GraphicsDrawLine($GfxCtxt,$PosX,$PosY,$PosX+$SizeX,$PosY+$SizeY)
    _GDIPlus_GraphicsDrawLine($GfxCtxt,$PosX,$PosY,$PosX+$SizeY,$PosY)
    _GDIPlus_GraphicsDrawLine($GfxCtxt,$PosX+$SizeY,$PosY,$PosX+$SizeY,$PosY)
;~  Return $PosR
EndFunc
Func DrawText($Text,$PosX,$PosY)
    ;Make GDIPlus DrawString text in center
;~  $L0 = GUICtrlCreateLabel($Text,0,-25)
;~  $L0C = ControlGetPos( $GUI, "", $L0 )[2]-5
;~  GUICtrlDelete($L0)
    $L0C = 0
;~  $PosR = IG_GetPosBS($PosX,$PosY)
;~  _GDIPlus_GraphicsDrawString($GfxCtxt, $Text, $PosR[0]-$L0C/2,$PosR[1], $Font, 8.5 )
    _GDIPlus_GraphicsDrawString($GfxCtxt, $Text, $PosX-$L0C/2,$PosY, $Font, 10 )
;~  Return $PosR
EndFunc

Image(3x3 size):  test.bmp


Edited by algiuxas


Share this post


Link to post
Share on other sites

Add this line just after $GfxCtxt = _GDIPlus_ImageGetGraphicsContext($Bitmap) and it should work

$GfxCtxt = _GDIPlus_ImageGetGraphicsContext($Bitmap)
_GDIPlus_GraphicsSetPixelOffsetMode($GfxCtxt, 2) ;this line
GUISetFont(8.5,400,1,$Font)
