MrKris1224

Connect two points with line

7 posts in this topic

Hi, i have problem and i haven't any idea how to solve it.

Let's assume that. I have 2 points in 2D array marked as 1. other cells are 0. Now i wanna to connect these two points with line but there is problem because these two points are in array. Anyone have idea how to do it?

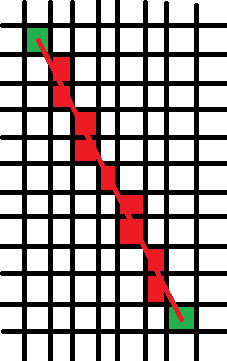

Simply, this picture is 2D array. Green squares are two points in array which i wanna to connect. The red line and red squares are line which i wanna to "draw" in array by some function. But how this function can looks?

Please help me. I am trying solve this for several weeks.

Share this post


Link to post
Share on other sites



You've been trying for several weeks, how about posting your code rather than making us guess?


When you're dead, you don't know you're dead - it's only difficult for those that know you. It's the same way when you're stupid...

My Scripts: SCCM UDFInclude Source with Compiled Script, Windows Firewall UDF

Share this post


Link to post
Share on other sites

Google "Bresenham".


This wonderful site allows debugging and testing regular expressions (many flavors available). An absolute must have in your bookmarks.
Another excellent RegExp tutorial. Don't forget downloading your copy of up-to-date pcretest.exe and pcregrep.exe here
RegExp tutorial: enough to get started
PCRE v8.33 regexp documentation latest available release and currently implemented in AutoIt beta.

SQLitespeed is another feature-rich premier SQLite manager (includes import/export). Well worth a try.
SQLite Expert (freeware Personal Edition or payware Pro version) is a very useful SQLite database manager.
An excellent eBook covering almost every aspect of SQLite3: a must-read for anyone doing serious work.
SQL tutorial (covers "generic" SQL, but most of it applies to SQLite as well)
A work-in-progress SQLite3 tutorial. Don't miss other LxyzTHW pages!
SQLite official website with full documentation (may be newer than the SQLite library that comes standard with AutoIt)

Share this post


Link to post
Share on other sites

This is matter of middle oak.
You need to apply the equation of the line Y = a * X + b where a = slope of the line.
Calculating the "a"
A = Δy / Δx or (Y - Yo) / (X - Xo) or (Yb - Ya) / (Xb - Xa)
Now simply substitute the coordinates of a point to define the "b".
B = y-ax
So just looping to define the values of y for the X components

Share this post


Link to post
Share on other sites

#5 ·  Posted (edited)

No need to reinvent the wheel -> quick search!

#include <Array.au3>

Global $aCanvas[25][12]

drawBresenhamLine($aCanvas, 1, 1, 10, 21)
_ArrayDisplay($aCanvas)

Func drawBresenhamLine(ByRef $aArray, $iX0, $iY0, $iX1, $iY1, $bSE = True)
    Local $iDx = Abs($iX1 - $iX0)
    Local $iSx = $iX0 < $iX1 ? 1 : -1
    Local $iDy = Abs($iY1 - $iY0)
    Local $iSy = $iY0 < $iY1 ? 1 : -1
    Local $iErr = ($iDx > $iDy ? $iDx : -$iDy) / 2, $e2
    Local $iSX = $iX0, $iEY = $iY0
    While $iX0 <= $iX1
        $aArray[$iY0][$iX0] = "*"
        If ($iX0 = $iX1) And ($iY0 = $iY1) Then ExitLoop
        $e2 = $iErr
        If ($e2 > -$iDx) Then
            $iErr -= $iDy
            $iX0 += $iSx
        EndIf
        If ($e2 < $iDy) Then
            $iErr += $iDx
            $iY0 += $iSy
        EndIf
    WEnd
    If $bSE Then
        $aArray[$iEY][$iSx] = "S"
        $aArray[$iY1][$iX1] = "E"
    EndIf
    Return 1
EndFunc   ;==>drawBresenhamLine
Edited by UEZ
2 people like this

Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯

Share this post


Link to post
Share on other sites

Thanks UEZ.

Share this post


Link to post
Share on other sites

.... also, from a quick search "Bresenham" within www.autoitscript.com -->

within above link there are function to plot lines, circles, ellipses and Bezier segments:

here a quick example of use:

#cs
    The Beauty of Bresenham's Algorithm
    A simple implementation to plot lines, circles, ellipses and Bézier curves.
    http://members.chello.at/~easyfilter/bresenham.html
#ce
; ------------------------------------------
#include <array.au3>

Global $aArray[25][25] ; [x][y]  0 to 24
Global $aEmpty = $aArray

plotLine(0,0,24,24) ; start y, start x , end y, end x
_ArrayDisplay($aArray)
$aArray = $aEmpty

plotCircle(12, 12, 11) ; y center, x center, ray
_ArrayDisplay($aArray)
$aArray = $aEmpty

; plot an ellipse into a box
plotEllipseRect(3, 1, 15, 8) ; y upleft, x upleft, y downright, x downright
plotEllipseRect(1, 11, 23, 23) ; second ellipse in the same array
_ArrayDisplay($aArray)
$aArray = $aEmpty

; start point , curve point , end point
plotQuadBezierSeg(0,0, 0,24, 24,24) ; y,x,   y,x,   y,x
_ArrayDisplay($aArray)

; ------------------------------------------
; Line
Func plotLine($x0, $y0, $x1, $y1)
    Local $dx = Abs($x1 - $x0), $sx = $x0 < $x1 ? 1 : - 1
    Local $dy = -Abs($y1 - $y0), $sy = $y0 < $y1 ? 1 : - 1
    Local $err = $dx + $dy, $e2 ; /* error value e_xy */

    While 1 ;  /* loop */
        setPixel($x0, $y0)
        If($x0 = $x1 And $y0 = $y1) Then ExitLoop ; break
        $e2 = 2 * $err
        If($e2 >= $dy) Then ; /* e_xy + e_x > 0 */
            $err += $dy
            $x0 += $sx ; /* x step */
        EndIf
        If($e2 <= $dx) Then ; /* e_xy + e_y < 0 */
            $err += $dx
            $y0 += $sy ; /* y step */
        EndIf
    WEnd

EndFunc   ;==>plotLine

; Circle
Func plotCircle($xm, $ym, $r)
    Local $x = -$r, $y = 0, $err = 2 - 2 * $r ; /* II. Quadrant */
    While($x < 0); Do
        setPixel($xm - $x, $ym + $y); /*   I. Quadrant */
        setPixel($xm - $y, $ym - $x); /*  II. Quadrant */
        setPixel($xm + $x, $ym - $y); /* III. Quadrant */
        setPixel($xm + $y, $ym + $x); /*  IV. Quadrant */
        $r = $err;
        If($r <= $y) Then ;           /* e_xy+e_y < 0 */
            $y += 1
            $err += $y * 2 + 1
        EndIf
        If($r > $x Or $err > $y) Then ; /* e_xy+e_x > 0 or no 2nd y-step */
            $x += 1
            $err += $x * 2 + 1
        EndIf
    WEnd ; While ($x < 0);
EndFunc   ;==>plotCircle

; Ellipse
; This function plots an ellipse inside a specified rectangle.
Func plotEllipseRect($x0, $y0, $x1, $y1)
    Local $a = Abs($x1 - $x0), $b = Abs($y1 - $y0), $b1 = BitAND($b, 1) ;  $b1 = $b & 1; /* values of diameter */
    Local $dx = 4 * (1 - $a) * $b * $b, $dy = 4 * ($b1 + 1) * $a * $a ; /* error increment */
    Local $err = $dx + $dy + $b1 * $a * $a, $e2; /* error of 1.step */

    If($x0 > $x1) Then ; /* if called with swapped points */
        $x0 = $x1
        $x1 += $a
    EndIf
    If($y0 > $y1) Then $y0 = $y1 ; /* .. exchange them */
    $y0 += ($b + 1) / 2
    $y1 = $y0 - $b1 ;   /* starting pixel */
    $a *= 8 * $a;
    $b1 = 8 * $b * $b;

    While($x0 <= $x1) ; do [
        setPixel($x1, $y0); /*   I. Quadrant */
        setPixel($x0, $y0); /*  II. Quadrant */
        setPixel($x0, $y1); /* III. Quadrant */
        setPixel($x1, $y1); /*  IV. Quadrant */
        $e2 = 2 * $err;
        If($e2 <= $dy) Then
            $y0 += 1
            $y1 -= 1
            $dy += $a
            $err += $dy ; += $a; }  /* y step */
        EndIf
        If($e2 >= $dx Or 2 * $err > $dy) Then
            $x0 += 1
            $x1 -= 1
            $dx += $b1
            $err += $dx ; += $b1; } /* x step */
        EndIf
    WEnd ; while ($x0 <= $x1);

    While($y0 - $y1 < $b) ; [  /* too early stop of flat ellipses a=1 */
        setPixel($x0 - 1, $y0); /* -> finish tip of ellipse */

        $y0 += 1
        setPixel($x1 + 1, $y0) ; ++);

        setPixel($x0 - 1, $y1);

        $y1 -= 1
        setPixel($x1 + 1, $y1) ; --);
    WEnd
EndFunc   ;==>plotEllipseRect

; #cs
; Bézier curve
; This function plots a quadratic Bézier curve limited to gradients without sign change.
Func plotQuadBezierSeg($x0, $y0, $x1, $y1, $x2, $y2)

    Local $sx = $x2 - $x1, $sy = $y2 - $y1;
    Local $xx = $x0 - $x1, $yy = $y0 - $y1, $xy;         /* relative values for checks */
    Local $dx, $dy, $err, $cur = $xx * $sy - $yy * $sx;                    /* curvature */

    ; assert($xx * $sx <= 0 && $yy * $sy <= 0) ;  /* sign of gradient must not change */       <--------- ? ? ? ? what's this

    ;If ($sx * (long) $sx + $sy * (long) $sy > $xx * $xx + $yy * $yy) Then ; { /* begin with longer part */
    If($sx * $sx + $sy * $sy > $xx * $xx + $yy * $yy) Then ; { /* begin with longer part */    <--------- (Long) removed
        $x2 = $x0
        $x0 = $sx + $x1
        $y2 = $y0
        $y0 = $sy + $y1
        $cur = -$cur ;  /* swap P0 P2 */
    EndIf ; }
    If($cur <> 0) Then ;{ / * no straight line * /
        $xx += $sx
        ; **************************
        $sx = ($x0 < $x2 ? 1 : - 1)
        $xx *= $sx ; = $x0 < $x2 ? 1 : -1 ;           /* x step direction */

        $yy += $sy

        $sy = ($y0 < $y2 ? 1 : - 1)
        $yy *= $sy ; = $y0 < $y2 ? 1 : -1 ;           /* y step direction */
        ; **************************
        $xy = 2 * $xx * $yy
        $xx *= $xx
        $yy *= $yy ;          /* differences 2nd degree */
        If($cur * $sx * $sy < 0) Then ;{         /* negated curvature? */
            $xx = -$xx
            $yy = -$yy
            $xy = -$xy
            $cur = -$cur
        EndIf ; }
        $dx = 4.0 * $sy * $cur * ($x1 - $x0) + $xx - $xy;             /* differences 1st degree */
        $dy = 4.0 * $sx * $cur * ($y0 - $y1) + $yy - $xy;
        $xx += $xx
        $yy += $yy
        $err = $dx + $dy + $xy;                /* error 1st step */
        While($dy < $dx) ; do {
            setPixel($x0, $y0);                                     /* plot curve */
            ; If ($x0 == $x2 && $y0 == $y2) Then Return;  /* last pixel -> curve finished */
            If($x0 = $x2 And $y0 = $y2) Then Return;  /* last pixel -> curve finished */
            $y1 = 2 * $err < $dx;                  /* save value for test of y step */
            If(2 * $err > $dy) Then
                $x0 += $sx
                $dx -= $xy
                $dy += $yy
                $err += $dy ; += $yy;
            EndIf ; } /* x step */
            If($y1) Then
                $y0 += $sy
                $dy -= $xy
                $dx += $xx
                $err += $dx ; += xx;
            EndIf ; } /* y step */
        WEnd ;} while (dy < dx );           /* gradient negates -> algorithm fails */
    EndIf ; }
    plotLine($x0, $y0, $x2, $y2);               /* plot remaining part to end */
EndFunc   ;==>plotQuadBezierSeg

Func setPixel($x0, $y0); it draws a single pixel
    $aArray[$x0][$y0] = "*"
    Return
EndFunc   ;==>_setPixel



1 person likes this
