weevil

ControlClick refuses to click on button

2 posts in this topic

#1 ·  Posted (edited)

Hi,



I've got a funny window that doesn't seem to be playing ball.  The Window info is below:

No matter what I try, either by using the title, the class, bringing it into focus using WinExist IF statement, even just using "Send ("{ENTER}")" isn't working and the button is in focus!!



>>>> Window <<<<
Title:  Reflection Workspace
Class:  #32770
Position:   401, 422
Size:   484, 189
Style:  0x94C801C5
ExStyle:    0x00010101
Handle: 0x003F1300

>>>> Control <<<<
Class:  Button
Instance:   1
ClassnameNN:    Button1
Name:
Advanced (Class):   [CLASS:Button; INSTANCE:1]
ID: 2
Text:   OK
Position:   382, 124
Size:   88, 26
ControlClick Coords:    25, 22
Style:  0x50030000
ExStyle:    0x00000004
Handle: 0x005F0AC6

>>>> Mouse <<<<
Position:   811, 593
Cursor ID:  0
Color:  0xCFCFCF

>>>> StatusBar <<<<

>>>> ToolsBar <<<<

>>>> Visible Text <<<<
OK
Unable to locate Theme file: ProgramFilesFolder\Attachmate\Reflection\Private\Default\Users\Themes\Reflection2007.3270.themex.
The default theme will be used.


>>>> Hidden Text <<<<

My code for this window at the moment is:

While 1
    If WinExists("[CLASS:#32770") Then
      MsgBox(0, "", "Win now exists")
        $hWnd = WinGetHandle("[Class:#32770]")
        Sleep(2000)
        ControlClick($hWnd, "", "[CLASS:Button1; INSTANCE:1]")
        Send("{ENTER}")
        Exit
    Else
        ContinueLoop
    EndIf
WEnd

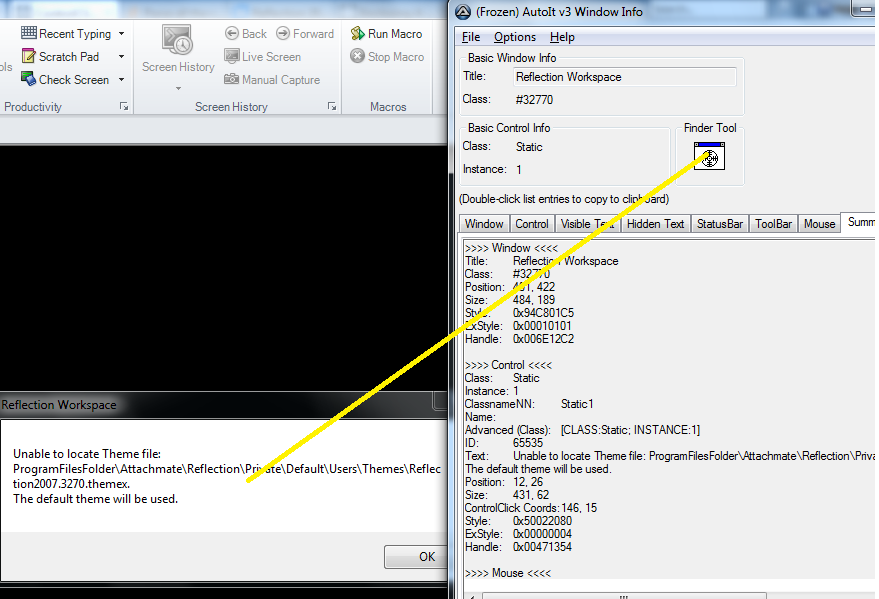

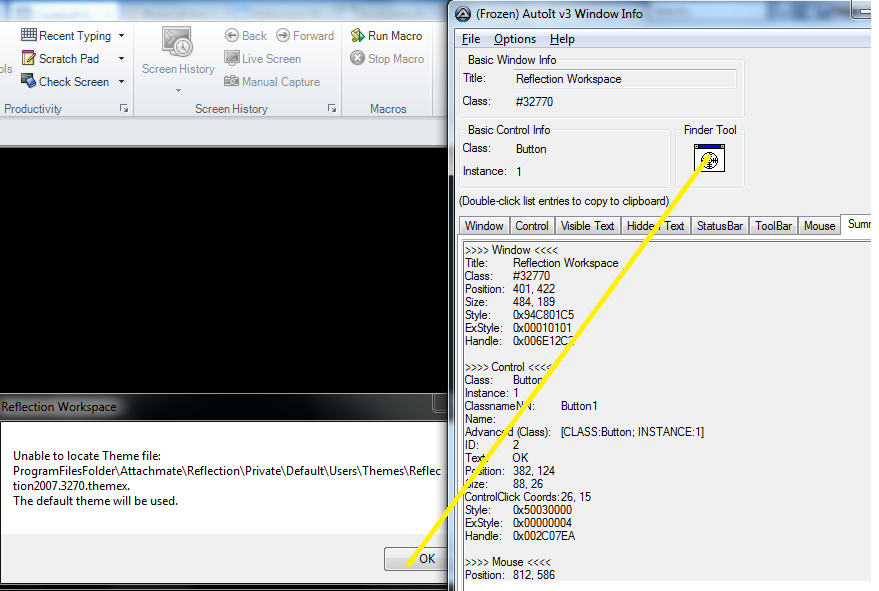

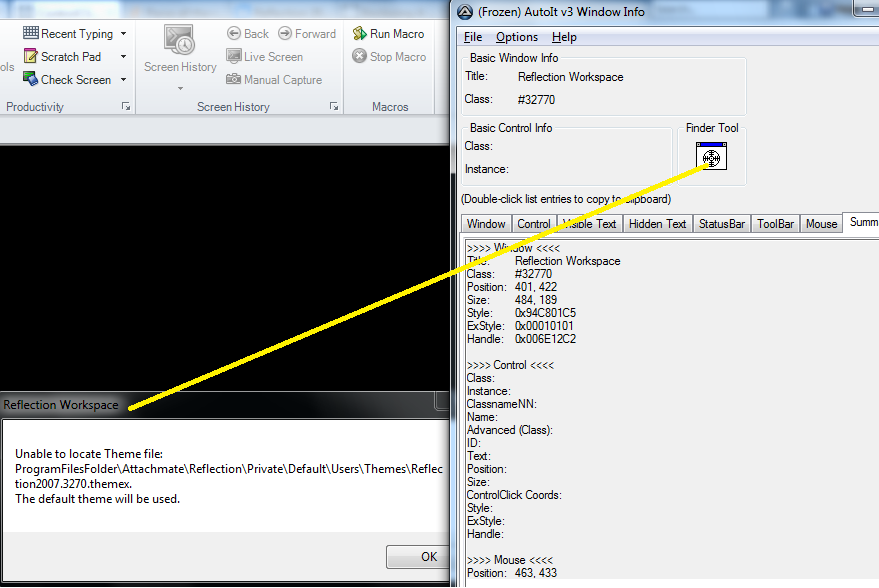

As you can see I tried to manually press enter which just doesn't do anything,  I've confirmed via ConsoleWrite debugging that the if statement does actually find the window, but nothing happens. :( WindowInfo also seems to find 3 distinct sections of the popup box.  I've attached 3 images, each one has the windowinfo tool pointing at different bits - the button, the body and the title.  How do I know which one autoit will see at any given time?  Or will it see all 3?  Very confused!






Edited by weevil
added more info
