How to make listview like this?

Recommended Posts

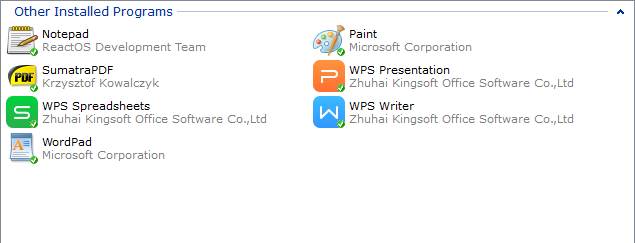

Any way to make listview like this:


I found listview example that looks similar to this but dont know how to get list of programs. Anyone can show me some example for getting list of programs shown in open with window?

Share this post

Link to post
Share on other sites


Use the $LVS_SMALLICON style when creating the ListView.


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:


ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area


Share this post

Link to post
Share on other sites

for getting the list of programs shown in open with..,  you could try something like this


#include <array.au3>
Global $read = "HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\FileExts\"
Global $path1 = 'HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\App Paths\'
Global $path2 = 'HKEY_CLASSES_ROOT\Applications\'

Local $types = '.rar,.pdf,.txt,.html,.mp3'
Local $type = StringSplit($types, ',')

For $i = 1 To $type[0]
    MsgBox($MB_SYSTEMMODAL, 'OpenWithList for *' & $type[$i] & ' files', GetOpenWith($type[$i]))

Func GetOpenWith($type)
    Local $var, $var1, $var2, $var3
    For $i = 1 To 100
        $var = RegEnumVal($read & $type & "\OpenWithList", $i)
        If @error Then ExitLoop
        If $var = "MRUList" Then ContinueLoop
        $var1 = RegRead($read & $type & "\OpenWithList", $var)
        $var2 = RegRead($path1 & $var1, '')
        If Not @error Then
            $var3 &= $var2 & @CRLF
            $var2 = RegRead($path2 & $var1 & "\shell\open\command", '')
            If Not @error Then
                $var3 &= StringTrimLeft(StringLeft($var2, StringInStr($var2, '" "', 1, -1) - 1), 1) & @CRLF
                $var3 &= $var1 & @CRLF
    Return $var3
EndFunc   ;==>GetOpenWith


Share this post

Link to post
Share on other sites
