Get value from radio button

33 posts in this topic

#1 ·  Posted

Hi,

I am new to Auto It,

I am trying to figure out how to get value from selected radio button, here is my code



Global $chkSomething, $CatA= 'Category A', $CatB='Category B'

Select
    Case GUICtrlRead($radio1) = 1
        $chkSomething = $CatA
    Case GUICtrlRead($radio2) = 1
        $chkSomething = $CatB
EndSelect

; I tried to call the value here
$categ = GUICtrlRead($chkSomething)
$errInfo = $errInfo & "~category='" & $categ & "'" & @CRLF

what did I do wrong? Please advise.

Share this post


Link to post
Share on other sites



#2 ·  Posted

could you post your whole script?


ill get to that... i still need to learn and understand a lot of codes graduated.gif

Correct answer, learn to walk before you take on that marathon.

Share this post


Link to post
Share on other sites

#3 ·  Posted

Would be too long here, and there is reason I cant attach the file, is there any code that needed to understand my problem better?

Share this post


Link to post
Share on other sites

#4 ·  Posted

Hi anub13,

Before you can get the value of each radio, you need to set it first to true. I have the same issue as what you have before and i have it below. Hope it helps you.

Try:

Example()
Func Example()
    ; Initialize a Local variable.
    Global $errInfo, $chkSomething
While 1
   $CatA= 'Category A'
   $CatB='Category B'
Select
   Case GUICtrlRead($Radio1) = 1
      $chkSomething = $CatA
   Case GUICtrlRead($Radio2) = 1
      $chkSomething = $CatB
EndSelect
WEnd
EndFunc   ;==>Example
Func Button1Click()
; I tried to call the value here
$categ = $chkSomething
MsgBox("", "Category selected", $categ)
Return
$errInfo = $errInfo & "~category='" & $categ & "'" & @CRLF
Exit

Or

Example()
Func Example()
    ; Initialize a Local variable.
    Global $errInfo, $chkSomething
While 1
   $CatA= 'Category A'
   $CatB='Category B'
Select
   Case GUICtrlRead($Radio1) = 1
      $chkSomething = $CatA
      MsgBox("", "Radio 1 selected", $chkSomething)
      Exit
   Case GUICtrlRead($Radio2) = 1
      $chkSomething = $CatB
      MsgBox("", "Radio 2 selected", $chkSomething)
      Exit
EndSelect
WEnd
EndFunc   ;==>Example
$errInfo = $errInfo & "~category='" & $categ & "'" & @CRLF
Exit

Better to provide more sample code so that this forum can help you more. Trust me.;)

Share this post


Link to post
Share on other sites

#5 ·  Posted

Hi,

Sorry for late reply, please find attached file for detailed code. Thanks for the reply Kickstarter15, appreciated, but not working.

MyFile.au3

Share this post


Link to post
Share on other sites

#6 ·  Posted

Basic Example:

#include <GUIConstantsEx.au3>

Example()

Func Example()
    ; Create a GUI with various controls.
    Local $hGUI = GUICreate("Example")
    $idRadio1 = GUICtrlCreateRadio("Wisecloud", 90, 160, 185, 25)
    $idRadio2 = GUICtrlCreateRadio("Internet Speed Etc", 90, 180, 185, 25)
    Local $idOK = GUICtrlCreateButton("OK", 310, 370, 85, 25)

    ; Display the GUI.
    GUISetState(@SW_SHOW, $hGUI)

    ; Loop until the user exits.
    While 1
        Switch GUIGetMsg()
            Case $GUI_EVENT_CLOSE
                ExitLoop
            Case $idOK
                If GUICtrlRead($idRadio1) = $GUI_CHECKED Then MsgBox(0,'', GUICtrlRead($idRadio1, 1))
                If GUICtrlRead($idRadio2) = $GUI_CHECKED Then MsgBox(0,'', GUICtrlRead($idRadio2, 1))
        EndSwitch
    WEnd

    ; Delete the previous GUI and all controls.
    GUIDelete($hGUI)
EndFunc   ;==>Example



Share this post


Link to post
Share on other sites

#7 ·  Posted

Hi Subz,
Thanks for the reply.. very appreciated, have you take look at whole script?

Share this post


Link to post
Share on other sites

#8 ·  Posted

Yes, I had a quick glance at the script, wasn't able to run completely as I didn't have the required software installed.  Not 100% sure if my post above helped at all but wasn't sure what you were hoping to achieve.

Share this post


Link to post
Share on other sites

#9 ·  Posted

As I said above, I am trying to figure out how to get value from selected radio button, then call/retrieve/pass that value to another
Please take a look at this code in the file



if $isAdminVersion=0 then
        $ASDFGInfo = $ASDFGInfo & @CRLF & " Ticket Tags:" & @CRLF
        $ASDFGInfo = $ASDFGInfo & "~userphone='" & GUICtrlRead($txtPhone) & "'" & @CRLF
        $ASDFGInfo = $ASDFGInfo & "~submitterphone='" & GUICtrlRead($txtPhone) & "'" & @CRLF

        dim $MachineID
        $MachineID = KaseyaIni($gKIniFile,"SERVER COMMUNICATIONS","User_Name","NotFound")
        $ASDFGInfo = $ASDFGInfo & "~machineid='" & $MachineID & "'" & @CRLF

        dim $OrgGroups
        $OrgGroups= StringSplit($MachineID,".")

        dim $OrgGroupIndex
        $OrgGroupIndex = UBound($OrgGroups) - 1
        $ASDFGInfo = $ASDFGInfo & "~organization='" & $OrgGroups[$OrgGroupIndex] & "'" & @CRLF

        dim $EmailUser
        $EmailUser = GUICtrlRead($txtEmailAddress)
        $EmailUser = StringMid($EmailUser,1,StringInStr($EmailUser,"@") - 1)

        $ASDFGInfo = $ASDFGInfo & "~username='" & $EmailUser & "'" & @CRLF

        dim $categ
        $categ = GUICtrlRead($chkPatrol)
        $ASDFGInfo = $ASDFGInfo & "~category='" & $categ & "'" & @CRLF

        $ASDFGInfo = $ASDFGInfo & "~afterhour='" & $AfterHour & "'" & @CRLF
    endif

    Return $ASDFGInfo

I am trying to input it on $categ, but always showing the output as '0'

Share this post


Link to post
Share on other sites

#10 ·  Posted

Right think I understand, $chkPatrol isn't a Gui Control so you shouldn't be using GuiCtrlRead($chkPatrol), you should just have $categ = $chkPatrol

Share this post


Link to post
Share on other sites

#11 ·  Posted

to lazy to run the code... :P

have you tried this?

$vRadio = ControlGetText($Form1_1, "", $radio1)




ill get to that... i still need to learn and understand a lot of codes graduated.gif

Correct answer, learn to walk before you take on that marathon.

Share this post


Link to post
Share on other sites

#12 ·  Posted

1 minute ago, 232showtime said:

to lazy to run the code... :P

have you tried this?

$vRadio = ControlGetText($Form1_1, "", $radio1)



Will try



4 minutes ago, Subz said:

Right think I understand, $chkPatrol isn't a Gui Control so you shouldn't be using GuiCtrlRead($chkPatrol), you should just have $categ = $chkPatrol

Will try

Thanks, be right back soon.

Share this post


Link to post
Share on other sites

#13 ·  Posted

Hi Subz,

it gives nothing...

Hi 232Showtime,

It does the trick! But I wonder why showing always to internet speed etc and when I change the option its still that option, any ideas? I Put them like this


dim $categ
        $categ = ControlGetText($Form1_1, "", $radio1)
        $categ = ControlGetText($Form1_1, "", $radio2)
        $ASDFGInfo =  $ASDFGInfo & "~category='" & $categ & "'" & @CRLF

Sorry i am complete newb :D

This code is from previous worker, and I just learned it.

Share this post


Link to post
Share on other sites

#14 ·  Posted

Global $chkPatrol, $Wise= 'Wisecloud', $Internet ='Internet Speed Etc'

Select
    Case GUICtrlRead($radio1) = 1
        $chkPatrol = $Wise
    Case GUICtrlRead($radio2) = 1
        $chkPatrol = $Internet
EndSelect

Based upon the code in your script, $chkPatrol = $Wise or $Internet if the Radio is checked, so if you run MsgBox(0, "", $chkPatrol) after the code above it should return either one of those values.

Share this post


Link to post
Share on other sites

#15 ·  Posted (edited)

@anub13 How about having it this way:

Global $chkPatrol, $Wise= 'Wisecloud', $Internet ='Internet Speed Etc'

Select
   Case GUICtrlRead($Radio1) = 1
      $chkSomething = $Wise
   Case GUICtrlRead($Radio2) = 1
      $chkSomething = $Internet
EndSelect
If $chkSomething = true Then
$categ = $chkSomething
MsgBox("","Selected",$categ)
Return
Endif



Edited by KickStarter15

Share this post


Link to post
Share on other sites

#16 ·  Posted

Hi Subz,

I tried it like this, did I do anything wrong? It still show nothing

Select
    Case GUICtrlRead($Radio1) = 1
        $chkPatrol = $Wise
        MsgBox(0, "", $chkPatrol)
    Case GUICtrlRead($Radio2) = 1
        $chkPatrol = $Internet
        MsgBox(0, "", $chkPatrol)
EndSelect


dim $categ
        $categ = $chkPatrol
        $ASDFGInfo = $ASDFGInfo & "~category='" & $categ & "'" & @CRLF



Hi Kickstarter15,

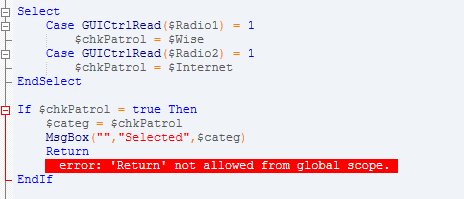

Showing error :( , please find attached file for detail


Share this post


Link to post
Share on other sites

#17 ·  Posted

Here is the code using my Gui example above:

#include <GUIConstantsEx.au3>

Example()

Func Example()
    ; Create a GUI with various controls.
    Local $chkPatrol, $Wise= 'Wisecloud', $Internet ='Internet Speed Etc'
    Local $hGUI = GUICreate("Example")
    $idRadio1 = GUICtrlCreateRadio("Wisecloud", 90, 160, 185, 25)
    $idRadio2 = GUICtrlCreateRadio("Internet Speed Etc", 90, 180, 185, 25)
    Local $idOK = GUICtrlCreateButton("OK", 310, 370, 85, 25)

    ; Display the GUI.
    GUISetState(@SW_SHOW, $hGUI)

    ; Loop until the user exits.
    While 1
        Switch GUIGetMsg()
            Case $GUI_EVENT_CLOSE
                ExitLoop
            Case $idOK
                Select
                    Case GUICtrlRead($idRadio1) = 1
                        $chkPatrol = $Wise
                    Case GUICtrlRead($idRadio2) = 1
                        $chkPatrol = $Internet
                EndSelect
                $categ = $chkPatrol
                $ASDFGInfo = ""
                $ASDFGInfo = $ASDFGInfo & "~category='" & $categ & "'" & @CRLF
                MsgBox(0,'', $ASDFGInfo)

        EndSwitch
    WEnd

    ; Delete the previous GUI and all controls.
    GUIDelete($hGUI)
EndFunc   ;==>Example



Share this post


Link to post
Share on other sites

#18 ·  Posted (edited)

@anub13

Include this in your script, outside the function.

Global $chkPatrol, $Wise = 'Wisecloud', $Internet = 'Internet Speed Etc'

While 1
    If GUICtrlRead($radio1) = $GUI_CHECKED Then
        $chkPatrol = $Wise
        MsgBox(0, "", $chkPatrol)
    EndIf
    If GUICtrlRead($radio2) = $GUI_CHECKED Then
        $chkPatrol = $Internet
        MsgBox(0, "", $chkPatrol)
    EndIf
    Sleep(100)
WEnd



Edited by 232showtime
EDIT: Above Example is correct. IDK why its not working for you.

ill get to that... i still need to learn and understand a lot of codes graduated.gif

Correct answer, learn to walk before you take on that marathon.

Share this post


Link to post
Share on other sites

#19 ·  Posted (edited)

@anub13

Both Subz and 232Showtime's code are doing correctly as what you need. Same as with the below code:

#include <GUIConstantsEx.au3>

$Form1 = GUICreate("Form", 190, 100, 282, 200)
GUISetBkColor(0xA0A0A0)
GUISetOnEvent($GUI_EVENT_CLOSE, "Form1Close")
$Radio1 = GUICtrlCreateRadio("Radio 1", 25, 40, 55, 17)
$Radio2 = GUICtrlCreateRadio("Radio 2", 100, 35, 65, 25)
GUISetState(@SW_SHOW)

Example()
Func Example()
; Initialize a Local variable.
      Global $ASDFGInfo, $chkPatrol, $categ
      While 1
         $CatA= 'Wisecloud'
         $CatB='Internet Speed Etc'
   Select
      Case GUICtrlRead($Radio1) = 1
         $chkPatrol = $CatA
      Case GUICtrlRead($Radio2) = 1
         $chkPatrol = $CatB
   EndSelect
; Value prompted here as msgbox
   If $chkPatrol = true Then
      $categ = $chkPatrol
      $ASDFGInfo = $ASDFGInfo & "~category='" & $categ & "'" & @CRLF
      MsgBox("","",$ASDFGInfo)
   Exit
   EndIf
WEnd
EndFunc   ;==>Example
Exit
Func Form1Close()
Exit
EndFunc

Now if these codes won't work at your testing, please emphasized what you really wan't to achieve.^_^

These codes will get the value of what radio button was being selected, all these three codes from Subz and 232Showtime and mine has the same functions and desired output.:D



KS15

Edited by KickStarter15
Edited:

Share this post


Link to post
Share on other sites

#20 ·  Posted

Autoit Radio Example:

;~ #include <GUIConstantsEx.au3>
Global Const $GUI_EVENT_CLOSE = -3
Global Const $GUI_CHECKED = 1
;~ #include <MsgBoxConstants.au3>
Global Const $MB_ICONWARNING = 48

Global $hGUI = GUICreate("Autoit Radio :)", 568, 104, 763, 195)
Global $idRadio1 = GUICtrlCreateRadio("Radio 1 Text", 32, 24, 113, 17)
GUICtrlSetState($idRadio1, $GUI_CHECKED)
Global $idRadio2 = GUICtrlCreateRadio("Radio 2 Text", 184, 24, 113, 17)
Global $idButtonCheck = GUICtrlCreateButton("Check", 376, 16, 169, 33)
Global $idLabelStatus = GUICtrlCreateLabel("", 40, 64, 508, 17)
GUISetState(@SW_SHOW)

Global $chkSomething, $cSelect, $CatA = 'Category A', $CatB = 'Category B'
Global $idMsg
_CheckGUIinput(0)

While 1
    $idMsg = GUIGetMsg()
    Switch $idMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $idRadio1
            _CheckGUIinput(0)
        Case $idRadio2
            _CheckGUIinput(0)
        Case $idButtonCheck
            _CheckGUIinput(1)
    EndSwitch
    Sleep(10)
WEnd

Func _CheckGUIinput($showMsg = 0)
    If GUICtrlRead($idRadio1) = $GUI_CHECKED Then
        $chkSomething = $CatA
        $cSelect = GUICtrlRead($idRadio1, 1)
    Else
        $chkSomething = $CatB
        $cSelect = GUICtrlRead($idRadio2, 1)
    EndIf
    ConsoleWrite('You Select: "' & $cSelect & '" & Cat is: ' & $chkSomething & @CRLF)
    GUICtrlSetData($idLabelStatus, 'You Select: "' & $cSelect & '" & Cat is: ' & $chkSomething)
    If $showMsg Then Return MsgBox($MB_ICONWARNING, "Info", 'You Select: "' & $cSelect & '" & Cat is: ' & $chkSomething)
EndFunc   ;==>_CheckGUIinput




Regards,


Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
