AlexFing17

Problem Button functions

2 posts in this topic

#1 ·  Posted

hello,

from help from this forum i have been able to create many programs, with credits to everyone who help.
I am creating another app. But stucked.

My app has a client and server which, the client connects the server and opens a chat box.

PROBLEM.
It connects to the server if ip and port are input in a pop-up box, before it connects.

WHAT I NEED>

instead of the pop up input box. I want the box to be in the gui. Whereby if i enter the ip and port and then click on connect, then i will connect.

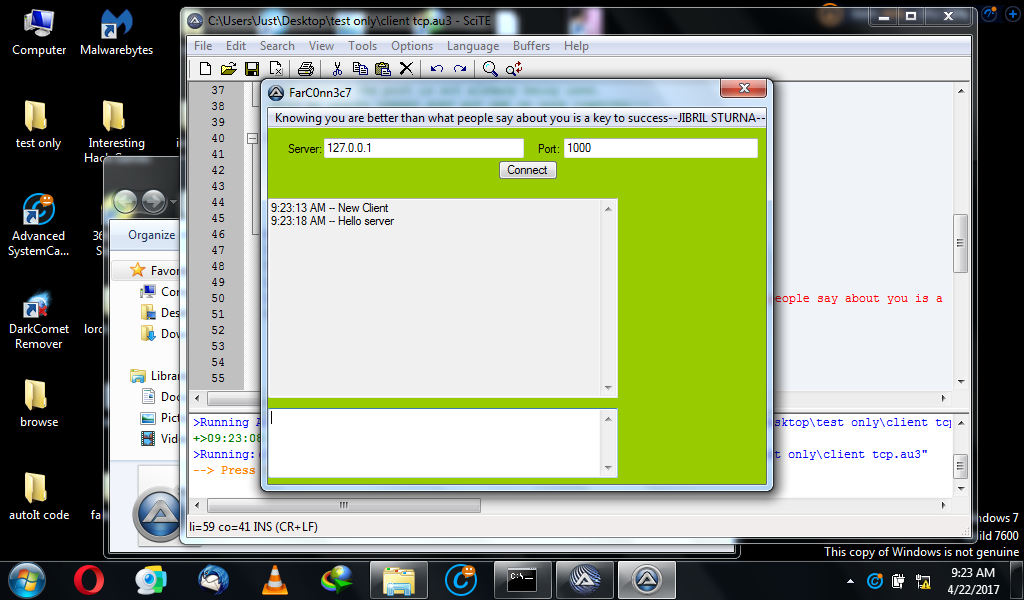

Below is pic of the pop-up and how i want it to be link in the gui..
And also the code is below







#include <GUICONSTANTS.AU3>
#include <WINDOWSCONSTANTS.AU3>
#include <STATICCONSTANTS.AU3>
#include <EDITCONSTANTS.AU3>
#include <MISC.AU3>
#Include <GuiEdit.au3>
#Include <WinAPI.au3>
#Include <DATE.au3>

; ===============================================================================================================================
; Global constants
; ==========================================================================================================================


Opt ('GUIoneventmode', 1)
$GUIStyle = BitOR($WS_DLGFRAME,$WS_POPUP, $WS_VISIBLE)
$GUIStyleEx = BitOR ($WS_EX_TOPMOST,$WS_EX_WINDOWEDGE)
$EditStyle = BitOR($ES_MULTILINE,$WS_VSCROLL)
$EditStyleEx = BitOR($EditStyle, $ES_READONLY)
$W = 0xFFFFFF
$B = 0x0
$Titleb = 0x7F7F7F
TCPStartup()
$0 = 0
$00 = 0
$000 = 0
$ip = InputBox ('IP=?','Please choose a funtioning IP for your server...',@IPAddress1)
;Makes the servers IP address... default is your @IPADDRESS1.
$port = InputBox ('Port=?','Please Choose a port # that is not being used...',Random (100, 10000,1))
;Makes the port # can be anything between 1 and 60000.
;(the maximum is a guess i don't know how many ports there are butits close).
;and ONLY if the port is not already being used.
;MUST BE SERVER OPENED PORT NOT ONE ON YOUR COMPUTER!!!

For $0 = 0 To 10
    $Socket = TCPConnect($ip, $port)
    ;Connects to an open socket on the server...
    If $Socket <> -1 Then ExitLoop
    TCPCloseSocket($Socket)
    Sleep(300)
Next
If $Socket = -1 Then _Exit ()
TCPSend ($Socket, @UserName & '^EXAMPLE DATA')
Local $GUI = GUICreate("FarC0nn3c7", 500, 400, -1, -1, $WS_SIZEBOX)
Local $idHelpMenu = GUICtrlCreateMenu("Knowing you are better than what people say about you is a key to success--JIBRIL STURNA-----")
GUICtrlCreateLabel("Server:", 2, 14, 52, 20, $SS_RIGHT)
    $ip = GUICtrlCreateEdit("127.0.0.1", 56, 10, 200, 20, $SS_LEFT)
    GUICtrlCreateLabel("Port:", 270, 14, 52, 20, $SS_Left)
    $port = GUICtrlCreateEdit("1000", 296, 10, 194, 20, $SS_LEFT)

    $g_idSend = GUICtrlCreateButton("Connect", 230, 32, 60, 20)
GUISetBkColor(0x99CC00)
$Console = GUICtrlCreateEdit ('',0,70,350,200,$EditStyleEx)
$Send = GUICtrlCreateEdit ('Hello server',0,280,350,70,$EditStyle)
GUICtrlSetLimit (-1, 250)
GUISetOnEvent ($GUI_EVENT_CLOSE, '_Exit', $GUI)
GUISetState ()
HotKeySet('{ENTER}', '_Send')
While 1
    _Recv_From_Server ()
    Sleep(100)
WEnd
Func _Send ()
    $0 = GUICtrlRead ($Send)
    If $0 = '' Then Return
    TCPSend($Socket, $0)
    GUICtrlSetData ($Send,'')
EndFunc   ;==>_send_
Func _Recv_From_Server ()
    $Recv = TCPRecv($Socket, 1000000)
    If $Recv = '' Then Return
    _GUICtrlEdit_AppendText ($Console,_NowTime () & ' -- ' & $Recv & @CRLF)
EndFunc   ;==>_Recv_From_Server_
Func _Minn ()
    WinSetState ($GUI, '', @SW_MINIMIZE)
EndFunc
Func _Exit ()
    TCPCloseSocket ($Socket)
    TCPShutdown()
    Exit
EndFunc   ;==>_Exit_





Share this post


Link to post
Share on other sites



#2 ·  Posted (edited)

You could just make the button link to the _Connect function?

#include <GUICONSTANTS.AU3>
#include <WINDOWSCONSTANTS.AU3>
#include <STATICCONSTANTS.AU3>
#include <EDITCONSTANTS.AU3>
#include <MISC.AU3>
#include <GuiEdit.au3>
#include <WinAPI.au3>
#include <DATE.au3>

; ===============================================================================================================================
; Global constants
; ==========================================================================================================================


Opt('GUIoneventmode', 1)
$GUIStyle = BitOR($WS_DLGFRAME, $WS_POPUP, $WS_VISIBLE)
$GUIStyleEx = BitOR($WS_EX_TOPMOST, $WS_EX_WINDOWEDGE)
$EditStyle = BitOR($ES_MULTILINE, $WS_VSCROLL)
$EditStyleEx = BitOR($EditStyle, $ES_READONLY)
$W = 0xFFFFFF
$B = 0x0
$Titleb = 0x7F7F7F
TCPStartup()
$0 = 0
$00 = 0
$000 = 0

Global $sIpAddress = "Default"
Global $iPort = 1000
Global $Socket = -1
;Makes the servers IP address... default is your @IPADDRESS1.
;Makes the port # can be anything between 1 and 60000.
;(the maximum is a guess i don't know how many ports there are butits close).
;and ONLY if the port is not already being used.
;MUST BE SERVER OPENED PORT NOT ONE ON YOUR COMPUTER!!!

Global $GUI = GUICreate("FarC0nn3c7", 500, 400, -1, -1, $WS_SIZEBOX)
Global $idHelpMenu = GUICtrlCreateMenu("Knowing you are better than what people say about you is a key to success--JIBRIL STURNA-----")
Global $lblServer = GUICtrlCreateLabel("Server:", 2, 14, 52, 20, $SS_RIGHT)
Global $inpIp = GUICtrlCreateInput($sIpAddress, 56, 10, 200, 20, $SS_LEFT)
Global $lblPort = GUICtrlCreateLabel("Port:", 270, 14, 52, 20, $SS_Left)
Global $inpPort = GUICtrlCreateInput($iPort, 296, 10, 194, 20, $SS_LEFT)

Global $btnReconnect = GUICtrlCreateButton("Connect", 230, 32, 60, 20)
Global $edtConsole = GUICtrlCreateEdit('', 0, 70, 350, 200, $EditStyleEx)
Global $edtMsg = GUICtrlCreateEdit('Hello server', 0, 280, 350, 70, $EditStyle)
GUICtrlSetLimit($edtMsg, 250)
GUICtrlSetState($btnReconnect, $GUI_DISABLE)
GUICtrlSetOnEvent($btnReconnect, _Connect)

GUISetOnEvent($GUI_EVENT_CLOSE, '_Exit', $GUI)
GUIRegisterMsg($WM_COMMAND, WM_COMMAND)
GUISetState()

HotKeySet('{ENTER}', '_Send')
GUISetBkColor(0x99CC00)

While 1
    _Recv_From_Server()
    Sleep(100)
WEnd

Func _Connect()
    For $0 = 0 To 10
        $Socket = TCPConnect($sIpAddress, $iPort)
        ;Connects to an open socket on the server...
        If $Socket <> -1 Then ExitLoop
        TCPCloseSocket($Socket)
        Sleep(300)
    Next
    If $Socket = -1 Then _Exit()
    TCPSend($Socket, @UserName & '^EXAMPLE DATA')
    GUICtrlSetData($btnReconnect, "Reconnect")
EndFunc   ;==>_Connect

Func _Send()
    $0 = GUICtrlRead($edtMsg)
    If $0 = '' Then Return
    TCPSend($Socket, $0)
    GUICtrlSetData($edtMsg, '')
EndFunc   ;==>_Send

Func _Recv_From_Server()
    $Recv = TCPRecv($Socket, 1000000)
    If $Recv = '' Then Return
    _GUICtrlEdit_AppendText($edtConsole, _NowTime() & ' -- ' & $Recv & @CRLF)
EndFunc   ;==>_Recv_From_Server

Func _Minn()
    WinSetState($GUI, '', @SW_MINIMIZE)
EndFunc   ;==>_Minn

Func _Exit()
    TCPCloseSocket($Socket)
    TCPShutdown()
    Exit
EndFunc   ;==>_Exit

; #FUNCTION# ====================================================================================================================
; Name...........: _ValidIP
; Description ...: Verifies that an IP address is a valid IPv4 address or not
; Syntax.........: _ValidIP($sIP)
; Parameters ....: $sIP - IP address to validate
;
; Return values .: Success - True
;                 Failure - False, sets @error
;                 |1 - IP address starts with an invalid number = 0, 127 , 169 or is > 239
;                 |2 - one of the octets of the IP address is out of the range 0-255 or contains invalid characters
;                 |3 - IP Address is not a valid dotted IP address (ex. valid address 190.40.100.20)
; Author ........: BrewManNH
; Modified.......: InunoTaishou: Return False instead of -1 on error and return True if valid IP address
; Remarks .......: Class A networks can't start with 0.xx.xx.xx. 127.xx.xx.xx isn't a valid IP address range. 169.xx.xx.xx is reserved and is invalid
;                 and any address that starts above 239, ex. 240.xx.xx.xx is reserved and should never be used or seen out in "the wild".
;                 The address range 224-239 1s reserved as well for Multicast  groups but can be a valid IP address range if you're
;                 using it as such.
;                 This will validate an IP address that is 4 octets long, and contains only numbers and falls within valid IP address values.
;                 Anything else sent to it should fail the test and return -1.
; Related .......:
; Link ..........: _GetIP
; Example .......: No
; Topic .........: https://www.autoitscript.com/forum/topic/133593-ipv4-validator-function/
; ===============================================================================================================================
Func _ValidIP($sIP)
    $Array = StringSplit($sIP, ".", 2)
    If Not IsArray($Array) Or UBound($Array) <> 4 Then Return SetError(3, 0, False)
    $String = "0x"
    If $Array[0] <= 0 Or $Array[0] > 239 Or $Array[0] = 127 Or $Array[0] = 169 Then
        Return SetError(1, 0, False)
    EndIf
    For $I = 0 To 3
        If $Array[$I] < 0 Or $Array[$I] > 255 Or Not StringIsDigit($Array[$I]) Then
            Return SetError(2, 0, False)
        EndIf
    Next
    Return True
EndFunc   ;==>_ValidIP

Func _ValidPortNumber(Const $iPort)
    Return ($iPort >= 0 and $iPort <= 65535)
EndFunc

Func WM_COMMAND($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg
    Local Static $iTimer = Null
    Local $sReadValue = Null
    Local $iCtrlId = _WinAPI_LoWord($wParam)

    Switch (_WinAPI_HiWord($wParam))
        Case $EN_CHANGE ; Sent when the user has taken an action that may have altered text in an edit/input control

            $sReadValue = GUICtrlRead($iCtrlId)

            Switch ($iCtrlId)
                Case $inpIp
                    If (_ValidIP($sReadValue)) Then
                        $sIpAddress = $sReadValue
                        GUICtrlSetState($btnReconnect, $GUI_ENABLE)
                    Else
                        GUICtrlSetState($btnReconnect, $GUI_DISABLE)
                    EndIf

                Case $inpPort
                    If (_ValidPortNumber($sReadValue)) Then
                        $iPort = Number($sReadValue)
                        GUICtrlSetState($btnReconnect, $GUI_ENABLE)
                    Else
                        GUICtrlSetState($btnReconnect, $GUI_DISABLE)
                    EndIf
            EndSwitch

            ; Could also auto connect right here if both the IP Address and Port are valid
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_COMMAND



Edited by InunoTaishou
