nwbyy

Problem with label on picture

3 posts in this topic

#1 ·  Posted (edited)

Hello.

I want to use a jpg picture as frame for some text.
Maybe it's not the right way to go...


#include <GUIConstants.au3>

$hGUI = GUICreate ("GUI", 300 , 200, 400 , 400)

    GUICtrlCreatePic("C:\Pictures\Frame.jpg", 80, 80, 0, 0)
    GUICtrlCreateLabel("TEXT", 135, 96)

GUISetState(@SW_SHOW)

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch

WEnd

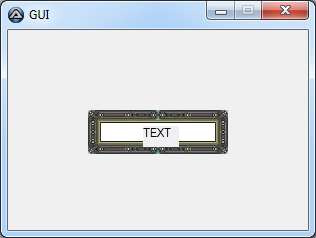

With this code the result looks like this
(a gray rectangle appears under the text):




When I put the stuff in a tab, the problem "goes away":

#include <GUIConstants.au3>

$hGUI = GUICreate ("GUI", 300 , 200, 400 , 400)

$hTab = GUICtrlCreateTab(24, 24, 252, 152)

GUICtrlCreateTabItem("Tab")

    GUICtrlCreatePic("C:\Pictures\Frame.jpg", 80, 80, 0, 0)
    GUICtrlCreateLabel("TEXT", 135, 96)

GUISetState(@SW_SHOW)

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch

WEnd

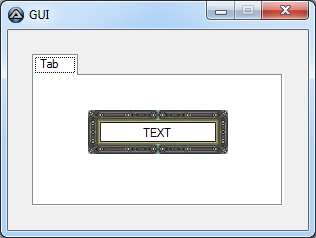

no bug.jpg



OK. But I don't want to have "Tab" written on the window, so I deleted it:

GUICtrlCreateTabItem("")

Then It looks like this:

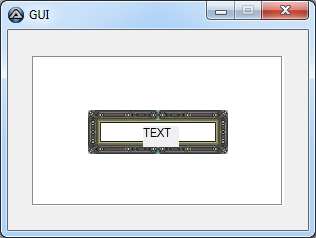

bug 2.jpg


I'm fighting with this for hours now.
A clue to a solution without creating a tab would be great...

Thank you!

:-)

Edited by nwbyy

Share this post


Link to post
Share on other sites



#2 ·  Posted

You might try playing with this :
    GUICtrlSetBkColor($Label, $GUI_BKCOLOR_TRANSPARENT)
and
    GUICtrlSetState($Pic, $GUI_DISABLE)

Share this post


Link to post
Share on other sites

#3 ·  Posted

It seems to work like this:


#include <GUIConstants.au3>

$hGUI = GUICreate ("GUI", 300 , 200, 400 , 400)

    GUICtrlCreatePic("C:\Pictures\Frame.jpg", 80, 80, 0, 0)
    $Label = GUICtrlCreateLabel("TEXT", 135, 96)
    GUICtrlSetBkColor($Label, $GUI_BKCOLOR_TRANSPARENT)

GUISetState(@SW_SHOW)

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch

WEnd

I was looking in the GUICtrlCreateLabel style settings for the invisible back color, but in vain...
Did not expect it works like this.

Merci beaucoup mikell.
