Possible to not screencapture title bar of window...?

Recommended Posts

Burgs

Greetings,

  I have a simple code example of my issue below.  I create a GUI with a 'Title bar' (the '$WS_CAPTION, $WS_SYSMENU' enabled).  I then later use the '_ScreenCapture_CaptureWnd' to capture the contents of that GUI window into an image file.

  My question is if it is possible to NOT include the 'Title bar' within the screen-captured image...?  Is there some setting that might accomplish that?  The way I have it coded here the GUI 'Title bar' is being included within my captured image and I do not wish it to be so...thanks in advance for any advice.

;****CREATE THE GUI...

   $_CTRL_GUI = GUICreate("Positioning", 512, 512, -1, -1, BitOR($WS_POPUP, $WS_CAPTION, $WS_SYSMENU, $WS_EX_TOPMOST))
   GUISetBkColor(0xFFFFFF)  ;set GUI background to 'White'...

   GUISetState(@SW_SHOW, $_CTRL_GUI)

   ;****

   $_CONTROL_HWD = WinGetHandle($_CTRL_GUI)  ;save the handle to the Window...

...

    if WinExists($_CONTROL_HWD) Then

    $_WinPOS = WinGetPos($_CONTROL_HWD)

     if (IsArray($_WinPOS) == 1) AND (@error <> 1) Then
     _ScreenCapture_CaptureWnd(@ScriptDir & "\Copy_Image.jpg", $_CTRL_GUI, 0, 1, Number($_WinPOS[2] - 1), Number($_WinPOS[3] - 1), False)
     EndIf  ;'$_WinPOS' IS an array...AND '@error' NOT "1"...
    EndIf  ;WinExists ($_CONTROL_HWD)...





Share this post


Link to post
Share on other sites
SlackerAl

You can change the top value (in client object coordinates) to give an offset to avoid the title bar _ScreenCapture_CaptureWnd. You can get title bar size from this thread: title bar size


Problem solving step 1: Write a simple, self-contained, running, replicator of your problem.

Share this post


Link to post
Share on other sites
Burgs

Hello,

  Thanks for those replies...I will examine both suggestions...they both seem to offer a reasonable alternative.

Regards



Share this post


Link to post
Share on other sites
Burgs

Hi again,

  I tried the '_WinAPI_GetClientRect' however it still seems to include the title bar in the saved screencapture image...evidently it is considered part of the 'client area' of the window.

  I am a bit confused about usage of the ' _WinAPI_GetSystemMetrics($SM_CYCAPTION) '...how do I dictate which GUI window I want to return the 'Title bar' measurement into the command...?  There is no parameter to accept the window I want to use...?



Share this post


Link to post
Share on other sites
Burgs

Also that link to ' available metrics ' within that ' title bar size ' link given above is outdated now...that listing of metrics seems to have been moved elsewhere by Microsoft...thanks again for any assistance with how to use this ' _WinAPI_GetSystemMetrics ' command...?

Share this post


Link to post
Share on other sites
SlackerAl
#include <WindowsConstants.au3>
#include <ScreenCapture.au3>

$_CONTROL_HWD = GUICreate("Positioning", 512, 512, -1, -1, BitOR($WS_POPUP, $WS_CAPTION, $WS_SYSMENU, $WS_EX_TOPMOST))
GUISetState(@SW_SHOW, $_CONTROL_HWD)

Sleep(2000)

$_WinPOS = WinGetPos($_CONTROL_HWD)
$iTitleHeight = _WinAPI_GetSystemMetrics(31) + 1
_ScreenCapture_CaptureWnd(@ScriptDir & "\Copy_Image.jpg",  $_CONTROL_HWD, 0, $iTitleHeight, Number($_WinPOS[2] - 1), Number($_WinPOS[3] - 1), False)



Read help on _WinAPI_GetSystemMetrics, click link to GetSystemMetrics, search for "title" and get SM_CYSIZE (31). HTH


Problem solving step 1: Write a simple, self-contained, running, replicator of your problem.

Share this post


Link to post
Share on other sites
InnI

@Burgs You can use temporary control for recalculate left-top corner of client area to screen coordinates

#include <WindowsConstants.au3>
#include <ScreenCapture.au3>

Global $iW = 512, $iH = 512
$HWD = GUICreate("Positioning", $iW, $iH, -1, -1, BitOR($WS_POPUP, $WS_CAPTION, $WS_SYSMENU, $WS_EX_TOPMOST))
GUISetBkColor(0xFFFFFF)

$tPoint = DllStructCreate($tagPoint)
$TempCtrl = GUICtrlCreateLabel("", 0, 0, 1, 1)
_WinAPI_ClientToScreen(GUICtrlGetHandle($TempCtrl), $tPoint)
GUICtrlDelete($TempCtrl)

GUISetState()
WinWaitActive($HWD, "", 2)
_ScreenCapture_Capture(@ScriptDir & "\Copy_Image.jpg", $tPoint.X, $tPoint.Y, $tPoint.X + $iW - 1, $tPoint.Y + $iH - 1, False)

Or simply copy full client area

#include <WindowsConstants.au3>
#include <ScreenCapture.au3>

Global $iW = 512, $iH = 512
$hWnd = GUICreate("Positioning", $iW, $iH, -1, -1, BitOR($WS_POPUP, $WS_CAPTION, $WS_SYSMENU, $WS_EX_TOPMOST))
GUISetBkColor(0xFFFFFF)
GUISetState()
WinWaitActive($hWnd, "", 2)

$hDDC = _WinAPI_GetDC($hWnd)
$hCDC = _WinAPI_CreateCompatibleDC($hDDC)
$hBMP = _WinAPI_CreateCompatibleBitmap($hDDC, $iW, $iH)
_WinAPI_SelectObject($hCDC, $hBMP)
_WinAPI_BitBlt($hCDC, 0, 0, $iW, $iH, $hDDC, 0, 0, $__SCREENCAPTURECONSTANT_SRCCOPY)
_WinAPI_ReleaseDC($hWnd, $hDDC)
_WinAPI_DeleteDC($hCDC)

_ScreenCapture_SaveImage(@ScriptDir & "\Copy_Image.jpg", $hBMP, True)



Share this post


Link to post
Share on other sites
Burgs

OK thanks again for those replies, I will give them a try out soon when I have the chance...and Slacker thanks for that link information for the documentation on that command...I was able to find it...should be useful.

Share this post


Link to post
Share on other sites
Burgs

Greets again,

  I have tried both methods mentioned above...and they seem to work fine.  I am performing the 'screen-capture' within a loop, I add some text to an image and then capture it, and use that image as a source for the next.  The issue i'm having now is with the 'border' of the images...as can be seen in my screenshots, it is being successively included in each additional image that is captured...which I want to avoid.  However it seems I cannot change my GUI create parameters since a 'BORDER' is included within the 'CAPTION' option...

here is the 'first' method, using the "_WinAPI_GetSystemMetrics(31)" command:

;****CREATE THE GUI...

   $_CTRL_GUI = GUICreate("Positioning", 512, 512, -1, -1, BitOR($WS_POPUP, $WS_CAPTION, $WS_SYSMENU, $WS_EX_TOPMOST))
   GUISetBkColor(0xFFFFFF)  ;set GUI background to 'White'...

   GUISetState(@SW_SHOW, $_CTRL_GUI)

   ;****

   $_CONTROL_HWD = WinGetHandle($_CTRL_GUI)  ;save the handle to the Window...

...

    if WinExists($_CONTROL_HWD) Then

    $_WinPOS = WinGetPos($_CONTROL_HWD)

     if (IsArray($_WinPOS) == 1) AND (@error <> 1) Then

     $iTitleHeight = _WinAPI_GetSystemMetrics(31) + 1
     _ScreenCapture_CaptureWnd(@ScriptDir & "\Copy_Image.jpg", $_CTRL_GUI, 0, $iTitleHeight, Number($_WinPOS[2] - 1), Number($_WinPOS[3] - 1), False)

     EndIf  ;'$_WinPOS' IS an array...AND '@error' NOT "1"...
    EndIf  ;WinExists ($_CONTROL_HWD)...

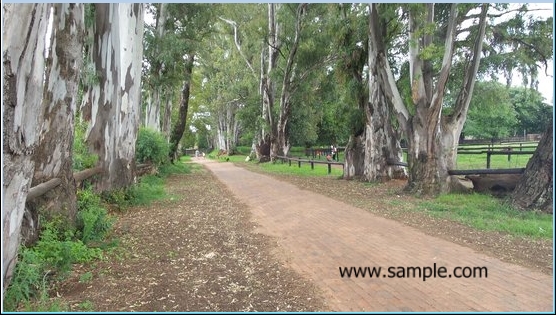

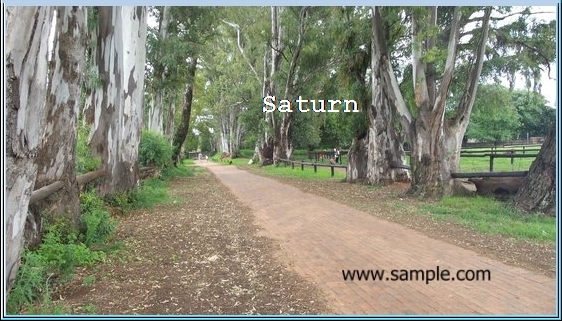

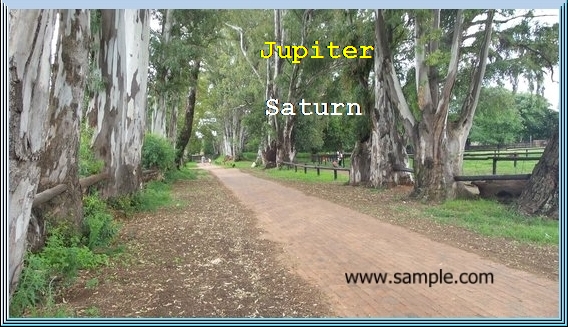

Produces images like the first 3 images (where planet names 'Saturn' and 'Jupiter' appear)...where the border is inclusive of each successive image...

The second method, whereby the client area is captured is coded as such:

;****CREATE THE GUI...

   $_CTRL_GUI = GUICreate("Positioning", 512, 512, -1, -1, BitOR($WS_POPUP, $WS_CAPTION, $WS_SYSMENU, $WS_EX_TOPMOST))
   GUISetBkColor(0xFFFFFF)  ;set GUI background to 'White'...

   GUISetState(@SW_SHOW, $_CTRL_GUI)

   ;****

   $_CONTROL_HWD = WinGetHandle($_CTRL_GUI)  ;save the handle to the Window...

...

    if WinExists($_CONTROL_HWD) Then

    $_WinPOS = WinGetPos($_CONTROL_HWD)

     if (IsArray($_WinPOS) == 1) AND (@error <> 1) Then

     $iTitleHeight = _WinAPI_GetSystemMetrics(31) + 1
     $hDDC = _WinAPI_GetDC($_CTRL_GUI)
     $hCDC = _WinAPI_CreateCompatibleDC($hDDC)
     $hBMP = _WinAPI_CreateCompatibleBitmap($hDDC, Number($_WinPOS[2] - 1), Number($_WinPOS[3] - 1) - $iTitleHeight)
     _WinAPI_SelectObject($hCDC, $hBMP)
     _WinAPI_BitBlt($hCDC, 0, 0, Number($_WinPOS[2] - 1), Number($_WinPOS[3] - 1) - $iTitleHeight, $hDDC, 0, 0,     $__SCREENCAPTURECONSTANT_SRCCOPY)
     _WinAPI_ReleaseDC($_CTRL_GUI, $hDDC)
     _WinAPI_DeleteDC($hCDC)

     _ScreenCapture_SaveImage(@ScriptDir & "\Copy_Image.jpg", $hBMP, True)

     EndIf  ;'$_WinPOS' IS an array...AND '@error' NOT "1"...
    EndIf  ;WinExists ($_CONTROL_HWD)...

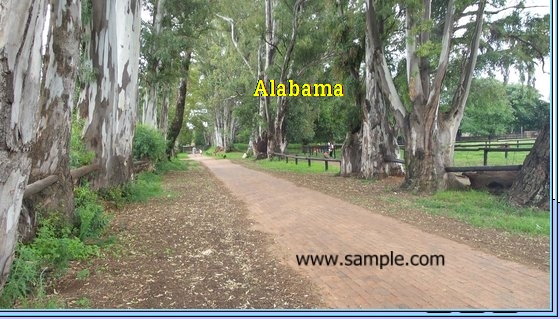

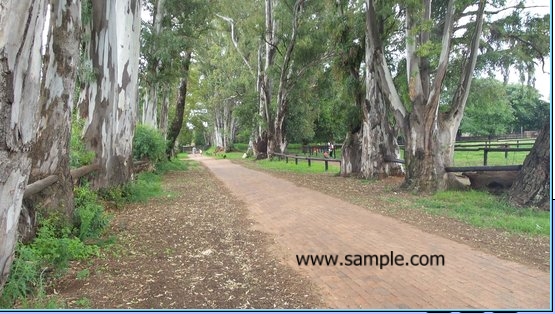

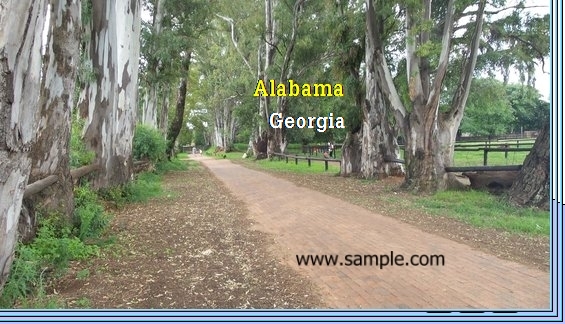

Produces images like the 'second' 3 images (where 'Alabama' and 'Georgia' appear)...

Anybody have any ideas on how I can modify (either) of these code script snippets to eliminate the unwanted border in each...?  It seems using the 'first' method the entire border area is included in the successive image...while using the 'second' method the top left seems fine, and the problem occurs with the 'ending' bottom right area of the image...?   I thank you in advance.  Regards
