Problem with GUI redraw after opening a folder with ShellExecute

Recommended Posts

nicdev007

Hello All,

Hope you are doing well?

I have a small issue with a GUI not redrawing properly, after I click a button to open a windows folder location. For simplicity I have made an example to explain (to avoid posting all my code). I have searched a lot of posts on redrawing the GUI but have not been able to resolve this, and I'm sure i'm forgetting something silly.

The code creates a simple 3 tab GUI, with a button and Input box on Tab 1. The button opens a folder location (in this case C:\Windows\).

The problem: Once the folder opens, the input box "loses" its box (if that makes sense)-> See the image attached.

Your help is greatly appreciated as always B)

Best regards

Nicdev

#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <TabConstants.au3>
#include <WindowsConstants.au3>
#include <AutoItConstants.au3>

#Region ### START Koda GUI section ### Form=
$Form1 = GUICreate("Tabbed Notebook Dialog", 419, 311, 299, 218)
$PageControl1 = GUICtrlCreateTab(8, 8, 396, 256)
$TabSheet1 = GUICtrlCreateTabItem("TabSheet1")
$Button4 = GUICtrlCreateButton("Open", 40, 56, 65, 33)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
$Input1 = GUICtrlCreateInput("Input1", 256, 56, 97, 22)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
$Label1 = GUICtrlCreateLabel("Label1", 208, 56, 36, 18)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
$TabSheet2 = GUICtrlCreateTabItem("TabSheet2")
$Button5 = GUICtrlCreateButton("Button5", 168, 88, 57, 33)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
$TabSheet3 = GUICtrlCreateTabItem("TabSheet3")
$Button6 = GUICtrlCreateButton("Button6", 256, 64, 73, 33)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
GUICtrlCreateTabItem("")
$Button1 = GUICtrlCreateButton("&OK", 166, 272, 75, 25)
$Button2 = GUICtrlCreateButton("&Cancel", 246, 272, 75, 25)
$Button3 = GUICtrlCreateButton("&Help", 328, 272, 75, 25)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

        Case $Button4
            ShellExecute("C:\Windows\","","",$SHEX_OPEN)

    EndSwitch
WEnd

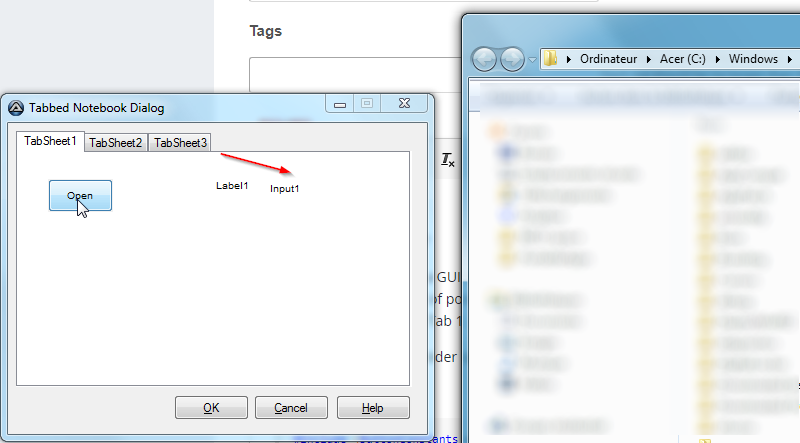

2018-02-26 14_49_39-2018_02_26_14_46_18_Windows.png - paint.net 4.0.16.png


Life is too short to worry about the things you don't have or cannot do ... So if you don't know how to do it - Learn it! Don't be afraid to ask for help ...

Share this post


Link to post
Share on other sites
KickStarter15
18 hours ago, nicdev007 said:

The problem: Once the folder opens, the input box "loses" its box (if that makes sense)-> See the image attached.

First look at your code, there is no problem with it. I also tried you code to see if true but as you can see, there is no issue found.






How about adding border in your inputbox to show it clearly, maybe it's the contrast of your GUI that makes it loses.

Edited by KickStarter15

Programming is "To make it so simple that there are obviously no deficiencies" or "To make it so complicated that there are no obvious deficiencies" by C.A.R. Hoare.

Share this post


Link to post
Share on other sites
nicdev007

Hello KickStarter15,

Thanks for your feedback and test.

Strange thing is I tested again and have the same results as I had before. Even with the box around the inputbox. The one parameter to be sure of is that the folder must not already be open before you click the button (meaning make sure all explorer windows are closed when doing the test).

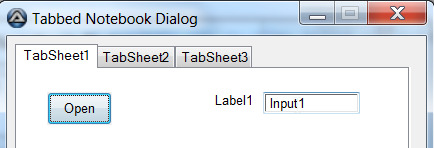

Test start:

2018-03-01 13_33_55-Tabbed Notebook Dialog.png

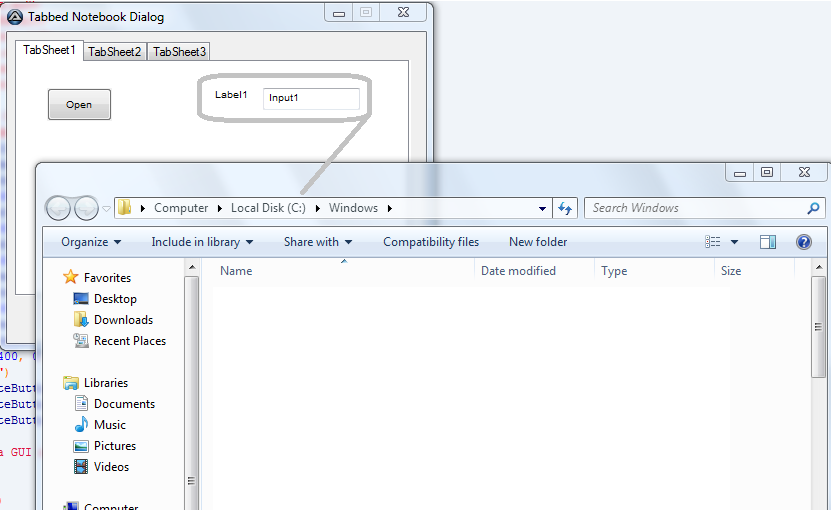

Click on the button (Folder opens) and the Input box loses it's frame...

2018-03-01 13_37_23-Windows.png

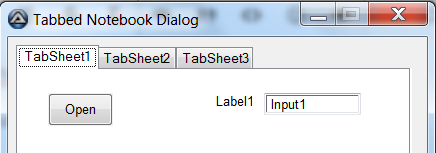

Moving my mouse pointer over the Input bow makes it re-appear!

2018-03-01 13_38_55-Tabbed Notebook Dialog.png

Any ideas or comments greatly appreciated!

For information I have tested it on a Win7 and Win 10 machine and the results are the same.

BNR

Nicdev


Life is too short to worry about the things you don't have or cannot do ... So if you don't know how to do it - Learn it! Don't be afraid to ask for help ...

Share this post


Link to post
Share on other sites
KickStarter15

How about this:

#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <TabConstants.au3>
#include <WindowsConstants.au3>
#include <AutoItConstants.au3>

#Region ### START Koda GUI section ### Form=
$Form1 = GUICreate("Tabbed Notebook Dialog", 419, 311, 299, 218)
$PageControl1 = GUICtrlCreateTab(8, 8, 396, 256)
$TabSheet1 = GUICtrlCreateTabItem("TabSheet1")
$Button4 = GUICtrlCreateButton("Open", 40, 56, 65, 33)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
$Input1 = GUICtrlCreateInput("Input1", 256, 56, 97, 22, 0, -1)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
$Label1 = GUICtrlCreateLabel("Label1", 208, 56, 36, 18)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
$TabSheet2 = GUICtrlCreateTabItem("TabSheet2")
$Button5 = GUICtrlCreateButton("Button5", 168, 88, 57, 33)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
$TabSheet3 = GUICtrlCreateTabItem("TabSheet3")
$Button6 = GUICtrlCreateButton("Button6", 256, 64, 73, 33)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
GUICtrlCreateTabItem("")
$Button1 = GUICtrlCreateButton("&OK", 166, 272, 75, 25)
$Button2 = GUICtrlCreateButton("&Cancel", 246, 272, 75, 25)
$Button3 = GUICtrlCreateButton("&Help", 328, 272, 75, 25)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

        Case $Button4
            ShellExecute("C:\Windows\","","",$SHEX_OPEN)
        Case $Button2
            Exit

    EndSwitch
WEnd

Adding extended style for your input box to declare it's visibility. Not sure if that works.


Programming is "To make it so simple that there are obviously no deficiencies" or "To make it so complicated that there are no obvious deficiencies" by C.A.R. Hoare.

Share this post


Link to post
Share on other sites
nicdev007

Thanks for the try but still the same ...

Strangely when I remove the tabs (having just a normal GUI without tabs) it solves the problem (see code below). It looks like ShellExecute takes the focus away from the GUI tab, and does not redraw it correctly afterwards, but maybe I'm wrong.

Any ideas? I'm completely lost here, and not for a lack of trying :-(

#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <TabConstants.au3>
#include <WindowsConstants.au3>
#include <AutoItConstants.au3>

#Region ### START Koda GUI section ### Form=
$Form1 = GUICreate("Tabbed Notebook Dialog", 419, 311, 299, 218)
;$PageControl1 = GUICtrlCreateTab(8, 8, 396, 256)
;$TabSheet1 = GUICtrlCreateTabItem("TabSheet1")
$Button4 = GUICtrlCreateButton("Open", 40, 56, 65, 33)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
$Input1 = GUICtrlCreateInput("Input1", 256, 56, 97, 22)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
GUICtrlSetStyle(-1, $WS_BORDER)
$Label1 = GUICtrlCreateLabel("Label1", 208, 56, 36, 18)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
;$TabSheet2 = GUICtrlCreateTabItem("TabSheet2")
;$Button5 = GUICtrlCreateButton("Button5", 168, 88, 57, 33)
;GUICtrlSetFont(-1, 8, 400, 0, "Arial")
;$TabSheet3 = GUICtrlCreateTabItem("TabSheet3")
;$Button6 = GUICtrlCreateButton("Button6", 256, 64, 73, 33)
;GUICtrlSetFont(-1, 8, 400, 0, "Arial")
;GUICtrlCreateTabItem("")
$Button1 = GUICtrlCreateButton("&OK", 166, 272, 75, 25)
$Button2 = GUICtrlCreateButton("&Cancel", 246, 272, 75, 25)
$Button3 = GUICtrlCreateButton("&Help", 328, 272, 75, 25)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

        Case $Button4
            ShellExecute("C:\Windows\","","",$SHEX_OPEN)

    EndSwitch
WEnd




Life is too short to worry about the things you don't have or cannot do ... So if you don't know how to do it - Learn it! Don't be afraid to ask for help ...

Share this post


Link to post
Share on other sites
KickStarter15
20 hours ago, nicdev007 said:

Strangely when I remove the tabs (having just a normal GUI without tabs) it solves the problem (see code below). It looks like ShellExecute takes the focus away from the GUI tab, and does not redraw it correctly afterwards, but maybe I'm wrong.

Since there is no issue in my testing with your code. Why not try my below suggestion if it works.

Case $Button4
    $FolderPath = "C:\Windows\"
    Run("explorer.exe " & $FolderPath)

Replace ShellExecute() with Run() function.


Programming is "To make it so simple that there are obviously no deficiencies" or "To make it so complicated that there are no obvious deficiencies" by C.A.R. Hoare.

Share this post


Link to post
Share on other sites
Bilgus

I too cannot reproduce your problem

What if you force it to have a border?

$Input1 = GUICtrlCreateInput("Input1", 256, 56, 97, 22,-1, 0x00000300);$WS_EX_OVERLAPPEDWINDOW

Share this post


Link to post
Share on other sites
nicdev007

Hi ther KickStarter15 and Bilgus,

I tried both your suggestions, but it is still the same for me. Really strange you do not have the same on your side .... Just to show you what happens, here is a screencapture video.

By elimination I downloaded again the latest Autoit from the website to be sure it is not an issue with the compiler, but after all I tried it is still the same. Any other suggestions? Keep in mind it is only when I have a GUI with tabs

5.avi




Life is too short to worry about the things you don't have or cannot do ... So if you don't know how to do it - Learn it! Don't be afraid to ask for help ...

Share this post


Link to post
Share on other sites
Bilgus

Ok so its clearly something weird with your PC what if you force a redraw?



#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <TabConstants.au3>
#include <WindowsConstants.au3>
#include <AutoItConstants.au3>
#include <WinAPI.au3>

#Region ### START Koda GUI section ### Form=
$Form1 = GUICreate("Tabbed Notebook Dialog", 419, 311, 299, 218)
;$PageControl1 = GUICtrlCreateTab(8, 8, 396, 256)
;$TabSheet1 = GUICtrlCreateTabItem("TabSheet1")
$Button4 = GUICtrlCreateButton("Open", 40, 56, 65, 33)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
$Input1 = GUICtrlCreateInput("Input1", 256, 56, 97, 22)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
GUICtrlSetStyle(-1, $WS_BORDER)
$Label1 = GUICtrlCreateLabel("Label1", 208, 56, 36, 18)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
;$TabSheet2 = GUICtrlCreateTabItem("TabSheet2")
;$Button5 = GUICtrlCreateButton("Button5", 168, 88, 57, 33)
;GUICtrlSetFont(-1, 8, 400, 0, "Arial")
;$TabSheet3 = GUICtrlCreateTabItem("TabSheet3")
;$Button6 = GUICtrlCreateButton("Button6", 256, 64, 73, 33)
;GUICtrlSetFont(-1, 8, 400, 0, "Arial")
;GUICtrlCreateTabItem("")
$Button1 = GUICtrlCreateButton("&OK", 166, 272, 75, 25)
$Button2 = GUICtrlCreateButton("&Cancel", 246, 272, 75, 25)
$Button3 = GUICtrlCreateButton("&Help", 328, 272, 75, 25)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

        Case $Button4
            ShellExecute("C:\Windows\","","",$SHEX_OPEN)
            _WinAPI_RedrawWindow(GUICtrlGetHandle($Input1), BitOr($RDW_INVALIDATE, $RDW_UPDATENOW));
            ;OR this one
            ;_WinAPI_RedrawWindow($Form1, $RDW_UPDATENOW)
            ;Or
            ;_WinAPI_RedrawWindow($Form1, BitOr($RDW_INVALIDATE, $RDW_UPDATENOW))

    EndSwitch
WEnd



Share this post


Link to post
Share on other sites
Bilgus

Might try this one as well..

_WinAPI_RedrawWindow(GUICtrlGetHandle($TabSheet1), BitOr($RDW_INVALIDATE, $RDW_UPDATENOW));

Share this post


Link to post
Share on other sites
nicdev007

Hi Bilgus,

Thanks for the insight, but to no avail. In the meantime I have learnt a lot about Tabcontrol handles, but nothing redraws that frame around the Input box. Here is the last code for information if someone else wants to try. I added some Console writes to show the return of _WinAPI_RedrawWindow to see if it fails. For info the Tabitem does not return a handle with GetHandle as suggested in the helpfile. That said even with the right handle it does not redraw the lost inputbox.

#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <TabConstants.au3>
#include <WindowsConstants.au3>
#include <AutoItConstants.au3>
#include <WinAPI.au3>

#Region ### START Koda GUI section ### Form=
$Form1 = GUICreate("Tabbed Notebook Dialog", 419, 311, 299, 218)
$PageControl1 = GUICtrlCreateTab(8, 8, 396, 256)
$TabSheet1 = GUICtrlCreateTabItem("TabSheet1")
$Button4 = GUICtrlCreateButton("Open", 40, 56, 65, 33)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
$Input1 = GUICtrlCreateInput("Input1", 256, 56, 50, 22, -1, 0x00000300);$WS_EX_OVERLAPPEDWINDOW)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
$Label1 = GUICtrlCreateLabel("Label1", 208, 56, 36, 18)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
$TabSheet2 = GUICtrlCreateTabItem("TabSheet2")
$Button5 = GUICtrlCreateButton("Button5", 168, 88, 57, 33)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
$TabSheet3 = GUICtrlCreateTabItem("TabSheet3")
$Button6 = GUICtrlCreateButton("Button6", 256, 64, 73, 33)
GUICtrlSetFont(-1, 8, 400, 0, "Arial")
GUICtrlCreateTabItem("")
$Button1 = GUICtrlCreateButton("&OK", 166, 272, 75, 25)
$Button2 = GUICtrlCreateButton("&Cancel", 246, 272, 75, 25)
$Button3 = GUICtrlCreateButton("&Help", 328, 272, 75, 25)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###
;~ ConsoleWrite("Handle form (" & $Form1 & ")" & @CRLF)
;~ ConsoleWrite("Handle Tab (" & GUICtrlGetHandle($PageControl1) & ")" & @CRLF)
;~ ConsoleWrite("Handle TabItem (" & GUICtrlGetHandle($TabSheet1) & ")" & @CRLF)
;~ ConsoleWrite("Handle Input (" & GUICtrlGetHandle($Input1) & ")" & @CRLF)


While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

        Case $Button4
            $FolderPath = "C:\Windows"
            ShellExecute($FolderPath,"","",$SHEX_OPEN)
            ;$iHandle = GUICtrlGetHandle($Input1)
            ;$bRedraw = _WinAPI_RedrawWindow($iHandle,0,0, BitOr($RDW_INVALIDATE, $RDW_UPDATENOW));
            ;OR this one
            ;$iHandle = $Form1
            ;$bRedraw = _WinAPI_RedrawWindow($iHandle,0,0, $RDW_UPDATENOW)
            ;Or
            ;$iHandle = $Form1
            ;$bRedraw = _WinAPI_RedrawWindow($iHandle,0,0, BitOr($RDW_INVALIDATE, $RDW_UPDATENOW))
            ;Or
            ;Get handle to TAB control
            $iHandle = ControlGetHandle($Form1, "", "SysTabControl321")
            $bRedraw = _WinAPI_RedrawWindow($iHandle,0,0, BitOr($RDW_INVALIDATE, $RDW_UPDATENOW));
            ;$bRedraw = _WinAPI_RedrawWindow($iHandle,0,0, BitOr($RDW_INTERNALPAINT,$RDW_ALLCHILDREN));

            ConsoleWrite("Redraw return value:-" & $bRedraw & " for Handle (" & $iHandle & ")" & @CRLF)
    EndSwitch
WEnd

Open to any suggestions... On my home PC i'm running Windows 7 family premium edition, and on my work PC Win 7 enterprise, both behave the same way.

BR

Nicdev


Life is too short to worry about the things you don't have or cannot do ... So if you don't know how to do it - Learn it! Don't be afraid to ask for help ...

Share this post


Link to post
Share on other sites
Bilgus

Hey this last example you posted erases the input box a little more throughly than the issue you were reporting but hey worse is still progress right?



Share this post


Link to post
Share on other sites
Bilgus

ok got it to redraw by calling ControlShow ($Form1,"",$Input1)

Case $Button4
            $FolderPath = "C:\Windows"
            ShellExecute($FolderPath,"","",$SHEX_OPEN)
            ControlShow ($Form1,"",$Input1)

You know this is starting to sound like an issue I was having getting up/dn arrows to show up in my edit box within a tabbed control

what I finally ended up doing is only using the tabs from the tabctrl and unhiding controls based on what tab was selected

See This Example:

#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <GuiTab.au3>
#include <StaticConstants.au3>
#include <TabConstants.au3>
#include <WindowsConstants.au3>
#include <AutoItConstants.au3>
#include <WinAPI.au3>

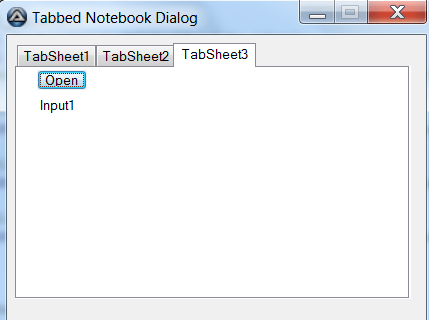

$Form1 = GUICreate("Tabbed Notebook Dialog", 419, 311, 299, 218)

Global Enum $eC1_delete, $eC1_del_all, $eC1_update, $eC1_shift_dn, $eC1_shift_up, _
        $eC1_closepath, $eC1_showimg, $eC1_lock, $eC1_undo, $eC1_redo, $aCtl1_LAST
Global $g_ahCtl1[$aCtl1_LAST]

;-------------------------------------------------------------------------------
Global Enum $eC2_zin, $eC2_zout, $eC2_dgroup, $eC2_decx, $eC2_incx, $eC2_decy, _
        $eC2_incy, $eC2_edit_rot, $eC2_rot, $eC2_ud_rot, $eC2_rev, $eC2_toall, $aCtl2_LAST
Global $g_ahCtl2[$aCtl2_LAST]

Global Enum $eC3_open, $eC3_input1, $aCtl3_LAST
Global $g_ahCtl3[$aCtl3_LAST]

Global $g_hTab1 = GUICtrlCreateTab(8, 8, 396, 20)
GUICtrlCreateLabel("", 8, 28, 396, 256)
GUICtrlSetBkColor(-1, 0xFFFFFF)
GUICtrlSetState(-1, $GUI_DISABLE)

$TabSheet1 = GUICtrlCreateTabItem("TabSheet1")
GUICtrlSetState(-1, $GUI_SHOW) ; will be display first
$TabSheet1 = GUICtrlCreateTabItem("TabSheet2")
$TabSheet3 = GUICtrlCreateTabItem("TabSheet3")
GUICtrlCreateTabItem("") ; end tabitem definition
Control_Create_Group1()
Control_Create_Group2()
Control_Create_Group3()
Tab1_Select()
GUISetState(@SW_SHOW)

Global $g_nMsg = 0
While 1
    $g_nMsg = GUIGetMsg()
    Switch $g_nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $g_hTab1
            Tab1_Select()
        Case $g_ahCtl3[$eC3_open]
            $FolderPath = "C:\Windows"
            ShellExecute($FolderPath, "", "", $SHEX_OPEN)
    EndSwitch
WEnd

Func Tab1_Select()
    Local $iStateCtl1, $iStateCtl2, $iStateCtl3
    Local $tabindex = GUICtrlRead($g_hTab1)
    ;ConsoleWrite("tab" & $tabindex + 1 & "_selected" & @CRLF)
    Select
        Case $tabindex = 0
            $iStateCtl1 = $GUI_SHOW
            $iStateCtl2 = $GUI_HIDE
            $iStateCtl3 = $GUI_HIDE
        Case $tabindex = 1
            $iStateCtl1 = $GUI_HIDE
            $iStateCtl2 = $GUI_SHOW
            $iStateCtl3 = $GUI_HIDE
        Case $tabindex = 2
            $iStateCtl1 = $GUI_HIDE
            $iStateCtl2 = $GUI_HIDE
            $iStateCtl3 = $GUI_SHOW
        Case Else
            _GUICtrlTab_ActivateTab($g_hTab1, 0)
            Return
    EndSelect

    For $i = 0 To UBound($g_ahCtl1) - 1
        GUICtrlSetState($g_ahCtl1[$i], $iStateCtl1)
    Next

    For $i = 0 To UBound($g_ahCtl2) - 1
        GUICtrlSetState($g_ahCtl2[$i], $iStateCtl2)
    Next
    For $i = 0 To UBound($g_ahCtl3) - 1
        GUICtrlSetState($g_ahCtl3[$i], $iStateCtl3)
    Next
EndFunc   ;==>Tab1_Select

Func Control_Create_Group1()
    Local $iX = 30
    Local $iY = 35
    $g_ahCtl1[$eC1_delete] = GUICtrlCreateButton("Delete", $iX + 0, $iY + 0, 50, 20)
    $g_ahCtl1[$eC1_shift_dn] = GUICtrlCreateButton("+", $iX + 70, $iY + 0, 20, 20)
    $g_ahCtl1[$eC1_shift_up] = GUICtrlCreateButton("-", $iX + 95, $iY + 0, 20, 20)
    $g_ahCtl1[$eC1_del_all] = GUICtrlCreateButton("Delete All", $iX + 0, $iY + 25, 50, 20)
    $g_ahCtl1[$eC1_update] = GUICtrlCreateButton("Update", $iX + 70, $iY + 25, 50, 20)
    $g_ahCtl1[$eC1_undo] = GUICtrlCreateButton("Undo", $iX + 0, $iY + 50, 50, 20)
    $g_ahCtl1[$eC1_redo] = GUICtrlCreateButton("Redo", $iX + 70, $iY + 50, 50, 20)
    GUICtrlSetState($g_ahCtl1[$eC1_undo], $GUI_DISABLE)
    GUICtrlSetState($g_ahCtl1[$eC1_redo], $GUI_DISABLE)

    $g_ahCtl1[$eC1_closepath] = GUICtrlCreateCheckbox("Complete", $iX + 0, $iY + 70, 65, 25)
    $g_ahCtl1[$eC1_showimg] = GUICtrlCreateCheckbox("Image", $iX + 0, $iY + 90, 65, 25)
    $g_ahCtl1[$eC1_lock] = GUICtrlCreateCheckbox("Locked", $iX + 0, $iY + 110, 65, 25)
EndFunc   ;==>Control_Create_Group1

Func Control_Create_Group2()
    Local $iX = 30
    Local $iY = 35
    $g_ahCtl2[$eC2_rev] = GUICtrlCreateButton("Reverse", $iX + 0, $iY + 0, 50, 20)
    $g_ahCtl2[$eC2_edit_rot] = GUICtrlCreateInput("0", $iX + 0, $iY + 25, 40, 20)
    $g_ahCtl2[$eC2_ud_rot] = GUICtrlCreateUpdown(-1)
    GUICtrlSetLimit($eC2_ud_rot, 360, -360)
    $g_ahCtl2[$eC2_rot] = GUICtrlCreateButton("", $iX + 40, $iY + 25, 10, 20)

    $g_ahCtl2[$eC2_dgroup] = GUICtrlCreateGroup("Coords", 5 + $iX + 70, $iY + 0, 55, 70)
    $g_ahCtl2[$eC2_decy] = GUICtrlCreateButton("-", 24 + $iX + 70, 16 + $iY + 0, 17, 17)
    $g_ahCtl2[$eC2_incy] = GUICtrlCreateButton("+", 24 + $iX + 70, 48 + $iY + 0, 17, 17)
    $g_ahCtl2[$eC2_decx] = GUICtrlCreateButton("-", 8 + $iX + 70, 32 + $iY + 0, 17, 17)
    $g_ahCtl2[$eC2_incx] = GUICtrlCreateButton("+", 40 + $iX + 70, 32 + $iY + 0, 17, 17)
    GUICtrlCreateGroup("", -99, -99, 1, 1)

    $g_ahCtl2[$eC2_zout] = GUICtrlCreateButton("Zoom -", $iX + 0, $iY + 75, 50, 20)
    $g_ahCtl2[$eC2_zin] = GUICtrlCreateButton("Zoom +", $iX + 75, $iY + 75, 50, 20)
    $g_ahCtl2[$eC2_toall] = GUICtrlCreateCheckbox("Apply to all", $iX + 0, $iY + 100, 80, 25)
EndFunc   ;==>Control_Create_Group2

Func Control_Create_Group3()
    Local $iX = 30
    Local $iY = 35
    $g_ahCtl3[$eC3_open] = GUICtrlCreateButton("Open", $iX + 0, $iY + 0, 50, 20)
    $g_ahCtl3[$eC3_input1] = GUICtrlCreateInput("Input1", $iX + 0, $iY + 25, 40, 20)
EndFunc   ;==>Control_Create_Group3



Share this post


Link to post
Share on other sites
Bilgus

Cleaning it up a bit from the example I realized you might be able to use the tabcontrol as is and just dynamically hide show the controls as the previous example

Not a big difference but makes it a bit better looking

#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
;#include <GuiTab.au3>
#include <StaticConstants.au3>
;#include <TabConstants.au3>
#include <WindowsConstants.au3>
#include <AutoItConstants.au3>


$Form1 = GUICreate("Tabbed Notebook Dialog", 419, 311, 299, 218)

Global Enum $eC1_delete, $eC1_del_all, $eC1_update, $eC1_shift_dn, $eC1_shift_up, _
        $eC1_closepath, $eC1_showimg, $eC1_lock, $eC1_undo, $eC1_redo, $aCtl1_LAST
Global $g_ahCtl1[$aCtl1_LAST]

;-------------------------------------------------------------------------------
Global Enum $eC2_zin, $eC2_zout, $eC2_dgroup, $eC2_decx, $eC2_incx, $eC2_decy, _
        $eC2_incy, $eC2_edit_rot, $eC2_rot, $eC2_ud_rot, $eC2_rev, $eC2_toall, $aCtl2_LAST
Global $g_ahCtl2[$aCtl2_LAST]

Global Enum $eC3_open, $eC3_input1, $aCtl3_LAST
Global $g_ahCtl3[$aCtl3_LAST]

Global $g_hTab1 = GUICtrlCreateTab(8, 8, 396, 256)
;GUICtrlCreateLabel("", 8, 28, 396, 256, $SS_WHITERECT)
;GUICtrlSetState(-1, $GUI_DISABLE)

$TabSheet1 = GUICtrlCreateTabItem("TabSheet1")
GUICtrlSetState(-1, $GUI_SHOW) ; will be display first
$TabSheet1 = GUICtrlCreateTabItem("TabSheet2")
$TabSheet3 = GUICtrlCreateTabItem("TabSheet3")
GUICtrlCreateTabItem("") ; end tabitem definition

Control_Create_TabGroup1(30, 35)
Control_Create_TabGroup2(30, 35)
Control_Create_TabGroup3(30, 35)
Tab1_Select()

GUISetState(@SW_SHOW)

Global $g_nMsg = 0
While 1
    $g_nMsg = GUIGetMsg()
    Switch $g_nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $g_hTab1
            Tab1_Select()
        Case $g_ahCtl3[$eC3_open]
            $FolderPath = "C:\Windows"
            ShellExecute($FolderPath, "", "", $SHEX_OPEN)
    EndSwitch
WEnd

Func Tab1_Select()
    Local $tabindex = GUICtrlRead($g_hTab1)
    Local Const $aStates[2] = [$GUI_HIDE, $GUI_SHOW]
    ;ConsoleWrite("tab" & $tabindex + 1 & "_selected" & @CRLF)

    For $i = 0 To UBound($g_ahCtl1) - 1
        GUICtrlSetState($g_ahCtl1[$i], $aStates[$tabindex = 0])
    Next
    For $i = 0 To UBound($g_ahCtl2) - 1
        GUICtrlSetState($g_ahCtl2[$i], $aStates[$tabindex = 1])
    Next
    For $i = 0 To UBound($g_ahCtl3) - 1
        GUICtrlSetState($g_ahCtl3[$i], $aStates[$tabindex = 2])
    Next
EndFunc   ;==>Tab1_Select

Func Control_Create_TabGroup1($iX, $iY)
    Static Local $IsInitialized = False
    If $IsInitialized Then Return
    $IsInitialized = True
    $g_ahCtl1[$eC1_delete] = GUICtrlCreateButton("Delete", $iX + 0, $iY + 0, 50, 20)
    $g_ahCtl1[$eC1_shift_dn] = GUICtrlCreateButton("+", $iX + 70, $iY + 0, 20, 20)
    $g_ahCtl1[$eC1_shift_up] = GUICtrlCreateButton("-", $iX + 95, $iY + 0, 20, 20)
    $g_ahCtl1[$eC1_del_all] = GUICtrlCreateButton("Delete All", $iX + 0, $iY + 25, 50, 20)
    $g_ahCtl1[$eC1_update] = GUICtrlCreateButton("Update", $iX + 70, $iY + 25, 50, 20)
    $g_ahCtl1[$eC1_undo] = GUICtrlCreateButton("Undo", $iX + 0, $iY + 50, 50, 20)
    $g_ahCtl1[$eC1_redo] = GUICtrlCreateButton("Redo", $iX + 70, $iY + 50, 50, 20)
    GUICtrlSetState($g_ahCtl1[$eC1_undo], $GUI_DISABLE)
    GUICtrlSetState($g_ahCtl1[$eC1_redo], $GUI_DISABLE)

    $g_ahCtl1[$eC1_closepath] = GUICtrlCreateCheckbox("Complete", $iX + 0, $iY + 70, 65, 25)
    $g_ahCtl1[$eC1_showimg] = GUICtrlCreateCheckbox("Image", $iX + 0, $iY + 90, 65, 25)
    $g_ahCtl1[$eC1_lock] = GUICtrlCreateCheckbox("Locked", $iX + 0, $iY + 110, 65, 25)
EndFunc   ;==>Control_Create_TabGroup1

Func Control_Create_TabGroup2($iX, $iY)
    Static Local $IsInitialized = False
    If $IsInitialized Then Return
    $IsInitialized = True

    $g_ahCtl2[$eC2_rev] = GUICtrlCreateButton("Reverse", $iX + 0, $iY + 0, 50, 20)
    $g_ahCtl2[$eC2_edit_rot] = GUICtrlCreateInput("0", $iX + 0, $iY + 25, 40, 20)
    $g_ahCtl2[$eC2_ud_rot] = GUICtrlCreateUpdown(-1)
    GUICtrlSetLimit($eC2_ud_rot, 360, -360)
    $g_ahCtl2[$eC2_rot] = GUICtrlCreateButton("", $iX + 40, $iY + 25, 10, 20)

    $g_ahCtl2[$eC2_dgroup] = GUICtrlCreateGroup("Coords", 5 + $iX + 70, $iY + 0, 55, 70)
    $g_ahCtl2[$eC2_decy] = GUICtrlCreateButton("-", 24 + $iX + 70, 16 + $iY + 0, 17, 17)
    $g_ahCtl2[$eC2_incy] = GUICtrlCreateButton("+", 24 + $iX + 70, 48 + $iY + 0, 17, 17)
    $g_ahCtl2[$eC2_decx] = GUICtrlCreateButton("-", 8 + $iX + 70, 32 + $iY + 0, 17, 17)
    $g_ahCtl2[$eC2_incx] = GUICtrlCreateButton("+", 40 + $iX + 70, 32 + $iY + 0, 17, 17)
    GUICtrlCreateGroup("", -99, -99, 1, 1)

    $g_ahCtl2[$eC2_zout] = GUICtrlCreateButton("Zoom -", $iX + 0, $iY + 75, 50, 20)
    $g_ahCtl2[$eC2_zin] = GUICtrlCreateButton("Zoom +", $iX + 75, $iY + 75, 50, 20)
    $g_ahCtl2[$eC2_toall] = GUICtrlCreateCheckbox("Apply to all", $iX + 0, $iY + 100, 80, 25)
EndFunc   ;==>Control_Create_TabGroup2

Func Control_Create_TabGroup3($iX, $iY)
    Static Local $IsInitialized = False
    If $IsInitialized Then Return
    $IsInitialized = True

    $g_ahCtl3[$eC3_open] = GUICtrlCreateButton("Open", $iX + 0, $iY + 0, 50, 20)
    $g_ahCtl3[$eC3_input1] = GUICtrlCreateInput("Input1", $iX + 0, $iY + 25, 40, 20)
EndFunc   ;==>Control_Create_TabGroup3



Share this post


Link to post
Share on other sites
nicdev007
Quote

Hey this last example you posted erases the input box a little more throughly than the issue you were reporting but hey worse is still progress right?

So right: negative progress is still progress in some form :-) In any even even thought the problem is not solved yet, It has pushed me to learn a lot more! So that makes it positive progress.

By the way thanks for the example you sent, it gives me an idea for another  project I want to start soon. I like the way you used an array at creation time, that opens up a lot of possibilities.

In fact the example I showed to explain the issue I am experiencing is just a sample code from Koda, my actual project is much larger than that, and GUI has around 12 input boxes among the 30 or so Controls, and they all disappear when the user clicks the "Open" button. The interface allows an engineer to enter information about the analysis he is doing in a structured (and controlled) way locally, and saving eventually to the main database when he is done.

I tested this morning on a PC of one such engineer running Windows 10 and the result is the same, the input box disappears. while testing your last code here, I noticed that the input box on the last tab also disappears on my side. For sure it must have something to do with the loss of focus, when the button is clicked, but why it happens for me and not for you remains a mystery...

If the folder location (C:\Windows\) is already open in an explorer window, then the input box does not lose it's border.

If the folder location is not open yet, then the input box loses it's border, and only gets redrawn once I change tabs or hover my mouse over it. This behavior is the same for you example and mine.

Thanks for all your help so far.

2018-03-06 09_04_54-Tabbed Notebook Dialog.png






Life is too short to worry about the things you don't have or cannot do ... So if you don't know how to do it - Learn it! Don't be afraid to ask for help ...

Share this post


Link to post
Share on other sites
Bilgus

Well now that is curious What about the example just previous taht uses a label instead of the whole tabctrl??

Share this post


Link to post
Share on other sites
nicdev007
Quote

Well now that is curious What about the example just previous taht uses a label instead of the whole tabctrl??

I tested with both and the results are the same... curious indeed...

I did some more testing and if I open a file (instead of a folder) the input box border does not disappear. I tried several folders and several files the result is the same. It's like the return back from windows explorer, after opening the folder location, is not correct or something, but that's a leap ...


Life is too short to worry about the things you don't have or cannot do ... So if you don't know how to do it - Learn it! Don't be afraid to ask for help ...

Share this post


Link to post
Share on other sites
Bilgus
Posted (edited)

My guess is something to do with shellexecute or it might very well be something in the tabcontrols messing up the on paint event

Or hottracking try messing witht the style attribute of the tab control like set it to $TCS_FOCUSNEVER or even the extendedstyle attributes like set it to $WS_EX_COMPOSITED etc.

Edited by Bilgus

Share this post


Link to post
Share on other sites
nicdev007
Quote

My guess is something to do with shellexecute or it might very well be something in the tabcontrols messing up the on paint event

I agree with you on this, but how to pinpoint it is really a tough one. I tried to check with AU3info if anything changes in the GUI or the control but got no further. In the mean time i'll dig some more into the bowels of the beast to see what pops. Hopefully we can stumble across something to point in the right direction. I'll try some tests later to try and recover the attributes if I can and then see where it leads and what changes.

Thanks for your help so far!!

Regards

Nicdev


Life is too short to worry about the things you don't have or cannot do ... So if you don't know how to do it - Learn it! Don't be afraid to ask for help ...

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

×
