CaptainBeardsEyesBeard

WinGetText() help

Recommended Posts

CaptainBeardsEyesBeard

Hi,



How do I utilise the WinGetText() function?

I'm writing automation tests so I would need to verify that a certain string is visible in the Visible text section of the Window



Appreciate the help

Share this post


Link to post
Share on other sites
Earthshine

https://www.autoitscript.com/autoit3/docs/functions/WinGetText.htm

look at the example. compare the variable you get to your data

also, feel free to post you code here, even if it does not work for better help. please use the code tags located on the bar and look like <>

the code tags will format the code properly

Edited by Earthshine

My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
CaptainBeardsEyesBeard

Thanks for the response. Perhaps WinGetText() is the wrong function for me then?



Essentially I want to write a function that check the Visible text window for a piece of data then returns true (if the data is in the visible text window) or false (if the text is not in the Visible text window

This is the visible text window I'm referring to.




Thanks again

Share this post


Link to post
Share on other sites
Earthshine

can you please post the other tabs that the info tool gives you when you click on the control you want to check? post the Window and Control tab too please and thanks. others will be able to help you more than I, but I will try. Are you checking something in a broswer?

Edited by Earthshine

My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
Earthshine

wait, so you want to monitor the text in the Info Tool application window? usually, you use that tool to find the control you wish to manipulate.

mind = boggled. please explain what app you are trying to automate.

Edited by Earthshine

My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
CaptainBeardsEyesBeard

OK so I have an application I want to navigate to and then to check the screen of.

A basic test I'm trying to do would be to check an existing item in this Windows application.

So the code looks like

Switch to this active window

Click here

Input keys to search for an item etc.

I would then automate the process of opening a new item and then doing a verification check that the data has been entered.



Does that make sense?

So I'm looking for a way to search if a string exists on the application window I'm currently on

For instance:

Search for a product ID using Send() and mouseclicks

The page will have a description about the existing product "A pair of boots" (example)

My test here would be:

Verify string $Boots = "a pait of boots" exists on the page I'm looking at.



Sorry for any confusion. I am very new to AutoIT











Share this post


Link to post
Share on other sites
Earthshine

no, just use that info tool to click on the control that contains the text. then we can get that text from the control. that's how it's done, you don't use the AutoIt Info Tool for monitoring stuff, it just gets you the info you need to talk to a given control. Do you understand? You CAN do what you want, just use the tool to click on the control that contains that text. Post it here. We can help with the rest.

Edited by Earthshine

My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
CaptainBeardsEyesBeard

Yeah I think I understand now.

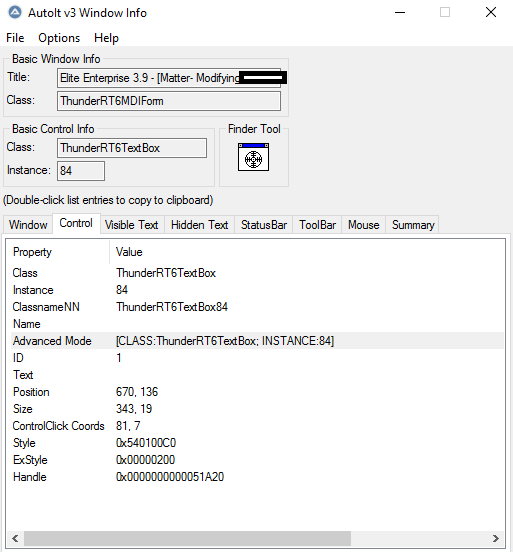

So I have the control box of this for my application... Which I got by dragging the finder tool over the field I wanted.

What would be the code to get the text of that control into a string?






Share this post


Link to post
Share on other sites
Earthshine

here is a small function that waits for a control before clicking it. the part that is interesting is you could zero in on your control looking for that exact text, and, if matched, do something.

#include-once
#include <Timers.au3>
#include "log4a.au3"


; #FUNCTION# ====================================================================================================================
; Name ..........: _checkClickCtrl
; Description ...: Automatically wait for a control to exist. Forever or Limited
; Syntax ........: _checkClickCtrl($formclass, $text, $ctrl, $ctrltxt, $timeout, $delayafter
; Parameters ....: $formclass           - Form Class info.
;                  $text                - Windows Forms text to match
;                  $ctrl                - Class of Copntrol
;                  $ctrltxt             - Text of the Control you search for
;                  $timeout             - [Optional] Timeout, Default = 0, millisecond timer
;                  $delayafter          - [Optional] Time to delay after operation carried out
; Return values .: None
; Author ........: Earthshine
; Modified ......:
; Remarks .......:  Waits for each button indefinatly.
;                   Logger found here: https://www.autoitscript.com/forum/topic/156196-log4a-a-logging-udf/
; Related .......:
; Link ..........:
; Example(s) ....:  _checkClickCtrl ('[CLASS:#32770]', 'ApplicationX - InstallShield Wizard', '[CLASS:Button; INSTANCE:1]', , '&Next >' 5000, 0)
;                   _checkClickCtrl($formclass, $text, $button2, $TD_BTN_REMOVE, 0, 0)
;                   _checkClickCtrl($formclass, $text, $button3, $TD_BTN_NEXT, 0, 500)
;                   _checkClickCtrl($formclass, $text, $button1, $TD_BTN_YES, 0, 0)
;                   _checkClickCtrl($formclass, $text, $button4, $TD_BTN_FINISH, 0, 0)
; ===============================================================================================================================
Func _checkClickCtrl($formclass, $text, $ctrl, $ctrltxt, $timeout = 0, $delayafter = 0)
    _log4a_Info("_checkClickCtrl():Begin")
    _log4a_Info("Searching for Formclass: " & $formclass)
    _log4a_Info("Searching for Text: " & $text)
    _log4a_Info("Searching for Control: " & $ctrl)
    _log4a_Info("Searching for Ctrl Txt: " & $ctrltxt)
    _log4a_Info("Timeout: " & $timeout)
    _log4a_Info("Time Delay (after click): " & $delayafter)
    Local $time_run = _Timer_Init()
    While (1)
        If WinExists($formclass) Then
            Local $hCtrl = ControlGetHandle($text, '', $ctrl)
            If $hCtrl Then
                If ($timeout > 0) Then
                    _log4a_Info(_Timer_Diff($time_run))
                    If (_Timer_Diff($time_run) > $timeout) Then
                        _log4a_Info("ExitLoop:Timeout - " & $ctrl)
                        ExitLoop
                    EndIf
                EndIf
                Local $hCtrlHandle = ControlGetText($text, '', $ctrl)
                _log4a_Info("Control Text Search: " & $ctrltxt)
                _log4a_Info("Control Text Found: " & $hCtrlHandle)
                If ($hCtrlHandle == $ctrltxt) Then
                    ; we got the handle, so the button is there
                    ; now do whatever you need to do
                    _log4a_Info("Found Formclass: " & $formclass)
                    _log4a_Info("Found Text: " & $text)
                    _log4a_Info("Found Control: " & $ctrl)
                    _log4a_Info("Found Ctrl Txt: " & $ctrltxt)
                    _log4a_Info("Timeout: " & $timeout)
                    _log4a_Info("Time Delay (after click): " & $delayafter)
                    _log4a_Info('Control [' & $ctrl & '] Clicked')
                    ControlClick($formclass, '', $ctrl)
                    If ($delayafter > 0) Then
                        Sleep($delayafter)
                    EndIf
                    _log4a_Info("ExitLoop:Normal - " & $ctrl)
                    ExitLoop
                EndIf
            EndIf
        EndIf
    WEnd
    _log4a_Info("_checkClickCtrl():End")
EndFunc   ;==>_checkClickCtrl

You could do something similar, simple search. I log everything but you can just use ConsoleWrites if you want. just an example of how to find a control with given text for validation, or clicking in this case

Edited by Earthshine

My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
Earthshine

ON NO! That is VB6 friend. Crapola! doing control clicks and stuff probably won't work in this case. we could try something like I do above, just don't do the click part. but I am not sure that ThunderRT6 controls are able to be automated.


My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
Earthshine

Look up ControlGetText in help; bel;ow is example from help

#include <MsgBoxConstants.au3>

Example()

Func Example()
    ; Run Notepad
    Run("notepad.exe")

    ; Wait 10 seconds for the Notepad window to appear.
    Local $hWnd = WinWait("[CLASS:Notepad]", "", 10)

    ; Set the edit control in Notepad with some text. The handle returned by WinWait is used for the "title" parameter of ControlSetText.
    ControlSetText($hWnd, "", "Edit1", "This is some text")

    ; Retrieve the text of the edit control in Notepad. The handle returned by WinWait is used for the "title" parameter of ControlGetText.
    Local $sText = ControlGetText($hWnd, "", "Edit1")

    ; Display the text of the edit control.
    MsgBox($MB_SYSTEMMODAL, "", "The text in Edit1 is: " & $sText)

    ; Close the Notepad window using the handle returned by WinWait.
    WinClose($hWnd)
EndFunc   ;==>Example



Edited by Earthshine

My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
CaptainBeardsEyesBeard

Yeah I looked at that helpfile.



Unfortunately that code doesn't seem to work as all it does is open an empty notepad file...



Whereas I would expect the notepad to be populated with "This is some text"

Sorry for being a pain! :blink:


Share this post


Link to post
Share on other sites
Earthshine

hey now... be nice... lol

try it modified for you

#include <MsgBoxConstants.au3>

Example()

Func Example()
    ; Run YOUR app
    Run("YourApp.exe")

    ; Wait 10 seconds for the YourApp window to appear.
    Local $hWnd = WinWait("[CLASS:ThunderRT6MDIForm]", "", 10)

    ; Set the edit control in Notepad with some text. The handle returned by WinWait is used for the "title" parameter of ControlSetText.
    ControlSetText($hWnd, "", "ThunderRT6TextBox84", "This is some text")

    ; Retrieve the text of the edit control in Notepad. The handle returned by WinWait is used for the "title" parameter of ControlGetText.
    Local $sText = ControlGetText($hWnd, "", "ThunderRT6TextBox84")

    ; Display the text of the edit control.
    MsgBox($MB_SYSTEMMODAL, "", "The text in Edit1 is: " & $sText)

    ; Close the Notepad window using the handle returned by WinWait.
    WinClose($hWnd)
EndFunc   ;==>Example



Edited by Earthshine

My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
Earthshine

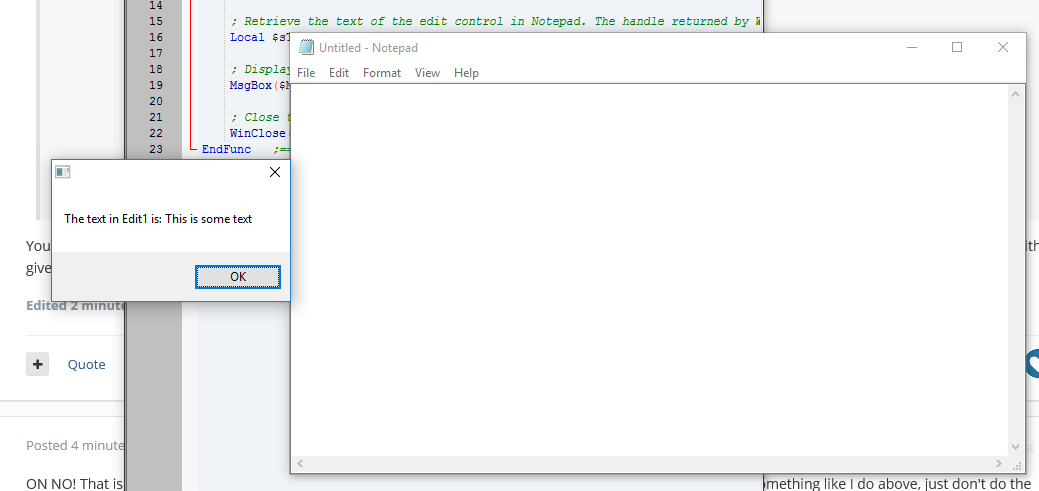

something is wrong on your end. that notepad example works GREAT for me on Win10 and 2008 R2 Server


My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
CaptainBeardsEyesBeard

Hey thanks a lot for all your help I was able to get the data I needed via



 Local $sText = ControlGetText($hWnd, "", "ThunderRT6TextBox84")



:)

  • Like 1

Share this post


Link to post
Share on other sites
Earthshine

Lucky. I have to test our companies Vb 6 apps and they are not automatable hardly at all so you are lucky

Edited by Earthshine

My resources are limited. You must ask the right questions



Share this post
