How to drag file reference to another application?

Recommended Posts

qwert

Based on methods outlined in these forums, a ListView item can be dragged to another control ... and seems to be the easiest way to drag and drop content.  (Below is a working example.)

But I've run upon two problems:

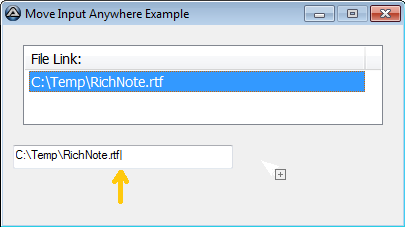

1. The orange arrow points to a "bar" character that is appended to the file name when I drag to a control on the same window.  What is causing that?

2. Any other application window (even one of my own) rejects the drop of the ListView item (sounds a "ding").   Yet, my own (other) GUI can accept a file from a file manager, for example ... as can this example GUI.  What determines a window's "drag enabled" status? (i.e., as a source of files)

Thanks in advance to anyone who can point me to examples or explanations.

#include <GuiConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GuiListView.au3>

$hGUI = GUICreate("Move Input Anywhere Example", 400, 200, -1, -1, -1, $WS_EX_ACCEPTFILES)
$hInput = GUICtrlCreateInput("C:\Temp\RichNote.rtf", 10, 120, 320, 24)
GUICtrlSetState(-1, $GUI_DROPACCEPTED)

$ListView = GUICtrlCreateListView("", 20, 20, 360, 80)
GUICtrlSetFont(-1, 11, 400, 0, "Tahoma")
_GUICtrlListView_AddColumn($ListView, "File Link:", 340)
GUICtrlCreateListViewItem("C:\Temp\RichNote.rtf", $ListView)

GUISetState()

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch
WEnd


Share this post


Link to post
Share on other sites
corz

That bar, it flashes and is called the "caret". It's everywhere you type text. Seriously?

As for No. 2, no idea. Got an example?

;o) Cor


nothing is foolproof to the sufficiently talented fool..

Share this post


Link to post
Share on other sites
qwert

Sorry for the late response.  I've been working on quite a few other things.

Regarding the bar: it's really a bar character, not a blinking caret cursor.  If I Ctrl+C copy the contents, there's actually a bar character at the end.

And my second question still stands, as well.  Both of these issues are unexpected hurdles to smooth GUI operation.   I don't mind adhering to rules, but what/where ARE the rules?



Share this post


Link to post
Share on other sites
Subz

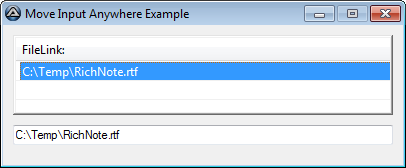

  1. Is a pipe to separate the columns, so try the following this gets around the issue by replacing the text prior to being dropped:
    #include <GuiConstantsEx.au3>
    #include <GuiListView.au3>
    #include <WindowsConstants.au3>

    $hGUI = GUICreate("Move Input Anywhere Example", 400, 140, -1, -1, -1, $WS_EX_ACCEPTFILES)
    $idListView = GUICtrlCreateListView("FileLink:", 10, 10, 380, 80, -1, BitOR($LVS_EX_GRIDLINES, $LVS_EX_FULLROWSELECT))
        GUICtrlCreateListViewItem("C:\Temp\RichNote.rtf", $idListView)
        _GUICtrlListView_SetColumnWidth($idListView, 0, $LVSCW_AUTOSIZE_USEHEADER)
        GUICtrlSetFont(-1, 11, 400, 0, "Tahoma")
    $idInput = GUICtrlCreateInput("", 10, 100, 380, 20)
        GUICtrlSetState($idInput, $GUI_DROPACCEPTED)
    GUISetState()
    While 1
        Switch GUIGetMsg()
            Case $GUI_EVENT_CLOSE
                Exit
            Case $GUI_EVENT_DROPPED
                If @GUI_DropId = $idInput Then
                    GuiCtrlSetData($idInput, StringReplace(GUICtrlRead($idInput), "|", "") )
                EndIf
        EndSwitch
    WEnd



  2. This has been discussed previously in other posts, its something to do with Handling OLE DragDrop Events (see link below).
    nb: You can actually drag and drop from RichEdit boxes externally.



Share this post


Link to post
Share on other sites
qwert

@Subz, thanks for looking at this.  That's a good solution ... and the UDF is something I'll explore.  Rich edits open a large set of capabilities for a GUI.  It's nice to get some of these secondary issues under control.

I appreciate your help.
