Mannyfresh31

Need help with image resize

Recommended Posts

Mannyfresh31

I need help with image resize in a GUI It looks like the images needs to to be repainted when resizing them the code is below as well as some screenshots



#include <ButtonConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>

;Set Hot-Keys
HotKeySet("s", "Stop")

$random1 = Random(0,9,1)
$random2 = Random(0,9,1)
$random3 = Random(0,9,1)
$Spin = False
$Sleep = 50
$Height = 132

#Region ### START Koda GUI section ### Form=
Global $Form1 = GUICreate("Form1", 492, 252, 181, 124)
GUISetBkColor(0x000000)
Global $Pic1 = GUICtrlCreatePic( @ScriptDir & "\Numbers\" & $random1 & ".jpg", 48, 16, 100, 132)
Global $Pic2 = GUICtrlCreatePic( @ScriptDir & "\Numbers\" & $random2 & ".jpg", 184, 16, 100, 132)
Global $Pic3 = GUICtrlCreatePic( @ScriptDir & "\Numbers\" & $random3 & ".jpg", 320, 16, 100, 132)
Global $Button1 = GUICtrlCreateButton("Spin", 56, 184, 75, 25)
Global $Button2 = GUICtrlCreateButton("Stop", 336, 184, 75, 25)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

        Case $Button1
            $Spin = True
            Spin()


    EndSwitch
WEnd


Func Spin()

While $Spin = True





For $a = 1 to 132 Step 10
GUICtrlSetPos ($Pic1,48, 16, 100, 132 - $a )
Sleep($Sleep)
Next
For $a = 1 to 132 Step 10
GUICtrlSetPos ($Pic2,184, 16, 100, 132 - $a )
Sleep($Sleep)
Next
For $a = 1 to 132 Step 10
GUICtrlSetPos ($Pic3,320, 16, 100, 132 - $a )
Sleep($Sleep)
Next




$random1 = Random(0,9,1)
$random2 = Random(0,9,1)
$random3 = Random(0,9,1)

GUICtrlSetImage ( $Pic1, @ScriptDir & "\Numbers\" & $random1 & ".jpg")
GUICtrlSetImage ( $Pic2, @ScriptDir & "\Numbers\" & $random2 & ".jpg")
GUICtrlSetImage ( $Pic3, @ScriptDir & "\Numbers\" & $random3 & ".jpg")

For $a = 1 to 132 Step 10
GUICtrlSetPos ($Pic1,48, 16, 100, 2 + $a )
Sleep($Sleep)
Next
For $a = 1 to 132 Step 10
GUICtrlSetPos ($Pic2,184, 16, 100, 2 + $a )
Sleep($Sleep)
Next
For $a = 1 to 132 Step 10
GUICtrlSetPos ($Pic3,320, 16, 100, 2 + $a )
Sleep($Sleep)
Next




WEnd

EndFunc



Func Stop()

$Spin = False

    EndFunc

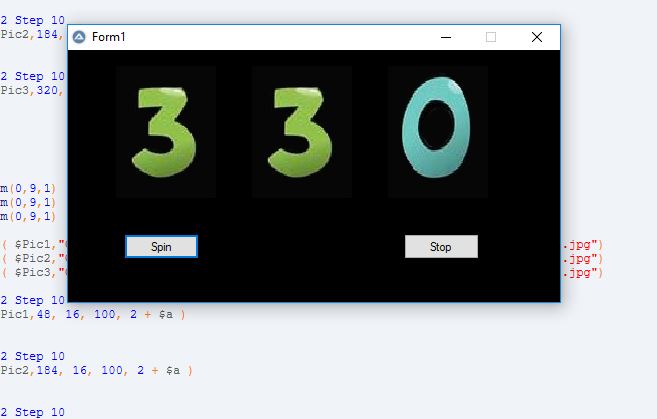

how image supposed to look.JPG

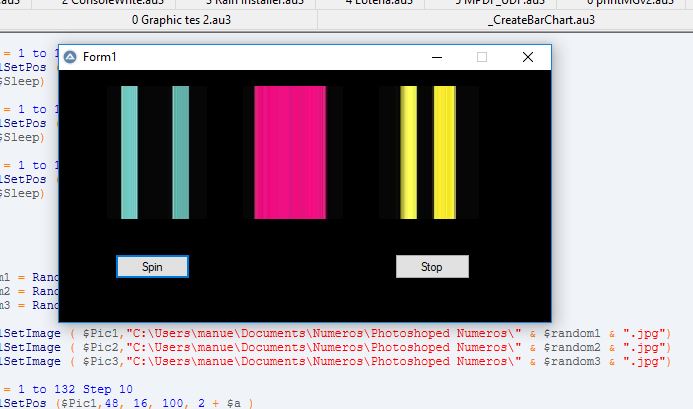

how they look after resizing.JPG

Numbers.zip

Share this post


Link to post
Share on other sites
Andreik

You don't want to resize picture, probably you want to to move it to looks like a flip. In this case change (for all 3 loops)

GUICtrlSetPos ($Pic1,48, 16, 100, 132 - $a )

with

GUICtrlSetPos ($Pic1,48, 16-$a, 100, 132 )




When the words fail... music speaks

Share this post


Link to post
Share on other sites
Mannyfresh31

@Andreikthanks for that effect it looks nice but that's not what I want since your effect only changes the position of the image but I want to resize it like close and open close with one number and open with another number.

Share this post


Link to post
Share on other sites
Bilgus

This is REALLY not the way I would be doing this but whatever its all about learning I suppose

Your issue is that you loaded the new pictures while the controls were shrunk

I fixed that with a loop to resize them load the random picture and reshrink them

I also added a way to stop the darn script while I was at it --Edit Oh I See you Set the hotkey to Stop it

#include <ButtonConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>

;Set Hot-Keys
HotKeySet("s", "Stop")

$random1 = Random(0, 9, 1)
$random2 = Random(0, 9, 1)
$random3 = Random(0, 9, 1)
$Spin = False
$Sleep = 50
$Height = 132

#Region ### START Koda GUI section ### Form=
Global $Form1 = GUICreate("Form1", 492, 252, 181, 124)
GUISetBkColor(0x000000)
Global $Pic1 = GUICtrlCreatePic(@ScriptDir & "\Numbers\" & $random1 & ".jpg", 48, 16, 100, 132)
Global $Pic2 = GUICtrlCreatePic(@ScriptDir & "\Numbers\" & $random2 & ".jpg", 184, 16, 100, 132)
Global $Pic3 = GUICtrlCreatePic(@ScriptDir & "\Numbers\" & $random3 & ".jpg", 320, 16, 100, 132)
Global $Button1 = GUICtrlCreateButton("Spin", 56, 184, 75, 25)
Global $Button2 = GUICtrlCreateButton("Stop", 336, 184, 75, 25)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

        Case $Button1
            Opt("GUIOnEventMode", 1)
            GUICtrlSetOnEvent($Button2, Stop)
            $Spin = True
            Spin()


    EndSwitch
WEnd


Func Spin()
    Local $aPicCtrls[3] = [$Pic1, $Pic2, $Pic3]
    Local $aPicLeft[3] = [48, 184, 320]
    While $Spin = True

        For $i = 0 To UBound($aPicCtrls) - 1
            For $a = 1 To 132 Step 10
                GUICtrlSetPos($aPicCtrls[$i], $aPicLeft[$i], 16, 100, 132 - $a)
                Sleep($Sleep)
                If Not $Spin Then ExitLoop 3
            Next
        Next

        For $i = 0 To UBound($aPicCtrls) - 1
            $iRand = Random(0, 9, 1)
            GUICtrlSetState($aPicCtrls[$i], $GUI_HIDE)
            GUICtrlSetPos($aPicCtrls[$i], $aPicLeft[$i], 16, 100, 132)
            GUICtrlSetImage($aPicCtrls[$i], @ScriptDir & "\Numbers\" & $iRand & ".jpg")
            GUICtrlSetPos($aPicCtrls[$i], $aPicLeft[$i], 16, 100, 0)
            GUICtrlSetState($aPicCtrls[$i], $GUI_SHOW)
        Next

        For $i = 0 To UBound($aPicCtrls) - 1
            For $a = 1 To 132 Step 10
                GUICtrlSetPos($aPicCtrls[$i], $aPicLeft[$i], 16, 100, 2 + $a)
                Sleep($Sleep)
                If Not $Spin Then ExitLoop 3
            Next
        Next

    WEnd

EndFunc   ;==>Spin

Func Stop()
    Opt("GUIOnEventMode", 0)
    $Spin = False
EndFunc   ;==>Stop



Edited by Bilgus
  • Like 1

Share this post


Link to post
Share on other sites
Mannyfresh31

@Bilgus Thank you so much that's the way I wanted, You're the man!

Share this post


Link to post
Share on other sites
KickStarter15

@Mannyfresh31, Thanks for this, I can use this in our current activity "Lucky 3 for a Cause". We are using bottle with numbers in it and shake it for the lucky 3 numbers, once you hit the 3 lucky numbers based, the one that holds the numbers will have cash and 50% of that cash will be donated to our selected charity.:lol: \m/


Programming is "To make it so simple that there are obviously no deficiencies" or "To make it so complicated that there are no obvious deficiencies" by C.A.R. Hoare.

Share this post


Link to post
Share on other sites
Bilgus

@KickStarter15  A word of warning Those numbers are severely NON-Random I would never base a game of chance on them even a charity one..

At the very least see SRandom() in the manual, better would be a few more steps for the calculations, best would be a real(er?) random number generator



Share this post
