What is proper way to manage RichEdit on tab panel?

Recommended Posts

qwert

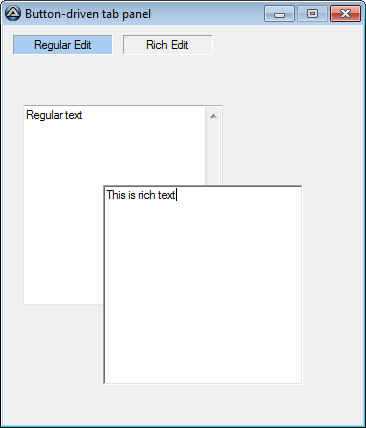

I've built a button-driven tab panel (based on a forum example) and placed an edit control on each tab — the second being a RichEdit control.  (screen capture is below)

Since a RichEdit is essentially a GUI of its own, what is the proper way to manage a rich edit control to at least give the appearance of it being on a tab panel?

Thanks in advance for any help.

;
;       Example of button-driven tab panel
;
#include <GUIConstants.au3>
#include <GuiRichEdit.au3>
Dim $TabSwitcher[2]

$hGui = GUICreate("Button-driven tab panel", 360, 400)
$TabSwitcher[0] = GUICtrlCreateLabel("Regular Edit", 10, 10, 100, 20, $SS_SUNKEN +$SS_CENTER+ $SS_CENTERIMAGE)
GUICtrlSetBkColor($TabSwitcher[0], 0xABCDEF)

$TabSwitcher[1] = GUICtrlCreateLabel("Rich Edit", 120, 10, 90, 20, $SS_SUNKEN +$SS_CENTER+ $SS_CENTERIMAGE)

$tab = GUICtrlCreateTab(10, 40, 340, 340)

$tab1 = GUICtrlCreateTabItem("tab1")
$Input = GUICtrlCreateEdit("Regular text", 20, 80, 200, 200, $WS_VSCROLL)

$tab2 = GUICtrlCreateTabItem("tab2")
$hRichEdit = _GUICtrlRichEdit_Create($hGui, "", 100, 160, 200, 200, BitOR($ES_MULTILINE, $WS_VSCROLL, $ES_AUTOVSCROLL))
_GUICtrlRichEdit_AppendText($hRichEdit, "This is rich text")

GUICtrlSetState($tab, $GUI_HIDE)

GUISetState()

While 1
    $msg = GUIGetMsg()
    Select
        Case $msg = -3
            Exit
        Case $msg = $TabSwitcher[0]
            If GUICtrlRead($tab) <> 0 Then GUICtrlSetState($tab1, $GUI_SHOW)
                 GUICtrlSetBkColor($TabSwitcher[0], 0xABCDEF)
                 GUICtrlSetBkColor($TabSwitcher[1], 0xf0f0f0)
        Case $msg = $TabSwitcher[1]
            If GUICtrlRead($tab) <> 1 Then GUICtrlSetState($tab2, $GUI_SHOW)
                 GUICtrlSetBkColor($TabSwitcher[0], 0xf0f0f0)
                 GUICtrlSetBkColor($TabSwitcher[1], 0xABCDEF)
    EndSelect
WEnd


Share this post


Link to post
Share on other sites
Melba23

qwert,

The Tabs tutorial in the Wiki shows how to deal with this problem.

M23




Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______Open Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
qwert

Melba23, thanks for the nudge!

I had searched help and these forums, but didn't think about the Wiki.  Although it took me a moment to see the forest, the operative statement is:

Quote

Before going further, it is important to understand the differences between controls created using the built-in AutoIt commands (GUICtrlCreate*) and those created with the UDFs.

I've never used Control Hide and Control Show statements, but I'm glad to see how they address a whole realm of possibilities.  For anyone following this topic, I've updated my example, accordingly.  Although the use of a tab control becomes almost an aside, I've left it in because it can support all the non-UDF controls.

;
;       Example of button-driven tab panel
;
#include <GUIConstants.au3>
#include <GuiRichEdit.au3>
Dim $TabSwitcher[2]

$hGui = GUICreate("Button-driven tab panel", 360, 400)
$TabSwitcher[0] = GUICtrlCreateLabel("Regular Edit", 10, 10, 100, 20, $SS_SUNKEN +$SS_CENTER+ $SS_CENTERIMAGE)
GUICtrlSetBkColor($TabSwitcher[0], 0xABCDEF)

$TabSwitcher[1] = GUICtrlCreateLabel("Rich Edit", 120, 10, 90, 20, $SS_SUNKEN +$SS_CENTER+ $SS_CENTERIMAGE)

$tab = GUICtrlCreateTab(10, 40, 340, 340)

$tab1 = GUICtrlCreateTabItem("tab1")
$Input = GUICtrlCreateEdit("Regular text", 20, 80, 200, 200, $WS_VSCROLL)

$tab2 = GUICtrlCreateTabItem("tab2")
$hRichEdit = _GUICtrlRichEdit_Create($hGui, "", 100, 160, 200, 200, BitOR($ES_MULTILINE, $WS_VSCROLL, $ES_AUTOVSCROLL))
_GUICtrlRichEdit_AppendText($hRichEdit, "This is rich text")

GUICtrlSetState($tab, $GUI_HIDE)
ControlHide($hGUI, "", $hRichEdit)

GUISetState()

While 1
    $msg = GUIGetMsg()
    Select
        Case $msg = -3
            Exit
        Case $msg = $TabSwitcher[0]
;            If GUICtrlRead($tab) <> 0 Then GUICtrlSetState($tab1, $GUI_SHOW)
                GUICtrlSetBkColor($TabSwitcher[0], 0xABCDEF)
                GUICtrlSetBkColor($TabSwitcher[1], 0xf0f0f0)
                ControlHide($hGUI, "", $hRichEdit)
                ControlShow($hGUI, "", $Input)
    Case $msg = $TabSwitcher[1]
;       If GUICtrlRead($tab) <> 1 Then GUICtrlSetState($tab2, $GUI_SHOW)
                GUICtrlSetBkColor($TabSwitcher[0], 0xf0f0f0)
                GUICtrlSetBkColor($TabSwitcher[1], 0xABCDEF)
                ControlHide($hGUI, "", $Input)
                ControlShow($hGUI, "", $hRichEdit)
    EndSelect
WEnd
