Pixelsearch not working in windows 10

Recommended Posts

Posted (edited)

This is an old problem i cannot resolve to this day.

Code works for windows 7 but not for 10. Confirmed on multiple machines.
It does not find the color unless its in the upper left area of the screen.
Found color returns wrong coordinates.

Also, AU3Info behaves exact same way. It does not pick up the color i am looking for. Color return value is completely wrong, not even close.

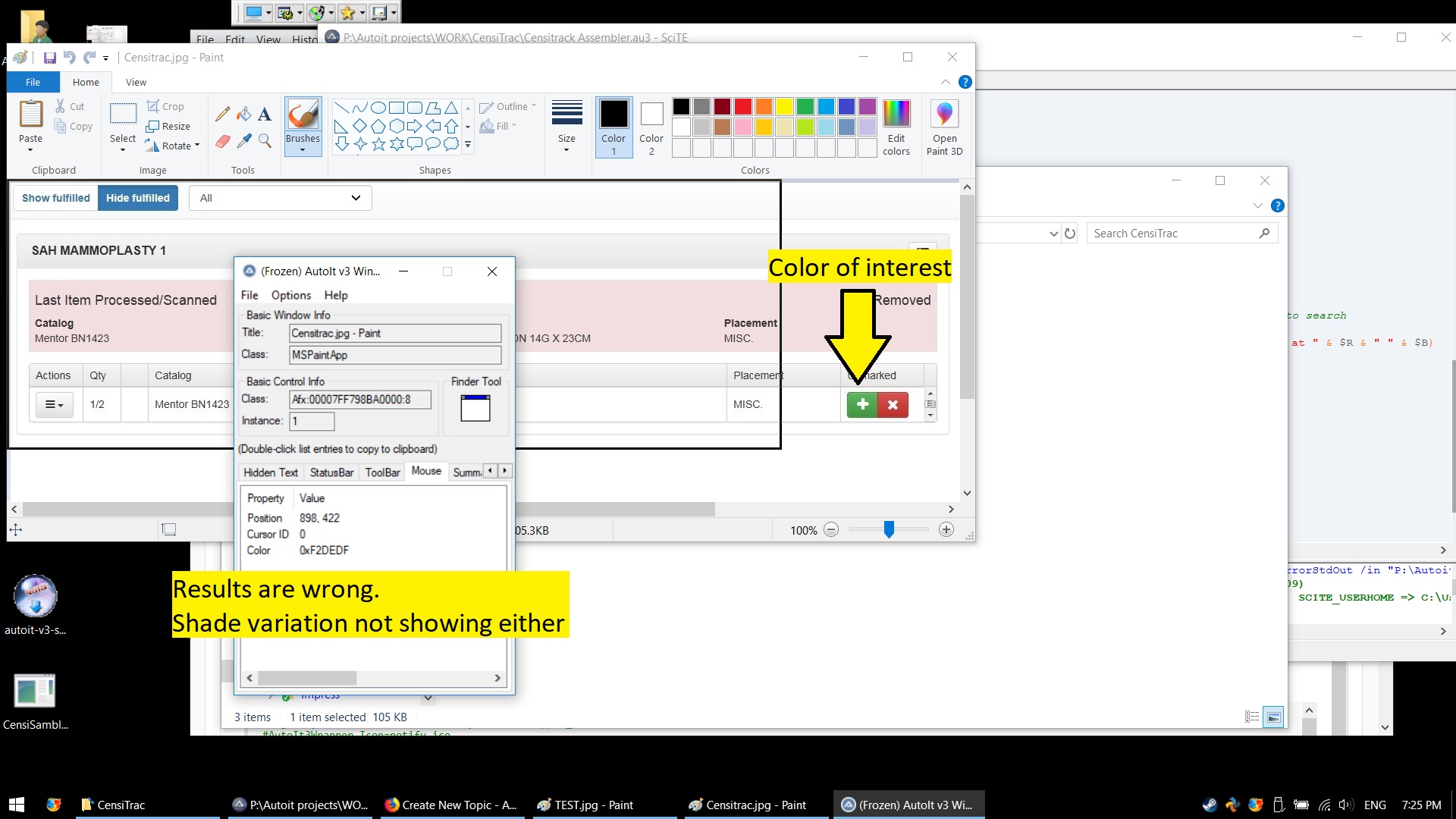

For example salad green color returns completely different result (see picture attached)

See code below. Pretty basic.
Instructions for testing
Save screenshot to your desktop and name it "Censitrac.jpg"
Right click on jpg file and select "Edit" to open it with MS pain. Picture viewer will not work. Pixelsearch will not work with PhotoViewer as far as i know from past experience.
Run the code. Press Enter to start searching for the green color (green square with + sign inside)

Once found, mouse will move there  and click, leaving a painted dot giving you visual indication where it found the color.

The Input area is for how many times you want it to click on a found pixel.

#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****
#include <GUIConstantsEx.au3>
#include <GUIConstants.au3>
#include <GuiEdit.au3>
#include <File.au3>
#include <WindowsConstants.au3>
#include <ButtonConstants.au3>
#include <StaticConstants.au3>
#include <Sound.au3>
#include <Misc.au3>
#include <ScreenCapture.au3>
#include <MsgBoxConstants.au3>

Global $PixelColor = 0x54B359 ;greenish
Global $GUI
Global $Input
Global $WindowToSearch = "Censitrac"
Global $hDLL = DllOpen("user32.dll")

Opt("TrayOnEventMode", 1) ;to go to function on click
Opt("TrayAutoPause", 0)
Opt("WinTitleMatchMode", 1) ;1=start, 2=subStr, 3=exact, 4=advanced, -1 to -4=Nocase
Opt("PixelCoordMode", 1) ;0 search based on window position. 1 screen. 2 relative to window

TrayItemSetOnEvent(-1, "_Exit")


Func _Main()
    #Region ;GUI Elements
    $GUI = GUICreate("Sencitrack Assembler", 40, 70,@DesktopWidth-40,@DesktopHeight/2,$WS_POPUP,$WS_EX_TOPMOST)
    $Input = GUICtrlCreateInput ("",0,0,40,30)
    GUICtrlSetFont (-1,15,20)
    $Auto = GUICtrlCreateButton ("Auto",0,30,40,40)
    GUICtrlSetFont (-1,10,20)
    GUISetState(@SW_SHOW, $Gui)
    #EndRegion ;GUI Elements
    While 1
        $msg = GUIGetMsg()
        If $msg = $GUI_EVENT_CLOSE Then
        If WinActive($Gui) > 0 And _IsPressed("0D", $hDLL) = 1 Then ;Start search ENTER was pressed
            GUICtrlSetData ($Input,"")
        If $msg = $Auto Then
            ;autoatic function
EndFunc   ;==>_Main

Func _Search()
    If WinExists($WindowToSearch) = 1 Then
        While 1
            $WindowHandle = WinGetHandle ($WindowToSearch)
            If @error Then ExitLoop
            If _IsPressed("1B", $hDLL) = 1 Then Exit ;if escape is pressed
            $WindowHandle = WinGetHandle ($WindowToSearch)
            $WinPos = WinGetPos ($WindowToSearch)
            $X= $WinPos[0]
            $Y =$WinPos[1]
            $Search = PixelSearch($X,$Y,1920,1080, $PixelColor, 2, 1,$WindowHandle) ;2 for shade variation,1 for steps, and window name to search
            If IsArray($Search) = True Then
                ConsoleWrite (@crlf & "Found it at X=" & $Search[0]& " Y=" & $Search[1] & " WinPos " & $X & " " & $Y)
                WinActivate ($WindowHandle)
                MouseClick ($MOUSE_CLICK_LEFT,$Search[0],$Search[1],1,0)
                sleep (3000)
                ConsoleWrite (@crlf & "nothing found at winpos " & $X & " " & $Y)
                sleep (1000)
        ConsoleWrite (@crlf & "Done")
    Else ;window does not exist so give warning
        ConsoleWrite (@crlf & "Window does not exst")

Func _Exit()
EndFunc   ;==>_Exit




Edited by tonycst

Share this post

Link to post
Share on other sites

Never thought Windows 10 has it set to 125 by default.

Never the less. this is a serious issue that needs to be addressed and perhaps fixed.


Thank you.
This was giving me cancer symptoms for too long. I hope someone would put a stop to that because as of right now, 99.99% of all PC's today are likely to have their DPI set to 125% as well.

Help me with the temporary fix now. Can the DPI be detected with autoit ?
How would i implement that into my function to compensate for that until they fix pixelsearch function (because it needs to have this problem solved one way or another)

Share this post

Link to post
Share on other sites
Posted (edited)

The pixel colour you want is pixel/125*100.

However, I don't know how much this can be trusted.

You could maybe write a script which sets the DPI to 100%. Run that before running this.

Edited by IAMK

Share this post

Link to post
Share on other sites

See if adding the A3Wrapper directive helps:

#AutoIt3Wrapper_Res_HiDpi= Y                     ;(Y/N) Compile for high DPI. Default=N
