marko001

GraphGDIPlus not showing values

Recommended Posts

marko001

Hi all guys,

I have three graphs in my GUI, each of them defined with GDIPLUS, here an example of just one of them:



Func _drawVOLUME($x = 0, $y_startVOL = 0)
    If $GraphVolumesCreated = 0 Then
        $aGraphV = _GraphGDIPlus_Create($MainGUI, 830, 361, 1076, 114, 0xFF000000, 0xFF1B1B1B)
        _GraphGDIPlus_Set_RangeX($aGraphV, 0, $x, $x / 5, 1, 0)
        _GraphGDIPlus_Set_RangeY($aGraphV, _ArrayMin($aMACD, 1, UBound($aMACD) - $x, UBound($aMACD) - 1, 11), _ArrayMax($aMACD, 1, UBound($aMACD) - $x, UBound($aMACD) - 1, 11), 3, 1, 1)
        $GraphVolumesCreated = 1
    Else
        _GraphGDIPlus_Clear($aGraphV)
        _GraphGDIPlus_Set_RangeY($aGraphV, _ArrayMin($aMACD, 1, UBound($aMACD) - $x, UBound($aMACD) - 1, 11), _ArrayMax($aMACD, 1, UBound($aMACD) - $x, UBound($aMACD) - 1, 11), 3, 1, 1)
    EndIf
    _GraphGDIPlus_Set_PenColor($aGraphV, 0xFF78F900) ; LIGHT GREEN - VOLUMES
    _GraphGDIPlus_Set_PenSize($aGraphV, 5)
;~  _GraphGDIPlus_Plot_Start($aGraph, 0, $y_startVOL)
    For $i = 0 To $x - 1
        _GraphGDIPlus_Plot_Start($aGraphV, $i, 0) ;
        _GraphGDIPlus_Plot_Line($aGraphV, $i, $aMACD[UBound($aMACD) - 1 - $x + 1 + $i][11])
    Next
    _GraphGDIPlus_Refresh($aGraphV)
EndFunc   ;==>_drawVOLUME

as recommeded from UDF I use

WinSetTrans($MainGUI, "", 255)

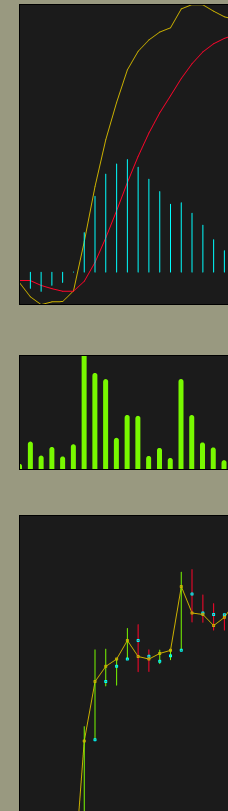

But more or less randomly it happens that X and Y values on axis don't show (pic uploaded).

IS there a way to solve this?
Thanks,

Marco




Share this post


Link to post
Share on other sites
marko001

@UEZ Sorry to disturb you, I saw you had answers for similar matters in other threads, maybe you can help me to sort it out.

Thanks,
marco

Share this post


Link to post
Share on other sites
UEZ

Well @marko001. With this snippet above I cannot tell you what might be wrong. Just create a working example and I will have a look.


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
marko001

The one you see above is the original code, there's nothing particular in the cycle, just 2 adlibregister functions (to call OHLC datas (5mins) and MACD values (10 secs)).

3 graphs to build a) MACD curves, b ) volumes, c) stock value.

$amacd[$i][12] is the array that contains all stocks data:

;~     0 - Date
;~     1 - Open
;~     2 - High
;~     3 - Low
;~     4 - Close
;~     5 - $short Days EMA
;~  6 - $long Days EMA
;~  7 - MACD (YELLOW LINE)
;~  8 - Signal (RED LINE)
;~  9 - Histogram
;~ 10 - not used
;~ 11 - Volumes
