[Solved] Add png Image to TabItem

Recommended Posts

behdadsoft
Posted (edited)

Hi.

I want change tab image and for do this, i found this example that work very well but it don't work on .png files.

#include <GUIConstantsEx.au3>
#include <GuiImageList.au3>
#include <GuiTab.au3>
#include <WinAPI.au3>
#include <GDIPlus.au3>

Example()

Func Example()
    _GDIPlus_Startup()

    Local $hGUI = GUICreate("Tab Control Set Item Image", 400, 300)
    Local $idTab = GUICtrlCreateTab(2, 2, 396, 296)
    Local $hImageList = _GUIImageList_Create(50, 20)
    Local $aImages[4]

    For $i = 0 To 3
        ; Load the GDI+ bitmap
        Local $hBitmapTmp = _GDIPlus_BitmapCreateFromFile("Tab" & $i & ".jpg")
        ; Conver the GDI+ bitmap to a HBitmap
        $aImages[$i] = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hBitmapTmp)
        ; Get rid of the GDI+ bitmap
        _GDIPlus_BitmapDispose($hBitmapTmp)
        ; Add the HBitmap to the image list
        _GUIImageList_Add($hImageList, $aImages[$i])
    Next

    _GUICtrlTab_SetImageList($idTab, $hImageList)
    For $i = 0 To 3
        _GUICtrlTab_InsertItem($idTab, $i, "")
        _GUICtrlTab_SetItemImage($idTab, $i, $i)
    Next

    GUISetState(@SW_SHOW)

    Do
    Until GUIGetMsg() = $GUI_EVENT_CLOSE
    GUIDelete()

    ; Dispose of the HBitmap objects properly
    For $i = 0 To 3
        _WinAPI_DeleteObject($aImages[$i])
    Next
EndFunc   ;==>Example

https://www.autoitscript.com/forum/topic/185596-adding-images-to-tab/

I have seen some expamle for add png image to GUI and Button, but them won't work for TabItem.

dose anyone know how can use .png file?

Edited by behdadsoft

Share this post


Link to post
Share on other sites
behdadsoft

any idea?

Share this post


Link to post
Share on other sites
Melba23

behdadsoft,

Please do not bump your own threads within 24 hours.

Remember this is not a 24/7 support forum - those who answer are only here because they like helping others and have some time to spare.  You just have to wait until someone who knows something about your particular problem, and is willing to help, comes online.  Be patient and someone will answer eventually.

M23




Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
AutoBert
Posted (edited)
4 hours ago, behdadsoft said:

any idea?

Yes just change a little and your linked example works:

#include <GUIConstantsEx.au3>
    #include <GuiImageList.au3>
    #include <GuiTab.au3>
    #include <WinAPI.au3>
    #include <GDIPlus.au3>

    Example()

    Func Example()
        _GDIPlus_Startup()

        Local $hGUI = GUICreate("Tab Control Set Item Image", 400, 300)
        Local $idTab = _GUICtrlTab_Create($hGUI, 2, 2, 396, 296, BitOR($TCS_FORCEICONLEFT, $TCS_FIXEDWIDTH))
        Local $hImageList = _GUIImageList_Create(20, 20)    ;don't change size of images
        Local $aImages[4]
        Local $sAutoItPath = StringReplace(StringReplace(@AutoItExe, '_x64', ''), 'autoit3.exe', '')
        For $i = 0 To 2
            ; Load the GDI+ bitmap
            $sPNG_Path = $sAutoItPath & "Include\autoit-winhttp-1.6.3.8\Images\fwd" & $i & ".png"
            Local $hBitmapTmp = _GDIPlus_BitmapCreateFromFile($sPNG_Path)
            ConsoleWrite($sPNG_Path & ':' & @TAB & $hBitmapTmp & @TAB & @error & @CRLF)
            ; Conver the GDI+ bitmap to a HBitmap
            $aImages[$i] = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hBitmapTmp)
            ; Get rid of the GDI+ bitmap
            _GDIPlus_BitmapDispose($hBitmapTmp)
            ; Add the HBitmap to the image list
            _GUIImageList_Add($hImageList, $aImages[$i])
        Next

        _GUICtrlTab_SetImageList($idTab, $hImageList)
        For $i = 0 To 2
            _GUICtrlTab_InsertItem($idTab, $i, $i)
            _GUICtrlTab_SetItemImage($idTab, $i, $i)
        Next

        GUISetState(@SW_SHOW)

        Do
        Until GUIGetMsg() = $GUI_EVENT_CLOSE
        GUIDelete()

        ; Dispose of the HBitmap objects properly
        For $i = 0 To 3
            _WinAPI_DeleteObject($aImages[$i])
        Next
    EndFunc   ;==>Example



Edited by AutoBert

Share this post


Link to post
Share on other sites
behdadsoft

@AutoBert

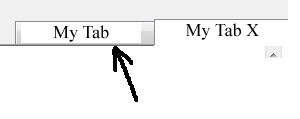

This code have same result with my linked example. Mean it make a white background under png text and i need remove it.




Share this post


Link to post
Share on other sites
AutoBert

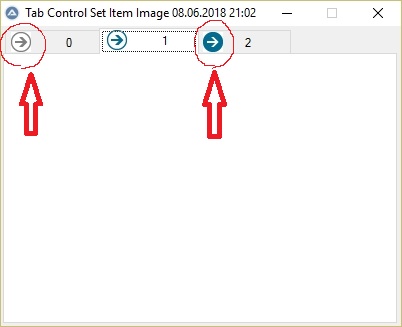

My script works:


Original is #2 in your link, that the images have a white background is a behaviour of the control.

Important: all sizes of the images*.png and the size in the Imagelist must the same. Also the Style attributes: BitOR($TCS_FORCEICONLEFT, $TCS_FIXEDWIDTH) by creating the Tabcontrol are helpfull, maybe there's a better combination.





Share this post


Link to post
Share on other sites
behdadsoft
Posted (edited)
Quote

Important: all sizes of the images*.png and the size in the Imagelist must the same

Yes, They are.

This code don't work correctly because In your image, you have white background under square arrows. png image should be completely transparent.




Edited by behdadsoft

Share this post


Link to post
Share on other sites
AutoBert
17 hours ago, behdadsoft said:

This code don't work correctly because In your image, you have white background under square arrows. png image should be completely transparent.

My used images are transparent but as already sayed:



17 hours ago, AutoBert said:

that the images have a white background is a behaviour of the control.

Sorry for miss understanding

On 7.6.2018 at 11:22 PM, behdadsoft said:

I have seen some expamle for add png image to GUI and Button, but them won't work for TabItem.

But you can test:

in OwnTab.au3 (the UDF) you must change #19: from:

Opt("OnExitFunc", "_OwnTab_OnExit")

to

OnAutoItExitRegister("_OwnTab_OnExit")

and in #483 $ghGDIPDll must no named $__g_hGDIPDll.

Share this post


Link to post
Share on other sites
behdadsoft

I have seen OwnTab.au3 before, but thanks for fix errors.

Unfortunately, it only work with icon and not image. :(

Share this post


Link to post
Share on other sites
AutoBert
5 hours ago, behdadsoft said:

I have seen OwnTab.au3 before, but thanks for fix errors.

The errors are the result of script breaking changes. In 2009, as @funkey has createted the script, the script runs.

5 hours ago, behdadsoft said:

Unfortunately, it only work with icon and not image. :(

I haven't tried but i think when you uses a tool which creates a DLL and pack there your png-files (renamed to .ico?) owntab will work.

  • Thanks 1

Share this post


Link to post
Share on other sites
behdadsoft
Quote

I haven't tried but i think when you uses a tool which creates a DLL and pack there your png-files (renamed to .ico?) owntab will work.

Incidentally, I also thought that I would put my files in an dll file.
But, I have to test this.

And thanks for tried to help me.:)



Share this post


Link to post
Share on other sites
behdadsoft
32 minutes ago, InnI said:

@behdadsoft

Try to create ImageList with 32 bit color depth (third parameter = 5)

Local $hImageList = _GUIImageList_Create(50, 20, 5)



Thanks InnI:)

work very well. :lmao: :lmao:
