Unable to select SAP lower toolbar options from scripting

Recommended Posts

automationguy128

Using the script recording and playback feature on SAP, when trying to compile a script that selects lower toolbar buttons, keep getting compile errors in AutoIt.

I want to be able to automate the clicking of the button shown in the picture.

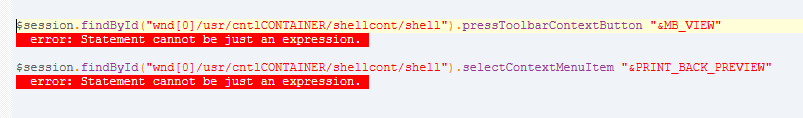

Other picture shows the error I am receiving in AutoIT for the following code:

$session.findById("wnd[0]/usr/cntlCONTAINER/shellcont/shell").pressToolbarContextButton "&MB_VIEW"

$session.findById("wnd[0]/usr/cntlCONTAINER/shellcont/shell").selectContextMenuItem "&PRINT_BACK_PREVIEW"



"error: Statement cannot be just an expression"



Share this post


Link to post
Share on other sites
BrewManNH

Instead of pictures, post your code.

  • Like 1

If I posted any code, assume that code was written using the latest release version unless stated otherwise. Also, if it doesn't work on XP I can't help with that because I don't have access to XP, and I'm not going to.
Give a programmer the correct code and he can do his work for a day. Teach a programmer to debug and he can do his work for a lifetime - by Chirag Gude
How to ask questions the smart way!

I hereby grant any person the right to use any code I post, that I am the original author of, on the autoitscript.com forums, unless I've specifically stated otherwise in the code or the thread post. If you do use my code all I ask, as a courtesy, is to make note of where you got it from.

Back up and restore Windows user files _Array.au3 - Modified array functions that include support for 2D arrays.  -  ColorChooser - An add-on for SciTE that pops up a color dialog so you can select and paste a color code into a script.  -  Customizable Splashscreen GUI w/Progress Bar - Create a custom "splash screen" GUI with a progress bar and custom label.  -  _FileGetProperty - Retrieve the properties of a file  -  SciTE Toolbar - A toolbar demo for use with the SciTE editor  -  GUIRegisterMsg demo - Demo script to show how to use the Windows messages to interact with controls and your GUI.  -   Latin Square password generator

Share this post


Link to post
Share on other sites
automationguy128
14 minutes ago, BrewManNH said:

Instead of pictures, post your code.

Its just those two lines in my first post, everything else works, it just seems to be the lower toolbar that I am getting errors with.

I just want to know if its a syntax issue, as this is what was generated from SAP's script recording feature and can't find anything online similar to this issue.

Share this post


Link to post
Share on other sites
Earthshine

well, I  can't tell without code to play with. there is obviously an issue with that error present


My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
BrewManNH
22 minutes ago, automationguy128 said:

Its just those two lines in my first post, everything else works,

If you don't post your code, no one is going to be able to answer your questions. We have a variable that we don't know what it's set to, and an error saying that your line is written wrong without having the lines that surround it.




If I posted any code, assume that code was written using the latest release version unless stated otherwise. Also, if it doesn't work on XP I can't help with that because I don't have access to XP, and I'm not going to.
Give a programmer the correct code and he can do his work for a day. Teach a programmer to debug and he can do his work for a lifetime - by Chirag Gude
How to ask questions the smart way!

I hereby grant any person the right to use any code I post, that I am the original author of, on the autoitscript.com forums, unless I've specifically stated otherwise in the code or the thread post. If you do use my code all I ask, as a courtesy, is to make note of where you got it from.

Back up and restore Windows user files _Array.au3 - Modified array functions that include support for 2D arrays.  -  ColorChooser - An add-on for SciTE that pops up a color dialog so you can select and paste a color code into a script.  -  Customizable Splashscreen GUI w/Progress Bar - Create a custom "splash screen" GUI with a progress bar and custom label.  -  _FileGetProperty - Retrieve the properties of a file  -  SciTE Toolbar - A toolbar demo for use with the SciTE editor  -  GUIRegisterMsg demo - Demo script to show how to use the Windows messages to interact with controls and your GUI.  -   Latin Square password generator

Share this post


Link to post
Share on other sites
automationguy128
#include <Date.au3>
#include <MsgBoxConstants.au3>


Dim $SAPROT, $SapGuiAuto, $application, $connection, $session

ShellExecute("C:\Program Files (x86)\SAP\FrontEnd\SAPgui\saplogon.exe")

WinWait("SAP Logon 740")

ControlClick("SAP Logon 740", "",1068)
WinActivate("SAP")
sleep(2000)

;SAP GUI Defined (excluded)
;Enter the client number (excluded)
;credentials entered (excluded)


sleep(3000)

$session.findById("wnd[0]/tbar[0]/okcd").text = "sk01"
$session.findById("wnd[0]/tbar[0]/btn[0]").press


$session.findById("wnd[0]/usr/cntlGRID_CONT0050/shellcont/shell").currentCellRow = 75
$session.findById("wnd[0]/usr/cntlGRID_CONT0050/shellcont/shell").firstVisibleRow = 66
$session.findById("wnd[0]/usr/cntlGRID_CONT0050/shellcont/shell").selectedRows = "75"
$session.findById("wnd[0]/tbar[1]/btn[8]").press
$session.findById("w nd[0]/tbar[1]/btn[17]").press
$session.findById("wnd[1]/usr/cntlALV_CONTAINER_1/shellcont/shell").currentCellRow = 4
$session.findById("wnd[1]/usr/cntlALV_CONTAINER_1/shellcont/shell").selectedRows = "4"


$session.findById("wnd[1]/usr/cntlALV_CONTAINER_1/shellcont/shell").doubleClickCurrentCell

$session.findById("wnd[0]/tbar[1]/btn[8]").press

$session.findById("wnd[0]/usr/cntlCONTAINER/shellcont/shell").pressToolbarContextButton "&MB_VIEW"
$session.findById("wnd[0]/usr/cntlCONTAINER/shellcont/shell").selectContextMenuItem "&PRINT_BACK_PREVIEW"

$session.findById("wnd[0]/tbar[1]/btn[45]").press

My bad guys, pretty new to this. Code is attached


Share this post


Link to post
Share on other sites
Earthshine
Posted (edited)

I looked at the doc for it. in C# and VB you do it like this, I think this may work for you as well.

$session.findById("wnd[0]/usr/cntlCONTAINER/shellcont/shell").pressToolbarContextButton ("&MB_VIEW")
$session.findById("wnd[0]/usr/cntlCONTAINER/shellcont/shell").selectContextMenuItem ("&PRINT_BACK_PREVIEW")



Edited by Earthshine

My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
automationguy128
2 minutes ago, Earthshine said:

I looked at the doc for it. in C# and VB you do it like this

$session.findById("wnd[0]/usr/cntlCONTAINER/shellcont/shell").pressToolbarContextButton ("&MB_VIEW")
$session.findById("wnd[0]/usr/cntlCONTAINER/shellcont/shell").selectContextMenuItem ("&PRINT_BACK_PREVIEW")



Although it now compiles, I receive the automation error "Error: The requested action with this object has failed"

Share this post


Link to post
Share on other sites
Earthshine

afraid of that..... hmmmmm all the samples show it the way your recorded made it too.

$session.findById("wnd[0]/usr/cntlCONTAINER/shellcont/shell").pressToolbarContextButton "&MB_VIEW"
$session.findById("wnd[0]/usr/cntlCONTAINER/shellcont/shell").selectContextMenuItem "&PRINT_BACK_PREVIEW"

what version of AutoIt are you using? maybe you need an older version?


My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
automationguy128
2 minutes ago, Earthshine said:

afraid of that..... hmmmmm all the samples show it the way your recorded made it too.

$session.findById("wnd[0]/usr/cntlCONTAINER/shellcont/shell").pressToolbarContextButton "&MB_VIEW"
$session.findById("wnd[0]/usr/cntlCONTAINER/shellcont/shell").selectContextMenuItem "&PRINT_BACK_PREVIEW"

what version of AutoIt are you using? maybe you need an older version?

autoit version v3.3.14.2

Share this post


Link to post
Share on other sites
Earthshine
Posted (edited)

I am getting same compile issues

update, I searched the FORUM for an UDF, they have an SAP UDF and they did what I had suggested and the guy said it worked, putting the thing in parenthesis.

Edited by Earthshine

My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
Earthshine
Posted (edited)

I have figured out this. I gave you the right answer to enclose it in () because the SAP recorder just spits out VBScript

However, you may need to add an error handler to see what is wrong with that object you refer to in order to find out more. It looks like you are using COM?

Edited by Earthshine

My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
automationguy128
5 minutes ago, Earthshine said:

I have figured out this. I gave you the right answer to enclose it in () because the SAP recorder just spits out VBScript

However, you may need to add an error handler to see what is wrong with that object you refer to in order to find out more. It looks like you are using COM?

How would I add an error handler, like I said I'm still fairly new to this!

Share this post


Link to post
Share on other sites
Earthshine
Posted (edited)

look here

Apparently, if you use the SAP UDF it has one called _SAPErrorHandlerRegister and can lead to results like he got... maybe it's greyed out not available yet... etc



err.number is:  -2147352567
err.windescription:
err.description is:  The menu item is disabled.
err.source is:  SAP Frontend Server
err.helpfile is:  C:\Programmi\SAP\FrontEnd\sapgui\sapfront.HLP
err.helpcontext is:  393215
err.lastdllerror is:  0
err.scriptline is:  342
err.retcode is:  623
Edited by Earthshine

My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
Earthshine
Posted (edited)

You can use the UDF alongside your generated script too from what I have read in this forum. update, I looked at SAP.au3 and it does not have that handler.

Edited by Earthshine

My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
Earthshine

so, from that link, if you do this, you should be able to build one

$oMyError = ObjEvent("AutoIt.Error","SAP_Error")
Func SAP_Error()
    MsgBox(0, "SAP", "Can't find the specified menu item!")
Endfunc




My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
automationguy128
2 hours ago, Earthshine said:

so, from that link, if you do this, you should be able to build one

$oMyError = ObjEvent("AutoIt.Error","SAP_Error")
Func SAP_Error()
    MsgBox(0, "SAP", "Can't find the specified menu item!")
Endfunc



Managed to get it working, thanks a lot!

  • Like 1

Share this post


Link to post
Share on other sites
Earthshine
Posted (edited)

@automationguy128 can you share with us how? for others with similar issues

Edited by Earthshine

My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
automationguy128
;Continued
$session.findById("wnd[1]/usr/cntlALV_CONTAINER_1/shellcont/shell").currentCellRow = 4
$session.findById("wnd[1]/usr/cntlALV_CONTAINER_1/shellcont/shell").selectedRows = "4"
$session.findById("wnd[1]/usr/cntlALV_CONTAINER_1/shellcont/shell").doubleClickCurrentCell
$session.findById("wnd[0]/tbar[1]/btn[8]").press

sleep(15000)

$oMyError = ObjEvent("AutoIt.Error","SAP_Error")
Func SAP_Error()

    $session.findById("wnd[0]/usr/cntlCONTAINER/shellcont/shell").pressToolbarContextButton ("&MB_VIEW")

$session.findById("wnd[0]/usr/cntlCONTAINER/shellcont/shell").selectContextMenuItem ("&PRINT_BACK_PREVIEW")

$session.findById("wnd[0]/mbar/menu[4]/menu[5]/menu[2]/menu[2]").select

    ;MsgBox(0, "SAP", "Can't find the specified menu item!")
Endfunc

$session.findById("wnd[1]/usr/subSUBSCREEN_STEPLOOP:SAPLSPO5:0150/sub:SAPLSPO5:0150/radSPOPLI-SELFLAG[1,0]").select
$session.findById("wnd[1]/usr/subSUBSCREEN_STEPLOOP:SAPLSPO5:0150/sub:SAPLSPO5:0150/radSPOPLI-SELFLAG[1,0]").setFocus
;Continued

Here you go!

  • Thanks 1

Share this post


Link to post
Share on other sites
Earthshine

wow, you used the error handler to do your business? nice one on you.
