c.haslam

FileSelectFolder icons (Solved)

Recommended Posts

I am adding to Melba23's ChooseFileFolder.au3 to have similar appearance and capabilities to FileSelectFolder(), including connecting drives and mapped drives.

Where can I find the icons that appear in FileSelectFolder?

Or are the icons picked up based on file-extension associations, as PhoenixXL did here ?

Edited by c.haslam

Spoiler

CDebug Dumps values of variables including arrays and DLL structs, to a GUI, to the Console, and to the Clipboard



Share this post


Link to post
Share on other sites

I don't know from where the @AutoIt-Team (@Jos etc) these icon fetches. For a own project i use functions from @progandy. Here a demo script:

; *** Start added by AutoIt3Wrapper ***
#include <WindowsConstants.au3>
; *** End added by AutoIt3Wrapper ***
#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_Add_Constants=n
#AutoIt3Wrapper_AU3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****
#include <APIShellExConstants.au3>
#include <FileConstants.au3>
#include <MsgBoxConstants.au3>
#include <GUIConstantsEx.au3>
#include <GuiTreeView.au3>
#include <GuiListView.au3>
#include <File.au3>

Global Const $tagSHFILEINFO = 'ptr hIcon; int iIcon; DWORD dwAttributes; CHAR szDisplayName[255]; CHAR szTypeName[80];'
Global $FOLDER_ICON_INDEX = _GUIImageList_GetFileIconIndex(@SystemDir, True, 1)
;Global $UP_ICON_INDEX = _GUIImageList_GetFileIconIndex($sIconDir & 'up.ico', True, 1)


Global $idTV, $idRoot, $hIcon
Global $aDirs, $aFiles

; Create GUI
Global $hGui = GUICreate("Demo _GUICtrlTreeView_AddChild", 500, 700, 0, 0, $WS_SIZEBOX)
GUISetFont(14)
$idTV = GUICtrlCreateTreeView(2, 2, 494, 594)
GUICtrlSetResizing(-1, $GUI_DOCKTOP)
;$hTV = ControlGetHandle($hGui, '', $idTV)
;use $hTV if needed, the controlid is not accepted
_GUICtrlTreeView_SetNormalImageList($idTV, _GUIImageList_GetSystemImageList(True))
GUISetState(@SW_SHOW)
Global $sAutoItPath = StringReplace(StringReplace(@AutoItExe, '_x64', ''), 'autoit3.exe', '')
;ConsoleWrite($sAutoItPath&@CRLF)

If Not FileExists($sAutoItPath & 'autoit3.exe') Then
    $sAutoItPath = ''
    If MsgBox($MB_YESNO, 'Ordner nicht gefunden', 'Möchten Sie selbst danach suchen?', 0, $hGui) = 6 Then
        $sAutoItPath = FileSelectFolder('AutoIt Ordner manuell suchen', 'c:\')
    EndIf
    If $sAutoItPath = '' Then Exit
EndIf

$idRoot = _GUICtrlTreeView_Add($idTV, 0, $sAutoItPath, $FOLDER_ICON_INDEX)
$aDirs = _FileListToArray($sAutoItPath, '*', 2)
If Not @error Then
    For $i = 1 To $aDirs[0]
        ; Add items
        _GUICtrlTreeView_AddChild($idTV, $idRoot, $aDirs[$i], $FOLDER_ICON_INDEX, $FOLDER_ICON_INDEX)
    Next
EndIf
$aFiles = _FileListToArray($sAutoItPath, '*', 1)
If Not @error Then
    For $i = 1 To $aFiles[0]
        ; Add items
        $hIcon = _GUIImageList_GetFileIconIndex($aFiles[$i], True)
        _GUICtrlTreeView_AddChild($idTV, $idRoot, $aFiles[$i], $hIcon);,$hIcon)
    Next
EndIf
_GUICtrlTreeView_Expand($idTV)
; Loop until the user exits.
Do
Until GUIGetMsg() = $GUI_EVENT_CLOSE
GUIDelete()


; Author: progandy (www.autoit.de)
Func _GUIImageList_GetSystemImageList($bLargeIcons = False)
    Local $dwFlags, $hIml, $FileInfo = DllStructCreate($tagSHFILEINFO)
    $dwFlags = BitOR($SHGFI_USEFILEATTRIBUTES, $SHGFI_SYSICONINDEX)
    If Not ($bLargeIcons) Then
        $dwFlags = BitOR($dwFlags, $SHGFI_SMALLICON)
    EndIf
;~    '// Load the image list - use an arbitrary file extension for the
;~    '// call to SHGetFileInfo (we don't want to touch the disk, so use
;~    '// FILE_ATTRIBUTE_NORMAL && SHGFI_USEFILEATTRIBUTES).
    $hIml = _WinAPI_SHGetFileInfo(".txt", $FILE_ATTRIBUTE_NORMAL, _
            DllStructGetPtr($FileInfo), DllStructGetSize($FileInfo), $dwFlags)
    Return $hIml
EndFunc   ;==>_GUIImageList_GetSystemImageList

; Author: progandy (www.autoit.de)
Func _WinAPI_SHGetFileInfo($pszPath, $dwFileAttributes, $psfi, $cbFileInfo, $uFlags)
    Local $return = DllCall("shell32.dll", "dword_ptr", "SHGetFileInfo", "str", $pszPath, "DWORD", $dwFileAttributes, "ptr", $psfi, "UINT", $cbFileInfo, "UINT", $uFlags)
    If @error Then Return SetError(@error, 0, 0)
    Return $return[0]
EndFunc   ;==>_WinAPI_SHGetFileInfo

; Author: progandy (www.autoit.de)
Func _GUIImageList_GetFileIconIndex($sFileSpec, $bLargeIcons = False, $bForceLoadFromDisk = False)
    Local $dwFlags, $FileInfo = DllStructCreate($tagSHFILEINFO)
    $dwFlags = $SHGFI_SYSICONINDEX
    If $bLargeIcons Then
        $dwFlags = BitOR($dwFlags, $SHGFI_LARGEICON)
    Else
        $dwFlags = BitOR($dwFlags, $SHGFI_SMALLICON)
    EndIf
;~ ' We choose whether to access the disk or not. If you don't
;~ ' hit the disk, you may get the wrong icon if the icon is
;~ ' not cached. But the speed is very good!
    If Not $bForceLoadFromDisk Then $dwFlags = BitOR($dwFlags, $SHGFI_USEFILEATTRIBUTES)
;~ ' sFileSpec can be any file. You can specify a
;~ ' file that does not exist and still get the
;~ ' icon, for example sFileSpec = "C:\PANTS.DOC"
    Local $lR = _WinAPI_SHGetFileInfo( _
            $sFileSpec, $FILE_ATTRIBUTE_NORMAL, DllStructGetPtr($FileInfo), DllStructGetSize($FileInfo), _
            $dwFlags _
            )
    If ($lR = 0) Then
        Return SetError(1, 0, -1)
    Else
        Return DllStructGetData($FileInfo, "iIcon")
    EndIf
EndFunc   ;==>_GUIImageList_GetFileIconIndex



Edited by AutoBert

Share this post


Link to post
Share on other sites

Thanks. How would I modify your script to make F:\ the root rather than the Autoit folder?


Spoiler

CDebug Dumps values of variables including arrays and DLL structs, to a GUI, to the Console, and to the Clipboard



Share this post


Link to post
Share on other sites

Just replacing this block:

Global $sAutoItPath = StringReplace(StringReplace(@AutoItExe, '_x64', ''), 'autoit3.exe', '')

If Not FileExists($sAutoItPath & 'autoit3.exe') Then
    $sAutoItPath = ''
    If MsgBox($MB_YESNO, 'Ordner nicht gefunden', 'Möchten Sie selbst danach suchen?', 0, $hGui) = 6 Then
        $sAutoItPath = FileSelectFolder('AutoIt Ordner manuell suchen', 'c:\')
    EndIf
    If $sAutoItPath = '' Then Exit
EndIf

with

Global $sAutoItPath = "F:\"

can you post a screenshot, i am interested to see result but only a single computer isle.

Share this post


Link to post
Share on other sites

Here's the change:

Global $sAutoItPath = 'F:\'
;~ Global $sAutoItPath = StringReplace(StringReplace(@AutoItExe, '_x64', ''), 'autoit3.exe', '')
;~ ;ConsoleWrite($sAutoItPath&@CRLF)

;~ If Not FileExists($sAutoItPath & 'autoit3.exe') Then
;~     $sAutoItPath = ''
;~     If MsgBox($MB_YESNO, 'Ordner nicht gefunden', 'Möchten Sie selbst danach suchen?', 0, $hGui) = 6 Then
;~         $sAutoItPath = FileSelectFolder('AutoIt Ordner manuell suchen', 'c:\')
;~     EndIf
;~     If $sAutoItPath = '' Then Exit
;~ EndIf

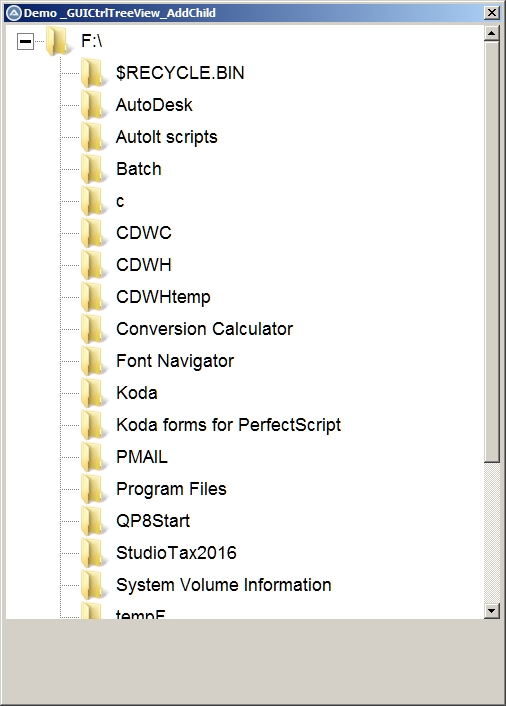

and here's the screenshot:

  • 5b6cf0625c2c9_iconFasfolder.jpg.5f32197a98c4c10b0b49979cbc8ac081.jpg

I was expecting a disk drive image.

I tried

Global $sAutoItPath = 'F:'

with

$aDirs = _FileListToArray($sAutoItPath&'\', '*', 2)

but the icon for F: wa still a folder.

Edited by c.haslam

Spoiler

CDebug Dumps values of variables including arrays and DLL structs, to a GUI, to the Console, and to the Clipboard



Share this post


Link to post
Share on other sites

I got it to work properly.

I added

Global $Drive_ICON_INDEX = _GUIImageList_GetFileIconIndex('F:',True,1)

and changed the $idRoot line to

$idRoot = _GUICtrlTreeView_Add($idTV, 0, $sAutoItPath, $DRIVE_ICON_INDEX)

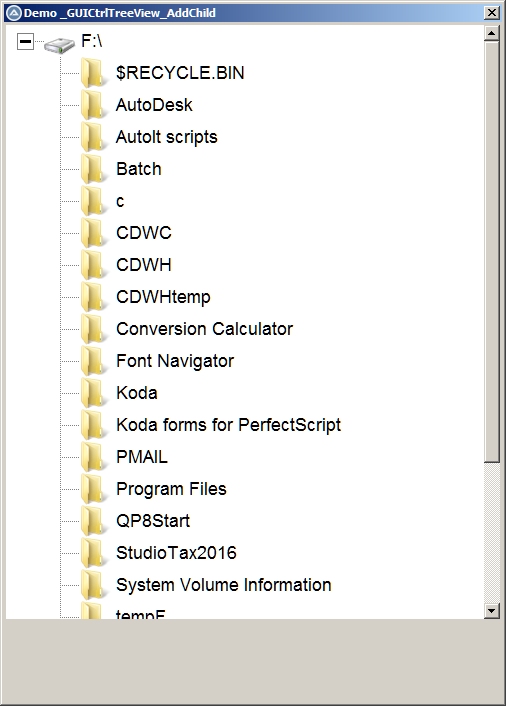

The GUI was then


Thank you! One fewer alligator in my swamp!

Edited by c.haslam

Spoiler

CDebug Dumps values of variables including arrays and DLL structs, to a GUI, to the Console, and to the Clipboard
