Parsix

Visual Selection Tool for Crop

Recommended Posts

Parsix

i put a pic control in form

i need visual selection for crop picture (visual selection --return--> X1Y1,X2Y2)

solution?


Share this post


Link to post
Share on other sites
Melba23

Parsix,

I posted a couple of example scripts in this thread which might help:

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
UEZ

Just an non-perfect example which you can start with:

;coded by UEZ build 2018-09-22 beta
#include <Array.au3>
#include <GDIPlus.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WinAPIRes.au3>
#include <WinAPISysWin.au3>
#include <WindowsConstants.au3>

Global $__g_hGUI_MarkArea, $__g_iLabel_TL, $__g_iLabel_TM, $__g_iLabel_TR, $__g_iLabel_LM, $__g_iLabel_RM, $__g_iLabel_BL, $__g_iLabel_BM, _
        $__g_iLabel_BR, $__g_iOldCursor, $__g_iW, $__g_iH, $__g_iColor_ResizeDots = 0xFFFFFF, $__g_iBorder = 4

Global $aRect = _GDIPlus_MarkArea()
_ArrayDisplay($aRect, "Selection Coordinates")

Func _GDIPlus_MarkArea()
    _GDIPlus_Startup()
    $__g_hGUI_MarkArea = GUICreate("", 1, 1, -1, -1, $WS_POPUP, BitOR($WS_EX_TOPMOST, $WS_EX_LAYERED))
    GUISetBkColor(0xABCDEF, $__g_hGUI_MarkArea)

    $__g_iLabel_TL = GUICtrlCreateLabel("", 0, 0, $__g_iBorder, $__g_iBorder) ;top left
    GUICtrlSetResizing(-1, $GUI_DOCKSIZE)
    GUICtrlSetBkColor(-1, $__g_iColor_ResizeDots)
    $__g_iLabel_TM = GUICtrlCreateLabel("", 0, 0, $__g_iBorder, $__g_iBorder) ;top mid
    GUICtrlSetResizing(-1, $GUI_DOCKSIZE)
    GUICtrlSetBkColor(-1, $__g_iColor_ResizeDots)
    $__g_iLabel_TR = GUICtrlCreateLabel("", 0, 0, $__g_iBorder, $__g_iBorder) ;top right
    GUICtrlSetResizing(-1, $GUI_DOCKSIZE)
    GUICtrlSetBkColor(-1, $__g_iColor_ResizeDots)
    $__g_iLabel_LM = GUICtrlCreateLabel("", 0, 0, $__g_iBorder, $__g_iBorder) ;left mid
    GUICtrlSetResizing(-1, $GUI_DOCKSIZE)
    GUICtrlSetBkColor(-1, $__g_iColor_ResizeDots)
    $__g_iLabel_RM = GUICtrlCreateLabel("", 0, 0, $__g_iBorder, $__g_iBorder) ;right mid
    GUICtrlSetResizing(-1, $GUI_DOCKSIZE)
    GUICtrlSetBkColor(-1, $__g_iColor_ResizeDots)
    $__g_iLabel_BL = GUICtrlCreateLabel("", 0, 0, $__g_iBorder, $__g_iBorder) ;bottom left
    GUICtrlSetResizing(-1, $GUI_DOCKSIZE)
    GUICtrlSetBkColor(-1, $__g_iColor_ResizeDots)
    $__g_iLabel_BM = GUICtrlCreateLabel("", 0, 0, $__g_iBorder, $__g_iBorder) ;bottom mid
    GUICtrlSetResizing(-1, $GUI_DOCKSIZE)
    GUICtrlSetBkColor(-1, $__g_iColor_ResizeDots)
    $__g_iLabel_BR = GUICtrlCreateLabel("", 0, 0, $__g_iBorder, $__g_iBorder) ;bottom right
    GUICtrlSetResizing(-1, $GUI_DOCKSIZE)
    GUICtrlSetBkColor(-1, $__g_iColor_ResizeDots)
    $__g_iOldCursor = MouseGetCursor()
    GUISetCursor(3, 1, $__g_hGUI_MarkArea)
    GUISetState(@SW_SHOW, $__g_hGUI_MarkArea)
    _WinAPI_SetLayeredWindowAttributes($__g_hGUI_MarkArea, 0xABCDEF, 0xF0, 3)

    Local $aMPos, $aPrevMPos[2] = [MouseGetPos(0) + 1, MouseGetPos(1) + 1], $iID, $aCI, $iX, $iY, $bLMPressed = False

    Do
        Switch GUIGetMsg()
            Case $GUI_EVENT_CLOSE
                GUIRegisterMsg($WM_TIMER, "")
                DllCall("user32.dll", "bool", "KillTimer", "hwnd", $__g_hGUI_MarkArea, "uint_ptr", $iID)
                _GDIPlus_Shutdown()
                Local $aResult = WinGetPos($__g_hGUI_MarkArea)
                GUIDelete($__g_hGUI_MarkArea)
                Return $aResult
        EndSwitch
        $aMPos = MouseGetPos()
        If $aMPos[0] <> $aPrevMPos[0] Or $aMPos[1] <> $aPrevMPos[1] And Not $bLMPressed Then
            WinMove($__g_hGUI_MarkArea, "", $aMPos[0], $aMPos[1])
            $aPrevMPos = $aMPos
        EndIf
        $aCI = GUIGetCursorInfo($__g_hGUI_MarkArea)
        If $bLMPressed = True Then
            Switch $aCI[4]
                Case $__g_iLabel_TL, $__g_iLabel_BR
                    GUISetCursor(12, 1, $__g_hGUI_MarkArea)
                Case $__g_iLabel_TR, $__g_iLabel_BL
                    GUISetCursor(10, 1, $__g_hGUI_MarkArea)
                Case $__g_iLabel_LM, $__g_iLabel_RM
                    GUISetCursor(13, 1, $__g_hGUI_MarkArea)
                Case $__g_iLabel_TM, $__g_iLabel_BM
                    GUISetCursor(11, 1, $__g_hGUI_MarkArea)
                Case Else
                    GUISetCursor($__g_iOldCursor, 1, $__g_hGUI_MarkArea)
            EndSwitch
        EndIf
        If $aCI[2] And Not $bLMPressed Then
            $aGUIStartPos = WinGetPos($__g_hGUI_MarkArea)
            GUIRegisterMsg($WM_TIMER, "PlayAnim")
            $iID = DllCall("User32.dll", "uint_ptr", "SetTimer", "hwnd", $__g_hGUI_MarkArea, "uint_ptr", 1, "uint", 30, "ptr", 0)[0]
            While $aCI[2]
                $aCI = GUIGetCursorInfo($__g_hGUI_MarkArea)
                $aMPos = MouseGetPos()
                $__g_iW = Abs($aMPos[0] - $aGUIStartPos[0]) + 1
                $__g_iH = Abs($aMPos[1] - $aGUIStartPos[1]) + 1
                If $aMPos[0] < $aGUIStartPos[0] Then
                    $iX = $aMPos[0]
                Else
                    $iX = $aGUIStartPos[0]
                EndIf
                If $aMPos[1] < $aGUIStartPos[1] Then
                    $iY = $aMPos[1]
                Else
                    $iY = $aGUIStartPos[1]
                EndIf
                WinMove($__g_hGUI_MarkArea, "", $iX, $iY, $__g_iW, $__g_iH)

                ControlMove($__g_hGUI_MarkArea, "", $__g_iLabel_TM, ($__g_iW - $__g_iBorder) / 2, 0, $__g_iBorder, $__g_iBorder)
                ControlMove($__g_hGUI_MarkArea, "", $__g_iLabel_TR, ($__g_iW - $__g_iBorder), 0, $__g_iBorder, $__g_iBorder)
                ControlMove($__g_hGUI_MarkArea, "", $__g_iLabel_LM, 0, ($__g_iH - $__g_iBorder) / 2, $__g_iBorder, $__g_iBorder)
                ControlMove($__g_hGUI_MarkArea, "", $__g_iLabel_RM, ($__g_iW - $__g_iBorder), ($__g_iH - $__g_iBorder) / 2, $__g_iBorder, $__g_iBorder)
                ControlMove($__g_hGUI_MarkArea, "", $__g_iLabel_BL, 0, ($__g_iH - $__g_iBorder), $__g_iBorder, $__g_iBorder)
                ControlMove($__g_hGUI_MarkArea, "", $__g_iLabel_BM, ($__g_iW - $__g_iBorder) / 2, ($__g_iH - $__g_iBorder), $__g_iBorder, $__g_iBorder)
                ControlMove($__g_hGUI_MarkArea, "", $__g_iLabel_BR, ($__g_iW - $__g_iBorder), ($__g_iH - $__g_iBorder), $__g_iBorder, $__g_iBorder)
                ControlMove($__g_hGUI_MarkArea, "", $__g_iLabel_BR, ($__g_iW - $__g_iBorder), ($__g_iH - $__g_iBorder), $__g_iBorder, $__g_iBorder)
            WEnd
            $bLMPressed = True
            GUISetCursor($__g_iOldCursor, 1, $__g_hGUI_MarkArea)
        EndIf
    Until False
EndFunc   ;==>_GDIPlus_MarkArea

Func PlayAnim()
    Local Static $fOffset = 0
    Local Const $iSize = $__g_iBorder / 2
    Local Const $hDC = _WinAPI_GetDC($__g_hGUI_MarkArea)
    Local Const $hHBitmap = _WinAPI_CreateCompatibleBitmap($hDC, $__g_iW, $__g_iH)
    Local Const $hDC_backbuffer = _WinAPI_CreateCompatibleDC($hDC)
    Local Const $DC_obj = _WinAPI_SelectObject($hDC_backbuffer, $hHBitmap)
    Local Const $hCanvas = _GDIPlus_GraphicsCreateFromHDC($hDC_backbuffer)
    Local Const $hPen = _GDIPlus_PenCreate(0xFF0178D7, $iSize), $hPen2 = _GDIPlus_PenCreate(0xFFFFFFFF, $iSize), _
                $hBrush = _GDIPlus_BrushCreateSolid(0xFFFFFFFF)
    _GDIPlus_PenSetDashStyle($hPen, $GDIP_DASHSTYLEDASHDOTDOT)
    _GDIPlus_GraphicsClear($hCanvas, 0xFFABCDEF)
    _GDIPlus_GraphicsDrawRect($hCanvas, 1 + $iSize, 1 + $iSize, $__g_iW - 2 * $iSize - 2, $__g_iH - 2 * $iSize - 2, $hPen2)
    DllCall($__g_hGDIPDll, "int", "GdipSetPenDashOffset", "handle", $hPen, "float", $fOffset)
    _GDIPlus_GraphicsDrawRect($hCanvas, 1 + $iSize, 1 + $iSize, $__g_iW - 2 * $iSize - 2, $__g_iH - 2 * $iSize - 2, $hPen)

    _GDIPlus_GraphicsFillRect($hCanvas, 0, 0, $__g_iBorder + 1, $__g_iBorder + 1, $hBrush)
    _GDIPlus_GraphicsDrawRect($hCanvas, 0, 0, $__g_iBorder + 1, $__g_iBorder + 1)
    _GDIPlus_GraphicsFillRect($hCanvas, ($__g_iW - $__g_iBorder) / 2, 0, $__g_iBorder + 1, $__g_iBorder + 1, $hBrush)
    _GDIPlus_GraphicsDrawRect($hCanvas, ($__g_iW - $__g_iBorder) / 2, 0, $__g_iBorder + 1, $__g_iBorder + 1)
    _GDIPlus_GraphicsFillRect($hCanvas, ($__g_iW - $__g_iBorder) - 2, 0, $__g_iBorder + 1, $__g_iBorder + 1, $hBrush)
    _GDIPlus_GraphicsDrawRect($hCanvas, ($__g_iW - $__g_iBorder) - 2, 0, $__g_iBorder + 1, $__g_iBorder + 1)
    _GDIPlus_GraphicsFillRect($hCanvas, 0, ($__g_iH - $__g_iBorder) / 2, $__g_iBorder + 1, $__g_iBorder + 1, $hBrush)
    _GDIPlus_GraphicsDrawRect($hCanvas, 0, ($__g_iH - $__g_iBorder) / 2, $__g_iBorder + 1, $__g_iBorder + 1)
    _GDIPlus_GraphicsFillRect($hCanvas, ($__g_iW - $__g_iBorder) - 2, ($__g_iH - $__g_iBorder) / 2, $__g_iBorder + 1, $__g_iBorder + 1, $hBrush)
    _GDIPlus_GraphicsDrawRect($hCanvas, ($__g_iW - $__g_iBorder) - 2, ($__g_iH - $__g_iBorder) / 2, $__g_iBorder + 1, $__g_iBorder + 1)
    _GDIPlus_GraphicsFillRect($hCanvas, 0, ($__g_iH - $__g_iBorder) - 2, $__g_iBorder + 1, $__g_iBorder + 1, $hBrush)
    _GDIPlus_GraphicsDrawRect($hCanvas, 0, ($__g_iH - $__g_iBorder) - 2, $__g_iBorder + 1, $__g_iBorder + 1)
    _GDIPlus_GraphicsFillRect($hCanvas, ($__g_iW - $__g_iBorder) / 2, ($__g_iH - $__g_iBorder) - 2, $__g_iBorder + 1, $__g_iBorder + 1, $hBrush)
    _GDIPlus_GraphicsDrawRect($hCanvas, ($__g_iW - $__g_iBorder) / 2, ($__g_iH - $__g_iBorder) - 2, $__g_iBorder + 1, $__g_iBorder + 1)
    _GDIPlus_GraphicsFillRect($hCanvas, ($__g_iW - $__g_iBorder) - 2, ($__g_iH - $__g_iBorder) - 2, $__g_iBorder + 1, $__g_iBorder + 1, $hBrush)
    _GDIPlus_GraphicsDrawRect($hCanvas, ($__g_iW - $__g_iBorder) - 2, ($__g_iH - $__g_iBorder) - 2, $__g_iBorder + 1, $__g_iBorder + 1)

    _WinAPI_BitBlt($hDC, 0, 0, $__g_iW, $__g_iH, $hDC_backbuffer, 0, 0, $SRCCOPY)

    $fOffset += 0.5
    _GDIPlus_GraphicsDispose($hCanvas)
    _WinAPI_SelectObject($hDC_backbuffer, $DC_obj)
    _WinAPI_DeleteDC($hDC_backbuffer)
    _WinAPI_DeleteObject($hHBitmap)
    _WinAPI_ReleaseDC($__g_hGUI_MarkArea, $hDC)
    _GDIPlus_PenDispose($hPen)
    _GDIPlus_PenDispose($hPen2)
    _GDIPlus_BrushDispose($hBrush)
EndFunc   ;==>PlayAnim

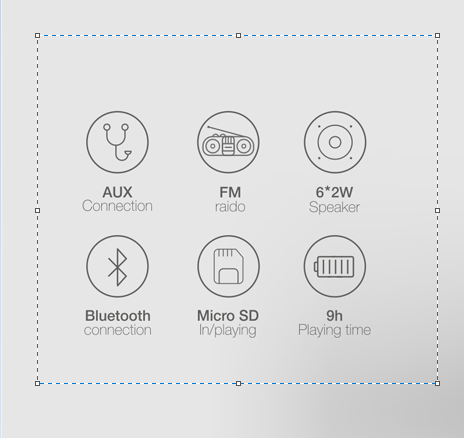

Just mark an area on your desktop by holding down the left mouse button. The resize function of the marked area is not added yet.



Look here for the full version:





Edited by UEZ
  • Like 1

Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
Parsix



UEZ



thanks, how to accept Selected area?

 only crop a section of pic control is needed



Melba23

not worked for me





Share this post


Link to post
Share on other sites
UEZ
On 10/6/2018 at 4:05 PM, Parsix said:

UEZ



thanks, how to accept Selected area?

 only crop a section of pic control is needed

When you have selected an area on your desktop press ESC. The function _GDIPlus_MarkArea() will return an array with x, y, w, h values.


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
Parsix
10 hours ago, UEZ said:

When you have selected an area on your desktop press ESC. The function _GDIPlus_MarkArea() will return an array with x, y, w, h values.

How to Limit it to _GDIPlus_GraphicsDrawImageRect ?

Share this post


Link to post
Share on other sites
UEZ
1 hour ago, Parsix said:

How to Limit it to _GDIPlus_GraphicsDrawImageRect ?

It do not know what you want to ask with that question!


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
Parsix

nothing, thank you
