Photoshop pixel per cm to cal

damian25

By damian25,
in AutoIt General Help and Support

 Share

Recommended Posts

damian25 Seeker

damian25

Posted
Posted

Hello, im looking for script which would change pixel per cm to inch. the most common ones files are prepared pix/inch but sometimes they are pix/cm.

I have shortcut for f11 which open for me "image size window"  >>> https://imgur.com/a/jk2cjft ,and i want while i press f11 or window image size is opening  script change pix cm to cal if it's required. Is that possible?  I know that after i change pixel cm to cal size of image will change but it should be done(i mean work of script) before i drop there required dpi. I only work with dpi, so i want to be sure before i enter dpi that there is pixel per inch. Script could be open himself by switching on photoshop, and should refresh after windows size has been opened few times if pixel is per inch.


I will grateful if u could help me, this will help me a lot of in my work.

Thanks and have a nice day

Link to comment
Share on other sites
Subz Universalist

Subz

Posted
Posted

You should be able to modify the following to suit your needs, it works for me with Photoshop CC latest release.

HotKeySet("{ESC}", "Close")
HotKeySet("{F11}", "ImageSize")

While 1
    Sleep(100)
WEnd
Func ImageSize()
    WinActivate("[CLASS:Photoshop]", "")
    Send("!^i")
    WinWaitActive("Image Size")
    ControlSend("Image Size", "", "[CLASS:ComboBox; INSTANCE:4]", "{UP}")
    ControlClick("Image Size", "", "[CLASS:Button; INSTANCE:2]")
EndFunc

Func Close()
    Exit
EndFunc



Link to comment
Share on other sites
Subz Universalist

Subz

Posted
Posted

Using the AutoIt3 Window Info tool, included with the AutoIt installation, check the class names, window names are correct, looking at the image you posted it appears to be in Polish, so you will need to update the code with translated text, but as mentioned use the AutoIt3 Window Tool to get the correct information.

Link to comment
Share on other sites
damian25 Seeker

damian25

Posted
  • Author
Posted (edited)

i had set f11 on hotkey in photoshop to open image size windows, is it possible to be reason? I change image size name to polish ofc, i tried change hotkeyset but doesnt work too. I work with full adobe set , and have to log before use photoshop, maybe there is reason.



what exactly do:

Send("!^i")

maybe  u have idea how change code to work ? i tried windwaitactive class but too didnt work



#edit

error: Rozmiar obrazu(): undefined function. it appear now

Edited by damian25
Link to comment
Share on other sites
damian25 Seeker

damian25

Posted
  • Author
Posted

OK, i change some row and work , i have to hold image size windows open after pixel change to cal and set my own dpi set, but if i set in script hotkeyset to f11 and i have in photoshop f11 doesnt open imagesize windows. How change it if i want open by f11 image size and then should automaticly change cm to cal like now

Link to comment
Share on other sites
damian25 Seeker

damian25

Posted
  • Author
Posted
Spoiler

HotKeySet("{ESC}", "Close")
HotKeySet("{F2}", "Rozmiarobrazu")
While 1
    Sleep(10)
    WEnd
Func Rozmiarobrazu()
    WinActivate("[CLASS:Photoshop]", "")
    Send("!^i")
    WinWaitActive("Rozmiar obrazu")
    ControlSend("Rozmiar obrazu", "", "[CLASS:ComboBox; INSTANCE:4]", "{UP}")

EndFunc

Func Close()
    Exit
EndFunc



Now if i open manually imagesize and before press f2 it change cm to cal, but if not nothing happen, also if i set hotkeyset f11 and clear shortcut in Photoshop work same, if i press f11 before open imagesize work, but i want it works like i press f11 then open imagesize and if pixel per cm change cal

Link to comment
Share on other sites
Subz Universalist

Subz

Posted
Posted

You didn't post the AutoIt Window Info Tool information

See example below, first Window is for Photoshop without Image Size Window Open the second screenshot is using the "Finder Tool" to select the "Pixels/Inch" (in my version of Photoshop.

Please post your screenshots, please select the Window tab for the first screenshot and the "Control" tab for the second screenshot.




Link to comment
Share on other sites
Subz Universalist

Subz

Posted
Posted

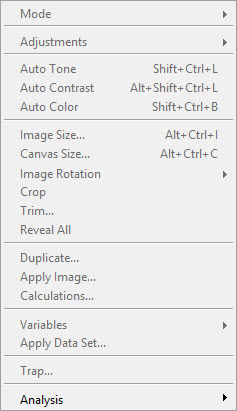

Everything looks correct, what is the shortcut for Image Size... you'll notice that mine is Alt + Ctrl + i (see screenshot below), maybe your shortcut is different?  I'm not sure if you were using F11 from within Photoshop or from the AutoIt script.  If you set it to F11 within Photoshop you will need to change the send key to Send("{F11}").




Link to comment
Share on other sites
damian25 Seeker

damian25

Posted
  • Author
Posted (edited)

YE I HAVE different shorcut. I want check ur script that should automaticly change pixel per cm to cal just if image size windows is opened AND THEN my shortcut by photoshop will not conflict with scirpt f11


Edited by damian25
Link to comment
Share on other sites
Subz Universalist

Subz

Posted
Posted

You can use something like the following, if you open Image Size it will change the setting once only and then wait for the Window to close, if you open another image and Image Size window it will modify that once, you only want to do it once otherwise it uses up a lot of resources and would stop you from modifying other settings.

HotKeySet("{ESC}", "Close")
While 1
    If WinActive("Image Size", "") Then
        ImageSize()
        WinWaitClose("Image Size", "")
    EndIf
    Sleep(250)
WEnd

Func ImageSize()
    WinActivate("Image Size", "")
    WinWaitActive("Image Size", "")
    ControlSend("Image Size", "", "[CLASS:ComboBox; INSTANCE:4]", "{UP}")
EndFunc

Func Close()
    Exit
EndFunc



Link to comment
Share on other sites
damian25 Seeker

damian25

Posted
  • Author
Posted

U are awesome bro. It work. Should i add winactive class for photoshop? IS possible script launch always if photoshop start work?  And how can i choose from combobox (few options, last , i mean if i change picture to cmyk  and i have to save  to .tiff ,he is always last)

Link to comment
Share on other sites
damian25 Seeker

damian25

Posted
  • Author
Posted (edited)
Quote
#include <ColorConstants.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#NoTrayIcon
HotKeySet("{esc}", "_Pause")
$hGui = GUICreate("macro", 300, 80)
$hPause = GUICtrlCreateButton("wlaczone", 120, 24, 60)
GUISetState()

Global $Counter = 0 ; Not needed, just for demonstration purpose.

While 3
    ;Your code starts in this main loop
    ; Note that the below is just to show script is running, and might look odd due to nature of msg loop.
    $Counter += 1
    If $Counter >= 300 Then
        ConsoleWrite("Running" & @LF)
        $Counter = 0
    EndIf

    Switch GUIGetMsg()
        Case -3 ; $GUI_EVENT_CLOSE
            Exit
        Case $hPause ; Pause button
            ConsoleWrite("!Pause" & @LF)
            _Pause()
         EndSwitch
         If WinActive("Rozmiar obrazu", "") Then
        ImageSize()
        WinWaitClose("Rozmiar obrazu", "")
     Sleep(250)
  EndIf
  If WinActivate("Zapisywanie jako", "") Then
     zapis()
     WinWaitClose("Zapisywanie jako", "")
     sleep(500)
   EndIf
WEnd

Func ImageSize()
    WinActivate("Rozmiar obrazu", "")
    WinWaitActive("Rozmiar obrazu", "")
    ControlSend("Rozmiar obrazu", "", "[CLASS:ComboBox; INSTANCE:4]", "{UP}")
EndFunc

Func zapis()
    WinActivate("Zapisywanie jako", "")
    ControlClick("Zapisywanie jako", "","[CLASS:ComboBox; INSTANCE:2]")
    ControlSend("Zapisywanie jako", "", "[CLASS:ComboBox; INSTANCE:2]", "{DOWN 12}")
    ControlSend("Zapisywanie jako", "", "[CLASS:ComboBox; INSTANCE:2]", "{ENTER}")
 EndFunc

Func _Pause()
    GUICtrlSetData($hPause, "wylaczone")
    While 3
        Switch GUIGetMsg()
            Case -3 ; $GUI_EVENT_CLOSE need to be able to exit while paused.
                Exit
            Case $hPause ; Pause button
                ExitLoop
        EndSwitch
    WEnd
    GUICtrlSetData($hPause, "wlaczone")
    ConsoleWrite("+wylaczone" & @LF)
EndFunc   ;==>_Pause



 I add to script button which turn on/off script but i problem is cuz i can only turn off by esc script, and if i want reuse esc i want script resume but have no idea how.

Also i would like send program to tray and keep it since he starts(i will put to startup folder it because i want it works for all time pc works). But if i would like back from tray "for second" should it back and after minimalize again gone to tray.



Edited by damian25
Link to comment
Share on other sites
Subz Universalist

Subz

Posted
Posted

You can change HotKeySet to anything it doesn't have to be {ESC} look at Send in the helpfile for different keys.

Here is an example using System Tray Icon or F4 to Toggle the Script On and Off.

#NoTrayIcon

Opt("TrayMenuMode", 3)
Opt("TrayOnEventMode", 1)

HotKeySet("{F4}", "ToggleScript")

Global $idToggle, $idExit
Global $bUpdated = False, $bToggle = "Na"

Example()

Func Example()
    $idToggle = TrayCreateItem("Toggle - " & $bToggle)
        TrayItemSetOnEvent($idToggle, "ToggleScript")

    TrayCreateItem("")

    $idExit = TrayCreateItem("Exit")
        TrayItemSetOnEvent($idExit, "CloseScript")

    TraySetState()

    While 1
        If $bToggle = "Na" Then
            If WinActive("Rozmiar obrazu", "") Then
                ImageSize()
                WinWaitClose("Rozmiar obrazu", "")
            ElseIf WinActivate("Zapisywanie jako", "") Then
                zapis()
                WinWaitClose("Zapisywanie jako", "")
            EndIf
        EndIf
        Sleep(100)
    WEnd
EndFunc

Func ToggleScript()
    If $bToggle = "Na" And TrayItemGetText($idToggle) = "Toggle - Na" Then
        $bToggle = "wlaczone"
        TrayItemSetText($idToggle, "Toggle - " & $bToggle)
        TrayTip("Photoshop Script", $bToggle, 1)
    ElseIf $bToggle = "wlaczone" And TrayItemGetText($idToggle) = "Toggle - wlaczone" Then
        $bToggle = "Na"
        TrayItemSetText($idToggle, "Toggle - " & $bToggle)
        TrayTip("Photoshop Script", $bToggle, 2)
    EndIf
EndFunc

Func CloseScript()
    Exit
EndFunc

Func ImageSize()
    WinActivate("Rozmiar obrazu", "")
    WinWaitActive("Rozmiar obrazu", "")
    ControlSend("Rozmiar obrazu", "", "[CLASS:ComboBox; INSTANCE:4]", "{UP}")
EndFunc

Func zapis()
    WinActivate("Zapisywanie jako", "")
    ControlClick("Zapisywanie jako", "","[CLASS:ComboBox; INSTANCE:2]")
    ControlSend("Zapisywanie jako", "", "[CLASS:ComboBox; INSTANCE:2]", "{DOWN 12}")
    ControlSend("Zapisywanie jako", "", "[CLASS:ComboBox; INSTANCE:2]", "{ENTER}")
 EndFunc



Link to comment
Share on other sites
