alexk21

Running Script in the background and use click with coordinates

Recommended Posts

Hi guys

I have a Script that clicks on a Position (x,y coordinates) on the Internet Explorer. Right now I use the Funktion Mouseclick, but  I would like to run it in the background and do something else while it is Running. The Problem is that i have to use the coordinates, there is no other way like using id or something. I dont find a way How to do it.



TIA

Share this post


Link to post
Share on other sites

@alexk21 It depends on what you are trying to do exactly. AutoIt has IE functions built in, which allow you to automate the browser without mouseclicks. If you can explain more about what you're trying to accomplish we can help.


"Profanity is the last vestige of the feeble mind. For the man who cannot express himself forcibly through intellect must do so through shock and awe" - Spencer W. Kimball

How to get your question answered on this forum!

Share this post


Link to post
Share on other sites

Ok so we have a webpage at work with a big Table. In every table row is a Button where i Click on. After i clicked on the table row Button on the top the table row disappears and the others move up. Right now i leave the mouse at the x and y coordinates of this Button and Click on it every 3 seconds to submit every table row. Now i want to do it in the background that i can use my mouse and dont have to leave it there.

Share this post


Link to post
Share on other sites

@Danp2 Yes i have tried some things but they all dont work.

Thats the button:
<a href="#" onclick="text" class="class"></a>

And like i said in my previous post there are hundreds of this buttons in the table and i want to click always on the button at the top. That means my mouse has to click always on the same coordinates. I have tried to use the ControlClick function but it doesnt work. I dont find anything on the internet that can help me.

Thanks

Share this post


Link to post
Share on other sites

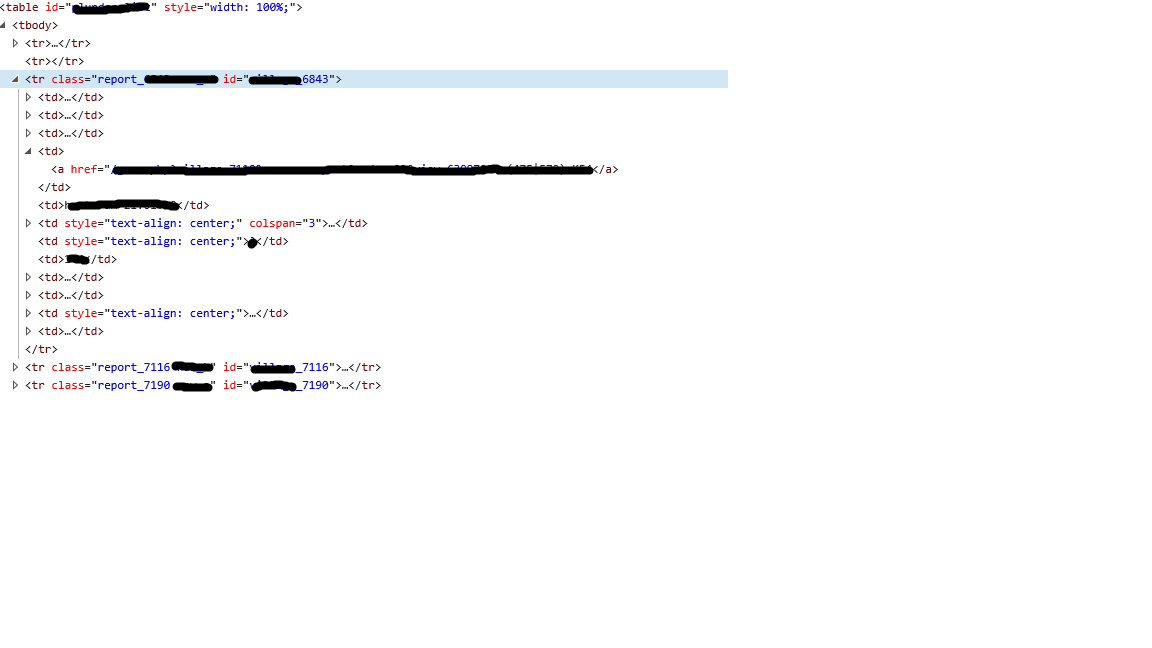

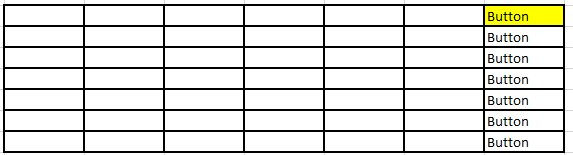

Unfortunately i am not allowed to use the html code of my company. I copied one html row from the table and Xed out the sensitive data. I want to click on this button, but the ID changes after every click, for example here it is "x_4738" and after i clicked on the button the next table row moves up and the id of it is "x_1783". Thats why i think i can do it only with coordinates. I hope you understand how the table works, after i clicked on the button. There is an attachement thats shows you how the table looks like. If i click on the yellow button the table row disappears and the others move up and so on.

<a href="#" onclick="return x(this, 4738, 6079)" class="x_4738 x_icon x_icon_b"></a>



<tr id="x_4738" class="report_4738 row_a">
    <td><a onclick="return x.deleteReport(4738);" class="" href="#"><img src="https://x.png" title="" alt="" class=""></a></td>
    <td><img src="https://x/green.png" class=""> </td>
    <td><img src="https://x/0.png" class=""> </td>
            <td><a href="/x=7110&screen=report&mode=all&view=5539722">4</a></td>
        <td>12:12:33</td>
    <td style="text-align: center;" colspan="3">
                    <span class="">?</span>
            </td>
    <td style="text-align: center;">?</td>
    <td>16.2</td>
            <td>
                        <a href="#" onclick="return x(this, 4738, 6079)" class="x_4738 x_icon x_icon_b"></a>
        </td>
        <td style="text-align: center">
                    <span class="">?</span>
            </td>
            <td><a href="/x=7110&screen=place&target=4738&" onclick="x(4738, event)"><img src="x/place.png" title="" alt="" class=""></a></td>
</tr>


TIA


Share this post


Link to post
Share on other sites

This is how I would handle this --

  • Use _IEAttach to link to existing IE tab
  • Use another _IE function (_IETableGetCollection, _IEGetObjById, etc) to get table object
  • Use _IETagNameGetCollection to get 1st row
  • Use _IETagNameGetCollection to get 7th table cell
  • Use _IEAction to click link
  • Loop back to get first row again

I may have left out some steps, but you should get the idea. There may be an easier way to do this if the page uses jQuery.

Let us know how it goes.

Dan

Share this post


Link to post
Share on other sites

Okay thanks. I am now here:

  • Use _IETagNameGetCollection to get 1st row

How do I get the first table row now? There is never a clearly sign that the row is the first row at the moment?

<tr id="x_7116" class="report_7116 row_a" style="display: none;">
<tr id="x_5697" class="report_7116 row_a" style="display: none;">
<tr id="x_1497" class="report_7116 row_a" style="display: none;">
<tr id="x_9638" class="report_7116 row_a" style="display: none;">

Share this post


Link to post
Share on other sites

Some hours ago i was able to  get the content from the right table, but now i have tried too many things and my code doesnt work anymore. I cant even find the right table and show its content with a MsgBox. I dont know whats wrong and what else i need. I have never programmed very much and this is my first time trying something in Autoit. Thanks for your help.



$oIE = _IECreate("link")
Sleep(5000)
$oIE = _IEAttach("name")
$oTable = _IEGetObjById($oIE, "table-id")
For $oRow In $oTable
$oRow = _IETagNameGetCollection($oDiv, 'tr', 3)
$oCell = _IETagNameGetCollection($oRow, 'td', 10)
_IEAction($oCell, "click")
Next



Share this post


Link to post
Share on other sites

You should be able to drop the _IEAttach because you already have the object from the initial _IECreate. Beyond that, the following is wrong --

For $oRow In $oTable

This will never work, because $oTable is a single object reference. Based on your earlier posting, I'm unsure why you are trying to get the 4th row and the 11th column (these are 0-based indexes). But assuming that those values are correct, then you could do something like this --

$oIE = _IECreate("link")
$oTable = _IEGetObjById($oIE, "table-id")

While True
    $oRow = _IETagNameGetCollection($oTable, 'tr', 3)

    If @error Then ExitLoop

    $oCell = _IETagNameGetCollection($oRow, 'td', 10)
    _IEAction($oCell, "click")
Next



Share this post


Link to post
Share on other sites

Okay i changed it to first table row and 10. column. The table was just an example...not the right size. I will test it now.

Could you tell me how i can check what content is in my $oTable? I use MsgBox with a normal variable but i think there is a better way, right?

Share this post


Link to post
Share on other sites

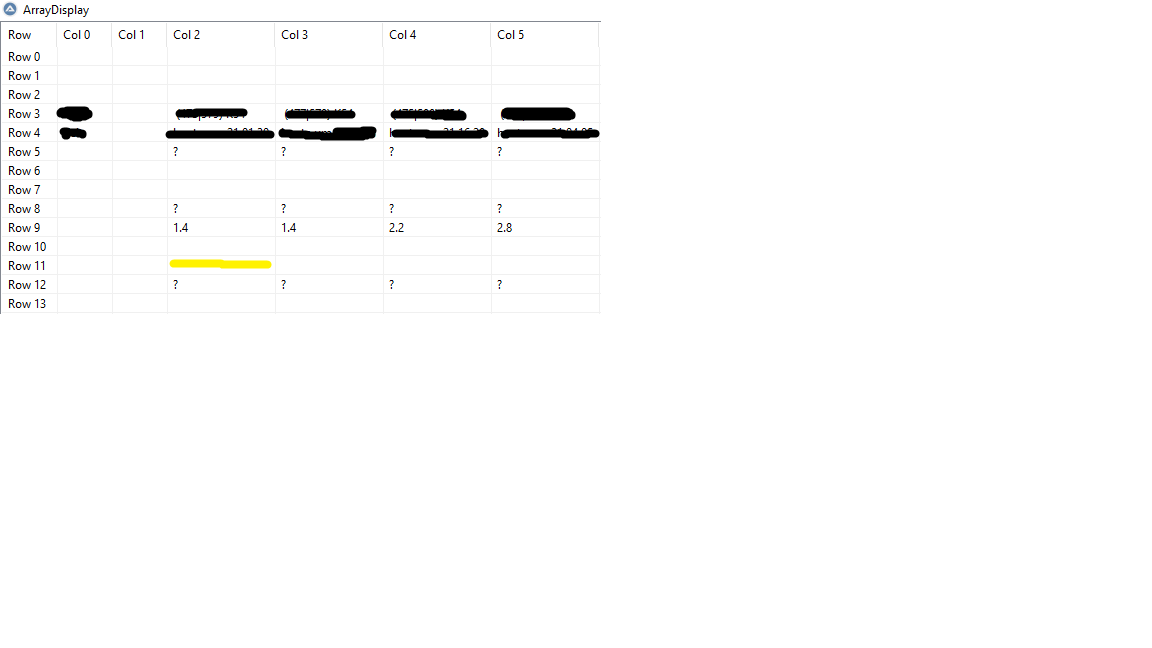

Okay...so i get the right table, but it still doesnt click on the button. Here is my array, the html code of the first table row and 2 example rows that are under my first row and my code. The yellow field is where the button is and i think i have the right numbers in my code to click on it.

Could you tell me a way how i can check myself when the script doesnt work anymore or where the mistake is? I dont know how to check if it gets the right object and so on.



#include <IE.au3>
#include <MsgBoxConstants.au3>
#include <Array.au3>

                $oIE = _IECreate("x")
                Sleep(5000)
                $oTable = _IEGetObjById($oIE, "id")
                $aTableData = _IETableWriteToArray($oTable)

                _ArrayDisplay($aTableData)

                While 1
                    $oRow = _IETagNameGetCollection($oTable, 'tr', 2)
                    If @error Then ExitLoop
                    $oCell = _IETagNameGetCollection($oRow, 'td', 11)
                    _IEAction($oCell, "click")
                WEnd





Edited by alexk21

Share this post


Link to post
Share on other sites
1 hour ago, alexk21 said:

The yellow field is where the button is and i think i have the right numbers in my code to click on it.

Sorry, but this doesn't compute. Your _ArrayDisplay shows a table with 14 rows and 6 cols. Why would you think that the button is in Row 11, Col 2?

That HTML code is not useful, because there is no way to me to confirm that it even belongs to the table in question. It doesn't appear to match up to the _ArrayDisplay because it has more columns. :blink:

1 hour ago, alexk21 said:

Could you tell me a way how i can check myself when the script doesnt work anymore or where the mistake is? I dont know how to check if it gets the right object and so on.

You can check the value of @error following each _IE* command to see if the command failed. You could also check the value of innerText to see the contents of an element, like this --

$oCell = _IETagNameGetCollection($oRow, 'td', 11)

If Not @error Then
  ConsoleWrite("InnerText = " & $oCell.innerText & @CRLF)
Endif



Share this post


Link to post
Share on other sites

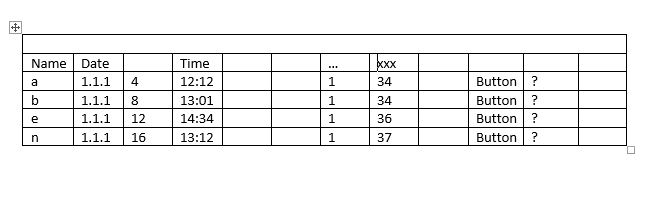

This is an example how the table looks like. The length is variable and can change every hour.  I think the button is in the right cell between my "1.4" and "?" in the Array because it is in the right cell between my "34" and "?" (screenshot). Please tell me which informations you need and i will try to do it as detailed as possible.


Share this post


Link to post
Share on other sites

If that is an accurate representation of the table, then that would indicate that the button is in the 10th column. Have you tried getting this element and examining it's contents using the example I posted above?

P.S. You may want to repost an example of the table, it's underlying HTML, and the _ArrayDisplay contents where they all represent the same data set. As is, it's difficult to know how to proceed because none of the data matches up in your examples.
