Ebola57

[Solved] Simulating IE click on complex "A" tagg

Recommended Posts

Posted (edited)

Hi

Am trying to simulate a click on this "thing". Can't really know how to handle it

<a name="viewr.alm_hardware.managed_by" tabindex="-1" class="btn btn-default btn-ref icon icon-info" id="viewr.alm_hardware.managed_by" data-type="reference_popup" data-ref="alm_hardware.managed_by" data-table="alm_hardware" data-ref-key="null" data-new-window="false" data-view="" data-form="sys_user.do"><span class="sr-only">Preview record for field: Géré par</span></a>

It is a button that open a Window of another form

Allreayd tried to get collection of all types, getting ObjByName or ID, unsuccessully



Any idea ?

Edited by Ebola57

Share this post


Link to post
Share on other sites
Posted (edited)

I allready tried  _IELinkClickByText but as there's no HREF I don't really know what to search for

If I try _IEGetObjByName , no Obj returned

In fact this code is behind a img button in a ServiceNow session

Edited by Ebola57

Share this post


Link to post
Share on other sites

Going to provide more :)

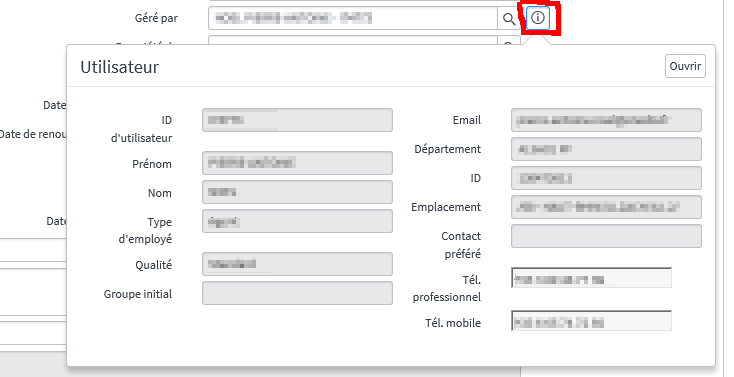

As joined, that is the screenshot of the button I want to interract

I succesfully cath any other information from this frame (INPUT) with such code

Local $oForm = _IEFormGetObjByName($oFrame,"alm_hardware.do")
Local $oElem = _IEFormElementGetObjByName($oForm,"sys_display.original.alm_hardware.managed_by")
Local $Res = _IEFormElementGetValue($oElem)
Return $Res

This code catch the content of the INPUT just right next to, and works flawelessly

<input name="sys_display.alm_hardware.managed_by" class="form-control element_reference_input  " id="sys_display.alm_hardware.managed_by" role="combobox" aria-required="false" aria-labelledby="label.alm_hardware.managed_by" aria-activedescendant="" aria-owns="AC.alm_hardware.managed_by" spellcheck="false" aria-autocomplete="list" onfocus="if (!this.ac) addLoadEvent(function() {var e = gel('sys_display.alm_hardware.managed_by'); if (!e.ac) new AJAXTableCompleter(gel('sys_display.alm_hardware.managed_by'), 'alm_hardware.managed_by', 'null', ''); e.ac.onFocus();})" type="text" value="TOTO" data-name="managed_by" autocomplete="off" data-type="ac_reference_input" data-ref="alm_hardware.managed_by" data-table="sys_user" data-ref-dynamic="false" data-ref-key="null" data-ref-qual="" data-dependent="null" data-completer="AJAXTableCompleter" ac_order_by="last_name" ac_columns="first_name;last_name;user_name;email" autocorrect="off">



Actually I interract with this button with graphic method, that is not 100% reliable


Share this post


Link to post
Share on other sites
11 minutes ago, Ebola57 said:
"sys_display.original.alm_hardware.managed_by"
"sys_display.alm_hardware.managed_by"

These don't match, so your description of what's "working" seems confusing to me.

As previously requested, post your code along with the results from the Scite output window.

Share this post


Link to post
Share on other sites

The code I posted catch the INPUT value, works fine

The code I need is : Go click on the 'info' button I enlighted
So Indeed thet don't have the same name and/or id

Going to post some code that  doesn't work

Share this post


Link to post
Share on other sites
Posted (edited)
$oForm = _IEFormGetObjByName($oIE,0)
$oTag = _IEFormElementGetObjByName($oForm,"viewr.alm_hardware.managed_by")
_IEAction($oTag,"click")

Returns

--> IE.au3 T3.0-2 Warning from function _IEFormElementGetObjByName, $_IESTATUS_NoMatch
--> IE.au3 T3.0-2 Error from function _IEAction(click), $_IESTATUS_InvalidDataType

In fact, I have problems because there's no simpole function that handle the "A' tag that has no HREF nor anything 'regular'

I can catch INPUT, TABKE, or BUTTON easily but this 'A' turns me nut





Edited by Ebola57

Share this post


Link to post
Share on other sites
Posted (edited)
3 minutes ago, Danp2 said:

Previously, you retrieved the form by name instead of index. Are you sure that you have the correct form?

Yes this 'A' tag is from the form "alm_hardware.do"

As i said INPUT tag is'nt a problem at all, only this 'A' tag

If I try to get a collection of all 'A' tagg, I never get the name of this one

Edited by Ebola57

Share this post


Link to post
Share on other sites
2 minutes ago, Ebola57 said:

Yes this 'A' tag is from the form "alm_hardware.do"

As i said INPUT tag is'nt a problem at all, only this 'A' tag

I'm trying to help you, but you have me at a distinct disadvantage because I can't see the website's full HTML. You're telling me that it's the same form, but you're using a different method to retrieve the form's object reference.

Instead of this --

$oForm = _IEFormGetObjByName($oIE,0)

please use this --

$oForm = _IEFormGetObjByName($oFrame,"alm_hardware.do")

In fact, now I'm wondering if you meant to use _IEFormGetCollection here instead of _IEFormGetObjByName because it doesn't make sense to pass a value of 0 for the form's name.

Also, just notice the use of $oFrame instead of the traditional $oIE. You didn't show how this variable was defined. Is this truly a frame reference? If so, shouldn't you be using it as well when trying to click the link?

Share this post


Link to post
Share on other sites

In first intention I intended to catch all the 'A' tagg. It somehow works for some of

Example :

Local $oTags = _IETagNameGetCollection($oIE, "a")
For $oTag In $oTags
    ConsoleWrite("Id:" & $oTag.id & @TAB & "Name:" & $oTag.name & @CRLF)
Next

Returns Id:print-icon Name:

And in source code it appears as

<a class="icon-print settings-menu-icon" id="print-icon" href="javascript:void(0)"><span class="sr-only">Version imprimable</span></a>

But at no moment I catch the 'A' tag from

<a name="viewr.alm_hardware.managed_by" tabindex="-1" class="btn btn-default btn-ref icon icon-info" id="viewr.alm_hardware.managed_by" data-type="reference_popup" data-ref="alm_hardware.managed_by" data-table="alm_hardware" data-ref-key="null" data-new-window="false" data-view="" data-form="sys_user.do"><span class="sr-only">Preview record for field: Géré par</span></a>

Why ? :( It has an id, but no link as it opens a window with data from another form

Share this post


Link to post
Share on other sites
3 minutes ago, Ebola57 said:

Why ? :( It has an id, but no link as it opens a window with data from another form

Probably because it's contained in a frame. First, get a reference to the frame. Then use that in place of $oIE in your code above.

Share this post


Link to post
Share on other sites
5 minutes ago, Danp2 said:

Probably because it's contained in a frame. First, get a reference to the frame. Then use that in place of $oIE in your code above.

Going to check this en ensure that I work on the right one

There is indeed frames

Stay tuned dear helper :)

Share this post


Link to post
Share on other sites

You were ****ly right

I wrote this code

Local $oFrame = _IEFrameGetCollection($oIE,0)
Local $oTags = _IETagNameGetCollection($oFrame, "a")
For $oTag In $oTags
    ConsoleWrite("Id:" & $oTag.id & @TAB & @TAB & @TAB & "Classname:" & $oTag.className & @TAB & @TAB & @TAB & "Name:" & $oTag.name & @CRLF)
Next

And in the flood result appears

Id:viewr.alm_hardware.managed_by   Classname:btn btn-default btn-ref icon icon-info   Name:viewr.alm_hardware.managed_by

Going to replace the Consolewrite with some action now

Share this post


Link to post
Share on other sites
8 minutes ago, Danp2 said:

Glad you got it working (Finally! 😝) . You should be able to simply this code by using _IEGetObjById instead of _IETagNameGetCollection and the For...Next.

For sure :)
