How to draw controls on blur?


Recommended Posts

Hi!



I have script that blurs GUI on window 10. But button and input are unusable. In other words I want text to be black on them. How do I fix it?



#include <GUIConstants.au3>
#include <WinAPI.au3>
#include <WinAPIGdi.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>

If _WinAPI_DwmIsCompositionEnabled() Then $iHasDWM=1
Local $iHeight=300
Local $iWidth=300
$hGUI = GUICreate("Windows 10 Blur", $iWidth, $iHeight,-1,-1)
GUICtrlCreateButton("test", 10,10, 75, 25)
GUICtrlCreateInput("test", 10,40, 75, 25)
GUISetBkColor(0x000000)
GUISetState()

If $iHasDWM Then
    Local $hRgn = _WinAPI_CreateRoundRectRgn(0,0,$iWidth+1,$iHeight+1,50,50)
    Local $hFormRgn=_WinAPI_CreateRectRgnIndirect(_WinAPI_GetClientRect($hGUI))
    Local $hRgnTest=_WinAPI_CreateNullRgn()
    _WinAPI_CombineRgn($hRgnTest,$hRgn,$hFormRgn,$RGN_XOR)
    _WinAPI_DwmEnableBlurBehindWindow($hGUI,1,1,$hRgnTest)
    _WinAPI_DwmEnableBlurBehindWindow10($hGUI)
EndIf
While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            ExitLoop
    EndSwitch
WEnd


; #FUNCTION# ====================================================================================================================
; Name ..........: _WinAPI_DwmEnableBlurBehindWindow10
; Description ...: Enables Aero-like blurred background in Windows 10.
; Syntax ........: _WinAPI_DwmEnableBlurBehindWindow10($hWnd[, $iMode = $ACCENT_ENABLE_BLURBEHIND])
; Parameters ....: $hWnd                - Window handle.
;                  $bEnable             - [optional] Enable or disable the blur effect.
; Return values .: 1 on success, 0 otherwise. Call _WinAPI_GetLastError on failure for more information.
; Author ........: scintilla4evr
; Modified ......:
; Remarks .......:
; Related .......:
; Link ..........: http://vhanla.codigobit.info/2015/07/enable-windows-10-aero-glass-aka-blur.html and http://undoc.airesoft.co.uk/user32.dll/SetWindowCompositionAttribute.php
; Example .......: Yes
; ===============================================================================================================================
Func _WinAPI_DwmEnableBlurBehindWindow10($hWnd, $bEnable = True)
    Local $tAccentPolicy = DllStructCreate("int AccentState; int AccentFlags; int GradientColor; int AnimationId")
    Local $tAttrData = DllStructCreate("dword Attribute; ptr DataBuffer; ulong Size")
    $tAccentPolicy.AccentState = $bEnable ? 3 : 0
    $tAttrData.Attribute = 19 ; WCA_ACCENT_POLICY
    $tAttrData.DataBuffer = DllStructGetPtr($tAccentPolicy)
    $tAttrData.Size = DllStructGetSize($tAccentPolicy)

    Local $aResult = DllCall("user32.dll", "bool", "SetWindowCompositionAttribute", "hwnd", $hWnd, "ptr", DllStructGetPtr($tAttrData))
    If @error Then Return SetError(@error, @extended, 0)

    Return $aResult[0]
EndFunc



Edited by E1M1

edited

Link to post
Share on other sites

See below. No idea if you can set the background colour to make it readable.

#include <GUIConstants.au3>
#include <WinAPI.au3>
#include <WinAPIGdi.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>

If _WinAPI_DwmIsCompositionEnabled() Then $iHasDWM=1
Local $iHeight=300
Local $iWidth=300
$hGUI = GUICreate("Windows 10 Blur", $iWidth, $iHeight,-1,-1)
Local $idButton1 = GUICtrlCreateButton("test", 10,10, 75, 25)   ;Assign button to id variable
Local $idInput1 = GUICtrlCreateInput("test", 10,40, 75, 25)
GUISetBkColor(0x000000)
GUISetState()

If $iHasDWM Then
    Local $hRgn = _WinAPI_CreateRoundRectRgn(0,0,$iWidth+1,$iHeight+1,50,50)
    Local $hFormRgn=_WinAPI_CreateRectRgnIndirect(_WinAPI_GetClientRect($hGUI))
    Local $hRgnTest=_WinAPI_CreateNullRgn()
    _WinAPI_CombineRgn($hRgnTest,$hRgn,$hFormRgn,$RGN_XOR)
    _WinAPI_DwmEnableBlurBehindWindow($hGUI,1,1,$hRgnTest)
    _WinAPI_DwmEnableBlurBehindWindow10($hGUI)
EndIf

Local $sText = ""

While 1
    Local $idMsg = GUIGetMsg()  ;Assign GUIGetMsg() result to variable
    Switch $idMsg
        Case $GUI_EVENT_CLOSE
            ExitLoop
        Case $idButton1 ;If GUI Msg received = button id
            $sText = GUICtrlRead($idInput1)
            MsgBox($MB_SYSTEMMODAL, "", "Text is: " & $sText)   ;Action here
    EndSwitch
WEnd


; #FUNCTION# ====================================================================================================================
; Name ..........: _WinAPI_DwmEnableBlurBehindWindow10
; Description ...: Enables Aero-like blurred background in Windows 10.
; Syntax ........: _WinAPI_DwmEnableBlurBehindWindow10($hWnd[, $iMode = $ACCENT_ENABLE_BLURBEHIND])
; Parameters ....: $hWnd                - Window handle.
;                  $bEnable             - [optional] Enable or disable the blur effect.
; Return values .: 1 on success, 0 otherwise. Call _WinAPI_GetLastError on failure for more information.
; Author ........: scintilla4evr
; Modified ......:
; Remarks .......:
; Related .......:
; Link ..........: http://vhanla.codigobit.info/2015/07/enable-windows-10-aero-glass-aka-blur.html and http://undoc.airesoft.co.uk/user32.dll/SetWindowCompositionAttribute.php
; Example .......: Yes
; ===============================================================================================================================
Func _WinAPI_DwmEnableBlurBehindWindow10($hWnd, $bEnable = True)
    Local $tAccentPolicy = DllStructCreate("int AccentState; int AccentFlags; int GradientColor; int AnimationId")
    Local $tAttrData = DllStructCreate("dword Attribute; ptr DataBuffer; ulong Size")
    $tAccentPolicy.AccentState = $bEnable ? 3 : 0
    $tAttrData.Attribute = 19 ; WCA_ACCENT_POLICY
    $tAttrData.DataBuffer = DllStructGetPtr($tAccentPolicy)
    $tAttrData.Size = DllStructGetSize($tAccentPolicy)

    Local $aResult = DllCall("user32.dll", "bool", "SetWindowCompositionAttribute", "hwnd", $hWnd, "ptr", DllStructGetPtr($tAttrData))
    If @error Then Return SetError(@error, @extended, 0)

    Return $aResult[0]
EndFunc



Edited by Sidley
Link to post
Share on other sites

Hi, sorry I wasn't clear enough. Yes, the problem was their background color, not clicking on them. As this thing removes black. by unusable I meant that input has no real use if it is white on white.  Would like to keep black as text color.

edited

Link to post
Share on other sites

That seems to be correct, lloks like black is used as the mask colour for the blur/transparency so the closer the item colour gets to black the more transparent it is. White works well but obviously over a dark background. I've had a play about with the settings but I can't see any way of changing the mask colour.

Link to post
Share on other sites

You can use this to get the blurry effect on dark background with readable fonts.

#include <GUIConstants.au3>
#include <WinAPI.au3>
#include <WinAPIGdi.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>

If _WinAPI_DwmIsCompositionEnabled() Then $iHasDWM=1
Local $iHeight=300
Local $iWidth=300
$hGUI = GUICreate("Windows 10 Blur", $iWidth, $iHeight,-1,-1)
GUICtrlCreateButton("test", 10,10, 75, 25)
GUICtrlSetColor(-1, 0)
GUICtrlSetFont(-1, 9, 800, 0, "Arial")
GUICtrlCreateInput("test", 10,40, 75, 25)
GUISetBkColor(0)
GUICtrlSetFont(-1, 9, 800, 0, "Arial")
GUISetState()

If $iHasDWM Then
;~     Local $hRgn = _WinAPI_CreateRoundRectRgn(0,0,$iWidth+1,$iHeight+1,50,50)
;~     Local $hFormRgn=_WinAPI_CreateRectRgnIndirect(_WinAPI_GetClientRect($hGUI))
    Local $hRgnTest=_WinAPI_CreateNullRgn()
;~     _WinAPI_CombineRgn($hRgnTest,$hRgn,$hFormRgn,$RGN_OR)
    _WinAPI_DwmEnableBlurBehindWindow($hGUI,1,1,$hRgnTest)
    _WinAPI_DwmEnableBlurBehindWindow10($hGUI)
EndIf

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            _WinAPI_DeleteObject($hRgnTest)
            ExitLoop
    EndSwitch
WEnd


; #FUNCTION# ====================================================================================================================
; Name ..........: _WinAPI_DwmEnableBlurBehindWindow10
; Description ...: Enables Aero-like blurred background in Windows 10.
; Syntax ........: _WinAPI_DwmEnableBlurBehindWindow10($hWnd[, $iMode = $ACCENT_ENABLE_BLURBEHIND])
; Parameters ....: $hWnd                - Window handle.
;                  $bEnable             - [optional] Enable or disable the blur effect.
; Return values .: 1 on success, 0 otherwise. Call _WinAPI_GetLastError on failure for more information.
; Author ........: scintilla4evr
; Modified ......:
; Remarks .......:
; Related .......:
; Link ..........: http://vhanla.codigobit.info/2015/07/enable-windows-10-aero-glass-aka-blur.html and http://undoc.airesoft.co.uk/user32.dll/SetWindowCompositionAttribute.php
; Example .......: Yes
; ===============================================================================================================================
Func _WinAPI_DwmEnableBlurBehindWindow10($hWnd, $bEnable = True)
    Local $tAccentPolicy = DllStructCreate("int AccentState; int AccentFlags; int GradientColor; int AnimationId")
    Local $tAttrData = DllStructCreate("dword Attribute; ptr DataBuffer; ulong Size")
    $tAccentPolicy.AccentState = $bEnable ? 3 : 0
    $tAttrData.Attribute = 19 ; WCA_ACCENT_POLICY
    $tAttrData.DataBuffer = DllStructGetPtr($tAccentPolicy)
    $tAttrData.Size = DllStructGetSize($tAccentPolicy)

    Local $aResult = DllCall("user32.dll", "bool", "SetWindowCompositionAttribute", "hwnd", $hWnd, "ptr", DllStructGetPtr($tAttrData))
    If @error Then Return SetError(@error, @extended, 0)

    Return $aResult[0]
EndFunc



Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Link to post
Share on other sites

Is there any way to get it work with white background?

I tried to play around with CombineRgn in hope that I could somehow just exclude the buttons and other controls from blur so that they would be displayed normally, but it did not seem to work. I also tried to put them in child window but once I gave it $WS_C_HILD and set parent the child also inherited blur.



I am looking to have something like win 10 calculator app that has blur but also black text on buttons.

edited

Link to post
Share on other sites

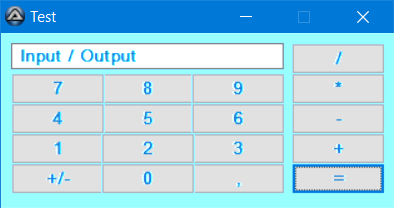

This code look like this on my Win10 system:

#include <GUIConstants.au3>
#include <WinAPI.au3>
#include <WinAPIGdi.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>

If _WinAPI_DwmIsCompositionEnabled() Then $iHasDWM=1
$iWidth=314
$iHeight=140
#Region ### START Koda GUI section ### Form=
$hGUI = GUICreate("Test", $iWidth, $iHeight)
GUISetFont(10, 600, 0, "Arial", $hGUI)
$Button1 = GUICtrlCreateButton("=", 232, 104, 75, 25, -1)
$Button2 = GUICtrlCreateButton("+", 232, 80, 75, 25)
$Button3 = GUICtrlCreateButton("-", 232, 56, 75, 25)
$Button4 = GUICtrlCreateButton("*", 232, 32, 75, 25)
$Button5 = GUICtrlCreateButton("/", 232, 8, 75, 25)
$Button6 = GUICtrlCreateButton(",", 152, 104, 75, 25)
$Button7 = GUICtrlCreateButton("0", 80, 104, 75, 25)
$Button8 = GUICtrlCreateButton("+/-", 8, 104, 75, 25)
$Button9 = GUICtrlCreateButton("1", 8, 80, 75, 25)
$Button10 = GUICtrlCreateButton("2", 80, 80, 75, 25)
$Button11 = GUICtrlCreateButton("3", 152, 80, 75, 25)
$Button12 = GUICtrlCreateButton("6", 152, 56, 75, 25)
$Button13 = GUICtrlCreateButton("5", 80, 56, 75, 25)
$Button14 = GUICtrlCreateButton("4", 8, 56, 75, 25)
$Button15 = GUICtrlCreateButton("7", 8, 32, 75, 25)
$Button16 = GUICtrlCreateButton("8", 80, 32, 75, 25)
$Button17 = GUICtrlCreateButton("9", 152, 32, 75, 25)
$Input1 = GUICtrlCreateInput("Input / Output", 8, 8, 218, 21)
GUISetBkColor(0x808080)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

If $iHasDWM Then
    _WinAPI_DwmEnableBlurBehindWindow($hGUI)
    _WinAPI_DwmEnableBlurBehindWindow10($hGUI)
EndIf

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            ExitLoop
    EndSwitch
WEnd


; #FUNCTION# ====================================================================================================================
; Name ..........: _WinAPI_DwmEnableBlurBehindWindow10
; Description ...: Enables Aero-like blurred background in Windows 10.
; Syntax ........: _WinAPI_DwmEnableBlurBehindWindow10($hWnd[, $iMode = $ACCENT_ENABLE_BLURBEHIND])
; Parameters ....: $hWnd                - Window handle.
;                  $bEnable             - [optional] Enable or disable the blur effect.
; Return values .: 1 on success, 0 otherwise. Call _WinAPI_GetLastError on failure for more information.
; Author ........: scintilla4evr
; Modified ......:
; Remarks .......:
; Related .......:
; Link ..........: http://vhanla.codigobit.info/2015/07/enable-windows-10-aero-glass-aka-blur.html and http://undoc.airesoft.co.uk/user32.dll/SetWindowCompositionAttribute.php
; Example .......: Yes
; ===============================================================================================================================
Func _WinAPI_DwmEnableBlurBehindWindow10($hWnd, $bEnable = True)
    Local $tAccentPolicy = DllStructCreate("int AccentState; int AccentFlags; int GradientColor; int AnimationId")
    Local $tAttrData = DllStructCreate("dword Attribute; ptr DataBuffer; ulong Size")
    $tAccentPolicy.AccentState = $bEnable ? 3 : 0
    $tAttrData.Attribute = 19 ; WCA_ACCENT_POLICY
    $tAttrData.DataBuffer = DllStructGetPtr($tAccentPolicy)
    $tAttrData.Size = DllStructGetSize($tAccentPolicy)

    Local $aResult = DllCall("user32.dll", "bool", "SetWindowCompositionAttribute", "hwnd", $hWnd, "struct*", $tAttrData)
    If @error Then Return SetError(@error, @extended, 0)

    Return $aResult[0]
EndFunc


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Link to post
Share on other sites

It is good that you added screenshot. Yes it is exactly what I was looking for. On my work and home computers both it displays like this:


I am not sure what is wrong.

edited

Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
  • Recently Browsing   0 members

    No registered users viewing this page.

×
×
  • Create New...
