TagNameGetCollection in WebDriver


Go to solution Solved by Danp2,

Recommended Posts

Dear all,

I have successfully written a script to read a certain email with a specific matched title with IE without any problem at all.  Below is an example that I can be able to read only email with Title "Main Server Room"

Local $oTitle = _IETagNameGetCollection($body, "div")
    For $title in $oTitle
    If StringInStr(($title.title),"Main Server Room") > 0 Then

        _IEAction($title, "focus")
        _IEAction($title, "click")
    EndIf
    Next


I have read all over the WebDriver wiki page and could not be able to find anything similar to the function _IETagNameGetCollection. Do you have any suggestion that I can achieve the same goal with WebDriver on either Firefox or Chrome.  Your feedback is much appreciated.

Link to post
Share on other sites

Hi Danp2,

Thank you so much for getting back to me so quickly. The email appears to be more than once and that's why the loop is very helpful.

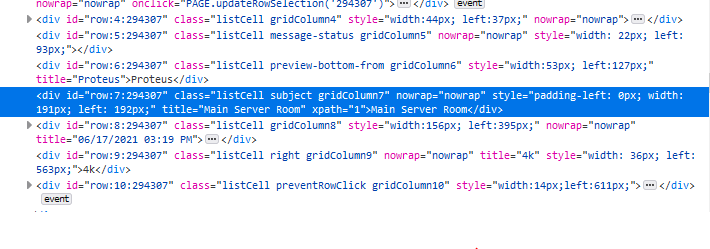

I did try the _WD_FindElement but the xpath only show  //div[@id='row:7:294307'] and this row is dynamic depending on how many email I have in my inbox and I cannot use it for this purpose. The best way for me is to rely on the title.

For example, If i search my email for "Main Server Room", the result that I get will be 5 email, with the loop above, I can easily read all 5 of them.

Link to post
Share on other sites

hi Danp2,

Sorry for the late response. I followed your suggestion but it seems the selector is invalid as showed in logs below

__WD_Post: URL=HTTP://127.0.0.1:4444/session/4fe91fb8-0cc3-4c06-83b2-2ef5f9eeb560/element; $sData={"using":"xpath","value":"//input[@id='messageSearch']"}
__WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"18d995e0-d284-4f4c-b162-88ef5788959d"}}...
_WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"18d995e0-d284-4f4c-b162-88ef5788959d"}}
__WD_Post: URL=HTTP://127.0.0.1:4444/session/4fe91fb8-0cc3-4c06-83b2-2ef5f9eeb560/element; $sData={"using":"xpath","value":"//i[@class='icon-search pointer-cursor']"}
__WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"bf2690c6-7701-4a29-8214-8945d995c783"}}...
_WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"bf2690c6-7701-4a29-8214-8945d995c783"}}
__WD_Post: URL=HTTP://127.0.0.1:4444/session/4fe91fb8-0cc3-4c06-83b2-2ef5f9eeb560/element/18d995e0-d284-4f4c-b162-88ef5788959d/clear; $sData={"id":"18d995e0-d284-4f4c-b162-88ef5788959d"}
__WD_Post: StatusCode=200; ResponseText={"value":null}...
_WD_ElementAction: {"value":null}...
__WD_Post: URL=HTTP://127.0.0.1:4444/session/4fe91fb8-0cc3-4c06-83b2-2ef5f9eeb560/element/18d995e0-d284-4f4c-b162-88ef5788959d/value; $sData={"id":"18d995e0-d284-4f4c-b162-88ef5788959d", "text":"Main Server Room"}
__WD_Post: StatusCode=200; ResponseText={"value":null}...
_WD_ElementAction: {"value":null}...
__WD_Post: URL=HTTP://127.0.0.1:4444/session/4fe91fb8-0cc3-4c06-83b2-2ef5f9eeb560/element/bf2690c6-7701-4a29-8214-8945d995c783/click; $sData={"id":"bf2690c6-7701-4a29-8214-8945d995c783"}
__WD_Post: StatusCode=200; ResponseText={"value":null}...
_WD_ElementAction: {"value":null}...
__WD_Post: URL=HTTP://127.0.0.1:4444/session/4fe91fb8-0cc3-4c06-83b2-2ef5f9eeb560/execute/sync; $sData={"script":"return document.body.innerText;", "args":[{}]}
__WD_Post: StatusCode=200; ResponseText={"value":" Sanjose   \n\nEMAIL\n\nCALENDAR\n\nCONTACTS\n\nTASKS\n\nNOTES\n\nDOCS\n\nVOICE\n\n New Em...
_WD_ExecuteScript: {"value":" Sanjose   \n\nEMAIL\n\nCALENDAR\n\nCONTACTS\n\nTASKS\n\nNOTES\n\nDOCS\n\nVOICE\n\n New Em...
__WD_Post: URL=HTTP://127.0.0.1:4444/session/4fe91fb8-0cc3-4c06-83b2-2ef5f9eeb560/elements; $sData={"using":"xpath","value":"//div[contains(text(),'Main Server Room']"}
__WD_Post: StatusCode=400; ResponseText={"value":{"error":"invalid selector","message":"Given xpath expression \"//div[contains(text(),'Main...
__WD_Post ==> Webdriver Exception: {"value":{"error":"invalid selector","message":"Given xpath expression \"//div[contains(text(),'Main Server Room']\" is invalid: SyntaxError: The expression is not a legal expression.","stacktrace":"WebDriverError@chrome://marionette/content/error.js:181:5\nInvalidSelectorError@chrome://marionette/content/error.js:341:5\nfind_@chrome://marionette/content/element.js:334:11\nelement.find/</findElements<@chrome://marionette/content/element.js:288:24\nevalFn@chrome://marionette/content/sync.js:136:7\nPollPromise/<@chrome://marionette/content/sync.js:156:5\nPollPromise@chrome://marionette/content/sync.js:127:10\nelement.find/<@chrome://marionette/content/element.js:286:24\nelement.find@chrome://marionette/content/element.js:285:10\nfindElements@chrome://marionette/content/actors/MarionetteCommandsChild.jsm:241:20\nreceiveMessage@chrome://marionette/content/actors/MarionetteCommandsChild.jsm:94:31\n"}}
_WD_FindElement: {"value":{"error":"invalid selector","message":"Given xpath expression \"//div[contains(text(),'Main Server Room']\" is invalid: SyntaxError: The expression is not a legal expression.","stacktrace":"WebDriverError@chrome://marionette/content/error.js:181:5\nInvalidSelectorError@chrome://marionette/content/error.js:341:5\nfind_@chrome://marionette/content/element.js:334:11\nelement.find/</findElements<@chrome://marionette/content/element.js:288:24\nevalFn@chrome://marionette/content/sync.js:136:7\nPollPromise/<@chrome://marionette/content/sync.js:156:5\nPollPromise@chrome://marionette/content/sync.js:127:10\nelement.find/<@chrome://marionette/content/element.js:286:24\nelement.find@chrome://marionette/content/element.js:285:10\nfindElements@chrome://marionette/content/actors/MarionetteCommandsChild.jsm:241:20\nreceiveMessage@chrome://marionette/content/actors/MarionetteCommandsChild.jsm:94:31\n"}}
_WD_FindElement ==> Webdriver Exception: HTTP status = 400
+>14:35:41 AutoIt3.exe ended.rc:0
+>14:35:41 AutoIt3Wrapper Finished.
>Exit code: 0    Time: 21.26

Originally, it was

 $aElements = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//div[[contains(text(),'Main Server Room')]]", Default, True)

 and

 I changed it to

  $aElements = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//div[contains(text(),'Main Server Room')]", Default, True)

  and it's still invalid.

Here is my script as well

$inbox = _WD_FindElement($oFF, $_WD_LOCATOR_ByXPath, "//input[@id='messageSearch']")
     $click = _WD_FindElement($oFF, $_WD_LOCATOR_ByXPath, "//i[@class='icon-search pointer-cursor']")
     $PO = "Main Server Room"

    _WD_ElementAction($oFF, $inbox,'Clear')

    _WD_ElementAction($oFF, $inbox, 'value',$PO)

    _WD_ElementAction($oFF, $click, 'Click')
    Sleep(2000)

    $getBody= _WD_ExecuteScript($oFF,"return document.body.innerText;", '{}')
    ;MsgBox(0,0,$getBody)
    If StringInStr($getBody,$PO) > 0 Then
        ;msgbox(0,0,"Look Ok")

        $aElements = _WD_FindElement($oFF, $_WD_LOCATOR_ByXPath, "//div[contains(text(),'Main Server Room']", Default, True)
        _ArrayDisplay($aElements)
    EndIf

Also, I would like to ask that when you used the function text(), would that work if the subject contains at least this term "Main Server Room" . For example:



Subjects of Email returned from the search result for "Main Server Room", may be:

1. This is the Main Server Room

2. Main Server Room Temperature

3. The Main Server Room is too hot

4. Main Server Room

and so on....

and $aElements will be showing off in the Array for as many times as "Main Server Room" is detected.

Link to post
Share on other sites

Right. the double brackets was a copy / paste issue on my part. Not sure why the xpath isn't working TBH. Maybe text() isn't valid with a Div. Try changing it to this --

$aElements = _WD_FindElement($oFF, $_WD_LOCATOR_ByXPath, "//div[contains(.,'Main Server Room']", Default, True)

If that works, then you should be able to find the answer to your other question. :thumbsup:

Link to post
Share on other sites

Hi Danp2,

Thank you for your quick fix.

Your suggested code return invalid selector again :) , so I changed it to

$aElements = _WD_FindElement($oFF, $_WD_LOCATOR_ByXPath, "//div[contains(.,'Main Server Room')]", Default, True)

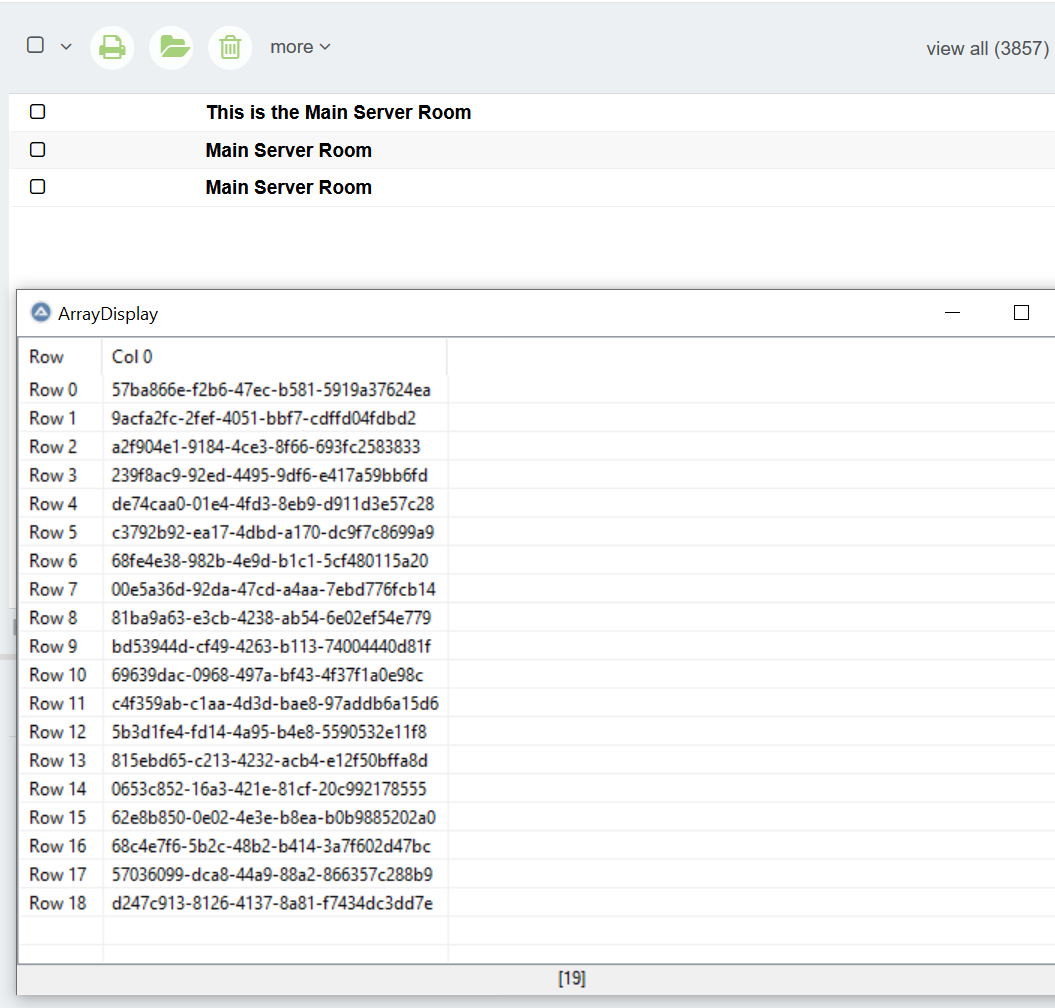

This works right away. However, the result (showing 18 $aElements instead of 3) seems to be incorrect as from my search result, I only have three emails, and actually those are the only three email that have the subject containing "Main Server Room" I have in my inbox as well.


Do you have any idea what may cause this issue?

Link to post
Share on other sites
Posted (edited)

hahah, I think your first solution works. It just missed a bracket at the end of 'Main Server Room'

So this works beautifully

$aElements = _WD_FindElement($oFF, $_WD_LOCATOR_ByXPath, "//div[contains(text(),'Main Server Room')]", Default, True)

Once again, thank you so much for your kind help.



Edited by PnD
Link to post
Share on other sites
4 minutes ago, Danp2 said:

Try this instead --

$aElements = _WD_FindElement($oFF, $_WD_LOCATOR_ByXPath, "//div[contains(@title,'Main Server Room')]", Default, True)

Formatting should be good cause I just modified your version. 😄

and

$aElements = _WD_FindElement($oFF, $_WD_LOCATOR_ByXPath, "//div[contains(text(),'Main Server Room')]", Default, True)

works beautifully as well. Thank you so much Dan!

Link to post
Share on other sites

Hi Danp2,

I ran into a little issue when parsing a variable inside these codes

"//div[contains(text(),$PO)]" or
"//div[contains(@title,$PO)]" or



"//div[contains(@title,"$PO")]" or

"//div[contains(text(),"$PO")]"

and they are all returned error: syntax error

would you please give me some idea how  to fix this.?

$PO= "Main Server Room"

Link to post
Share on other sites
57 minutes ago, Danp2 said:

You need to build the string by concatenating the variable --

$aElements = _WD_FindElement($oFF, $_WD_LOCATOR_ByXPath, "//div[contains(@title,'" & $PO & "')]", Default, True)

Untested, but you should get the idea from the above.

Thank you Dan! This works perfectly.
