Unable to select, find, showdropdown in specific combobox

Recommended Posts

Dear Community,

I am doing automation tasks using AutoIT since years and I am the opinion that it's a really impressive tool for such reason.

Last week I found a task that I am not able to fulfill.

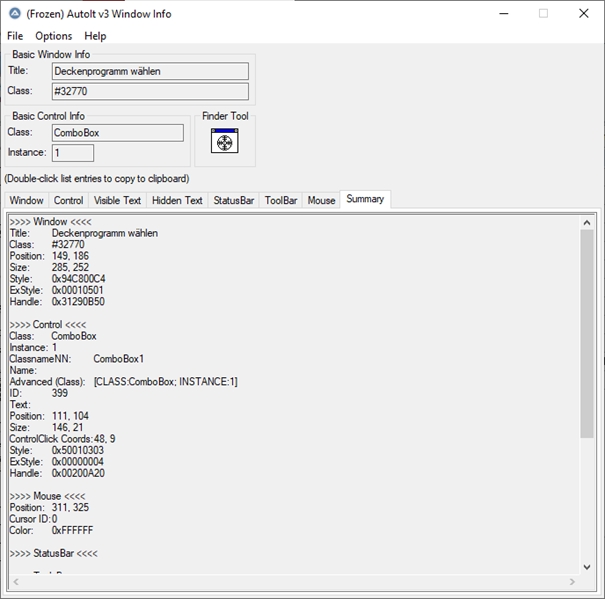

I have got a form (of an 3rd party application) where I do want to select a defined entry and hit the "OK" Button afterwards. The combobox looks like this:



My first approach was the one I used some hundret times in the past ...


WinWait("Deckenprogramm wählen", "")
WinActivate("Deckenprogramm wählen", "")

$ComboBox = ControlGetHandle("Deckenprogramm wählen", "", "[CLASS:ComboBox; INSTANCE:1]")

$ID = _GUICtrlComboBox_SetCurSel($ComboBox, 1)

Unfortunately the form and the combobox do not react to this command.

Expanding the combobox or trying to get the count of entries fail as well.


I also tried to use "sendmessage" like shown below:


DllCall("user32.dll", "int", "SendMessage", "hwnd", $h_combobox, "int", $CB_SETCURSEL, "int", $i_index, "int", 0)


No luck as well.


Is there anything else I can try?


Each advise is very welcome!


Link to post
Share on other sites

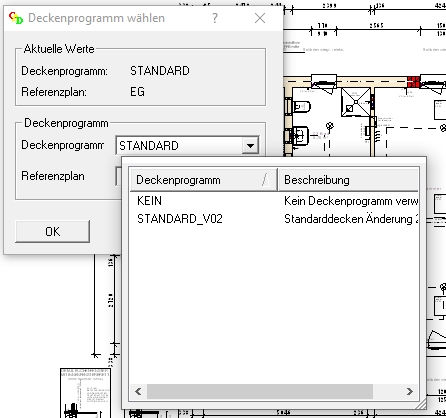

This is how the expanded combobox looks like when I click on it.

Sending "ControlClick" opens the dropdown and I can use "Send" to send a down key but I am not able to confirm the selection with an "Enter" or "Space" or anything else ... moreover I would prefer solutions like

_GUICtrlComboBox_SetCurSel($ComboBox, 1)

instead of sending keys.

Link to post
Share on other sites

Hi Gents,

first of all I want to thank you for your support - it's massive what you are doing here!! 👍

It's a lot to read through and I am trying to do my best to understand the things you explain there.

I have now got the result of simplespy.au3 of the combobox I want to control in an automated job:


At least we have an element title: [Deckentyp] class: [ComboBox]

Having the following values for all properties:
Title is: <Deckentyp>    Class   := <ComboBox>    controltype:= <UIA_ComboBoxControlTypeId>    ,<50003>    , (0000C353)    468;330;159;21
*** Parent Information top down ***
1: Title is: <Gruppe: TESTPROJ; Projekt: 116602;  Plan: EG>    Class   := <XTPMainFrame>    controltype:= <UIA_WindowControlTypeId>    ,<50032>    , (0000C370)    -8;-8;1696;1026
"Title:=Gruppe: TESTPROJ; Projekt: 116602;  Plan: EG;controltype:=UIA_WindowControlTypeId;class:=XTPMainFrame""
0: Title is: <Deckentyp wählen>    Class   := <#32770>    controltype:= <UIA_WindowControlTypeId>    ,<50032>    , (0000C370)    366;197;284;239
"Title:=Deckentyp wählen;controltype:=UIA_WindowControlTypeId;class:=#32770""

;~ *** Standard code maintainable ***
#include "UIAWrappers.au3"
AutoItSetOption("MustDeclareVars", 1)

_UIA_setVar("oP1","Title:=Gruppe: TESTPROJ; Projekt: 116602;  Plan: EG;controltype:=UIA_WindowControlTypeId;class:=XTPMainFrame")    ;Gruppe: TESTPROJ; Projekt: 116602;  Plan: EG
_UIA_setVar("oP2","Title:=Deckentyp wählen;controltype:=UIA_WindowControlTypeId;class:=#32770")    ;Deckentyp wählen


;~ Actions split away from logical/technical definition above can come from configfiles



;~ *** Standard code Flexible***
#include "UIAWrappers.au3"
AutoItSetOption("MustDeclareVars", 1)

Local $oP1=_UIA_getObjectByFindAll($UIA_oDesktop, "Title:=Gruppe: TESTPROJ; Projekt: 116602;  Plan: EG;controltype:=UIA_WindowControlTypeId;class:=XTPMainFrame", $treescope_children)
Local $oP0=_UIA_getObjectByFindAll($oP1, "Title:=Deckentyp wählen;controltype:=UIA_WindowControlTypeId;class:=#32770", $treescope_children)

*** Detailed properties of the highlighted element ***
UIA_title:= <Deckentyp>
UIA_text:= <Deckentyp>
UIA_regexptitle:= <Deckentyp>
UIA_class:= <ComboBox>
UIA_regexpclass:= <ComboBox>
UIA_iaccessiblevalue:= <ELK HAUS DECKEN>
UIA_iaccessiblechildId:= <0>
UIA_id:= <403>
UIA_handle:= <1380650>
UIA_RuntimeId:= <42;1380650>
UIA_BoundingRectangle:= <468;330;159;21>
UIA_ProcessId:= <25412>
UIA_ControlType:= <50003>
UIA_LocalizedControlType:= <Kombinationsfeld>
UIA_Name:= <Deckentyp>
UIA_HasKeyboardFocus:= <False>
UIA_IsKeyboardFocusable:= <True>
UIA_IsEnabled:= <True>
UIA_AutomationId:= <403>
UIA_ClassName:= <ComboBox>
UIA_Culture:= <0>
UIA_IsControlElement:= <True>
UIA_IsContentElement:= <True>
UIA_IsPassword:= <False>
UIA_NativeWindowHandle:= <1380650>
UIA_IsOffscreen:= <False>
UIA_Orientation:= <0>
UIA_FrameworkId:= <Win32>
UIA_IsRequiredForForm:= <False>
UIA_IsDockPatternAvailable:= <False>
UIA_IsExpandCollapsePatternAvailable:= <True>
UIA_IsGridItemPatternAvailable:= <False>
UIA_IsGridPatternAvailable:= <False>
UIA_IsInvokePatternAvailable:= <False>
UIA_IsMultipleViewPatternAvailable:= <False>
UIA_IsRangeValuePatternAvailable:= <False>
UIA_IsScrollPatternAvailable:= <False>
UIA_IsScrollItemPatternAvailable:= <False>
UIA_IsSelectionItemPatternAvailable:= <False>
UIA_IsSelectionPatternAvailable:= <False>
UIA_IsTablePatternAvailable:= <False>
UIA_IsTableItemPatternAvailable:= <False>
UIA_IsTextPatternAvailable:= <False>
UIA_IsTogglePatternAvailable:= <False>
UIA_IsTransformPatternAvailable:= <False>
UIA_IsValuePatternAvailable:= <True>
UIA_IsWindowPatternAvailable:= <False>
UIA_ValueIsReadOnly:= <False>
UIA_RangeValueValue:= <0>
UIA_RangeValueIsReadOnly:= <True>
UIA_RangeValueMinimum:= <0>
UIA_RangeValueMaximum:= <0>
UIA_RangeValueLargeChange:= <0>
UIA_RangeValueSmallChange:= <0>
UIA_ScrollHorizontalScrollPercent:= <0>
UIA_ScrollHorizontalViewSize:= <100>
UIA_ScrollVerticalScrollPercent:= <0>
UIA_ScrollVerticalViewSize:= <100>
UIA_ScrollHorizontallyScrollable:= <False>
UIA_ScrollVerticallyScrollable:= <False>
UIA_SelectionCanSelectMultiple:= <False>
UIA_SelectionIsSelectionRequired:= <False>
UIA_GridRowCount:= <0>
UIA_GridColumnCount:= <0>
UIA_GridItemRow:= <0>
UIA_GridItemColumn:= <0>
UIA_GridItemRowSpan:= <1>
UIA_GridItemColumnSpan:= <1>
UIA_DockDockPosition:= <5>
UIA_ExpandCollapseExpandCollapseState:= <0>
UIA_MultipleViewCurrentView:= <0>
UIA_WindowCanMaximize:= <False>
UIA_WindowCanMinimize:= <False>
UIA_WindowWindowVisualState:= <0>
UIA_WindowWindowInteractionState:= <0>
UIA_WindowIsModal:= <False>
UIA_WindowIsTopmost:= <False>
UIA_SelectionItemIsSelected:= <False>
UIA_TableRowOrColumnMajor:= <2>
UIA_ToggleToggleState:= <2>
UIA_TransformCanMove:= <False>
UIA_TransformCanResize:= <False>
UIA_TransformCanRotate:= <False>
UIA_IsLegacyIAccessiblePatternAvailable:= <True>
UIA_LegacyIAccessibleChildId:= <0>
UIA_LegacyIAccessibleName:= <Deckentyp>
UIA_LegacyIAccessibleValue:= <ELK HAUS DECKEN>
UIA_LegacyIAccessibleRole:= <46>
UIA_LegacyIAccessibleState:= <1049600>
UIA_IsDataValidForForm:= <False>
UIA_ProviderDescription:= <[pid:7896,providerId:0x15112A Main:Nested [pid:25412,providerId:0x15112A Annotation(parent link):Microsoft: Annotation Proxy (unmanaged:uiautomationcore.dll); Main:Microsoft: MSAA Proxy (unmanaged:uiautomationcore.dll)]; Hwnd(parent link):Microsoft: HWND Proxy (unmanaged:uiautomationcore.dll)]>
UIA_IsItemContainerPatternAvailable:= <False>
UIA_IsVirtualizedItemPatternAvailable:= <False>
UIA_IsSynchronizedInputPatternAvailable:= <False>
UIA_OptimizeForVisualContent:= <False>
UIA_IsObjectModelPatternAvailable:= <False>
UIA_AnnotationAnnotationTypeId:= <60000>
UIA_IsAnnotationPatternAvailable:= <False>
UIA_IsTextPattern2Available:= <False>
UIA_StylesStyleId:= <0>
UIA_StylesFillColor:= <0>
UIA_StylesFillPatternColor:= <0>
UIA_IsStylesPatternAvailable:= <False>
UIA_IsSpreadsheetPatternAvailable:= <False>
UIA_IsSpreadsheetItemPatternAvailable:= <False>
UIA_Transform2CanZoom:= <False>
UIA_IsTransformPattern2Available:= <False>
UIA_LiveSetting:= <0>
UIA_IsTextChildPatternAvailable:= <False>
UIA_IsDragPatternAvailable:= <False>
UIA_DragIsGrabbed:= <False>
UIA_IsDropTargetPatternAvailable:= <False>
UIA_Transform2ZoomLevel:= <1>
UIA_Transform2ZoomMinimum:= <1>
UIA_Transform2ZoomMaximum:= <1>
UIA_IsTextEditPatternAvailable:= <False>
UIA_IsPeripheral:= <False>
UIA_IsCustomNavigationPatternAvailable:= <False>
UIA_PositionInSet:= <0>
UIA_SizeOfSet:= <0>
UIA_Level:= <0>
UIA_LandmarkType:= <0>
UIA_FillType:= <0>
UIA_VisualEffects:= <0>
UIA_IsSelectionPattern2Available:= <False>
UIA_Selection2ItemCount:= <0>
UIA_HeadingLevel:= <80050>
UIA_IsDialog:= <False>



I thought it should work (focussing & highlighting the combobox) when I copy the code part an run it.


Therefore I created the following .au3-file

#include "UIAWrappers.au3"
AutoItSetOption("MustDeclareVars", 1)

Local $oP1=_UIA_getObjectByFindAll($UIA_oDesktop, "Title:=Gruppe: TESTPROJ; Projekt: 116602;  Plan: EG;controltype:=UIA_WindowControlTypeId;class:=XTPMainFrame", $treescope_children)
Local $oP0=_UIA_getObjectByFindAll($oP1, "Title:=Deckentyp wählen;controltype:=UIA_WindowControlTypeId;class:=#32770", $treescope_children)

Unfortunately it doesn't highlight the combobox ... I am pretty sure it has to do that I did not really specify the combobox in detail.

I guess the line


needs some more qualification but I don't know how it's done. Is it possible to supply the Automation-ID (i.e. 403) in a parameter?

Or is this analysis completely wrong and the thing should be done in a different way?


Link to post
Share on other sites

It allways depends 😉

Add lines like _UIA_Action($oP1,"highlight") instead of setfocus.

First see the (grand)parents of your object highlighting. Most likely there are small mismatches in the hierarchy.

yes, you can use id:=403

And this is fine

Local $oCombo=_UIA_getObjectByFindAll($oP0, "id:=403", $treescope_children)

There are many ways to do this so also suggest to look at the examples @larsj made in the forum


Link to post
Share on other sites

Great ... I am getting closer to what I want to achieve 🙂

Another question for me is - how do I find out which _UIA_Actions are available?

For the beginning I am mainly interested in actions around Combobox-Controls. As I wrote in the beginning of this thread it's not possible to use

_GUICtrlComboBox_SelectString($ComboBox1, "ABC")


_GUICtrlComboBox_SetCurSel($ComboBox1, 2)

The Comboboxes of the application I need to automate do not react to these commands.

An interesting point is that

$TEST = ControlCommand("Deckentyp wählen", "", "[CLASS:ComboBox; INSTANCE:3]", "GetCurrentSelection")

is working but

ControlCommand("Deckentyp wählen", "", "[CLASS:ComboBox; INSTANCE:3]", "SetCurrentSelection", 2)

is not.

In short words - I am looking for a way to select an item in the combobox which doesn't accept the standard AutoIT methods for this purpose.
