Max or die in a dialog

Recommended Posts

Bit of a tail chaser here.  I am new to AIT, so I'm hoping I'm missing something

win10, in Notepad then opening the Save As dialog

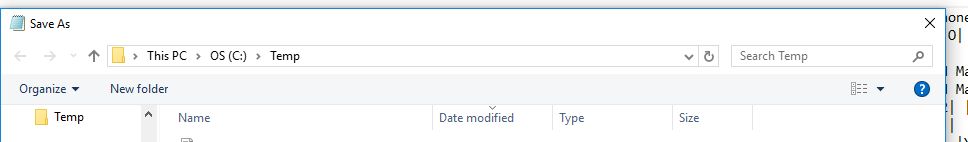

No problem updating the File Name since that's focused & selected on entry,  but I also need to ensure the (Save In)    at the top is updated.  I'm not able to find the proper magic potion that'll focus that control:

local $hNotePad = WINWAITActive("report-designer-preview",120)
; "info_"+YYYYMMDD+".CSV"
Send ("!f")  ; alt-F (file menu) in Notepad
Send ("A")  ; hotkey to start Save As dialog

; My latest efforts are the following two

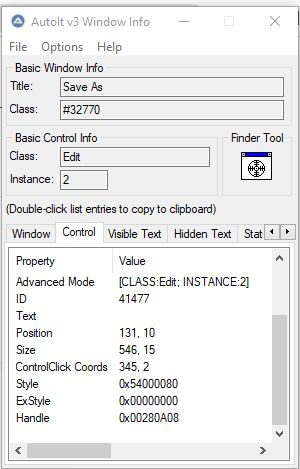

a) Local $retCC = ControlClick ($hNotePad, "", "[CLASS:ToolbarWindow32; INSTANCE:2]" )  ; why does the instance number seem to also be a moving target? It was 1 now its 4
b) Local $retCC = ControlClick ($hNotePad, "", 41477 )  ; or 1001??


I'd been messing with mouse coords earlier because I'd deluded myself in believing they were accurate -- until the default posn of the dialog moved.

Now, frustration increasing,  I thought, well a max'd dialog fixes coordinates, so, max the dialog. I can _manually_ do that (2-click the title bar), but I can't find anything in the AI3 help that allows an active window/dialog to be max'd, or a way to 2-click the title bar (of a window whose absolute coords one can not be sure of). Note: the Save As diag has no max-glyph in the upper right corner and the upper right corner isn't a control, but maybe could be manipulated after a move and send(enter).

I have a flat spot in my forehead from decades of "D'oh!"s , yet I still love doing it. Not getting there, but the final accomplishment.
Any ideas?  Whether its max'ing or some clicking, thanks.



Edited by grinch
Link to comment
Share on other sites

Here's how I would do it in Windows 11. It should be fairly similar in Windows 10.


Local $notepadWindowTitle = "report-designer-preview"
Local $saveAsWindowName = "Save As"
Local $saveFolder = "C:\Windows\Temp"

Local $hNotePad = WinWaitActive("[CLASS:Notepad;TITLE:" & $notepadWindowTitle & ";]", "", 10)
ControlSend($hNotepad, "", $hNotepad, "^+s") ; Send "Save As" command
Local $saveAsWindow = WinWaitActive("[CLASS:#32770;TITLE:" & $saveAsWindowName & ";]", "", 2) ; Find "Save As" window
ControlSend($saveAsWindow, "", $saveAsWindow, "{F4}") ; Give keyboard focus to address bar
ControlSetText($saveAsWindow, "", "[CLASS:Edit;INSTANCE:2;]", $saveFolder) ; Write new address $saveFolder
ControlSend($saveAsWindow, "", "[CLASS:Edit;INSTANCE:2;]", "{ENTER}") ; Validate changes and exit address bar
