Running RPT from Crystal Reports 2008 and Exporting to PDF

Go to solution Solved by AutoBert,

Recommended Posts


I'm trying to simple run a basic report.

I wanna to run automaticly and silently.

I have found this script:


#include <GUIConstants.au3>
AutoItSetOption("WinTitleMatchMode", 2)

Dim $sReportName
Dim $objCRApp
Dim $objCRReport
Dim $objCRViewer
Dim $CrystalExportOptions
Dim $ExportFileName
Dim $ExportType

$sReportName = FileOpenDialog("C:\Test\zNC\engine\Vinhos", "", "RPT (*.rpt)", 3);Filter "." means all
$objCRApp = ObjCreate("CrystalRuntime.Application.11")
If $objCRApp = 0 Then
    MsgBox(0, "Error", "Could not create CrystalRuntime Application Object")
$objCRReport = $objCRApp.OpenReport($sReportName)
If $objCRReport = 0 Then
    MsgBox(0, "Error", "Could not open report: " & $sReportName)

$objCRViewer = ObjCreate("CrystalReports11.ActiveXReportViewer.1")

; Create a simple GUI for our output
$hndReportViewer = GUICreate ( "Embedded Crystal Reports Export test", 640, 580,(@DesktopWidth-640)/2, (@DesktopHeight-580)/2 , $WS_OVERLAPPEDWINDOW + $WS_VISIBLE + $WS_CLIPSIBLINGS)
If $hndReportViewer = 0 Then
    MsgBox(0, "Error", "Could not create Window to display Crystal Reports control")
;Creates an ActiveX control in the GUI.
$GUIActiveX = GUICtrlCreateObj ( $objCRViewer, -1, -1, 640, 580)
If $GUIActiveX = 0 Then
    MsgBox(0, "Error", "Could not create ActiveX Control in GUI")
GUICtrlSetResizing ( $GUIActiveX, $GUI_DOCKAUTO)

; Show GUI
GUISetState ()

$objCRViewer.ReportSource = $objCRReport

; Display the Report to watch automation
; The report displays a "0" in control 20005 while the report is loading
While ControlGetText("Embedded Crystal Reports printing test", "", 20005) = "0"

$CrystalExportOptions = $objCRReport.ExportOptions
$ExportFileName = "C:\Test\zNC\engine\Vinhos\ExportedReport.PDF"
$ExportType = 31

$CrystalExportOptions.DiskFileName = $ExportFileName
$CrystalExportOptions.FormatType = $ExportType
$CrystalExportOptions.DestinationType = 1
$objCRReport.Export ( False )
WinWaitClose("Export", "", 30)

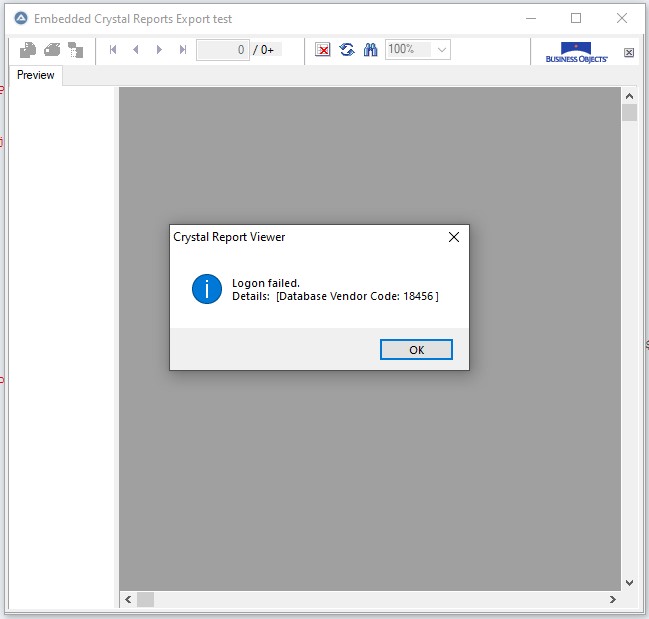

I can't pass this connection error. I am using MS SQL SERVER 2008 R2



Can't find how to solve the connection issue.

Link to comment
Share on other sites

Hi, thanks, i already stumb with that, but could not figured out then, i try again e could it work.

I created a DSN file with the "ODBC Data Source" and configured into crystal reports, i just add the DSN file as the database connection of the report. Now it work.

Edited by alanbr00
