how to make _ScreenCapture_Capture() adapt 1920*1080? but it works well with 1366*768

[jacky998877 3]

 it cant capture the correct area that i defined when the resolution is 1920*1080

Edited February 23 by jacky998877

[mistersquirrle 56]

Show the code that you're using that's not working, so we can see what you've tried. I can use _ScreenCapture_Capture at 1920x1080 no problem:

#include <ScreenCapture.au3>
_ScreenCapture_Capture(@ScriptDir & '\meow.bmp', 0, 0, 1920, 1080, True)
Exit

Edit: Above is on a monitor that's 3440x1440, I also tried on a 1080p monitor (-1920, 0, 0, 1080), no problems

Edited February 23 by mistersquirrle

[jacky998877 3]

3 hours ago, mistersquirrle said:

Show the code that you're using that's not working, so we can see what you've tried. I can use _ScreenCapture_Capture at 1920x1080 no problem:

#include <ScreenCapture.au3>
_ScreenCapture_Capture(@ScriptDir & '\meow.bmp', 0, 0, 1920, 1080, True)
Exit

Edit: Above is on a monitor that's 3440x1440, I also tried on a 1080p monitor (-1920, 0, 0, 1080), no problems

thx for participation, the problem is my system, when i use other capturing software to test it , as long as it is 1920 1080, the screen will be amplified for unknown reason

Edited February 23 by jacky998877

[mistersquirrle 56]

I'm not sure what you mean by amplified. Sounds like that it's not an AutoIt problem, then? Have you tried checking your windows scaling size? Check out these links:

• View display settings in Windows:  https://support.microsoft.com/en-us/windows/view-display-settings-in-windows-37f0e05e-98a9-474c-317a-e85422daa8bb
• Windows scaling issues for high-DPI devices:  https://support.microsoft.com/en-us/topic/windows-scaling-issues-for-high-dpi-devices-508483cd-7c59-0d08-12b0-960b99aa347d

[jacky998877 3]

14 hours ago, mistersquirrle said:

I'm not sure what you mean by amplified. Sounds like that it's not an AutoIt problem, then? Have you tried checking your windows scaling size? Check out these links:

• View display settings in Windows:  https://support.microsoft.com/en-us/windows/view-display-settings-in-windows-37f0e05e-98a9-474c-317a-e85422daa8bb
• Windows scaling issues for high-DPI devices:  https://support.microsoft.com/en-us/topic/windows-scaling-issues-for-high-dpi-devices-508483cd-7c59-0d08-12b0-960b99aa347d

it seems that it can be solved programmatically if one knows how, for example , if i use lightshot to capture the screen, even if it is 1920 1080, no amplification will occur

[ioa747 99]

try this to see if everything is in its expected position,  maybe you can draw a conclusion

;Get DeskTop size
Local $DTs = WinGetPos("[CLASS:Shell_TrayWnd]")
ConsoleWrite("TaskBar:" & @CRLF & "X=" & $DTs[0] & " Y=" & $DTs[1] & " W=" & $DTs[2] & " H=" & $DTs[3] & @CRLF & @CRLF)

ConsoleWrite("DeskTop:" & @CRLF & "Width:" & $DTs[2] & " Height:" & $DTs[1] + $DTs[3] & @CRLF)

;~ TaskBar:
;~ X=0 Y=1040 W=1920 H=40
;~ ;
;~ DeskTop:
;~ Width:1920 Height:1080



[jacky998877 3]

4 minutes ago, ioa747 said:

try this to see if everything is in its expected position,  maybe you can draw a conclusion

;Get DeskTop size
Local $DTs = WinGetPos("[CLASS:Shell_TrayWnd]")
ConsoleWrite("TaskBar:" & @CRLF & "X=" & $DTs[0] & " Y=" & $DTs[1] & " W=" & $DTs[2] & " H=" & $DTs[3] & @CRLF & @CRLF)

ConsoleWrite("DeskTop:" & @CRLF & "Width:" & $DTs[2] & " Height:" & $DTs[1] + $DTs[3] & @CRLF)

;~ TaskBar:
;~ X=0 Y=1040 W=1920 H=40
;~ ;
;~ DeskTop:
;~ Width:1920 Height:1080



this is from your code :
+>Setting Hotkeys...--> Press Ctrl+Alt+Break to Restart or Ctrl+BREAK to Stop.
TaskBar:
X=0 Y=680 W=1280 H=40

DeskTop:
Width:1280 Height:720
+>20:52:34 AutoIt3.exe ended.rc:0
+>20:52:34 AutoIt3Wrapper Finished.
>Exit code: 0    Time: 1.089

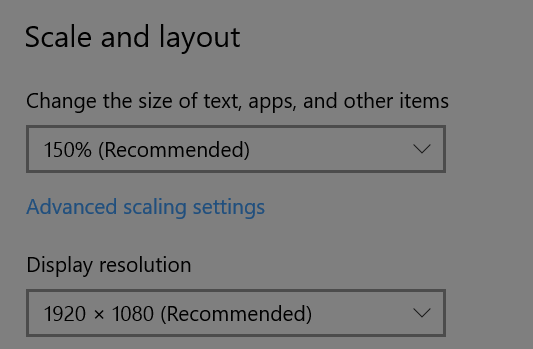

the attachment picture is from my system, when i observe it closely, there is a scale option, it might be the answer


[jacky998877 3]

19 hours ago, mistersquirrle said:

I'm not sure what you mean by amplified. Sounds like that it's not an AutoIt problem, then? Have you tried checking your windows scaling size? Check out these links:

• View display settings in Windows:  https://support.microsoft.com/en-us/windows/view-display-settings-in-windows-37f0e05e-98a9-474c-317a-e85422daa8bb
• Windows scaling issues for high-DPI devices:  https://support.microsoft.com/en-us/topic/windows-scaling-issues-for-high-dpi-devices-508483cd-7c59-0d08-12b0-960b99aa347d

the problem is indeed the scaling, which i didnt even pay attention formerly , thx for the help ☺️
