Rskm Posted February 9 Posted February 9 Hi, I wish to know if I can solve characteristic equation (A-lambda. I)=0 using autoit. The size of the matrix is 72x72. thanks
Werty Posted February 10 Posted February 10 Maybe this is what you are looking for... Some guy's script + some other guy's script = my script!
AspirinJunkie Posted February 10 Posted February 10 (edited) With >>this UDF<<, this could be implemented as follows, for example: expandcollapse popup#include "LinearAlgebra.au3" ; Generate test data: 72x72 Matrix as a normal 2D AutoIt-Array Global Const $N = 72 Global $aRawData[$N][$N] ; create a symmetric matrix (A = A^T) to ensure real eigenvalues. Global $fVal For $i = 0 To $N - 1 For $j = $i To $N - 1 $fVal = Random(-10.0, 10.0) If $i = $j Then $fVal += $N ; Increase diagonal elements (to ensure numerical stability) $aRawData[$i][$j] = $fVal $aRawData[$j][$i] = $fVal ; Symmetry Next Next ; convert AutoIt array to UDF Matrix type Global $mA = _la_fromArray($aRawData) ; display the input matrix _la_display($mA, "input matrix A") ; Calculate the eigenvalues for A (corresponding to the solution of the characteristic equation det(A-λI) = 0). ; _la_eigen parameters: ; Param 1: The Matrix ; Param 2: True = Treat as symmetric (uses optimized algorithm) - _la_eigen() also outputs imaginary eigenvalue parts for non-symmetric matrices if required. ; Param 3: True = Compute Eigenvectors as well (needed for verification) Global $mResult = _la_eigen($mA, True, True) If @error Then Exit ConsoleWrite("Error during calculation! @error: " & @error & @CRLF) ; 4. Output Results ; For symmetric matrices, eigenvalues are stored in $mResult.R (Real part). ; $mResult.I (Imaginary part) is not used/empty for symmetric matrices. ; Display the first 10 Eigenvalues Global $aLambda = _la_toArray($mResult.R) ConsoleWrite(@CRLF & "--- First 10 Eigenvalues (Lambda) ---" & @CRLF) For $k = 0 To 9 ConsoleWrite(StringFormat("Lambda[%d] = %.5g", $k, $aLambda[$k]) & @CRLF) Next ; Verification ; Definition: A * v = lambda * v <=> (A - lambda * I) * v = 0 ; We check this for the first eigenvalue (Lambda[0]) and its eigenvector (v[0]). ConsoleWrite(@CRLF & "--- Verification for Lambda[0] ---" & @CRLF) Global $fLambda0 = $aLambda[0] ; First eigenvalue Global $v0 = $mResult.V[0] ; Corresponding eigenvector ; Calculate: Residual = (A * v) - (lambda * v) Global $mRes = _la_sub(_la_mul($mA, $v0), _la_scale($v0, $fLambda0)) ; Calculate the Euclidean norm of the residual vector. ; Ideally, this should be very close to 0 (e.g., 1e-14). Global $fError = _la_norm($mRes) ConsoleWrite(StringFormat("Check ||A*v - lambda*v|| = %.5e", $fError) & @CRLF) If $fError < 1e-9 Then ConsoleWrite("Result: SUCCESS (Residual is close to zero)" & @CRLF) Else ConsoleWrite("Result: WARNING (Residual is high)" & @CRLF) EndIf Edited February 10 by AspirinJunkie
Rskm Posted February 10 Author Posted February 10 Hi, Sorry, m equation is NOT of the form |A.I - lambda.I| , instead it is |A - lambda.B|= 0 where A and B are two independent matrices (72x72). Is it possible to spit the eigen vectors too ? thanks
AspirinJunkie Posted February 10 Posted February 10 (edited) 2 hours ago, Rskm said: m equation is NOT of the form |A.I - lambda.I| , instead it is |A - lambda.B|= 0 where A and B are two independent matrices (72x72). Is it possible to spit the eigen vectors too ? That is actually a rather different task now. If I am not overlooking anything, it should suffice to solve the equation system B*C=A for C and then determine the eigenvalues/vectors for C. It would then look like this, for example: expandcollapse popup#include "LinearAlgebra.au3" ; generate test data (two 72x72 Matrices) Global Const $N = 72 Global $aRawA[$N][$N], $aRawB[$N][$N] ; create a symmetric matrices A and B to ensure real eigenvalues. ; to make B invertible we set much higher values on it`s diagonal For $i = 0 To $N - 1 For $j = $i To $N - 1 ; Fill A Local $fValA = Random(-10.0, 10.0) $aRawA[$i][$j] = $fValA $aRawA[$j][$i] = $fValA ; Fill B Local $fValB = Random(-5.0, 5.0) If $i = $j Then $fValB += ($N * 2) $aRawB[$i][$j] = $fValB $aRawB[$j][$i] = $fValB Next Next ; convert AutoIt arrays to UDF Matrix type Global $mA = _la_fromArray($aRawA) Global $mB = _la_fromArray($aRawB) ; solve B * C = A to C Global $mC = _la_solve($mB, $mA) If @error Then Exit ConsoleWrite("Error: Matrix B is likely singular (not invertible)." & @CRLF) ; _la_eigen parameters: ; Param 1: The Matrix ; Param 2 (False): Treat as non-symmetric (C is not symmetric) ; Param 3 (True): Compute Eigenvectors Global $mResult = _la_eigen($mC, False, True) If @error Then Exit ConsoleWrite("Error during eigen calculation! @error: " & @error & @CRLF) ; Check if we have complex eigenvalues (Imaginary part != 0) Local $fMaxImag = _la_amax($mResult.I) If Abs($fMaxImag) > 1e-9 Then ConsoleWrite("Warning: Complex eigenvalues detected." & @CRLF) ; print out the first 10 eigenvalues Global $aLambda = _la_toArray($mResult.R) ConsoleWrite(@CRLF & "--- First 10 Generalized Eigenvalues (Lambda) ---" & @CRLF) For $k = 0 To 9 ConsoleWrite(StringFormat("Lambda[%d] = %.5g", $k, $aLambda[$k]) & @CRLF) Next ; display the eigenvectors (here only the first vector) Global $v0 = $mResult.VR[0] _la_display($v0, "first Eigenvector") When maximum performance and numerical stability are essential, there is even a low-level LAPACK function for this case: DGGEV (solves the generalized eigenvalue problem). I had not yet implemented this in LAPACK.au3. I have now done so and will add it to the UDF when the opportunity arises. This would allow the problem to be solved directly (with higher performance and stability).: expandcollapse popup#include "LinearAlgebra.au3" ; generate test data (two 72x72 Matrices) Global Const $N = 72 Global $aRawA[$N][$N], $aRawB[$N][$N] ; create a symmetric matrices A and B to ensure real eigenvalues. ; to make B invertible we set much higher values on it`s diagonal For $i = 0 To $N - 1 For $j = $i To $N - 1 ; Fill A Local $fValA = Random(-10.0, 10.0) $aRawA[$i][$j] = $fValA $aRawA[$j][$i] = $fValA ; Fill B Local $fValB = Random(-5.0, 5.0) If $i = $j Then $fValB += ($N * 2) $aRawB[$i][$j] = $fValB $aRawB[$j][$i] = $fValB Next Next ; convert AutoIt arrays to UDF Matrix type Global $mA = _la_fromArray($aRawA), _ $mB = _la_fromArray($aRawB) ; call the low-level LAPACK function DGGEV for solving the generalized eigenvalues problem ; "N" = No Left Vectors, "V" = Compute Right Vectors Global $mResult = _lp_ggev($mA, $mB, "N", "V") If @error Then Exit ConsoleWrite("Error in _lp_ggev: " & @error & @CRLF) ; Process and Output Eigenvalues ; Generalized eigenvalues are calculated as: lambda = (AlphaR + i * AlphaI) / Beta Global $aAlphaR = _la_toArray($mResult.ALPHAR), _ $aAlphaI = _la_toArray($mResult.ALPHAI), _ $aBeta = _la_toArray($mResult.BETA), _ $fReal, $fImag, $fBeta, $fLamR, $fLamI, $k ; print out the first 10 eigenvalues ConsoleWrite(@CRLF & "--- First 10 Generalized Eigenvalues (Lambda) ---" & @CRLF) For $k = 0 To 9 $fReal = $aAlphaR[$k] $fImag = $aAlphaI[$k] $fBeta = $aBeta[$k] ; Avoid division by zero (infinite eigenvalue) If Abs($fBeta) < 1e-15 Then ConsoleWrite(StringFormat("Lambda[%d] = Infinite", $k) & @CRLF) Else $fLamR = $fReal / $fBeta $fLamI = $fImag / $fBeta If Abs($fLamI) < 1e-9 Then ; non imaginary ConsoleWrite(StringFormat("Lambda[%d] = %.4g", $k, $fLamR) & @CRLF) Else ; imaginary ConsoleWrite(StringFormat("Lambda[%d] = %.4g + %.4gi", $k, $fLamR, $fLamI) & @CRLF) EndIf EndIf Next ; CAUTION with DGGEV and Complex Eigenvalues: ; If the eigenvalue is real, the eigenvector is in the corresponding column. ; If eigenvalues k and k+1 are a complex conjugate pair, the eigenvectors are stored ; as v(k) = VR(:,k) + i*VR(:,k+1) and v(k+1) = VR(:,k) - i*VR(:,k+1). ; display the eigenvectors (here only the first vector) Local $v0 = _la_getColumn($mResult.VR, 0) _la_display($v0, "first Eigenvector") Edited February 10 by AspirinJunkie I have now also pushed the _lp_ggev() function to GitHub. I have therefore removed it from the example here.

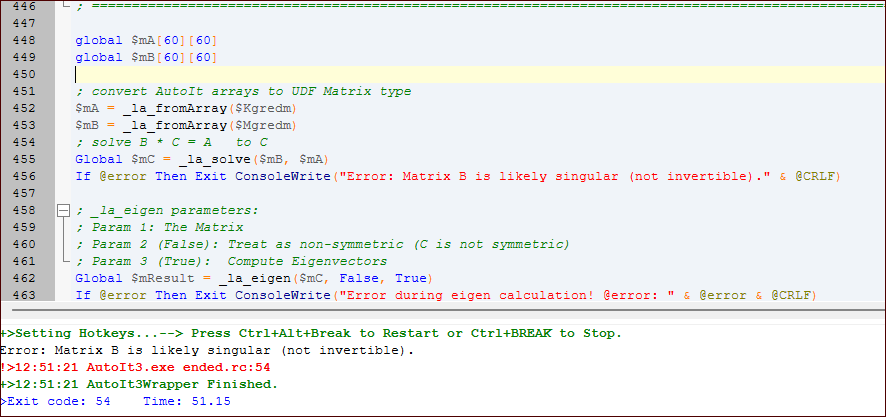

Rskm Posted February 16 Author Posted February 16 Hi, I tried the above two methods and I get error that the Matrix B is not invertible. I am deriving matrices 'Kgredm' and 'Mgredm' - both 60x60 and symmetric and invertible, based on some calculations and assigning them to $mA and $mB respectively. These matrices are invertible when I try them in Mathcad and the eigen values are what I was expecting. However, the autoit script is not proceeding beyond line 456. Kindly give me your opinion.
Rskm Posted February 16 Author Posted February 16 (edited) 2 hours ago, Rskm said: Hi, I tried the above two methods and I get error that the Matrix B is not invertible. I am deriving matrices 'Kgredm' and 'Mgredm' - both 60x60 and symmetric and invertible, based on some calculations and assigning them to $mA and $mB respectively. These matrices are invertible when I try them in Mathcad and the eigen values are what I was expecting. However, the autoit script is not proceeding beyond line 456. Kindly give me your opinion. I am attaching the Kregdm and Mgredm matrices in excel format. I actually tried with simple 3 x 3 matrices and I get the same error for that too. K-lambdaM=0.xlsx Edited February 16 by Rskm
AspirinJunkie Posted February 17 Posted February 17 Either your problem lies in reading the matrices. Because it works wonderfully for me with your matrices: expandcollapse popup#include "LinearAlgebra.au3"; convert AutoIt arrays to UDF Matrix type Global $mK = _la_fromArray($aRawK), _ $mM = _la_fromArray($aRawM) ; display the matrices _la_display($mK, "K") _la_display($mM, "M") ; call the low-level LAPACK function DGGEV for solving the generalized eigenvalues problem ; "N" = No Left Vectors, "V" = Compute Right Vectors Global $mResult = _lp_ggev($mK, $mM, "N", "V") If @error Then Exit ConsoleWrite("Error in _lp_ggev: " & @error & @CRLF) ; Process and Output Eigenvalues ; Generalized eigenvalues are calculated as: lambda = (AlphaR + i * AlphaI) / Beta Global $aAlphaR = _la_toArray($mResult.ALPHAR), _ $aAlphaI = _la_toArray($mResult.ALPHAI), _ $aBeta = _la_toArray($mResult.BETA), _ $fReal, $fImag, $fBeta, $fLamR, $fLamI, $k ; print out the first 10 eigenvalues ConsoleWrite(@CRLF & "--- First 10 Generalized Eigenvalues (Lambda) ---" & @CRLF) For $k = 0 To 9 $fReal = $aAlphaR[$k] $fImag = $aAlphaI[$k] $fBeta = $aBeta[$k] ; Avoid division by zero (infinite eigenvalue) If Abs($fBeta) < 1e-15 Then ConsoleWrite(StringFormat("Lambda[%d] = Infinite", $k) & @CRLF) Else $fLamR = $fReal / $fBeta $fLamI = $fImag / $fBeta If Abs($fLamI) < 1e-9 Then ; non imaginary ConsoleWrite(StringFormat("Lambda[%d] = %.4g", $k, $fLamR) & @CRLF) Else ; imaginary ConsoleWrite(StringFormat("Lambda[%d] = %.4g + %.4gi", $k, $fLamR, $fLamI) & @CRLF) EndIf EndIf Next ; display the eigenvectors (here only the first vector) Local $v0 = _la_getColumn($mResult.VR, 0) _la_display($v0, "first Eigenvector") Or - as I suspect - you don't have the corresponding OpenBLAS DLL file stored in the path (see the UDF description here in the forum or on GitHub).
