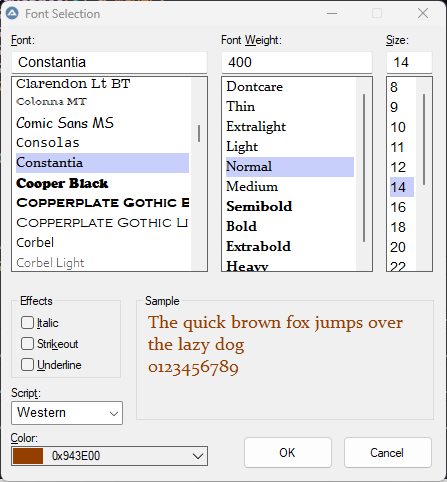

ioa747 Posted yesterday at 05:44 AM Posted yesterday at 05:44 AM after WildByDesign 's post I went through the process of understanding Microsoft's patents and ended up with my own patents I'm still in the process of building it, but I posted it now, to get opinions as I build it. Font_Dialog.zip Please, every comment is appreciated! leave your comments and experiences here! Thank you very much WildByDesign, argumentum and pixelsearch 3 I know that I know nothing

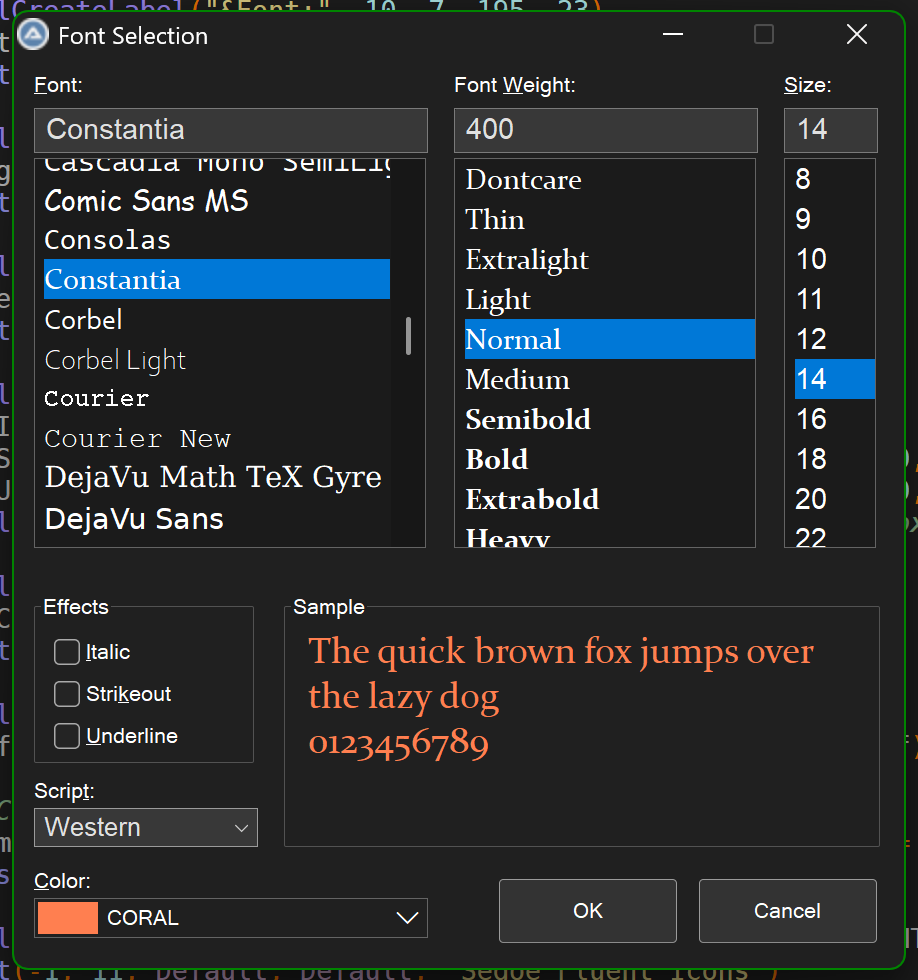

argumentum Posted yesterday at 06:22 AM Posted yesterday at 06:22 AM (edited) ... ; DarkMode($__g_hFontGUI, True) If StringInStr($CmdLineRaw, "/DarkMode") Then DarkMode($__g_hFontGUI, True) _GUIDarkTheme_ApplyDark($__g_hFontGUI) EndIf ... Spoiler ..lazy, 2 min. patch expandcollapse popup; https://www.autoitscript.com/forum/topic/213805-custom-font-dialog-box/ ;---------------------------------------------------------------------------------------- ; Title...........: Font_Dialog3.au3 ; Description.....: Custom Font Dialog ; AutoIt Version..: 3.3.18.0 Author: ioa747 Script Version: 0.3 ; Note............: Testet in Windows 11 Pro 25H2 Date:14/07/2026 ;---------------------------------------------------------------------------------------- ;~ #AutoIt3Wrapper_Au3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6 -w 7 #include-once #include "GUIScrollbars_Ex.au3" ; "https://www.autoitscript.com/forum/topic/113723-scrollbars-made-easy-new-version-27-jan-22" #include <StaticConstants.au3> #include <Array.au3> #include <GuiImageList.au3> #include <GuiComboBoxEx.au3> #include <ColorConstants.au3> ;~ #AutoIt3Wrapper_Run_Debug_Mode=Y ; Initialize System DPI awareness ;~ DllCall("User32.dll", "bool", "SetProcessDpiAwarenessContext", "int_ptr", -2) #include "GuiCtrls_HiDpi.au3" #include "GUIDarkTheme.au3" _HiDpi_Ctrl_LazyInit() Global $__g_hColorDefault = 0xFFFFFF, $__g_hColorHighlight = 0xC8CFFA, $__g_hColorText = 0x000000 Global $__g_aFonts, $__g_aSize, $__g_aWeight, $__g_aColor Global $__g_iLastFontIdx = 0, $__g_iLastWeightIdx = 0, $__g_iLastSizeIdx = 0 Global $__g_idPopFont, $__g_idPopWeight, $__g_idPopSize Global $__g_hFontGUI, $__g_hFontSubForm, $__g_hWeightSubForm, $__g_hSizeSubForm, $__g_hColorSubForm Global $__g_idCheck_Italic, $__g_idCheck_Strikeout, $__g_idCheck_Underline Global $__g_idScriptCombo, $__g_idFakeCombo, $__g_idFakeColor, $__g_idLabel_Sample Global $__g_sFontDlgData $__g_aFonts = _GetFonts() ; Make Fonts array _Example1() Func _Example1() ;~ $CmdLineRaw &= " /DarkMode" ; Switch to DarkMode Local $aResult = _Custom_Font_Gui("arial", 12, 0x943E00, 400, False, False, True) If IsArray($aResult) Then ;~ _ArrayDisplay($aResult, "Returned Font Data") ConsoleWrite("--- Result Data ---" & @CRLF) ConsoleWrite("Total Elements: " & $aResult[0] & @CRLF) ConsoleWrite("Attributes: " & $aResult[1] & @CRLF) ConsoleWrite("Font Name: " & $aResult[2] & @CRLF) ConsoleWrite("Size: " & $aResult[3] & @CRLF) ConsoleWrite("Weight: " & $aResult[4] & @CRLF) ConsoleWrite("Color RGB: 0x" & Hex($aResult[5], 6) & @CRLF) ConsoleWrite("" & @CRLF) Else ConsoleWrite("Error: $aResult is NOT an array! (Value: " & $aResult & ")" & @CRLF) EndIf EndFunc ;==>_Example1 ; ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; Function: _Custom_Font_Gui ; Description: Creates and manages the custom Font Selection dialog. ; ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Func _Custom_Font_Gui($sFontName = "Segoe Script", $iPointSize = 10, $iFontColorRef = Default, $iFontWeight = 0, $bItalic = False, $bUnderline = False, $bStrikethru = False, $hWndOwner = 0) $__g_hFontGUI = _HiDpi_GUICreate("Font Selection", 445, 455, -1, -1, -1, -1, $hWndOwner) _HiDpi_GUICtrlCreateLabel("&Font:", 10, 7, 195, 23) $__g_idPopFont = _HiDpi_GUICtrlCreateInput("CurrentFont", 10, 25, 197, 23, -1) GUICtrlSetFont(-1, 11) _HiDpi_GUICtrlCreateLabel("Font &Weight:", 220, 7, 150, 23) $__g_idPopWeight = _HiDpi_GUICtrlCreateInput("CurrentWeight", 220, 25, 152, 23) GUICtrlSetFont(-1, 11) _HiDpi_GUICtrlCreateLabel("&Size:", 385, 7, 45, 23) $__g_idPopSize = _HiDpi_GUICtrlCreateInput("CurrentSize", 385, 25, 47, 23) GUICtrlSetFont(-1, 11) _HiDpi_GUICtrlCreateGroup("Effects", 10, 268, 110, 85) $__g_idCheck_Italic = _HiDpi_GUICtrlCreateCheckbox("&Italic", 20, 289, 77, 16) $__g_idCheck_Strikeout = _HiDpi_GUICtrlCreateCheckbox("Stri&keout", 20, 310, 77, 16) $__g_idCheck_Underline = _HiDpi_GUICtrlCreateCheckbox("&Underline", 20, 331, 77, 16) _HiDpi_GUICtrlCreateGroup("", -99, -99, 1, 1) ; Close previous groupbox _HiDpi_GUICtrlCreateLabel("Scrip&t:", 10, 360, 45, 15) $__g_idScriptCombo = _HiDpi_GUICtrlCreateCombo("", 10, 375, 112, 25) GUICtrlSetFont(-1, 10) _HiDpi_GUICtrlCreateLabel("&Color:", 10, 405, 45, 15) $iFontColorRef = ($iFontColorRef = Default ? 0x000000 : $iFontColorRef) ; Fake Color ComboBox $__g_idFakeCombo = _HiDpi_GUICtrlCreateLabel(@TAB & ($iFontColorRef == 0x000000 ? "BLACK" : "0x" & Hex($iFontColorRef, 6)), 10, 420, 197, 20, BitOR($SS_LEFT, $SS_CENTERIMAGE, $WS_BORDER)) GUICtrlSetCursor(-1, 0) _HiDpi_GUICtrlCreateLabel(ChrW(59149), 189, 422, 16, 16, BitOR($SS_CENTER, $SS_CENTERIMAGE)) ; "▼" GUICtrlSetFont(-1, 11, Default, Default, "Segoe Fluent Icons") $__g_idFakeColor = _HiDpi_GUICtrlCreateLabel(($iFontColorRef == 0x000000 ? "0x000000" : "0x" & Hex($iFontColorRef, 6)), 12, 422, 30, 16, BitOR($SS_LEFT, $SS_CENTERIMAGE)) GUICtrlSetColor(-1, $iFontColorRef) ; BLACK GUICtrlSetBkColor(-1, $iFontColorRef) ; BLACK ; GUICtrlSetState(-1, $GUI_DISABLE) _HiDpi_GUICtrlCreateGroup("Sample", 135, 268, 298, 127) $__g_idLabel_Sample = _HiDpi_GUICtrlCreateLabel("The quick brown fox jumps over the lazy dog", 147, 285, 274, 102) _HiDpi_GUICtrlCreateGroup("", -99, -99, 1, 1) ; Close previous groupbox Local $idButton_OK = _HiDpi_GUICtrlCreateButton("OK", 242, 410, 90, 33) Local $idButton_Cancel = _HiDpi_GUICtrlCreateButton("Cancel", 342, 410, 90, 33) Local $id_UP = GUICtrlCreateDummy() Local $id_DOWN = GUICtrlCreateDummy() Local $aAccelKeys[2][2] = [["{UP}", $id_UP], ["{DOWN}", $id_DOWN]] GUISetAccelerators($aAccelKeys) ; ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; Initialize SubForms ; ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ $__g_hFontSubForm = _Make_FontSubForm($__g_hFontGUI, 10, 50, 195, 194) $__g_hSizeSubForm = _Make_SizeSubForm($__g_hFontGUI, 385, 50, 45, 194) $__g_hColorSubForm = _Make_ColorSubForm($__g_hFontGUI, 10, 10, 195, 22 * 20) $__g_hWeightSubForm = _Make_WeightSubForm($__g_hFontGUI, 220, 50, 150, 194) ; <- keep it last ; ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; Apply initial states to Attribute Checkboxes ; ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ If $bItalic Then GUICtrlSetState($__g_idCheck_Italic, $GUI_CHECKED) If $bUnderline Then GUICtrlSetState($__g_idCheck_Underline, $GUI_CHECKED) If $bStrikethru Then GUICtrlSetState($__g_idCheck_Strikeout, $GUI_CHECKED) ; Find and Highlight the matching Font Local $iSelectedFontIdx = _BestMatchArraySearch($__g_aFonts, $sFontName, 1, 1) If @error Or $iSelectedFontIdx < 1 Then $iSelectedFontIdx = 1 _SelectedFont($iSelectedFontIdx, True) ; Find and Highlight the matching Font Weight Local $iSelectedWeightIdx = 1 For $i = 1 To $__g_aWeight[0][0] If $__g_aWeight[$i][2] = $iFontWeight Then $iSelectedWeightIdx = $i ExitLoop EndIf Next _SelectedWeight($iSelectedWeightIdx, True) ; Find and Highlight the matching Font Size in our Size SubForm Local $iSelectedSizeIdx = 1 For $i = 1 To $__g_aSize[0][0] If $__g_aSize[$i][1] = $iPointSize Then $iSelectedSizeIdx = $i ExitLoop EndIf Next _SelectedSize($iSelectedSizeIdx, 1) GUISetState(@SW_SHOW, $__g_hFontGUI) ; DarkMode($__g_hFontGUI, True) If StringInStr($CmdLineRaw, "/DarkMode") Then DarkMode($__g_hFontGUI, True) _GUIDarkTheme_ApplyDark($__g_hFontGUI) EndIf ; set focus to PopFont as start point GUICtrlSetState($__g_idPopFont, $GUI_FOCUS) Local $aFakeComboArea[4] = [10, 420, 197, 20] Local $iMsg, $iActiveCtrl, $iIndex While 1 $iMsg = GUIGetMsg() Switch $iMsg Case $GUI_EVENT_CLOSE, $idButton_Cancel ExitLoop Case $id_UP, $id_DOWN Local $iVal = ($iMsg = $id_DOWN ? +1 : -1) $iActiveCtrl = _GetActiveCtrl() ;$__g_hFontGUI Switch $iActiveCtrl Case $__g_idPopFont _SelectedFont($__g_iLastFontIdx + $iVal, 1) Case $__g_idPopWeight _SelectedWeight($__g_iLastWeightIdx + $iVal, 1) Case $__g_idPopSize _SelectedSize($__g_iLastSizeIdx + $iVal, 1) EndSwitch Case $__g_idPopFont $iIndex = _BestMatchArraySearch($__g_aFonts, GUICtrlRead($__g_idPopFont), 1, 1) If Not @error Then _SelectedFont($iIndex, 1) Case $__g_idPopWeight $iIndex = _BestMatchArraySearch($__g_aWeight, GUICtrlRead($__g_idPopWeight), 1, 2) If Not @error Then _SelectedWeight($iIndex, 1) Case $__g_idPopSize ; Search for the selected font size in the sizes array $iIndex = _ArraySearch($__g_aSize, GUICtrlRead($__g_idPopSize), 0, 0, 0, 0, 1, 1) ConsoleWrite("$iIndex=" & $iIndex & @CRLF) If $iIndex > 0 Then ; Size found in the list, update selection and highlight it _SelectedSize($iIndex, 1) Else ; Custom size entered: clear previous selection highlight and update preview If $__g_iLastSizeIdx > 0 Then GUICtrlSetBkColor($__g_aSize[$__g_iLastSizeIdx][0], $__g_hColorDefault) _UpDateSample() EndIf Case $__g_idFakeCombo ; Toggle the visibility state of the color dropdown If BitAND(WinGetState($__g_hColorSubForm), $WIN_STATE_VISIBLE) Then GUISetState(@SW_HIDE, $__g_hColorSubForm) Else ; Position and show the dropdown right before it takes focus Local $aWinPos = WinGetPos($__g_hFontGUI) WinMove($__g_hColorSubForm, "", $aWinPos[0] + 13, $aWinPos[1] + 5) GUISetState(@SW_SHOW, $__g_hColorSubForm) EndIf Case $__g_aColor[1][0] To $__g_aColor[$__g_aColor[0][0]][0] _SelectedColor($iMsg) Case $__g_aFonts[1][0] To $__g_aFonts[$__g_aFonts[0][0]][0] _SelectedFont($iMsg) Case $__g_aWeight[1][0] To $__g_aWeight[$__g_aWeight[0][0]][0] _SelectedWeight($iMsg) Case $__g_aSize[1][0] To $__g_aSize[$__g_aSize[0][0]][0] _SelectedSize($iMsg) Case $__g_idCheck_Italic, $__g_idCheck_Strikeout, $__g_idCheck_Underline _UpDateSample() Case $__g_idScriptCombo _UpDateSample() GUICtrlSetState($__g_idPopFont, $GUI_FOCUS) Case $idButton_OK ; Collect attributes (Italic = 2, Underline = 4, Strikeout = 8) Local $iAttributes = 0 If GUICtrlRead($__g_idCheck_Italic) = $GUI_CHECKED Then $iAttributes = BitOR($iAttributes, 2) If GUICtrlRead($__g_idCheck_Underline) = $GUI_CHECKED Then $iAttributes = BitOR($iAttributes, 4) If GUICtrlRead($__g_idCheck_Strikeout) = $GUI_CHECKED Then $iAttributes = BitOR($iAttributes, 8) Local $sFaceName = GUICtrlRead($__g_idPopFont) Local $iWeight = Number(GUICtrlRead($__g_idPopWeight)) Local $iSize = Number(GUICtrlRead($__g_idPopSize)) Local $sColor = GUICtrlRead($__g_idFakeColor) ConsoleWrite("$sColor=" & $sColor & @CRLF) $iFontColorRef = Hex($sColor, 6) ConsoleWrite("$iFontColorRef=" & $iFontColorRef & @CRLF) ; Format the return data similar to standard _ChooseFont $__g_sFontDlgData = $iAttributes & "|" & $sFaceName & "|" & $iSize & "|" & $iWeight & "|" & $sColor ; Clean up GUI resource before returning the split array GUIDelete($__g_hFontGUI) Return StringSplit($__g_sFontDlgData, "|") EndSwitch ; Hide the color dropdown instantly if it loses focus If BitAND(WinGetState($__g_hColorSubForm), $WIN_STATE_VISIBLE) And Not WinActive($__g_hColorSubForm) Then ; Except if the mouse is over the FakeCombo bounds to prevent rapid toggle If Not _IsMouseOverArea($__g_hFontGUI, $aFakeComboArea) Then GUISetState(@SW_HIDE, $__g_hColorSubForm) EndIf WEnd ; if Cancel or Close was pressed GUIDelete($__g_hFontGUI) Return SetError(1, 0, False) EndFunc ;==>_Custom_Font_Gui Func _UpDateSample() Local Static $sLastScriptLang ; Calculate the total attribute based on checkbox states (Italic = 2, Underline = 4, Strike = 8) Local $Attribute = 0 If GUICtrlRead($__g_idCheck_Italic) = $GUI_CHECKED Then $Attribute = BitOR($Attribute, 2) If GUICtrlRead($__g_idCheck_Underline) = $GUI_CHECKED Then $Attribute = BitOR($Attribute, 4) If GUICtrlRead($__g_idCheck_Strikeout) = $GUI_CHECKED Then $Attribute = BitOR($Attribute, 8) Local $sFontName = GUICtrlRead($__g_idPopFont) Local $iSize = Int(GUICtrlRead($__g_idPopSize)) Local $sColor = GUICtrlRead($__g_idFakeColor) Local $iWeight = Int(GUICtrlRead($__g_idPopWeight)) Local $sScriptLang = GUICtrlRead($__g_idScriptCombo) If $sLastScriptLang <> $sScriptLang Then $sLastScriptLang = $sScriptLang Local $sSample = _GetScriptExample($sScriptLang) GUICtrlSetData($__g_idLabel_Sample, $sSample) EndIf ; UpdateWeightSubForm If IsArray($__g_aWeight) Then For $i = 1 To $__g_aWeight[0][0] GUICtrlSetFont($__g_aWeight[$i][0], 11, $__g_aWeight[$i][2], $Attribute, $sFontName) GUICtrlSetColor(-1, $__g_hColorText) Next EndIf ;~ ; Debug Console Output ;~ Local $sTxt = "" ;~ $sTxt &= "$sFontName=" & $sFontName & @CRLF ;~ $sTxt &= "$iSize=" & $iSize & @CRLF ;~ $sTxt &= "$iWeight=" & $iWeight & @CRLF ;~ $sTxt &= "$Attribute=" & $Attribute & @CRLF ;~ $sTxt &= "$sColor=" & $sColor & @CRLF ;~ $sTxt &= @CRLF ;~ ConsoleWrite($sTxt) ; Update the Sample Label GUICtrlSetFont($__g_idLabel_Sample, $iSize, $iWeight, $Attribute, $sFontName) GUICtrlSetColor($__g_idLabel_Sample, $sColor) ; Default Background EndFunc ;==>_UpDateSample #Region ; ~~~~~~~~~~~~~ Selected functions ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Func _SelectedFont($iMsg, $bIndex = False) Local $idx = $iMsg - $__g_aFonts[1][0] + 1 ; If $bIndex = True => $iMsg is already the active Index If $bIndex Then $idx = $iMsg ; Boundary safety checks for indices If $__g_iLastFontIdx < 1 Or $__g_iLastFontIdx > $__g_aFonts[0][0] Then $__g_iLastFontIdx = 1 If $idx < 1 Or $idx > $__g_aFonts[0][0] Then Return GUICtrlSetBkColor($__g_aFonts[$__g_iLastFontIdx][0], $__g_hColorDefault) ; Default Background GUICtrlSetBkColor($__g_aFonts[$idx][0], $__g_hColorHighlight) ; Selection Highlight GUICtrlSetData($__g_idPopFont, $__g_aFonts[$idx][1]) $__g_iLastFontIdx = $idx ; ------------------------------------------------------------- ; SMART SCROLLBAR (ONLY SCROLLS IF OUT OF VIEWPORT BOUNDS) Local $iRowHeight = 20 Local $SB_VERT = 1 Local $iTotalHeight = $__g_aFonts[0][0] * $iRowHeight Local $iUDFMax = _GUIScrollBars_GetScrollInfoMax($__g_hFontSubForm, $SB_VERT) ; 1. The target item's absolute Y pixel Local $iAbsoluteTargetY = ($idx - 1) * $iRowHeight ; 2. Get the clean height of the visible window (Aperture) Local $aPos = WinGetClientSize($__g_hFontSubForm) Local $iVisibleHeight = $aPos[1] ; 3. Read current scroll position in pixels Local $iCurrentScrollVal = _GUIScrollBars_GetScrollInfoPos($__g_hFontSubForm, $SB_VERT) Local $iCurrentScrollY = ($iCurrentScrollVal / $iUDFMax) * $iTotalHeight ; 4. Define visible area boundaries Local $iVisibleTop = $iCurrentScrollY Local $iVisibleBottom = $iCurrentScrollY + $iVisibleHeight ; 5. Check if the item is already visible (with a 1-row buffer) If $iAbsoluteTargetY < $iVisibleTop Or ($iAbsoluteTargetY + $iRowHeight) > $iVisibleBottom Then ; Calculate new scrollbar position Local $iCorrectPos = Int(($iAbsoluteTargetY / $iTotalHeight) * $iUDFMax) ; Apply precise scrollbar position _GUIScrollBars_SetScrollInfoPos($__g_hFontSubForm, $SB_VERT, $iCorrectPos) EndIf ; ------------------------------------------------------------- ; Populate the script language ComboBox and prioritized language as active Local $iFirst = "" Local $sLangs = $__g_aFonts[$idx][2] ; e.g., "Greek|Cyrillic" ; Dynamically detect the system active script language Local Static $sLocalScript = _GetLocalScriptName() ; First Priority: Always default to Western for international compatibility If StringInStr($sLangs, "Western") Then $iFirst = "Western" ; Second Priority: Fallback to the user's local system language ElseIf StringInStr($sLangs, $sLocalScript) Then $iFirst = $sLocalScript ; Fallback: If neither is found, take the first available language from the list Else Local $iMark = StringInStr($sLangs, "|") If $iMark > 0 Then $iFirst = StringLeft($sLangs, $iMark - 1) Else $iFirst = $sLangs EndIf EndIf GUICtrlSetData($__g_idScriptCombo, "|" & $sLangs, $iFirst) ; ------------------------------------------------------------- GUICtrlSetState($__g_idPopFont, $GUI_FOCUS) _UpDateSample() EndFunc ;==>_SelectedFont Func _SelectedWeight($iMsg, $bIndex = False) Local $idx = $iMsg - $__g_aWeight[1][0] + 1 ; If $bIndex = True, then $iMsg is already the active index If $bIndex Then $idx = $iMsg ; Boundary safety checks for indices to prevent out-of-bounds array crashes If $__g_iLastWeightIdx < 1 Or $__g_iLastWeightIdx > $__g_aWeight[0][0] Then $__g_iLastWeightIdx = 1 If $idx < 1 Or $idx > $__g_aWeight[0][0] Then Return GUICtrlSetBkColor($__g_aWeight[$__g_iLastWeightIdx][0], $__g_hColorDefault) ; Default Background GUICtrlSetBkColor($__g_aWeight[$idx][0], $__g_hColorHighlight) ; Selection Highlight GUICtrlSetData($__g_idPopWeight, $__g_aWeight[$idx][2]) ; Update $__g_idPopWeight GUICtrlSetState($__g_idPopWeight, $GUI_FOCUS) ; Make selected $__g_iLastWeightIdx = $idx _UpDateSample() EndFunc ;==>_SelectedWeight Func _SelectedSize($iMsg, $bIndex = False) Local $idx = $iMsg - $__g_aSize[1][0] + 1 ; If $bIndex = True, then $iMsg is already the active index If $bIndex Then $idx = $iMsg ; Boundary safety checks for indices to prevent out-of-bounds array crashes If $__g_iLastSizeIdx < 1 Or $__g_iLastSizeIdx > $__g_aSize[0][0] Then $__g_iLastSizeIdx = 1 If $idx < 1 Or $idx > $__g_aSize[0][0] Then Return GUICtrlSetBkColor($__g_aSize[$__g_iLastSizeIdx][0], $__g_hColorDefault) ; Default Background GUICtrlSetBkColor($__g_aSize[$idx][0], $__g_hColorHighlight) ; Selection Highlight GUICtrlSetData($__g_idPopSize, $__g_aSize[$idx][1]) GUICtrlSetState($__g_idPopSize, $GUI_FOCUS) $__g_iLastSizeIdx = $idx _UpDateSample() EndFunc ;==>_SelectedSize Func _SelectedColor($iMsg, $bIndex = False) GUISetState(@SW_HIDE, $__g_hColorSubForm) Local $idx = $iMsg - $__g_aColor[1][0] + 1 ; If $bIndex = True, then $iMsg is already the active index If $bIndex Then $idx = $iMsg ; Boundary safety checks for indices to prevent out-of-bounds array crashes If $idx < 1 Or $idx > $__g_aColor[0][0] Then Return GUICtrlSetData($__g_idFakeCombo, @TAB & $__g_aColor[$idx][1]) GUICtrlSetData($__g_idFakeColor, "0x" & Hex($__g_aColor[$idx][2], 6)) GUICtrlSetColor($__g_idFakeColor, $__g_aColor[$idx][2]) GUICtrlSetBkColor($__g_idFakeColor, $__g_aColor[$idx][2]) _UpDateSample() EndFunc ;==>_SelectedColor #EndRegion ; ~~~~~~~~~~~~~ Selected functions ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ #Region ; ~~~~~~~~~~~~~ Make SubForms ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Func _Make_FontSubForm($hGUI, $iLeft, $iTop, $iWidth, $iHeight) Local $hSubGUI = _HiDpi_GUICreate("FontSubForm", $iWidth, $iHeight, $iLeft, $iTop, BitOR($WS_CHILD, $WS_BORDER, $WS_TABSTOP), -1, $hGUI) GUISetBkColor($__g_hColorDefault, $hSubGUI) Local $iRowHeight = 20 Local $iTotalFonts = $__g_aFonts[0][0] ; Create a label for each font name dynamically For $i = 1 To $iTotalFonts $__g_aFonts[$i][0] = _HiDpi_GUICtrlCreateLabel($__g_aFonts[$i][1], 5, ($i - 1) * $iRowHeight, $iWidth - 5, $iRowHeight, $SS_CENTERIMAGE) GUICtrlSetFont(-1, 11, 0, 0, $__g_aFonts[$i][1]) GUICtrlSetColor(-1, $__g_hColorText) Next GUISetState(@SW_SHOW, $hSubGUI) ; Generate the scrollbars using the exact total height calculated _GUIScrollbars_Generate($hSubGUI, 0, $iTotalFonts * $iRowHeight) Return $hSubGUI EndFunc ;==>_Make_FontSubForm Func _Make_WeightSubForm($hGUI, $iLeft, $iTop, $iWidth, $iHeight) Local $hSubGUI = _HiDpi_GUICreate("StyleSubForm", $iWidth, $iHeight, $iLeft, $iTop, BitOR($WS_CHILD, $WS_BORDER), -1, $hGUI) GUISetBkColor($__g_hColorDefault, $hSubGUI) ; Define the static list of standard Windows Font Weights Dim $__g_aWeight[11][3] = [ _ [10, "", 0], _ [0, "Dontcare", 0], _ [0, "Thin", 100], _ [0, "Extralight", 200], _ [0, "Light", 300], _ [0, "Normal", 400], _ [0, "Medium", 500], _ [0, "Semibold", 600], _ [0, "Bold", 700], _ [0, "Extrabold", 800], _ [0, "Heavy", 900]] Local $iRowHeight = 20 Local $iTotalWeights = $__g_aWeight[0][0] ; Create labels and apply their respective font weights dynamically For $i = 1 To $iTotalWeights $__g_aWeight[$i][0] = _HiDpi_GUICtrlCreateLabel($__g_aWeight[$i][1], 5, ($i - 1) * $iRowHeight, $iWidth - 5, $iRowHeight, $SS_CENTERIMAGE) GUICtrlSetFont(-1, 11, $__g_aWeight[$i][2]) GUICtrlSetColor(-1, $__g_hColorText) Next GUISetState(@SW_SHOW, $hSubGUI) ; Generate scrollbars based on total height of the elements _GUIScrollbars_Generate($hSubGUI, 0, $iTotalWeights * $iRowHeight) Return $hSubGUI EndFunc ;==>_Make_WeightSubForm Func _Make_SizeSubForm($hGUI, $iLeft, $iTop, $iWidth, $iHeight) Local $hSubGUI = _HiDpi_GUICreate("SizeSubForm", $iWidth, $iHeight, $iLeft, $iTop, BitOR($WS_CHILD, $WS_BORDER), -1, $hGUI) GUISetBkColor($__g_hColorDefault, $hSubGUI) ; Define the standard list of font sizes Local $aNum[17] = [16, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22, 24, 26, 28, 36, 48, 72] Dim $__g_aSize[17][2] $__g_aSize[0][0] = 16 Local $iRowHeight = 20 Local $iTotalSizes = $__g_aSize[0][0] ; Create label controls for each font size dynamically For $i = 1 To $iTotalSizes $__g_aSize[$i][1] = $aNum[$i] $__g_aSize[$i][0] = _HiDpi_GUICtrlCreateLabel($__g_aSize[$i][1], 5, ($i - 1) * $iRowHeight, $iWidth - 5, $iRowHeight, $SS_CENTERIMAGE) GUICtrlSetFont(-1, 11) GUICtrlSetColor(-1, $__g_hColorText) Next GUISetState(@SW_SHOW, $hSubGUI) ; Generate scrollbars based on the total height of all size items _GUIScrollbars_Generate($hSubGUI, 0, $iTotalSizes * $iRowHeight) Return $hSubGUI EndFunc ;==>_Make_SizeSubForm Func _Make_ColorSubForm($hGUI, $iLeft, $iTop, $iWidth, $iHeight) Local $hSubGUI = _HiDpi_GUICreate("ColorSubForm", $iWidth, $iHeight, $iLeft, $iTop, BitOR($WS_POPUP, $WS_BORDER), $WS_EX_TOOLWINDOW, $hGUI) GUISetBkColor($__g_hColorDefault, $hSubGUI) ; Define the static list of standard Windows Font Weights Dim $__g_aColor[23][3] = [ _ [22, "", 0], _ [0, "BLACK", 0x000000], _ [0, "WHITE", 0xFFFFFF], _ [0, "SILVER", 0xC0C0C0], _ [0, "GRAY", 0x808080], _ [0, "MAROON", 0x800000], _ [0, "RED", 0xFF0000], _ [0, "CORAL", 0xFF7F50], _ [0, "BROWN", 0xA52A2A], _ [0, "CHOCOLATE", 0xD2691E], _ [0, "YELLOW", 0xFFFF00], _ [0, "OLIVE", 0x808000], _ [0, "LIME", 0x00FF00], _ [0, "GREEN", 0x008000], _ [0, "AQUAMARINE", 0x7FFFD4], _ [0, "AQUA", 0x00FFFF], _ [0, "TEAL", 0x008080], _ [0, "CADETBLUE", 0x5F9EA0], _ [0, "NAVY", 0x000080], _ [0, "BLUE", 0x0000FF], _ [0, "BLUEVIOLET", 0x8A2BE2], _ [0, "PURPLE", 0x800080], _ [0, "FUCHSIA", 0xFF00FF]] Local $iRowHeight = 20 Local $iTotalColors = $__g_aColor[0][0] For $i = 1 To $iTotalColors $__g_aColor[$i][0] = _HiDpi_GUICtrlCreateLabel(@TAB & $__g_aColor[$i][1], 0, ($i - 1) * $iRowHeight, $iWidth, $iRowHeight, $SS_CENTERIMAGE) GUICtrlSetColor(-1, $__g_hColorText) GUICtrlSetBkColor(-1, $__g_hColorDefault) Next For $i = 1 To $iTotalColors _HiDpi_GUICtrlCreateLabel("", 2, (($i - 1) * $iRowHeight) + 1, 30, $iRowHeight - 2) GUICtrlSetBkColor(-1, $__g_aColor[$i][2]) GUICtrlSetState(-1, $GUI_DISABLE) Next GUISetState(@SW_HIDE, $hSubGUI) Return $hSubGUI EndFunc ;==>_Make_ColorSubForm #EndRegion ; ~~~~~~~~~~~~~ Make SubForms ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ #Region ; ~~~~~~~~~~~~~ Helper functions ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Func _GetActiveCtrl() ; Get the handle of the control that currently has input focus system-wide Local $hFocusCtrl = _WinAPI_GetFocus() ; Return its Control ID Return _WinAPI_GetDlgCtrlID($hFocusCtrl) EndFunc ;==>_GetActiveCtrl Func _IsMouseOverArea($hGUI, $aArea) Local $a = GUIGetCursorInfo($hGUI) If IsArray($a) Then Local $iX = $a[0] Local $iY = $a[1] If $iX >= $aArea[0] And $iY >= $aArea[1] And $iX <= ($aArea[0] + $aArea[2]) And $iY <= ($aArea[1] + $aArea[3]) Then Return True EndIf EndIf Return False EndFunc ;==>_IsMouseOverArea Func _GetFonts() ; Enumerate all system font families, excluding vertical fonts starting with '@' Local $aData = _WinAPI_EnumFontFamilies(0, '', $DEFAULT_CHARSET, 0x07, '@*', 1) If @error Or Not IsArray($aData) Then Return SetError(1, 0, 0) Local $iTotalRows = $aData[0][0] If $iTotalRows < 1 Then Return SetError(2, 0, 0) ; Sort the enumerated to group duplicates together _ArraySort($aData, 0, 1) Local $aReturnFonts[$iTotalRows + 1][3] Local $sLastName = "" Local $sLangList = "" Local $iUniqueIdx = 0 For $i = 1 To $iTotalRows Local $sCurrentName = $aData[$i][0] Local $sCurrentLang = $aData[$i][3] ; If we encounter a new font family name If $sCurrentName <> $sLastName Then ; Save the language list to the PREVIOUS font before moving on If $iUniqueIdx > 0 Then $aReturnFonts[$iUniqueIdx][2] = StringTrimRight($sLangList, 1) EndIf ; Move to the next unique slot and store the new font name $iUniqueIdx += 1 $aReturnFonts[$iUniqueIdx][1] = $sCurrentName $sLastName = $sCurrentName $sLangList = "" EndIf ; Append the current language/script to the list (preventing internal duplicates if any) If Not StringInStr($sLangList, $sCurrentLang & "|") Then $sLangList &= $sCurrentLang & "|" EndIf Next ; Save the very last font's language list after the loop ends! If $iUniqueIdx > 0 Then $aReturnFonts[$iUniqueIdx][2] = StringTrimRight($sLangList, 1) EndIf ; Resize the return array to fit ReDim $aReturnFonts[$iUniqueIdx + 1][3] $aReturnFonts[0][0] = $iUniqueIdx Return $aReturnFonts EndFunc ;==>_GetFonts Func _BestMatchArraySearch(ByRef $aArray, $sSearchStr, $iStart = 0, $iSubItem = 0) If Not IsArray($aArray) Then Return SetError(1, 0, -1) Local $iRows = UBound($aArray, 1) Local $iCols = UBound($aArray, 2) ; Validate start index If $iStart < 0 Or $iStart >= $iRows Then Return SetError(2, 0, -1) ; Validate subitem index for 2D arrays If $iCols > 0 And ($iSubItem < 0 Or $iSubItem >= $iCols) Then Return SetError(3, 0, -1) ; Clean up search string $sSearchStr = StringStripWS($sSearchStr, 3) If $sSearchStr = "" Then Return 1 ; Return default first index if search is empty Local $aPart = StringSplit($sSearchStr, "") Local $iMaxMatchedLen = 0 Local $iBestIndex = -1 Local $sCurrentVal = "" ; Loop through each item in the array For $i = $iStart To $iRows - 1 If $iCols > 0 Then $sCurrentVal = $aArray[$i][$iSubItem] Else $sCurrentVal = $aArray[$i] EndIf ; RESET search state for the current array item Local $iCurrentSearchLen = 1 Local $sPattern = $aPart[1] ; Check how many characters match from the beginning of the string While (StringLeft($sCurrentVal, $iCurrentSearchLen) = $sPattern) ; If this item matches more characters than our previous best, update it If $iCurrentSearchLen > $iMaxMatchedLen Then $iMaxMatchedLen = $iCurrentSearchLen $iBestIndex = $i EndIf ; If we matched the entire search string, we found an exact match! If $iCurrentSearchLen >= $aPart[0] Then Return $i $iCurrentSearchLen += 1 $sPattern &= $aPart[$iCurrentSearchLen] WEnd Next ; If no partial match was found, default to the first index If $iBestIndex = -1 Then $iBestIndex = 1 Return $iBestIndex EndFunc ;==>_BestMatchArraySearch Func _GetLocalScriptName() Switch @OSLang Case "0408" Return "Greek" Case "0419", "0422" ; Russian, Ukrainian Return "Cyrillic" Case "0415", "041b", "041e", "0424" ; Polish, Slovak, Hungarian, Slovenian Return "Central European" Case "041f" ; Turkish Return "Turkish" Case "0425" ; Estonian Return "Baltic" Case "042a" ; Vietnamese Return "Vietnamese" Case "040d" ; Hebrew Return "Hebrew" Case "0401" ; Arabic Return "Arabic" Case Else Return "Western" ; Standard default fallback EndSwitch EndFunc ;==>_GetLocalScriptName Func _GetScriptExample($vLang) Switch $vLang Case "0408", "Greek" Return "Η γρήγορη καφέ αλεπού πηδάει πάνω από το τεμπέλικο σκυλί" & @CRLF & "0123456789" Case "0419", "0422", "Cyrillic" ; Russian, Ukrainian Return "Съешь же ещё этих мягких французских булок, да выпей чаю" & @CRLF & "0123456789" Case "0415", "041b", "041e", "0424", "Central European" ; Polish, Slovak, Hungarian, Slovenian, etc. Return "Příliš žluťoučký kůň úpěl ďábelské ódy" & @CRLF & "0123456789" Case "041f", "Turkish" Return "Pijamalı hasta yağız şoföre çabucak güvendi" & @CRLF & "0123456789" Case "0425", "Baltic" ; Estonian, Latvian, Lithuanian Return "Sarkanmatainais ķīniešu pusaudzis brauc ar velosipēdu" & @CRLF & "0123456789" Case "042a", "Vietnamese" Return "Hiến pháp nước Cộng hòa Xã hội Chủ nghĩa Việt Nam" & @CRLF & "0123456789" Case "040d", "Hebrew" Return "דג קרח שזה עתה בקע נע עם חול במים ראו 0123456789" Case "0401", "Arabic" Return "نص حكيم له سر قاطع تبسطه أذن واع بغير كتمان 0123456789" Case Else ; "Western" or anything else Return "The quick brown fox jumps over the lazy dog" & @CRLF & "0123456789" EndSwitch EndFunc ;==>_GetScriptExample #EndRegion ; ~~~~~~~~~~~~~ Helper functions ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ #Region ; ~~~~~~~~~~~~~ DarkMode ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ;-------------------------------------------------------------------------------------------------------------------------------- ; https://www.autoitscript.com/forum/topic/211475-darkmode-udf-for-autoits-win32guis/#comment-1530103 ;-------------------------------------------------------------------------------------------------------------------------------- Func DarkMode($hGui, $bDarkMode = True) Local Enum $DWMWA_USE_IMMERSIVE_DARK_MODE = (@OSBuild <= 18985) ? 19 : 20 ; DWMWA_USE_IMMERSIVE_DARK_MODE ; https://learn.microsoft.com/en-us/windows/win32/api/dwmapi/ne-dwmapi-dwmwindowattribute ; Use with DwmSetWindowAttribute. Allows the window frame for this window to be drawn in dark mode colors when the dark mode system setting is enabled. ; For compatibility reasons, all windows default to light mode regardless of the system setting. ; The pvAttribute parameter points to a value of type BOOL. TRUE to honor dark mode for the window, FALSE to always use light mode. ; This value is supported starting with Windows 11 Build 22000. Local $iRet = _WinAPI_DwmSetWindowAttribute_unr($hGui, $DWMWA_USE_IMMERSIVE_DARK_MODE, $bDarkMode) If Not $iRet Then Return SetError(1, 0, -1) Local $aCtrls = _GetDirectChildControls($hGui) Local $handler, $sClass, $id, $iStyle For $i = 1 To $aCtrls[0][0] $sClass = $aCtrls[$i][1] $handler = $aCtrls[$i][0] $id = _WinAPI_GetDlgCtrlID($handler) $iStyle = _WinAPI_GetWindowLong($handler, $GWL_STYLE) ; ConsoleWrite("-> " & $sClass & ", $iStyle=0x" & Hex($iStyle) & @CRLF) Switch $sClass Case "AutoIt v3 GUI" ; is tells Windows to render its scrollbars in dark theme. _SetCtrlColorMode($handler, $bDarkMode) If $bDarkMode Then GUISetBkColor(0x1B1B1B, $handler) Else GUISetBkColor(0xF0F0F0, $handler) EndIf Case "Button" ; Check if the button is GroupBox (BS_GROUPBOX = 0x00000007) If BitAND($iStyle, 0x0000000F) = 7 Then _WinAPI_SetWindowTheme_unr($handler, "", "") If $bDarkMode Then GUICtrlSetColor($id, 0xFFFFFF) Else GUICtrlSetColor($id, 0x000000) EndIf Else ; Standard button gets standard explorer theme coloring _SetCtrlColorMode($handler, $bDarkMode) EndIf Case "ComboBox" _SetCtrlColorMode($handler, $bDarkMode) If $bDarkMode Then _WinAPI_SetWindowTheme_unr($handler, "CFD", "Combobox") GUICtrlSetColor($id, 0xFFFFFF) GUICtrlSetBkColor($id, 0x1B1B1B) Else ; Reset to standard Windows theme _WinAPI_SetWindowTheme_unr($handler, "", "") GUICtrlSetColor($id, 0x000000) GUICtrlSetBkColor($id, 0xFFFFFF) EndIf Case "Static" _SetCtrlColorMode($handler, $bDarkMode) If $bDarkMode Then GUICtrlSetColor($id, 0xFFFFFF) Else GUICtrlSetColor($id, 0x000000) EndIf GUICtrlSetBkColor($id, $GUI_BKCOLOR_TRANSPARENT) Case Else _SetCtrlColorMode($handler, $bDarkMode) If $bDarkMode Then GUICtrlSetBkColor($id, 0x000000) GUICtrlSetColor($id, 0xFFFFFF) Else GUICtrlSetBkColor($id, 0xFFFFFF) GUICtrlSetColor($id, 0x000000) EndIf EndSwitch Next If $bDarkMode Then GUISetBkColor(0x1B1B1B, $hGui) ; 0x1B1B1B Black $__g_hColorDefault = 0x1B1B1B $__g_hColorHighlight = 0x0078D7 $__g_hColorText = 0xFFFFFF Else GUISetBkColor(0xF0F0F0, $hGui) ; 0xF0F0F0 Light Gray/Honeydew $__g_hColorDefault = 0xFFFFFF $__g_hColorHighlight = 0xC8CFFA $__g_hColorText = 0x000000 EndIf ; Update subform custom controls dynamically _UpdateSubFormCtrls($__g_aFonts, $__g_hColorText, $__g_hColorDefault) _UpdateSubFormCtrls($__g_aSize, $__g_hColorText, $__g_hColorDefault) _UpdateSubFormCtrls($__g_aWeight, $__g_hColorText, $__g_hColorDefault) _UpdateSubFormCtrls($__g_aColor, $__g_hColorText, $__g_hColorDefault) ; Restore highlight background to active selections _SelectedSize($__g_iLastSizeIdx, 1) _SelectedWeight($__g_iLastWeightIdx, 1) _SelectedFont($__g_iLastFontIdx, 1) ; Update color combo Local $sColor = GUICtrlRead($__g_idFakeColor) GUICtrlSetColor($__g_idFakeColor, $sColor) ; BLACK GUICtrlSetBkColor($__g_idFakeColor, $sColor) ; BLACK _WinAPI_RedrawWindow($hGui, 0, 0, $RDW_UPDATENOW) EndFunc ;==>DarkMode ;---------------------------------------------------------------------------------------- Func _SetCtrlColorMode($hWnd, $bDarkMode = True, $sName = Default) If $sName = Default Then $sName = $bDarkMode ? 'DarkMode_Explorer' : 'Explorer' $bDarkMode = Not Not $bDarkMode If Not IsHWnd($hWnd) Then $hWnd = GUICtrlGetHandle($hWnd) Local Enum $eDefault, $eAllowDark, $eForceDark, $eForceLight, $eMax ; enum PreferredAppMode DllCall('uxtheme.dll', 'bool', 133, 'hwnd', $hWnd, 'bool', $bDarkMode) ; fnAllowDarkModeForWindow = 133 DllCall('uxtheme.dll', 'int', 135, 'int', ($bDarkMode ? $eForceDark : $eForceLight)) ; fnAllowDarkModeForApp = 135 _WinAPI_SetWindowTheme_unr($hWnd, $sName) DllCall('uxtheme.dll', 'none', 104) ; fnRefreshImmersiveColorPolicyState = 104 _SendMessage($hWnd, $WM_THEMECHANGED, 0, 0) EndFunc ;==>_SetCtrlColorMode ;---------------------------------------------------------------------------------------- Func _WinAPI_SetWindowTheme_unr($hWnd, $sName = Null, $sList = Null) ; Causes a window to use a different set of visual style information than its class normally uses Local $sResult = DllCall('UxTheme.dll', 'long', 'SetWindowTheme', 'hwnd', $hWnd, 'wstr', $sName, 'wstr', $sList) If @error Then Return SetError(@error, @extended, 0) If $sResult[0] Then Return SetError(10, $sResult[0], 0) Return 1 EndFunc ;==>_WinAPI_SetWindowTheme_unr ;---------------------------------------------------------------------------------------- Func _WinAPI_DwmSetWindowAttribute_unr($hWnd, $iAttribute, $iData) ; Sets the value of the specified attributes for non-client rendering to apply to the window Local $aCall = DllCall('dwmapi.dll', 'long', 'DwmSetWindowAttribute', 'hwnd', $hWnd, 'dword', $iAttribute, _ 'dword*', $iData, 'dword', 4) If @error Then Return SetError(@error, @extended, 0) If $aCall[0] Then Return SetError(10, $aCall[0], 0) Return 1 EndFunc ;==>_WinAPI_DwmSetWindowAttribute_unr ;---------------------------------------------------------------------------------------- Func _GetDirectChildControls($hParent) Local $aResult[100][2] ; Create a dynamic array to store the results Local $iCount = 0 ; Get the handle of the FIRST child control of the window Local $hCtrl = _WinAPI_GetWindow($hParent, $GW_CHILD) ; Loop to retrieve all siblings in sequence While $hCtrl <> 0 $iCount += 1 ; If the array is full, increase its size If $iCount >= UBound($aResult) Then ReDim $aResult[$iCount + 50][2] $aResult[$iCount][0] = $hCtrl ; The HWND of the control $aResult[$iCount][1] = _WinAPI_GetClassName($hCtrl) ; The class name ; Move to the next control at the same level $hCtrl = _WinAPI_GetWindow($hCtrl, $GW_HWNDNEXT) WEnd ; Resize the array to fit ReDim $aResult[$iCount + 1][2] $aResult[0][0] = $iCount Return $aResult EndFunc ;==>_GetDirectChildControls ;--------------------------------------------------------------------------------------- Func _UpdateSubFormCtrls(ByRef $aArray, $hTxtColor, $hBkColor) If IsArray($aArray) Then For $i = 1 To $aArray[0][0] GUICtrlSetColor($aArray[$i][0], $hTxtColor) GUICtrlSetBkColor($aArray[$i][0], $hBkColor) Next EndIf EndFunc ;==>_UpdateSubFormCtrls ;--------------------------------------------------------------------------------------- #EndRegion ; ~~~~~~~~~~~~~ DarkMode ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Edited yesterday at 06:33 AM by argumentum WildByDesign 1 Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting

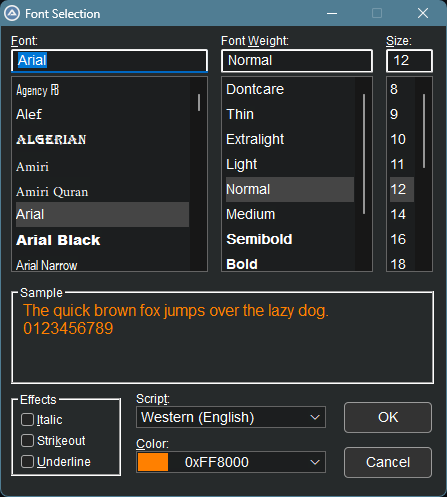

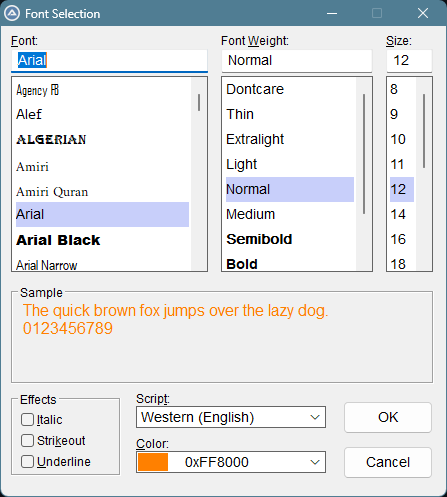

pixelsearch Posted 19 hours ago Posted 19 hours ago Nicely done, glad you kept "for our eyes only" 1 native ComboBox control, i.e. the Script ComboBox control If I got it right, 3 other ComboBox controls (i.e. Font, Font Weight, Size) became GUI child windows, created with GuiCreate and the "items" all became Labels. I wonder why the Font Weight indicates a numeric value (400 for example when "Normal" is selected) . Shouldn't it indicate the same string value "Normal" as the one selected in the list, to mimic what happens in a ComboBox control ? The 4th ComboBox Control (the "Color" one) didn't become a GUI child window but a GUI popup window. I notice that when it is displayed and the mouse is hovering over its "items", then no "hovered color" appears as in a real combobox. Also while the popup is displayed, moving the main GUI won't stick the popup to the GUI (i.e. the popup will stay at its place while the GUI is moving). Anyway it's acceptable imho I am curious to know if you considered using a ComboBoxEx control (instead of the popup window) which allows natively to add a solid bitmap at the left and its caption at the right of each item, as found in the help file example function _GUICtrlComboBoxEx_CreateSolidBitMap But maybe it isn't suitable to your script because of the background color of the listbox associated to the ComboBoxEx control ? Great job @ioa747 WildByDesign 1 "I think you are searching a bug where there is no bug... don't listen to bad advice."

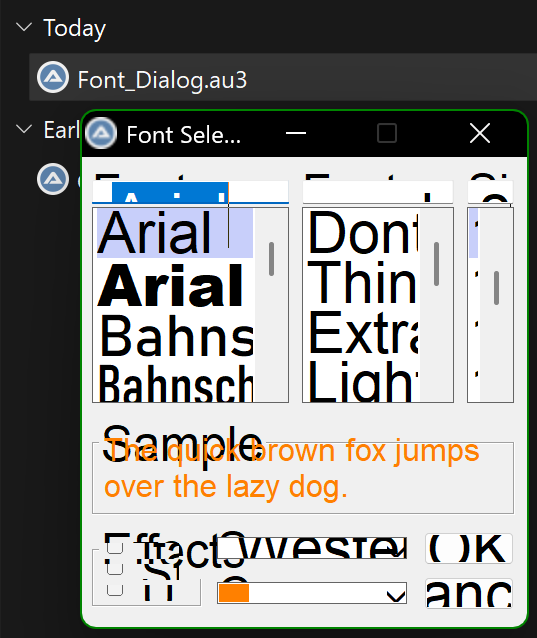

WildByDesign Posted 18 hours ago Posted 18 hours ago I'm just going through the code now and testing so I will provide some feedback bit-by-bit as I notice things. The small "g" and likely other characters are getting cut off at the bottom of each comboitem. This may be different depending on DPI scale. The symbol type of fonts are showing in their actual symbols and therefore the user cannot see the font name MS handles their display of symbol type fonts by setting default font (Segoe UI) and default style for all combos I've been doing some recent work on my intercepted ChooseFont dialog subclass and have some code that may (or may not) be helpful. But then again, since you are using _WinAPI_EnumFontFamilies(), you might not need the charset stuff since you already have it. I had to get mine from the DC. ; Temporarily load the current font to determine CHARSET $hFont = _WinAPI_CreateFont($iSize, 0, 0, 0, $iWeight, $bItalic, 0, 0, $DEFAULT_CHARSET, 0, 0, $iQuality, 0, $sFont) $hOldFont = _WinAPI_SelectObject($hDC, $hFont) Local $tTextMetrics = _WinAPI_GetTextMetrics($hDC) $iCharset = DllStructGetData($tTextMetrics, "tmCharSet") ConsoleWrite("CHARSET (test): " & $iCharset & @CRLF) _WinAPI_SelectObject($hDC, $hOldFont) _WinAPI_DeleteObject($hFont) But anyway, for the symbol fonts displaying as symbols in the combos, you can swap $SYMBOL_CHARSET for $ANSI_CHARSET but only for the combos which you want to show regular text and switch font to display as "Segoe UI". You don't want this for the Sample/Preview area, just the combos. This is just a suggestion.
