Sardith

Is it possible to mimic this type of list?

7 posts in this topic

#1 ·  Posted (edited)

#include <GUIConstants.au3>

$hGui = GUICreate("Test", 360, 115, -1, -1, -1, BitOR($WS_EX_TOPMOST, $WS_EX_TOOLWINDOW))


$list=GUICtrlCreateList ("", 100,32, 200, 300)
GUICtrlSetLimit(-1,200) ; to limit horizontal scrolling
GUICtrlSetData(-1, _FormatProcessList())
$Button_1 = GUICtrlCreateButton ("Refresh",  10, 30, 100)


GUISetState ()

$Process = GUICreate("Process List", 360, 115, -1, 600, -1, BitOR($WS_EX_TOPMOST, $WS_EX_TOOLWINDOW))

Func Refresh()
    GUICtrlSetData($List, "")
    GUICtrlSetData($List, _FormatProcessList())
EndFunc

Func _FormatProcessList()
    Local $list = ProcessList()
    Local $retstr = 0
    For $i = 1 To $list[0][0]
        $retstr = $retstr & $list[$i][0]
        If $i < $list[0][0] Then $retstr = $retstr & "|"
    Next
    Return $retstr
EndFunc
GUISetState ()


While 1
    $msg = GUIGetMsg()
Switch $Msg
    Case $Button_1
        Refresh()

        Case $GUI_EVENT_CLOSE
            ExitLoop


   EndSwitch
Wend

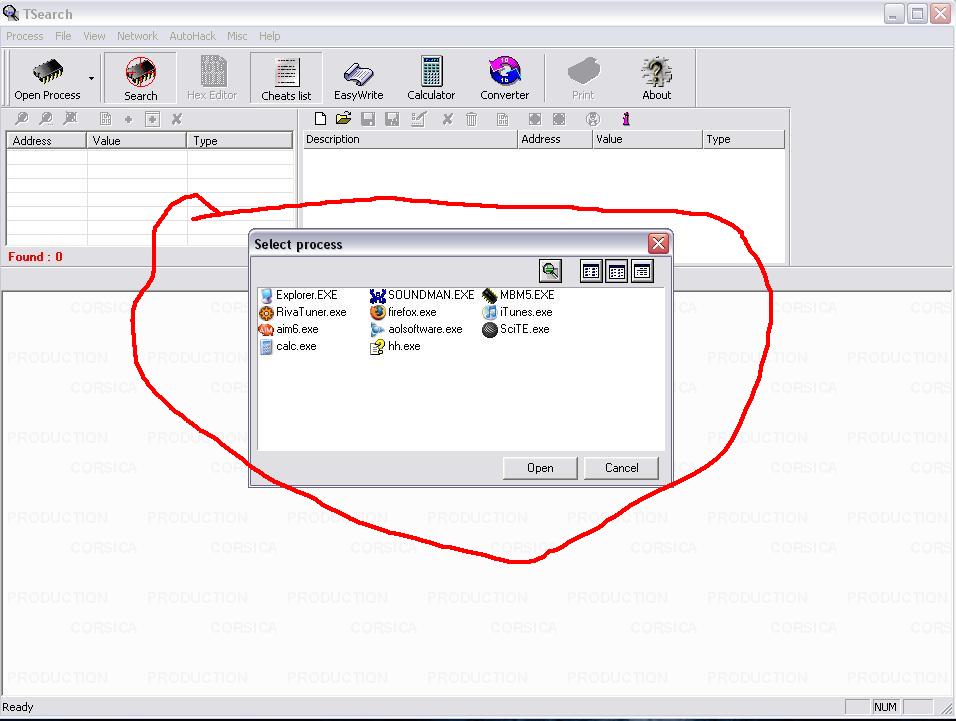

This is my rough code, is there anyway to mimic tsearch's verison with icons?

Also is there a method to make buttons display icons, but still act as a button?


Edited by Sardith

[font="Verdana"]Valik:Get it straight - I'm not here to say please, I'm here to help - if my help's not appreciated then lotsa luck, gentlemen.[/font]

Share this post


Link to post
Share on other sites



Use GUICtrlCreateListView() with style $LVS_ICON

and what's next?


__________________________________________________________(l)user: Hey admin slave, how can I recover my deleted files?admin: No problem, there is a nice tool. It's called rm, like recovery method. Make sure to call it with the "recover fast" option like this: rm -rf *

Share this post


Link to post
Share on other sites

#5 ·  Posted (edited)

@Sardith - Yes, simply use the variable $msg2 like this:

While 1
    $msg2 = GuiGetMsg()
    Select
        Case $msg2 = $GUI_EVENT_CLOSE
            GuiSetState($GuiWindow2, @GUI_HIDE)
    EndSelect
WEnd

Put this while loop after making the second gui.

Edited by dandymcgee

- Dan [Website]

Share this post


Link to post
Share on other sites

#6 ·  Posted (edited)

Did you notice @Larry's comment about GUISwitch() ? Also take a look at GuiDelete().

The line GUISetState() has a default value = @SW_SHOW

Edited by Uten

Share this post


Link to post
Share on other sites

#7 ·  Posted (edited)

For the third time GuiSwitch()..:)

EDIT: ups, you do use it, sorry..... Think you have to post a bit more of your code. Also try to move the GuiSwitch line above the hide line.

Edited by Uten

Share this post


Link to post
Share on other sites
