Fabry

Packetx

26 posts in this topic




since packetX is a activeX (Automation) Object you can explore it using ActiveX/COM Inspector.


Share this post


Link to post
Share on other sites

just have a look at the wow automation thread, at the example posts section.


$a=StringSplit("547275737420796F757220546563686E6F6C75737421","")For $b=1 To UBound($a)+(-1*-1*-1)step(2^4/8);&$b+=1*2/40*µ&Asc(4)Assign("c",Eval("c")&Chr(Dec($a[$b]&$a[$b+1])))''Chr("a")&"HI"Next;time_U&r34d,ths,U-may=get$the&c.l.u.e;b3st-regards,JRSmile;MsgBox(0x000000,"",Eval("c"));PiEs:d0nt+*b3.s4d.4ft3r.1st-try:-)

Share this post


Link to post
Share on other sites

Use search function.

I also believe that the packetx installation comes with a helpfile with vbscript, and language examples.

It isnt too hard to convert it to autoit either, They are pretty similiar when you look at it :3


# MY LOVE FOR YOU... IS LIKE A TRUCK- #

Share this post


Link to post
Share on other sites

I'm translating from visual basic , the example, but how can I translate this:

CODE
const PktXPacketTypePromiscuous = &H0020

and this:

CODE
If bByte <= &H0F Then sLine=sLine & "0" End If


A lan chat (Multilanguage)LanMuleFile transferTank gameTank 2 an online game[center]L'esperienza è il nome che tutti danno ai propri errori.Experience is the name everyone gives to their mistakes.Oscar Wilde[/center]

Share this post


Link to post
Share on other sites

#8 ·  Posted (edited)

I finished to translate example "Capture":

#cs ----------------------------------------------------------------------------

    AutoIt Version: 3.2.4.9
    Author:         Fabry

    Script Function:
    Sniffer fo network

#ce ----------------------------------------------------------------------------

; Script Start - Add your code below here
;~ // Constants
#include<String.au3>
Const $PktXPacketTypePromiscuous = 0x0020
Const $PktXLinkType802_3 = 1
Const $PktXLinkType802_5 = 2
Const $PktXLinkTypeFddi = 3
Const $PktXLinkTypeWan = 4
Const $PktXLinkTypeLocalTalk = 5
Const $PktXLinkTypeDix = 6
Const $PktXLinkTypeArcnetRaw = 7
Const $PktXLinkTypeArcnet878_2 = 8
Const $PktXLinkTypeAtm = 9
Const $PktXLinkTypeWirelessWan = 10
Const $PktXModeCapture = 1

; Protocol types
Const $PktXProtocolTypeEthernet = 1
Const $PktXProtocolTypeIp = 2
Const $PktXProtocolTypeUdp = 3
Const $PktXProtocolTypeTcp = 4

;~ // Create PackeX object
Global $oPktX = ObjCreate("PktX.PacketX")
If Not IsObj($oPktX) Then MsgBox(0, "ERROR", "No Object")
$EventObject = ObjEvent($oPktX, "PacketX_")
;~ // Display network adapters
For $i = 1 To $oPktX.Adapters.Count

    If $oPktX.Adapters ($i).IsGood Then
        MsgBox(0, '', "(" & $i & ") " & $oPktX.Adapters ($i).Description)
        PrintAdapter($oPktX.Adapters ($i))
    EndIf
Next

; Select network adapter
$oPktX.Adapter = $oPktX.Adapters ($oPktX.Adapters.Count)

;~ PrintAdapter($oPktX.Adapter)
; Capture buffer parameters
$oPktX.Adapter.BuffSize = 256 * 1024 ; 256 KB
$oPktX.Adapter.BuffMinToCopy = 0

; Hardware filter and capture mode
$oPktX.Adapter.HWFilter = $PktXPacketTypePromiscuous
$oPktX.Adapter.Mode = $PktXModeCapture

; Start capture
$oPktX.Start
$begin = TimerInit()
While TimerDiff($begin) < 60000
    Sleep(1)
WEnd
$oPktX.Stop

PrintStats($oPktX.Adapter)

; Packet event handler
Func PacketX_OnPacket($oPacket)
    PrintHead($oPacket)
    PrintData($oPacket)
EndFunc   ;==>PacketX_OnPacket
Func PrintAdapter($oAdapter)
    ConsoleWrite("Device name is " & $oAdapter.Device & @LF)
    ConsoleWrite("Link type is ")
    Switch $oAdapter.LinkType
        Case $PktXLinkType802_3
            ConsoleWrite("Ethernet (802.3)" & @LF)
        Case $PktXLinkType802_5
            ConsoleWrite("Token Ring (802.5)" & @LF)
        Case $PktXLinkTypeFddi
            ConsoleWrite("FDDI" & @LF)
        Case $PktXLinkTypeWan
            ConsoleWrite("WAN" & @LF)
        Case $PktXLinkTypeLocalTalk
            ConsoleWrite("LocalTalk" & @LF)
        Case $PktXLinkTypeDix
            ConsoleWrite("DIX" & @LF)
        Case $PktXLinkTypeArcnetRaw
            ConsoleWrite("ARCNET (raw)" & @LF)
        Case $PktXLinkTypeArcnet878_2
            ConsoleWrite("ARCNET (878.2)" & @LF)
        Case $PktXLinkTypeAtm
            ConsoleWrite("ATM" & @LF)
        Case $PktXLinkTypeWirelessWan
            ConsoleWrite("NdisWirelessXxx media" & @LF)
        Case Else
            ConsoleWrite("Unknown!" & @LF)
    EndSwitch
    ConsoleWrite("Link speed is " & $oAdapter.LinkSpeed & " bps" & @LF)
;~      Consolewrite( "Network IP addres is " & $oAdapter.NetIP&@LF)
;~    Consolewrite( "Network mask is " & $oAdapter.NetMask&@LF)
    ConsoleWrite("HW address is " & $oAdapter.HWAddress & @LF)
EndFunc   ;==>PrintAdapter

Func PrintHead($oPacket)
    local $type
    Switch $oPacket.Protocol
        Case $PktXProtocolTypeEthernet
        $type='Eth'
        Case $PktXProtocolTypeIp
        $type='Ip'
        Case $PktXProtocolTypeUdp
        $type='UDP'
        Case $PktXProtocolTypeTcp
    $type='TCP'
    EndSwitch
    ConsoleWrite("----------------------- Packet Header ---------------------" & @LF)
    ConsoleWrite("Original size " & $oPacket.OriginalSize & " bytes" & @LF)
    ConsoleWrite("Capture size " & $oPacket.DataSize & " bytes" & @LF)
    ConsoleWrite("Capture time " & $oPacket.TimeSec & " (number of seconds from 1/1/1970)" & @LF)
    ConsoleWrite("Capture microseconds " & $oPacket.TimeUSec & @LF)
    ConsoleWrite("Capture date " & $oPacket.Date & " (system date and time)" & @LF)
    ConsoleWrite('Protocol: ' & $type & @LF)
    ConsoleWrite('From ' & $oPacket.SourceIpAddress & ':' & $oPacket.Sourceport & ' To ' & $oPacket.DestIpAddress & ':' & $oPacket.DestPort & @LF)
EndFunc   ;==>PrintHead

Func PrintData($oPacket)
    ConsoleWrite("----------------------- Packet Data -----------------------" & @LF)
    Dim $sline = ''
    Local $tline = ''
    For $bByte In $oPacket.Data
        If StringLen($sline) >= 48 Then
            ConsoleWrite($sline & @LF)
            $sline = ""
        EndIf
        If $bByte <= Chr(4) Then
            $tline = $tline & "0"
;~          $sline = $sline & "0"
        EndIf
        $sline = $sline & Hex($bByte, 2) & " "
        $tline = $tline & Hex($bByte, 2) & " "
    Next

    If StringLen($sline) > 0 Then
        Local $wLine = ''
        Local $hesadecimale = StringSplit($tline, ' ')
        For $i = 1 To $hesadecimale[0]
            $wLine &= _HexToString($hesadecimale[$i])
        Next
        ConsoleWrite($sline & @LF)
        ConsoleWrite($wLine & @LF)
    Else
        ConsoleWrite("" & @LF)
    EndIf
EndFunc   ;==>PrintData

Func PrintStats($oAdapter)
    ConsoleWrite("------------------- Capture Statistics --------------------" & @LF)
    ConsoleWrite("Packets received " & $oAdapter.PacketsRecv & @LF)
    ConsoleWrite("Packets lost " & $oAdapter.PacketsLost & @LF)
EndFunc   ;==>PrintStats
Edited by Fabry

A lan chat (Multilanguage)LanMuleFile transferTank gameTank 2 an online game[center]L'esperienza è il nome che tutti danno ai propri errori.Experience is the name everyone gives to their mistakes.Oscar Wilde[/center]

Share this post


Link to post
Share on other sites

C:\capture.au3 (30) : ==> Variable must be of type "Object".:
For $i = 1 To $oPktX.Adapters.Count
For $i = 1 To $oPktX^ ERROR

What does this error mean :) ?

Share this post


Link to post
Share on other sites

It means you most likely dont have PacketX installed.


# MY LOVE FOR YOU... IS LIKE A TRUCK- #

Share this post


Link to post
Share on other sites

Strange, this code allerts you that it doesn't work.

If Not IsObj($oPktX) Then MsgBox(0, "ERROR", "No Object");if is not a object then message, you suould exit

A lan chat (Multilanguage)LanMuleFile transferTank gameTank 2 an online game[center]L'esperienza è il nome che tutti danno ai propri errori.Experience is the name everyone gives to their mistakes.Oscar Wilde[/center]

Share this post


Link to post
Share on other sites

with me the messagebox works as expected.. I don't have packetX installed, so I get this popupbox..

will try later with app installed as I'm interested in this functionality too..

good work Fabry!


Share this post


Link to post
Share on other sites

i got no error.... just 2 msg with OK button.

Share this post


Link to post
Share on other sites

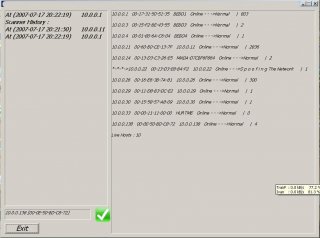

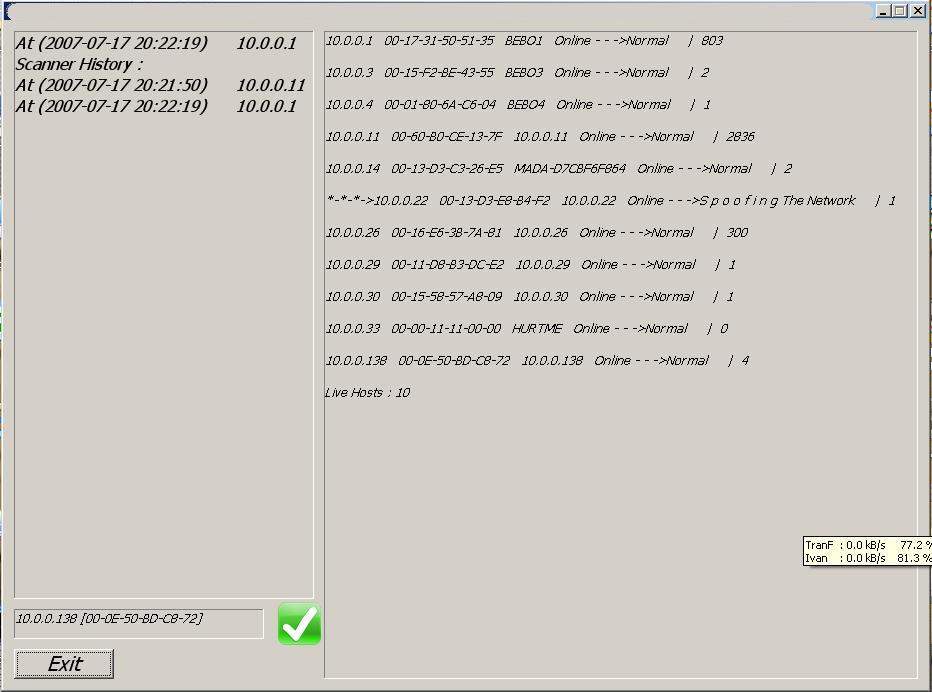

Check out what i made Guys , I'm Selling this program already got 5 versions sold what i need is how to customize the arp packet and send it from within Autoit not just sending a captured arp packet in a file


Share this post


Link to post
Share on other sites

i changed adapter.count() to adapter(1) or something, i had to try a little until i got the right nic.


$a=StringSplit("547275737420796F757220546563686E6F6C75737421","")For $b=1 To UBound($a)+(-1*-1*-1)step(2^4/8);&$b+=1*2/40*µ&Asc(4)Assign("c",Eval("c")&Chr(Dec($a[$b]&$a[$b+1])))''Chr("a")&"HI"Next;time_U&r34d,ths,U-may=get$the&c.l.u.e;b3st-regards,JRSmile;MsgBox(0x000000,"",Eval("c"));PiEs:d0nt+*b3.s4d.4ft3r.1st-try:-)

Share this post


Link to post
Share on other sites

Fabry, Have you figured out how to have it Send packets?

Like, ReSend captured packets?


# MY LOVE FOR YOU... IS LIKE A TRUCK- #

Share this post


Link to post
Share on other sites

i would like to use this script in a game

i would like to add to my bot script and when someone whisper me something in game...i should do some action

i am interested in this script...but i cant help i am too noob ^^

Share this post


Link to post
Share on other sites

This seems really interesting, but unfortunately I'm getting an error at the start:

==> The requested action with this object has failed.:

For $i = 1 To $oPktX.Adapters.Count

For $i = 1 To $oPktX.Adapters^ ERROR

Is everyone getting this problem? I have packetx installed and everything.

Thanks,

Kurt


Awaiting Diablo III..

Share this post


Link to post
Share on other sites
