Dale2507

Limit Time

3 posts in this topic

#1 ·  Posted (edited)

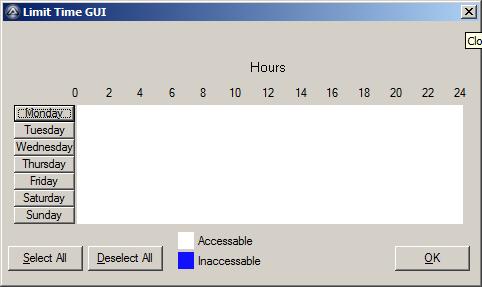

This script is a function primarily for limiting the times which things can be accessed. The script displays a gui (shown below) and when ok is clicked it will return a 2-dimensional array where the first dimension is the day (1-5) and the second dimension is the hour (1-24).

I have not displayed the code because it is 4596 lines (soon to be shortened).


limittimegui.au3

To use the function, include the file and call the function _LimitTimeGui ([title], [caption], [white squares], [blue squares])

Edit: Updated upload to a simplyfied script. Same effect but smaller.

Edited by Gmail

Share this post


Link to post
Share on other sites



Using arrays efficiently, you can see how much this script can be shortened

; test
#include <GuiConstants.au3>
#include <array.au3>
$info = _limittimegui("Limit Time GUI", "Try it")
_ArrayDisplay($info)
;===============================================================================
;
; Function Name:    _LimitTimeGui ([title], [caption], [white squares], [blue squares])
; Description:      Displays a GUI For easily controlling access
; Parameter(s):     $title   - Title For GUI (Default: Limit Time GUI)
;                   $caption - Text to display at top of GUI
;                   $white   - Text to display as key For white squares (Default: Accessable)
;                   $blue    - Text to display as key For blue squares (Default: Inaccessable)
; Requirement(s):   GUIConstants.au3
; Return Value(s):  On Success - Returns 2-dimensional array [day(1-7)][hour(1-24)] (no [0]'s in array)
;                   On Failure - Exit sets 0 and @error = 1
; Author(s):        Dale Edwards (A.K.A. Gmail)
;
;==============================================================================
Func _limittimegui($title = "Limit Time GUI", $caption = "", $white = "Accessable", $blue = "Inaccessable")
    Local $return[8][25], $Graphic[169], $GRead[169], $count

    $gui = GUICreate("" & $title & "", 476, 262, 193, 115, BitOR($WS_SYSMENU, $WS_CAPTION, $WS_POPUPWINDOW, $WS_BORDER, $WS_CLIPSIBLINGS))
    GUICtrlCreateLabel("Hours", 70, 37, 391, 20, $SS_CENTER)
    GUICtrlSetFont(-1, 10, 400, 0, "MS Sans Serif")

    Local $top = 66
    Local $left[25] = [25, 74, 90, 106, 122, 138, 154, 170, 186, 202, 218, 234, 250, 267, 283, 299, 315, 331, 347, 363, 379, 395, 411, 427, 443]
    For $i = 1 To 7
        $top += 17
        For $x = 1 To 24
            $count += 1
            $Graphic[$count] = GUICtrlCreateGraphic($left[$x], $top, 17, 17)
            GUICtrlSetBkColor(-1, 0xFFFFFF)
            $GRead[$count] = 0
        Next
    Next

    GUICtrlSetBkColor(-1, 0xFFFFFF)
    GUICtrlCreateLabel("0", 69, 64, 10, 17)
    GUICtrlCreateLabel("2", 103, 64, 10, 17)
    GUICtrlCreateLabel("4", 134, 64, 10, 17)
    GUICtrlCreateLabel("6", 166, 64, 10, 17)
    GUICtrlCreateLabel("8", 197, 64, 10, 17)
    GUICtrlCreateLabel("10", 226, 64, 16, 17)
    GUICtrlCreateLabel("12", 259, 64, 16, 17)
    GUICtrlCreateLabel("14", 292, 64, 16, 17)
    GUICtrlCreateLabel("16", 323, 64, 16, 17)
    GUICtrlCreateLabel("18", 355, 64, 16, 17)
    GUICtrlCreateLabel("20", 387, 64, 16, 17)
    GUICtrlCreateLabel("22", 419, 64, 16, 17)
    GUICtrlCreateLabel("24", 451, 64, 16, 17)
    $mon = GUICtrlCreateButton("Monday", 11, 83, 61, 17)
    $tue = GUICtrlCreateButton("Tuesday", 11, 100, 61, 17)
    $wed = GUICtrlCreateButton("Wednesday", 11, 117, 61, 17)
    $thu = GUICtrlCreateButton("Thursday", 11, 134, 61, 17)
    $fri = GUICtrlCreateButton("Friday", 11, 151, 61, 17)
    $sat = GUICtrlCreateButton("Saturday", 11, 168, 61, 17)
    $sun = GUICtrlCreateButton("Sunday", 11, 185, 61, 17)
    $label = GUICtrlCreateLabel("" & $caption & "", 7, 8, 459, 17)
    $select = GUICtrlCreateButton("&Select All", 5, 224, 75, 25, 0)
    $deselect = GUICtrlCreateButton("&Deselect All", 85, 224, 75, 25, 0)
    GUICtrlCreateGraphic(175, 210, 16, 17)
    GUICtrlSetBkColor(-1, 0xFFFFFF)
    GUICtrlCreateLabel($white, 195, 212)
    GUICtrlCreateGraphic(175, 230, 16, 17)
    GUICtrlSetBkColor(-1, 0x1111ff)
    GUICtrlCreateLabel($blue, 195, 232)
    $ok = GUICtrlCreateButton("&OK", 392, 224, 75, 25, 0)
    GUISetState(@SW_SHOW)

    While 1
        $nMsg = GUIGetMsg()
        For $x = 1 To 168
            If $nMsg = $Graphic[$x] Then
                If $GRead[$x] = 0 Then
                    GUICtrlSetBkColor($Graphic[$x], 0x1111ff)
                    $GRead[$x] = 1
                Else
                    GUICtrlSetBkColor($Graphic[$x], 0xffffff)
                    $GRead[$x] = 0
                EndIf
            EndIf
        Next
        Switch $nMsg
            Case $GUI_EVENT_CLOSE
                GUIDelete($gui)
                SetError(1)
                Return 0
                ExitLoop

            Case $deselect
                For $x = 1 To 168
                    GUICtrlSetBkColor($Graphic[$x], 0xffffff)
                    $GRead[$x] = 0
                Next

            Case $select
                For $x = 1 To 168
                    GUICtrlSetBkColor($Graphic[$x], 0x1111ff)
                    $GRead[$x] = 1
                Next

            Case $mon
                For $x = 1 To 24
                    If $GRead[$x] = 0 Then
                        GUICtrlSetBkColor($Graphic[$x], 0x1111ff)
                        $GRead[$x] = 1
                    Else
                        GUICtrlSetBkColor($Graphic[$x], 0xffffff)
                        $GRead[$x] = 0
                    EndIf
                Next

            Case $tue
                For $x = 25 To 48
                    If $GRead[$x] = 0 Then
                        GUICtrlSetBkColor($Graphic[$x], 0x1111ff)
                        $GRead[$x] = 1
                    Else
                        GUICtrlSetBkColor($Graphic[$x], 0xffffff)
                        $GRead[$x] = 0
                    EndIf
                Next

            Case $wed
                For $x = 49 To 72
                    If $GRead[$x] = 0 Then
                        GUICtrlSetBkColor($Graphic[$x], 0x1111ff)
                        $GRead[$x] = 1
                    Else
                        GUICtrlSetBkColor($Graphic[$x], 0xffffff)
                        $GRead[$x] = 0
                    EndIf
                Next

            Case $thu
                For $x = 73 To 96
                    If $GRead[$x] = 0 Then
                        GUICtrlSetBkColor($Graphic[$x], 0x1111ff)
                        $GRead[$x] = 1
                    Else
                        GUICtrlSetBkColor($Graphic[$x], 0xffffff)
                        $GRead[$x] = 0
                    EndIf
                Next

            Case $fri
                For $x = 97 To 120
                    If $GRead[$x] = 0 Then
                        GUICtrlSetBkColor($Graphic[$x], 0x1111ff)
                        $GRead[$x] = 1
                    Else
                        GUICtrlSetBkColor($Graphic[$x], 0xffffff)
                        $GRead[$x] = 0
                    EndIf
                Next

            Case $sat
                For $x = 121 To 144
                    If $GRead[$x] = 0 Then
                        GUICtrlSetBkColor($Graphic[$x], 0x1111ff)
                        $GRead[$x] = 1
                    Else
                        GUICtrlSetBkColor($Graphic[$x], 0xffffff)
                        $GRead[$x] = 0
                    EndIf
                Next

            Case $sun
                For $x = 145 To 168
                    If $GRead[$x] = 0 Then
                        GUICtrlSetBkColor($Graphic[$x], 0x1111ff)
                        $GRead[$x] = 1
                    Else
                        GUICtrlSetBkColor($Graphic[$x], 0xffffff)
                        $GRead[$x] = 0
                    EndIf
                Next

            Case $ok
                $count = 0
                For $i = 1 To 7
                    For $x = 1 To 24
                        $count += 1
                        If $GRead[$count] = 1 Then
                            $return[$i][$x] = 1
                        Else
                            $return[$i][$x] = 0
                        EndIf
                    Next
                Next

                Return $return
        EndSwitch
    WEnd
EndFunc   ;==>_limittimegui

Hope that helps...

8)



Share this post


Link to post
Share on other sites

Yes that's great, i wouldn't have been able to shorten it down that much usually if i try to use an array as a handler it says badly formatted array.

I got autoit to type most of the repeated stuff anyway but the arrays will probably make it faster.

Thanks
