Listview hiding

ame1011

By ame1011,
in AutoIt GUI Help and Support

 Share

Recommended Posts

ame1011 Polymath

ame1011

Posted
Posted

Hi, I have a BG image that I disabled so that it stays in the backgroud. However, I notice that when I change the column sizes manually on my listview (by dragging the partition) the listview seems to go behind the image.

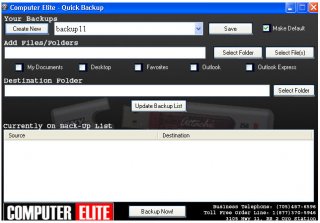

Before:

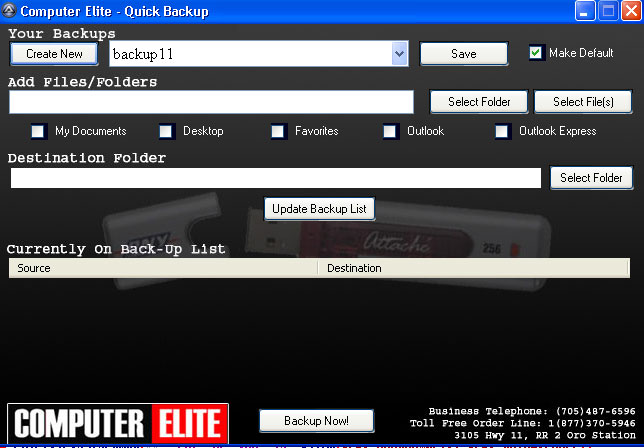

After:


[font="Impact"] I always thought dogs laid eggs, and I learned something today. [/font]
Link to comment
Share on other sites
ame1011 Polymath

ame1011

Posted
  • Author
Posted

GUI Code:

;main program
$QuickBackupForm = GUICreate("Computer Elite - Quick Backup", 645, 420, 193, 115)
$bg = GUICtrlCreatePic("bg_backup.jpg", 0, 0, 645, 420)
GUICtrlSetState ( $bg, $GUI_DISABLE )

;------IMPORT GROUP--------
;$import_grp = GUICtrlCreateGroup("Open Existing Backup File", 0, 0, 641, 50)
$import_createnew = GUICtrlCreateButton("Create New", 10, 17, 90, 25, 0, $WS_EX_TRANSPARENT )
$import_dropdown = GUICtrlCreateCombo("", 110, 16, 300, 25, BitOR($CBS_DROPDOWNLIST,$CBS_AUTOHSCROLL))
GUICtrlSetFont(-1, 12, 400, 0, "Times New Roman")
;populate combo
GUICtrlSetData (-1, _ArrayToString($bat_list, "|", 1))
$import_save = GUICtrlCreateButton("Save", 420, 17, 90, 25, 0, $WS_EX_TRANSPARENT )
$c_default = GUICtrlCreateCheckbox("", 530, 20, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$import_default_label = GUICtrlCreateLabel("Make Default", 550, 22)
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)

;------ADD GROUP----------
;$backup_grp = GUICtrlCreateGroup("Add Files/Folders", 0, 51, 641, 70)
$source_folders = GUICtrlCreateButton("Select Folder", 430, 65, 100, 25, 0, $WS_EX_TRANSPARENT )
$source_files = GUICtrlCreateButton("Select File(s)", 534, 65, 100, 25, 0, $WS_EX_TRANSPARENT )
$source = GUICtrlCreateInput("", 10, 66, 405, 24)
GUICtrlSetFont(-1, 12, 400, 0, "Times New Roman")
;~Checkboxes
$c_mydocuments = GUICtrlCreateCheckbox("", 32, 99, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$c_desktop = GUICtrlCreateCheckbox("", 160, 99, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$c_favorites = GUICtrlCreateCheckbox("", 272, 99, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$c_outlook = GUICtrlCreateCheckbox("", 384, 99, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$c_outlookexpress_windowsmail = GUICtrlCreateCheckbox("", 496, 99, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$l_mydocuments = GUICtrlCreateLabel("My Documents", 56, 100, 75, 17)
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)
$l_desktop = GUICtrlCreateLabel("Desktop", 184, 100, 44, 17)
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)
$l_favorites = GUICtrlCreateLabel("Favorites", 296, 100, 47, 17)
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)
$l_outlook = GUICtrlCreateLabel("Outlook", 408, 100, 41, 17)
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)
if @OSVersion = "WIN_VISTA" Then
    $l_outlookexpress_windowsmail = GUICtrlCreateLabel("Windows Mail", 520, 100, 81, 17)
Else
    $l_outlookexpress_windowsmail = GUICtrlCreateLabel("Outlook Express", 520, 100, 81, 17)
EndIf
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)
;--------DESTINATION GROUP---------
;$dest_grp = GUICtrlCreateGroup("Select Destination", 0,122,641,83)
$backup_submit = GUICtrlCreateButton("Update Backup List", 264, 172, 113, 25, 0, $WS_EX_TRANSPARENT )
$dest_button = GUICtrlCreateButton("Select Folder", 550, 141, 85, 25, 0, $WS_EX_TRANSPARENT )
$destination = GUICtrlCreateInput("", 10, 142, 534, 24)
GUICtrlSetFont(-1, 12, 400, 0, "Times New Roman")

;----------LIST GROUP-----------
;$list_grp = GUICtrlCreateGroup("Currently on Back-Up List", 0, 208, 641, 209)
$list = GUICtrlCreateListView("Source|Destination", 8, 222, 625, 146)
_GUICtrlListViewSetColumnWidth ( $list, 0, 310 )
_GUICtrlListViewSetColumnWidth ( $list, 1, 310 )
$generate_button = GUICtrlCreateButton("Backup Now!", 259, 384, 117, 25, 0, $WS_EX_TRANSPARENT )

BG IMage: post-6174-1196865553_thumb.jpg

[font="Impact"] I always thought dogs laid eggs, and I learned something today. [/font]
Link to comment
Share on other sites
Zedna Universalist

Zedna

Posted
Posted

Yes I can confirm some problem (bug?).

I tested it on WINXP with AutoIt 3.2.8.1.

It gets corrupted when horizontal scrollbar occurs.

Maybe this should be posted in Bug reports

Here is full reproducing script (with includes and main GUI loop:

#include <GuiListView.au3>
#include <GUIConstants.au3>

;main program
$QuickBackupForm = GUICreate("Computer Elite - Quick Backup", 645, 420, 193, 115)
$bg = GUICtrlCreatePic("bg_backup.jpg", 0, 0, 645, 420)
GUICtrlSetState ( $bg, $GUI_DISABLE )

;------IMPORT GROUP--------
;$import_grp = GUICtrlCreateGroup("Open Existing Backup File", 0, 0, 641, 50)
$import_createnew = GUICtrlCreateButton("Create New", 10, 17, 90, 25, 0, $WS_EX_TRANSPARENT )
$import_dropdown = GUICtrlCreateCombo("", 110, 16, 300, 25, BitOR($CBS_DROPDOWNLIST,$CBS_AUTOHSCROLL))
GUICtrlSetFont(-1, 12, 400, 0, "Times New Roman")
;populate combo
;~ GUICtrlSetData (-1, _ArrayToString($bat_list, "|", 1))
$import_save = GUICtrlCreateButton("Save", 420, 17, 90, 25, 0, $WS_EX_TRANSPARENT )
$c_default = GUICtrlCreateCheckbox("", 530, 20, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$import_default_label = GUICtrlCreateLabel("Make Default", 550, 22)
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)

;------ADD GROUP----------
;$backup_grp = GUICtrlCreateGroup("Add Files/Folders", 0, 51, 641, 70)
$source_folders = GUICtrlCreateButton("Select Folder", 430, 65, 100, 25, 0, $WS_EX_TRANSPARENT )
$source_files = GUICtrlCreateButton("Select File(s)", 534, 65, 100, 25, 0, $WS_EX_TRANSPARENT )
$source = GUICtrlCreateInput("", 10, 66, 405, 24)
GUICtrlSetFont(-1, 12, 400, 0, "Times New Roman")
;~Checkboxes
$c_mydocuments = GUICtrlCreateCheckbox("", 32, 99, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$c_desktop = GUICtrlCreateCheckbox("", 160, 99, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$c_favorites = GUICtrlCreateCheckbox("", 272, 99, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$c_outlook = GUICtrlCreateCheckbox("", 384, 99, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$c_outlookexpress_windowsmail = GUICtrlCreateCheckbox("", 496, 99, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$l_mydocuments = GUICtrlCreateLabel("My Documents", 56, 100, 75, 17)
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)
$l_desktop = GUICtrlCreateLabel("Desktop", 184, 100, 44, 17)
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)
$l_favorites = GUICtrlCreateLabel("Favorites", 296, 100, 47, 17)
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)
$l_outlook = GUICtrlCreateLabel("Outlook", 408, 100, 41, 17)
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)
if @OSVersion = "WIN_VISTA" Then
    $l_outlookexpress_windowsmail = GUICtrlCreateLabel("Windows Mail", 520, 100, 81, 17)
Else
    $l_outlookexpress_windowsmail = GUICtrlCreateLabel("Outlook Express", 520, 100, 81, 17)
EndIf
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)
;--------DESTINATION GROUP---------
;$dest_grp = GUICtrlCreateGroup("Select Destination", 0,122,641,83)
$backup_submit = GUICtrlCreateButton("Update Backup List", 264, 172, 113, 25, 0, $WS_EX_TRANSPARENT )
$dest_button = GUICtrlCreateButton("Select Folder", 550, 141, 85, 25, 0, $WS_EX_TRANSPARENT )
$destination = GUICtrlCreateInput("", 10, 142, 534, 24)
GUICtrlSetFont(-1, 12, 400, 0, "Times New Roman")

;----------LIST GROUP-----------
;$list_grp = GUICtrlCreateGroup("Currently on Back-Up List", 0, 208, 641, 209)
$list = GUICtrlCreateListView("Source|Destination", 8, 222, 625, 146)
_GUICtrlListViewSetColumnWidth ( $list, 0, 310 )
_GUICtrlListViewSetColumnWidth ( $list, 1, 310 )
$generate_button = GUICtrlCreateButton("Backup Now!", 259, 384, 117, 25, 0, $WS_EX_TRANSPARENT )

GUISetState(@SW_SHOW)

While 1
    $msg = GuiGetMsg()
    Select
        Case $msg = $GUI_EVENT_CLOSE
            Exit
    EndSelect
WEnd

Resources UDF   ResourcesEx UDF   AutoIt Forum Search

Link to comment
Share on other sites
DjDeep00 Universalist

DjDeep00

Posted
Posted

I was just messing around...and found something weird...I placed the $bg = GUICtrlCreatePic("bg_backup.jpg", 0, 0, 645, 420) after Guisetstate() and removed GUICtrlSetState ( -1, $GUI_DISABLE )....and then there are no problems with the listview...

#include <GuiListView.au3>
#include <GUIConstants.au3>

;main program
$QuickBackupForm = GUICreate("Computer Elite - Quick Backup", 645, 420, 193, 115)

;------IMPORT GROUP--------
;$import_grp = GUICtrlCreateGroup("Open Existing Backup File", 0, 0, 641, 50)
$import_createnew = GUICtrlCreateButton("Create New", 10, 17, 90, 25, 0, $WS_EX_TRANSPARENT )
$import_dropdown = GUICtrlCreateCombo("", 110, 16, 300, 25, BitOR($CBS_DROPDOWNLIST,$CBS_AUTOHSCROLL))
GUICtrlSetFont(-1, 12, 400, 0, "Times New Roman")
;populate combo
;~ GUICtrlSetData (-1, _ArrayToString($bat_list, "|", 1))
$import_save = GUICtrlCreateButton("Save", 420, 17, 90, 25, 0, $WS_EX_TRANSPARENT )
$c_default = GUICtrlCreateCheckbox("", 530, 20, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$import_default_label = GUICtrlCreateLabel("Make Default", 550, 22)
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)

;------ADD GROUP----------
;$backup_grp = GUICtrlCreateGroup("Add Files/Folders", 0, 51, 641, 70)
$source_folders = GUICtrlCreateButton("Select Folder", 430, 65, 100, 25, 0, $WS_EX_TRANSPARENT )
$source_files = GUICtrlCreateButton("Select File(s)", 534, 65, 100, 25, 0, $WS_EX_TRANSPARENT )
$source = GUICtrlCreateInput("", 10, 66, 405, 24)
GUICtrlSetFont(-1, 12, 400, 0, "Times New Roman")
;~Checkboxes
$c_mydocuments = GUICtrlCreateCheckbox("", 32, 99, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$c_desktop = GUICtrlCreateCheckbox("", 160, 99, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$c_favorites = GUICtrlCreateCheckbox("", 272, 99, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$c_outlook = GUICtrlCreateCheckbox("", 384, 99, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$c_outlookexpress_windowsmail = GUICtrlCreateCheckbox("", 496, 99, 17, 17)
GUICtrlSetBkColor(-1, 0x00000020)
$l_mydocuments = GUICtrlCreateLabel("My Documents", 56, 100, 75, 17)
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)
$l_desktop = GUICtrlCreateLabel("Desktop", 184, 100, 44, 17)
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)
$l_favorites = GUICtrlCreateLabel("Favorites", 296, 100, 47, 17)
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)
$l_outlook = GUICtrlCreateLabel("Outlook", 408, 100, 41, 17)
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)
if @OSVersion = "WIN_VISTA" Then
    $l_outlookexpress_windowsmail = GUICtrlCreateLabel("Windows Mail", 520, 100, 81, 17)
Else
    $l_outlookexpress_windowsmail = GUICtrlCreateLabel("Outlook Express", 520, 100, 81, 17)
EndIf
GUICtrlSetColor(-1, 0xFFFFFF)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)
;--------DESTINATION GROUP---------
;$dest_grp = GUICtrlCreateGroup("Select Destination", 0,122,641,83)
$backup_submit = GUICtrlCreateButton("Update Backup List", 264, 172, 113, 25, 0, $WS_EX_TRANSPARENT )
$dest_button = GUICtrlCreateButton("Select Folder", 550, 141, 85, 25, 0, $WS_EX_TRANSPARENT )
$destination = GUICtrlCreateInput("", 10, 142, 534, 24)
GUICtrlSetFont(-1, 12, 400, 0, "Times New Roman")

;----------LIST GROUP-----------
;$list_grp = GUICtrlCreateGroup("Currently on Back-Up List", 0, 208, 641, 209)
$list = GUICtrlCreateListView("Source|Destination", 8, 222, 625, 146)
_GUICtrlListViewSetColumnWidth ( $list, 0, 310 )
_GUICtrlListViewSetColumnWidth ( $list, 1, 310 )
$generate_button = GUICtrlCreateButton("Backup Now!", 259, 384, 117, 25, 0, $WS_EX_TRANSPARENT )

GUISetState(@SW_SHOW)

$bg = GUICtrlCreatePic("bg_backup.jpg", 0, 0, 645, 420)
;GUICtrlSetState ( -1, $GUI_DISABLE )

While 1
    $msg = GuiGetMsg()
    Select
        Case $msg = $GUI_EVENT_CLOSE
            Exit
    EndSelect
WEnd
Link to comment
Share on other sites
ame1011 Polymath

ame1011

Posted
  • Author
Posted (edited)

that did it! Thanks alot everyone for all your help.

Edit: When the window is minimized and brought back up, all of the controls are hidden behind the background.

Edit2: Fixed. Kept my code the same except added GUICtrlSetState(-1, $GUI_ONTOP) to the listview

Edited by ame1011
[font="Impact"] I always thought dogs laid eggs, and I learned something today. [/font]
Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share
Go to topic listing

  • Recently Browsing   0 members

    • No registered users viewing this page.
×
×
  • Create New...
