ame1011

Tab Background Color

3 posts in this topic

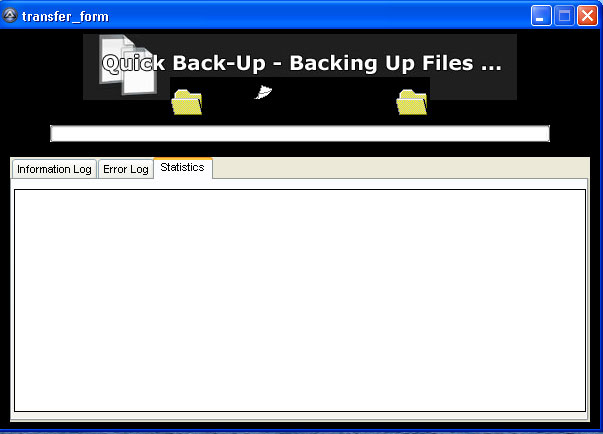

Hi I have a tab menu that looks like the following:


Is there any way that I can change 'manilla color' to black? I tried setting it to transparent, setting it to black, but nothing seems to work. Even the good ole search feature hasn't helped me. Does anyone know if this is possible?


[font="Impact"] I always thought dogs laid eggs, and I learned something today. [/font]

Share this post


Link to post
Share on other sites



About the best I know of...

#include <GUIConstants.au3>
GUICreate("My GUI Tab",250,150); will create a dialog box that when displayed is centered

GUISetBkColor("")
GUISetFont(9, 300)

$tab=GUICtrlCreateTab (20,20, 200,100)

$tab0=GUICtrlCreateTabitem ("tab-0")
GUICtrlCreateLabel ("label0", 30,80,50,20)
$tab0OK=GUICtrlCreateButton ("OK0", 20,50,50,20)
$tab0input=GUICtrlCreateInput ("default", 80,50,70,20)

$tab1=GUICtrlCreateTabitem ( "tab-1")
GUICtrlCreateLabel ("label1", 30,80,50,20)
$tab1combo=GUICtrlCreateCombo ("", 20,50,60,120)
GUICtrlSetData(-1,"Trids|CyberSlug|Larry|Jon|Tylo", "Jon"); default Jon
$tab1OK=GUICtrlCreateButton ("OK1", 80,50,50,20)

$tab2=GUICtrlCreateTabitem ("tab-2")
GUICtrlSetState(-1,$GUI_SHOW); will be display first
GUICtrlCreateLabel ("label2", 30,80,50,20)
$tab2OK=GUICtrlCreateButton ("OK2", 140,50,50)

GUICtrlCreateTabitem (""); end tabitem definition

GUICtrlCreateLabel ("", 150, 20,210,20)
GUICtrlSetBkColor( -1, "")

GUISetState ()

; Run the GUI until the dialog is closed
While 1
    If GUIGetMsg() = -3 Then Exit

WEnd

8)



Share this post


Link to post
Share on other sites

#3 ·  Posted (edited)

About the best I know of...

#include <GUIConstants.au3>
GUICreate("My GUI Tab",250,150); will create a dialog box that when displayed is centered

GUISetBkColor("")
GUISetFont(9, 300)

$tab=GUICtrlCreateTab (20,20, 200,100)

$tab0=GUICtrlCreateTabitem ("tab-0")
GUICtrlCreateLabel ("label0", 30,80,50,20)
$tab0OK=GUICtrlCreateButton ("OK0", 20,50,50,20)
$tab0input=GUICtrlCreateInput ("default", 80,50,70,20)

$tab1=GUICtrlCreateTabitem ( "tab-1")
GUICtrlCreateLabel ("label1", 30,80,50,20)
$tab1combo=GUICtrlCreateCombo ("", 20,50,60,120)
GUICtrlSetData(-1,"Trids|CyberSlug|Larry|Jon|Tylo", "Jon"); default Jon
$tab1OK=GUICtrlCreateButton ("OK1", 80,50,50,20)

$tab2=GUICtrlCreateTabitem ("tab-2")
GUICtrlSetState(-1,$GUI_SHOW); will be display first
GUICtrlCreateLabel ("label2", 30,80,50,20)
$tab2OK=GUICtrlCreateButton ("OK2", 140,50,50)

GUICtrlCreateTabitem (""); end tabitem definition

GUICtrlCreateLabel ("", 150, 20,210,20)
GUICtrlSetBkColor( -1, "")

GUISetState ()

; Run the GUI until the dialog is closed
While 1
    If GUIGetMsg() = -3 Then Exit

WEnd

8)

Ah, thanks Valuater, I've been trying different ways to do this and this is much simpler than what I was trying.

Here's another way to do it, but it doesn't work (or I can't make it work simply) when you need to be able to resize the control.

#include <GUIConstants.au3>
GUICreate("My GUI Tab",250,150); will create a dialog box that when displayed is centered

GUISetBkColor("")
GUISetFont(9, 300)

$tab=GUICtrlCreateTab (20,20, 200,100,$TCS_FIXEDWIDTH);must have this style for setting the tab width

$tab0=GUICtrlCreateTabitem ("tab-0")
GUICtrlCreateLabel ("label0", 30,80,50,20)
$tab0OK=GUICtrlCreateButton ("OK0", 20,50,50,20)
$tab0input=GUICtrlCreateInput ("default", 80,50,70,20)

$tab1=GUICtrlCreateTabitem ( "tab-1")
GUICtrlCreateLabel ("label1", 30,80,50,20)
$tab1combo=GUICtrlCreateCombo ("", 20,50,60,120)
GUICtrlSetData(-1,"Trids|CyberSlug|Larry|Jon|Tylo", "Jon"); default Jon
$tab1OK=GUICtrlCreateButton ("OK1", 80,50,50,20)

$tab2=GUICtrlCreateTabitem ("tab-2")
GUICtrlSetState(-1,$GUI_SHOW); will be display first
GUICtrlCreateLabel ("label2", 30,80,50,20)
$tab2OK=GUICtrlCreateButton ("OK2", 140,50,50)

GUICtrlCreateTabitem (""); end tabitem definition
GuictrlSendMsg($Tab, $TCM_SETITEMSIZE, 0, _MakeLong(65, 21)); increase the width of the tabs

;GUICtrlCreateLabel ("", 150, 20,210,20)
;GUICtrlSetBkColor( -1, "")

GUISetState ()

; Run the GUI until the dialog is closed
While 1
    If GUIGetMsg() = -3 Then Exit

WEnd


Func _MakeLong($l, $h)
    Return BitOR(BitAnd($l, 0xFFFF), BitShift(BitAnd($h, 0xFFFF), -16))
EndFunc; _MakeLong()
Edited by martin
