Toolbar Buttons tips

[Madza91]

Don't forget $NM_CLICK, if you want to use Mouse UP

Func _TB_WM_NOTIFY($hWndGUI, $MsgID, $wParam, $lParam)
    Local $NMMOUSE = DllStructCreate("hwnd hWndFrom;int IDFrom;int Code;ulong_ptr dwItemSpec;ulong_ptr dwItemData;int pt[2]; ulong_ptr dwHitInfo;", $lParam)
;~  ConsoleWrite(DllStructGetData($NMMOUSE,1) & @CRLF)
    If DllStructGetData($NMMOUSE, 1) = $hToolbar Then
        If DllStructGetData($NMMOUSE, 3) = $NM_CLICK Then
; Here you can add the commands :) I made an extra Func, which is called with a Dummy -> This Func doens't wait;)
            Local $ClickedButtonID = DllStructGetData($NMMOUSE, "dwItemSpec")
            GUICtrlSendToDummy($ToolbarBUTTONDummy, $ClickedButtonID)

        EndIf
    EndIf
    Return 'GUI_RUNDEFMSG'
EndFunc;==>_TB_WM_NOTIFY

This is very easiest but without button tips... how to add it ? Edited September 14, 2008 by n3nE

[rover]

How to use this "easiest way" in this example with custom icons ^^ ? Because with rover's way when push down mouse click and move cursor to not be over button func will be called anyway... sry for bad english

just use the previous WM_NOTIFY handler and replace $TBN_ENDDRAG with $NM_CLICK

ProgAndy posted a condensed version of the same thing in Garys/my example

you will want to use a dummy control for the passing button clicks to functions,

look at the post I linked to in the above message for the dropdown button.

[Madza91]

Thank you one more timeeeee

[rover]

Thank you one more timeeeee >_<

no problem n3nE

[rover]

@n3nE

one more thing

a database program I use always has the thin vertical line

between toolbar button groupings regardless of visual style.

so it looks like it is a visual styles issue as I mentioned.

I tried the XPStyle() UDF on the toolbar.

you get those vertical lines with a 1 pixel separator as you asked.

Control XP Style for Colors

usage

CODE

Global $XS_n ; var needed for restoring visual style

XPStyle(1)

_GUICtrlToolBar_Create()

XPStyle(0)

[ProgAndy]

I mean on line between buttons like this:

You do it this way:

_GUICtrlToolbar_AddButton($hToolbar,0,6,0,BitOR($BTNS_DROPDOWN,$BTNS_SEP))

the 6 in case of the Bitmap is the width of the separator. To see the line, it must be >= 6

To show the line, I added the style $BTNS_DROPDOWN, like descripbed in http://www.winehq.org/pipermail/wine-patch...ary/009612.html

Edited September 15, 2008 by ProgAndy

[rover]

You do it this way:

_GUICtrlToolbar_AddButton($hToolbar,0,6,0,BitOR($BTNS_DROPDOWN,$BTNS_SEP))

the 6 in case of the Bitmap is the width of the separator. To see the line, it must be >= 6

To show the line, I added the style $BTNS_DROPDOWN, like descripbed in http://www.winehq.org/pipermail/wine-patch...ary/009612.html

ProgAndy

yes I know that the default value for the separator button alias _GUICtrlToolbar_AddButtonSep() is 6 pixels

Is there some combination of styles for _GUICtrlToolbar_Create() you are using?

I can't get a thin line between the buttons with the addition of the $BTNS_DROPDOWN style

to the alias _GUICtrlToolbar_AddButtonSep() or _GUICtrlToolbar_AddButton () as you show.

the separator appears the same with or without adding the $BTNS_DROPDOWN style.

only as space between buttons, no visible lines

tested on two XP machines with different visual styles.

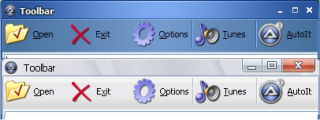

I do get the thin line with XPStyle() as shown in two visual styles

Edit: BTW, I'll take this opportunity to thank you for all the great code you have posted >_<

expandcollapse popup

#include <GuiToolbar.au3>
#include <GuiConstantsEx.au3>
#include <WindowsConstants.au3>
#include <Constants.au3>

Opt('MustDeclareVars', 1)

Global $XS_n ; var needed for restoring visual style
_Main()

Func _Main()
    Local $hGUI, $hToolbar
    Local Enum $idNew = 1000, $idOpen, $idSave, $idHelp

    $hGUI = GUICreate("Toolbar", 400, 300)
    ;XPStyle(1)
    $hToolbar = _GUICtrlToolbar_Create($hGUI)
    ;XPStyle(0)
    GUISetState()

    _GUICtrlToolbar_AddBitmap($hToolbar, 1, -1, $IDB_STD_LARGE_COLOR)
    _GUICtrlToolbar_AddButton($hToolbar, $idNew, $STD_FILENEW)
    _GUICtrlToolbar_AddButton($hToolbar, $idOpen, $STD_FILEOPEN)
    _GUICtrlToolbar_AddButton($hToolbar, $idSave, $STD_FILESAVE)
    _GUICtrlToolbar_AddButton($hToolbar, 0, 6, 0, BitOR($BTNS_DROPDOWN, $BTNS_SEP))
    _GUICtrlToolbar_AddButton($hToolbar, $idHelp, $STD_HELP)

    Do
    Until GUIGetMsg() = $GUI_EVENT_CLOSE
EndFunc   ;==>_Main

Func XPStyle($OnOff = 1)
    If $OnOff And StringInStr(@OSTYPE, "WIN32_NT") Then
        $XS_n = DllCall("uxtheme.dll", "int", "GetThemeAppProperties")
        DllCall("uxtheme.dll", "none", "SetThemeAppProperties", "int", 0)
        Return 1
    ElseIf StringInStr(@OSTYPE, "WIN32_NT") And IsArray($XS_n) Then
        DllCall("uxtheme.dll", "none", "SetThemeAppProperties", "int", $XS_n[0])
        $XS_n = ""
        Return 1
    EndIf
    Return 0
EndFunc   ;==>XPStyle

Edited September 15, 2008 by rover

[Madza91]

ProgAndy, not working for me, only works when made toolbar without any 'styles'... (_GUICtrlToolbar_Create($hGUI))

Edited September 22, 2008 by n3nE

[ProgAndy]

OK, if you use styles, you need $TBSTYLE_FLAT ( at least in my code.

Works NOT woth

Global $hToolbar = _GUICtrlToolbar_Create($Gui,BitOR($WS_CHILD, $WS_CLIPSIBLINGS, $WS_VISIBLE,$TBSTYLE_TOOLTIPS))

But works with

Global $hToolbar = _GUICtrlToolbar_Create($Gui);,BitOR($WS_CHILD, $WS_CLIPSIBLINGS, $WS_VISIBLE,$TBSTYLE_TOOLTIPS,$TBSTYLE_FLAT))

[Madza91]

Now works.

[rover]

had another look at this and found the problem for me with the toolbar separator and invisible line

I use a modified uxtheme.dll

to allow me to use old longhorn, vista and third party themes

using the default XP Luna etc themes loaded from the display properties theme tab

I get the dividing line, but not with many visual styles other than those included with XP and

loaded from the appearance tab of display properties.

first time around I tried Luna theme instead of the SlateXP theme I was using but I didn't get the line.

don't know what went wrong there, but trying theme/visual style changing again I finally got the line.

as an example, Mozilla Thunderbird's toolbar always has the separators with a dividing line regardless of visual style

but script toolbar examples lose the dividing line with many of my visual styles.

eg. (a script toolbar loses the separator line with SlateXP visual style but not with Pantherg, Thunderbird not affected, line always displayed)

Thunderbird may be using .NET or some other toolbar library.

however Firefox's toolbar will lose the separator lines with styles like SlateXP

using _GUICtrlToolbar_Create() with or without styles had no effect on the separator line.

[Madza91]

Just one thing, when I made Toolbar on 'normal' GUI, and maximize it, i get this Bugged line on top of GUI...

See pic:

Edited November 7, 2008 by n3nE

[ProgAndy]

you can avoid this, wehen calling _GUICtrlToolbar_SetStyleFlat($hToolbar, 1) on $GUI_EVENT_RESIZE

[Madza91]

$GUI_EVENT_RESIZE ? That doesn't work, but $GUI_EVENT_MAXIMIZE works ;d

[ProgAndy]

you're right. event_resize is needed, when enable size borders ...

[Madza91]

Yes...

^^

WARNING: $GUI_EVENT_RESIZE: possibly used before declaration.

[ProgAndy]

last post to this topic... wrote too fast, needs to be $GUI_EVENT_RESIZED

Edited November 7, 2008 by ProgAndy

[Madza91]

Oh yes, ...resized

Works now, but event_resized send notification only when is END of resizing... but never mind, thx ;D
