Sander Timmerman

Querying WMI

Recommended Posts

I am trying to make a little program that does a bit of loadbalancing between terminalservers.

It does this by querying the active sessions of an TS throug WMI.

When I ran it on an server it went well! But on my XP client it gives errors :D

What can I do?

This is the code:

#include <GUIConstants.au3>
$Form1 = GUICreate("Centraal", 290, 113)
$Label1 = GUICtrlCreateLabel("Test", 8, 8, 266, 20)
GUICtrlSetFont(-1, 10, 800, 0, "MS Sans Serif")
$Button1 = GUICtrlCreateButton("Maak verbinding met centraal", 50, 40, 179, 25, 0)
$Label2 = GUICtrlCreateLabel("Client status:", 8, 88, 64, 17)
GUICtrlSetFont(-1, 6, 400, 0, "MS Sans Serif")
$Label3 = GUICtrlCreateLabel("Wachtend op gebruiker...", 80, 88, 122, 17)
GUICtrlSetFont(-1, 6, 400, 0, "MS Sans Serif")

Dim $Result = ""

While 1
    $msg = GUIGetMsg()
        Case $msg = $GUI_EVENT_CLOSE
        Case $msg = $Button1

;Roep WMI query aan en bereken laagste load
Func balance()
    GUICtrlSetData($Label3, "Querying WMI TS2")
    $ts2_s = $Result
    GUICtrlSetData($Label3, "Querying WMI TS3")
    $ts3_s = $Result
    GUICtrlSetData($Label3, "Querying WMI TS4")
    $ts4_s = $Result
    GUICtrlSetData($Label3, "Querying WMI TS5")
    $ts5_s = $Result

    GUICtrlSetData($Label3, "Berekenen laagste load...")
    Case $ts2_s < $ts3_s AND $ts4_s And $ts5_s
        $vrije_ts = ""
    Case $ts3_s < $ts2_s And $ts4_s And $ts5_s
        $vrije_ts = ""
    Case $ts4_s < $ts2_s And $ts3_s And $ts5_s
        $vrije_ts = ""
    Case $ts5_s < $ts2_s And $ts3_s And $ts4_s
        $vrije_ts = ""
    Case $ts2_s = $ts3_s And $ts4_s And $ts5_s
        $vrije_ts = ""
    GUICtrlSetData($Label3, "MSTC word gestart...")

;WMI query
Func WMI($strComputer)
    $wbemFlagReturnImmediately = 0x10
    $wbemFlagForwardOnly = 0x20
    $colItems = ""
    $Output = ""
    $objWMIService = ObjGet("winmgmts:\\" & $strComputer & "\root\CIMV2")
    $colItems = $objWMIService.ExecQuery("SELECT * FROM Win32_PerfFormattedData_TermService_TerminalServices", "WQL", _
            $wbemFlagReturnImmediately + $wbemFlagForwardOnly)
    For $objItem In $colItems
        $Output = $objItem.ActiveSessions
    Global $Result = $Output
EndFunc ;==>WMI

Thanks in advance!


Sander (Dutch)

Edited by Sander Timmerman

Share this post

Link to post
Share on other sites

I'll take a wild stab at it

could it be because you are on a workgroup on your xp machine,

whereas the server you ran it on has a domain server?

I had to use either the @ComputerName macro or enter my computer name for $strComputer

it would crash if IP used instead of computername

you should add an error handler function and use 'Return' instead of Global for WMI()

$ts2_s = WMI("ComputerName")


Return $Output

EndFunc ;==>WMI

$oMyError = ObjEvent("AutoIt.Error","MyErrFunc")
Func MyErrFunc()
  Msgbox(0,"COM Error Test","We intercepted a COM Error !"       & @CRLF  & @CRLF & _
             "err.description is: "    & @TAB & $oMyError.description    & @CRLF & _
             "err.windescription:"     & @TAB & $oMyError.windescription & @CRLF & _
             "err.number is: "         & @TAB & $HexNumber              & @CRLF & _
             "err.lastdllerror is: "   & @TAB & $oMyError.lastdllerror   & @CRLF & _
             "err.scriptline is: "     & @TAB & $oMyError.scriptline     & @CRLF & _
             "err.source is: "         & @TAB & $oMyError.source         & @CRLF & _
             "err.helpfile is: "       & @TAB & $oMyError.helpfile       & @CRLF & _
             "err.helpcontext is: "    & @TAB & $oMyError.helpcontext _
  SetError(1)  ; to check for after this function returns1

I see fascists...

Share this post

Link to post
Share on other sites

@Sander Timmerman

The error is the following you WMI cannot connect remotely to the server to get the details from the Objects.

Therefore you need to make a REMOTE WMI call to the server

Some WMI Secrets

This will get you started.

Groeten / Regards


Share this post

Link to post
Share on other sites

Well, i've added the users to the WMI ACL list and gave them full control, but still it wont work :D

I've tested in on a machine that is in the domain an can ping the server.

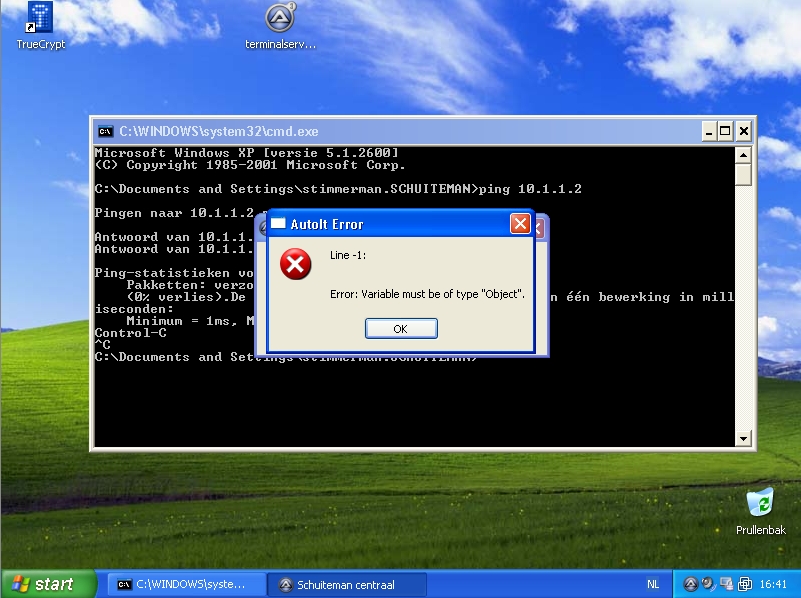

I've attached a screenshot with the error.

Can you help me with fixing the code?! I can do a little autoit, but this WMI stuff get's me crazy :P

Thanks in advance


Sander (Dutch)
