FireLordZi

Child GUI and Parent with Sroll Bar and XSkin

12 posts in this topic

#1 ·  Posted (edited)

I'm using XSkin and just added scroll bar functionality to my program but the scrollbars are on the "outside" of the XSkin window. What is the cause of this and how do I get the scroll bar on the inside of the skin?

Edited by FireLordZi

While Alive() {
	 DrinkWine();
}
AutoIt Programmer

Share this post


Link to post
Share on other sites



bump


While Alive() {
	 DrinkWine();
}
AutoIt Programmer

Share this post


Link to post
Share on other sites

#3 ·  Posted (edited)

Took a while... But it works :)

;Scrollable Child GUI with XSkin example by Bert.
; To run, use the LATEST BETA!
#include <XSkin.au3>
#include <WindowsConstants.au3>
#include <StructureConstants.au3>
#include <GUIScrollBars.au3>
#include <ScrollBarConstants.au3>
#include <GUIConstantsEx.au3>
; folder of skin
$Skin_Folder = @ScriptDir & "\Skins\Black-Yellow"

Opt("MustDeclareVars", 1)

_Main()

Func _Main()
    Local $nFileMenu, $nExititem, $GUIMsg, $hGUI, $h_cGUI, $h_cGUI2
    Local $listview, $button, $button2

     GUIRegisterMsg($WM_SIZE, "WM_SIZE")

    $hGUI = XSkinGUICreate("My GUI", 400, 400, $Skin_Folder)
    $h_cGUI = GUICreate("Child GUI 1", 295, 295, 50, 50, BitOR($WS_CHILD,$WS_HSCROLL,$WS_VSCROLL), $WS_EX_CLIENTEDGE, $hGUI)
    GUISetBkColor(0X006400)
    $listview = GUICtrlCreateListView("col1  |col2|col3  ", 10, 10, 200, 150);,$LVS_SORTDESCENDING)
    $button = GUICtrlCreateButton("Value?", 75, 170, 70, 20)
    For $x = 1 To 30
        GUICtrlCreateListViewItem("item" & $x & "|col2|col3", $listview)
    Next
    GUISetState(@SW_SHOW, $h_cGUI)

    GUISwitch($hGUI)

    GUIRegisterMsg($WM_VSCROLL, "WM_VSCROLL")
    GUIRegisterMsg($WM_HSCROLL, "WM_HSCROLL")
    GUISetState(@SW_SHOW, $hGUI)

    _GUIScrollBars_Init($h_cGUI)

    Local $RangeMinMax = _GUIScrollBars_GetScrollRange($h_cGUI, $SB_VERT)
    ConsoleWrite("Vert Min/Max: " & $RangeMinMax[0] & "/" & $RangeMinMax[1] & @LF)
    $RangeMinMax = _GUIScrollBars_GetScrollRange($h_cGUI, $SB_HORZ)
    ConsoleWrite("Horz Min/Max: " & $RangeMinMax[0] & "/" & $RangeMinMax[1] & @LF)

    While 1
        $GUIMsg = GUIGetMsg()

        Switch $GUIMsg
            Case $GUI_EVENT_CLOSE
                ExitLoop
        EndSwitch
    WEnd

    Exit
EndFunc ;==>_Main

Func WM_SIZE($hWnd, $Msg, $wParam, $lParam)
    #forceref $Msg, $wParam
    Local $index = -1, $yChar, $xChar, $xClientMax, $xClient, $yClient, $ivMax
    For $x = 0 To UBound($aSB_WindowInfo) - 1
        If $aSB_WindowInfo[$x][0] = $hWnd Then
            $index = $x
            $xClientMax = $aSB_WindowInfo[$index][1]
            $xChar = $aSB_WindowInfo[$index][2]
            $yChar = $aSB_WindowInfo[$index][3]
            $ivMax = $aSB_WindowInfo[$index][7]
            ExitLoop
        EndIf
    Next
    If $index = -1 Then Return 0

    Local $tSCROLLINFO = DllStructCreate($tagSCROLLINFO)

; Retrieve the dimensions of the client area.
    $xClient = BitAND($lParam, 0x0000FFFF)
    $yClient = BitShift($lParam, 16)
    $aSB_WindowInfo[$index][4] = $xClient
    $aSB_WindowInfo[$index][5] = $yClient

; Set the vertical scrolling range and page size
    DllStructSetData($tSCROLLINFO, "fMask", BitOR($SIF_RANGE, $SIF_PAGE))
    DllStructSetData($tSCROLLINFO, "nMin", 0)
    DllStructSetData($tSCROLLINFO, "nMax", $ivMax)
    DllStructSetData($tSCROLLINFO, "nPage", $yClient / $yChar)
    _GUIScrollBars_SetScrollInfo($hWnd, $SB_VERT, $tSCROLLINFO)

; Set the horizontal scrolling range and page size
    DllStructSetData($tSCROLLINFO, "fMask", BitOR($SIF_RANGE, $SIF_PAGE))
    DllStructSetData($tSCROLLINFO, "nMin", 0)
    DllStructSetData($tSCROLLINFO, "nMax", 2 + $xClientMax / $xChar)
    DllStructSetData($tSCROLLINFO, "nPage", $xClient / $xChar)
    _GUIScrollBars_SetScrollInfo($hWnd, $SB_HORZ, $tSCROLLINFO)

    Return $GUI_RUNDEFMSG
EndFunc ;==>WM_SIZE

Func WM_HSCROLL($hWnd, $Msg, $wParam, $lParam)
    #forceref $Msg, $lParam
    Local $nScrollCode = BitAND($wParam, 0x0000FFFF)

    Local $index = -1, $xChar, $xPos
    Local $Min, $Max, $Page, $Pos, $TrackPos

    For $x = 0 To UBound($aSB_WindowInfo) - 1
        If $aSB_WindowInfo[$x][0] = $hWnd Then
            $index = $x
            $xChar = $aSB_WindowInfo[$index][2]
            ExitLoop
        EndIf
    Next
    If $index = -1 Then Return 0

;~; Get all the horizontal scroll bar information
    Local $tSCROLLINFO = _GUIScrollBars_GetScrollInfoEx($hWnd, $SB_HORZ)
    $Min = DllStructGetData($tSCROLLINFO, "nMin")
    $Max = DllStructGetData($tSCROLLINFO, "nMax")
    $Page = DllStructGetData($tSCROLLINFO, "nPage")
; Save the position for comparison later on
    $xPos = DllStructGetData($tSCROLLINFO, "nPos")
    $Pos = $xPos
    $TrackPos = DllStructGetData($tSCROLLINFO, "nTrackPos")
    #forceref $Min, $Max
    Switch $nScrollCode

        Case $SB_LINELEFT; user clicked left arrow
            DllStructSetData($tSCROLLINFO, "nPos", $Pos - 1)

        Case $SB_LINERIGHT; user clicked right arrow
            DllStructSetData($tSCROLLINFO, "nPos", $Pos + 1)

        Case $SB_PAGELEFT; user clicked the scroll bar shaft left of the scroll box
            DllStructSetData($tSCROLLINFO, "nPos", $Pos - $Page)

        Case $SB_PAGERIGHT; user clicked the scroll bar shaft right of the scroll box
            DllStructSetData($tSCROLLINFO, "nPos", $Pos + $Page)

        Case $SB_THUMBTRACK; user dragged the scroll box
            DllStructSetData($tSCROLLINFO, "nPos", $TrackPos)
    EndSwitch

;~  // Set the position and then retrieve it.  Due to adjustments
;~  //   by Windows it may not be the same as the value set.

    DllStructSetData($tSCROLLINFO, "fMask", $SIF_POS)
    _GUIScrollBars_SetScrollInfo($hWnd, $SB_HORZ, $tSCROLLINFO)
    _GUIScrollBars_GetScrollInfo($hWnd, $SB_HORZ, $tSCROLLINFO)
;// If the position has changed, scroll the window and update it
    $Pos = DllStructGetData($tSCROLLINFO, "nPos")
    If ($Pos <> $xPos) Then _GUIScrollBars_ScrollWindow($hWnd, $xChar * ($xPos - $Pos), 0)
    Return $GUI_RUNDEFMSG
EndFunc ;==>WM_HSCROLL

Func WM_VSCROLL($hWnd, $Msg, $wParam, $lParam)
    #forceref $Msg, $wParam, $lParam
    Local $nScrollCode = BitAND($wParam, 0x0000FFFF)
    Local $index = -1, $yChar, $yPos
    Local $Min, $Max, $Page, $Pos, $TrackPos

    For $x = 0 To UBound($aSB_WindowInfo) - 1
        If $aSB_WindowInfo[$x][0] = $hWnd Then
            $index = $x
            $yChar = $aSB_WindowInfo[$index][3]
            ExitLoop
        EndIf
    Next
    If $index = -1 Then Return 0


; Get all the vertial scroll bar information
    Local $tSCROLLINFO = _GUIScrollBars_GetScrollInfoEx($hWnd, $SB_VERT)
    $Min = DllStructGetData($tSCROLLINFO, "nMin")
    $Max = DllStructGetData($tSCROLLINFO, "nMax")
    $Page = DllStructGetData($tSCROLLINFO, "nPage")
; Save the position for comparison later on
    $yPos = DllStructGetData($tSCROLLINFO, "nPos")
    $Pos = $yPos
    $TrackPos = DllStructGetData($tSCROLLINFO, "nTrackPos")

    Switch $nScrollCode
        Case $SB_TOP; user clicked the HOME keyboard key
            DllStructSetData($tSCROLLINFO, "nPos", $Min)

        Case $SB_BOTTOM; user clicked the END keyboard key
            DllStructSetData($tSCROLLINFO, "nPos", $Max)

        Case $SB_LINEUP; user clicked the top arrow
            DllStructSetData($tSCROLLINFO, "nPos", $Pos - 1)

        Case $SB_LINEDOWN; user clicked the bottom arrow
            DllStructSetData($tSCROLLINFO, "nPos", $Pos + 1)

        Case $SB_PAGEUP; user clicked the scroll bar shaft above the scroll box
            DllStructSetData($tSCROLLINFO, "nPos", $Pos - $Page)

        Case $SB_PAGEDOWN; user clicked the scroll bar shaft below the scroll box
            DllStructSetData($tSCROLLINFO, "nPos", $Pos + $Page)

        Case $SB_THUMBTRACK; user dragged the scroll box
            DllStructSetData($tSCROLLINFO, "nPos", $TrackPos)
    EndSwitch

;~  // Set the position and then retrieve it.  Due to adjustments
;~  //   by Windows it may not be the same as the value set.

    DllStructSetData($tSCROLLINFO, "fMask", $SIF_POS)
    _GUIScrollBars_SetScrollInfo($hWnd, $SB_VERT, $tSCROLLINFO)
    _GUIScrollBars_GetScrollInfo($hWnd, $SB_VERT, $tSCROLLINFO)
;// If the position has changed, scroll the window and update it
    $Pos = DllStructGetData($tSCROLLINFO, "nPos")

    If ($Pos <> $yPos) Then
        _GUIScrollBars_ScrollWindow($hWnd, 0, $yChar * ($yPos - $Pos))
        $yPos = $Pos
    EndIf

    Return $GUI_RUNDEFMSG

EndFunc ;==>WM_VSCROLL

Just remember to use the latest beta.

Cheers

Brett

:)

Edited by Bert

Share this post


Link to post
Share on other sites

Ok, it looks good, but how come I can't change the size of the child gui?


While Alive() {
	 DrinkWine();
}
AutoIt Programmer

Share this post


Link to post
Share on other sites

Is there a certain limit of space that has to be between the child gui and parent gui? My gui is really f***** up right now when I'm trying to make scroll bars in my XSkin gui so I create a child gui to put the scroll bars in but its not working.


While Alive() {
	 DrinkWine();
}
AutoIt Programmer

Share this post


Link to post
Share on other sites

Lets keep questions on the same subject in the same thread so it's easier for others to find... I merged your new topic with the old one.


Common sense plays a role in the basics of understanding AutoIt... If you're lacking in that, do us all a favor, and step away from the computer.

Share this post


Link to post
Share on other sites

my damn controls aren't even appearing.


While Alive() {
	 DrinkWine();
}
AutoIt Programmer

Share this post


Link to post
Share on other sites

I'd really like to know if it is possible to have a child gui set at coords 0,0 in its parent window. Because I can't get mine to do that!


While Alive() {
	 DrinkWine();
}
AutoIt Programmer

Share this post


Link to post
Share on other sites

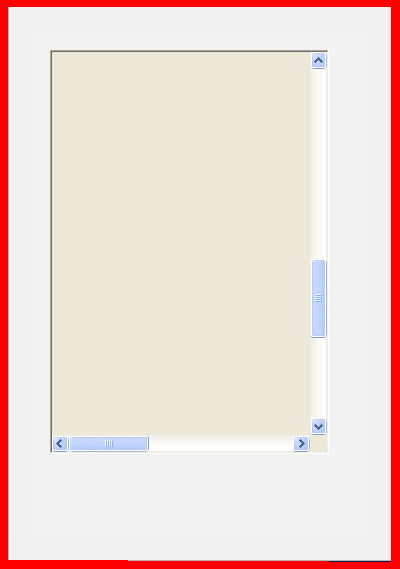

In the image attached if you take a look at it, it is relatively in the center of the parent gui. How do I make it where it is lined up perfectly where it's top left starts at 0,0 in its parent and its aligns and fits in the parent perfectly?



While Alive() {
	 DrinkWine();
}
AutoIt Programmer

Share this post


Link to post
Share on other sites

How in God's name are we able to help you if we don't have any code?

;Scrollable Child GUI with XSkin example by Bert.
; To run, use the LATEST BETA!
#include <XSkin.au3>
#include <WindowsConstants.au3>
#include <StructureConstants.au3>
#include <GUIScrollBars.au3>
#include <ScrollBarConstants.au3>
#include <GUIConstantsEx.au3>
; folder of skin
$Skin_Folder = @ScriptDir & "\Skins\Black-Yellow"

Opt("MustDeclareVars", 1)

_Main()

Func _Main()
    Local $nFileMenu, $nExititem, $GUIMsg, $hGUI, $h_cGUI, $h_cGUI2
    Local $listview, $button, $button2
;Create Skinned GUI
    $hGUI = XSkinGUICreate("My GUI", 400, 400, $Skin_Folder)
;Create ChildGUI to hold controls, and to be scrollable.
    $h_cGUI = GUICreate("Child GUI 1", 295, 300, 50, 50, BitOR($WS_CHILD,$WS_HSCROLL,$WS_VSCROLL), -1, $hGUI)
;Set the background to be the same as in the Skin.dat folder.
    $bkg_color = IniRead($Skin_Folder & "\Skin.dat", "color", "background", 0xD9F6FF)
    GUISetBkColor($bkg_color)

;===============
; Add all of your controls below here
;===============

    $listview = GUICtrlCreateListView("col1  |col2|col3  ", 10, 10, 200, 150);,$LVS_SORTDESCENDING)
    $button = GUICtrlCreateButton("Value?", 75, 170, 70, 20)
    For $x = 1 To 30
        GUICtrlCreateListViewItem("item" & $x & "|col2|col3", $listview)
    Next

;===============
; Show the GUI & Other NECESSARY tid-bits
;===============
    GUISetState(@SW_SHOW, $h_cGUI)

    GUISwitch($hGUI)

    GUIRegisterMsg($WM_VSCROLL, "WM_VSCROLL")
    GUIRegisterMsg($WM_HSCROLL, "WM_HSCROLL")
    GUISetState(@SW_SHOW, $hGUI)

    _GUIScrollBars_Init($h_cGUI)

    While 1
        $GUIMsg = GUIGetMsg()

        Switch $GUIMsg
            Case $GUI_EVENT_CLOSE
                ExitLoop
            Case $button
                MsgBox (0, "", "$button was pressed!")
        EndSwitch
    WEnd

    Exit
EndFunc  ;==>_Main

;===============
;  Internal Functions.  DO NOT MODIFY, 9 times out of 10, it probably won't work as you expect if you don't know what you're doing.
;===============
Func WM_SIZE($hWnd, $Msg, $wParam, $lParam)
    #forceref $Msg, $wParam
    Local $index = -1, $yChar, $xChar, $xClientMax, $xClient, $yClient, $ivMax
    For $x = 0 To UBound($aSB_WindowInfo) - 1
        If $aSB_WindowInfo[$x][0] = $hWnd Then
            $index = $x
            $xClientMax = $aSB_WindowInfo[$index][1]
            $xChar = $aSB_WindowInfo[$index][2]
            $yChar = $aSB_WindowInfo[$index][3]
            $ivMax = $aSB_WindowInfo[$index][7]
            ExitLoop
        EndIf
    Next
    If $index = -1 Then Return 0

    Local $tSCROLLINFO = DllStructCreate($tagSCROLLINFO)

; Retrieve the dimensions of the client area.
    $xClient = BitAND($lParam, 0x0000FFFF)
    $yClient = BitShift($lParam, 16)
    $aSB_WindowInfo[$index][4] = $xClient
    $aSB_WindowInfo[$index][5] = $yClient

; Set the vertical scrolling range and page size
    DllStructSetData($tSCROLLINFO, "fMask", BitOR($SIF_RANGE, $SIF_PAGE))
    DllStructSetData($tSCROLLINFO, "nMin", 0)
    DllStructSetData($tSCROLLINFO, "nMax", $ivMax)
    DllStructSetData($tSCROLLINFO, "nPage", $yClient / $yChar)
    _GUIScrollBars_SetScrollInfo($hWnd, $SB_VERT, $tSCROLLINFO)

; Set the horizontal scrolling range and page size
    DllStructSetData($tSCROLLINFO, "fMask", BitOR($SIF_RANGE, $SIF_PAGE))
    DllStructSetData($tSCROLLINFO, "nMin", 0)
    DllStructSetData($tSCROLLINFO, "nMax", 2 + $xClientMax / $xChar)
    DllStructSetData($tSCROLLINFO, "nPage", $xClient / $xChar)
    _GUIScrollBars_SetScrollInfo($hWnd, $SB_HORZ, $tSCROLLINFO)

    Return $GUI_RUNDEFMSG
EndFunc  ;==>WM_SIZE

Func WM_HSCROLL($hWnd, $Msg, $wParam, $lParam)
    #forceref $Msg, $lParam
    Local $nScrollCode = BitAND($wParam, 0x0000FFFF)

    Local $index = -1, $xChar, $xPos
    Local $Min, $Max, $Page, $Pos, $TrackPos

    For $x = 0 To UBound($aSB_WindowInfo) - 1
        If $aSB_WindowInfo[$x][0] = $hWnd Then
            $index = $x
            $xChar = $aSB_WindowInfo[$index][2]
            ExitLoop
        EndIf
    Next
    If $index = -1 Then Return 0

;~ ; Get all the horizontal scroll bar information
    Local $tSCROLLINFO = _GUIScrollBars_GetScrollInfoEx($hWnd, $SB_HORZ)
    $Min = DllStructGetData($tSCROLLINFO, "nMin")
    $Max = DllStructGetData($tSCROLLINFO, "nMax")
    $Page = DllStructGetData($tSCROLLINFO, "nPage")
; Save the position for comparison later on
    $xPos = DllStructGetData($tSCROLLINFO, "nPos")
    $Pos = $xPos
    $TrackPos = DllStructGetData($tSCROLLINFO, "nTrackPos")
    #forceref $Min, $Max
    Switch $nScrollCode

        Case $SB_LINELEFT; user clicked left arrow
            DllStructSetData($tSCROLLINFO, "nPos", $Pos - 1)

        Case $SB_LINERIGHT; user clicked right arrow
            DllStructSetData($tSCROLLINFO, "nPos", $Pos + 1)

        Case $SB_PAGELEFT; user clicked the scroll bar shaft left of the scroll box
            DllStructSetData($tSCROLLINFO, "nPos", $Pos - $Page)

        Case $SB_PAGERIGHT; user clicked the scroll bar shaft right of the scroll box
            DllStructSetData($tSCROLLINFO, "nPos", $Pos + $Page)

        Case $SB_THUMBTRACK; user dragged the scroll box
            DllStructSetData($tSCROLLINFO, "nPos", $TrackPos)
    EndSwitch

;~  // Set the position and then retrieve it.  Due to adjustments
;~  //   by Windows it may not be the same as the value set.

    DllStructSetData($tSCROLLINFO, "fMask", $SIF_POS)
    _GUIScrollBars_SetScrollInfo($hWnd, $SB_HORZ, $tSCROLLINFO)
    _GUIScrollBars_GetScrollInfo($hWnd, $SB_HORZ, $tSCROLLINFO)
;// If the position has changed, scroll the window and update it
    $Pos = DllStructGetData($tSCROLLINFO, "nPos")
    If ($Pos <> $xPos) Then _GUIScrollBars_ScrollWindow($hWnd, $xChar * ($xPos - $Pos), 0)
    Return $GUI_RUNDEFMSG
EndFunc  ;==>WM_HSCROLL

Func WM_VSCROLL($hWnd, $Msg, $wParam, $lParam)
    #forceref $Msg, $wParam, $lParam
    Local $nScrollCode = BitAND($wParam, 0x0000FFFF)
    Local $index = -1, $yChar, $yPos
    Local $Min, $Max, $Page, $Pos, $TrackPos

    For $x = 0 To UBound($aSB_WindowInfo) - 1
        If $aSB_WindowInfo[$x][0] = $hWnd Then
            $index = $x
            $yChar = $aSB_WindowInfo[$index][3]
            ExitLoop
        EndIf
    Next
    If $index = -1 Then Return 0


; Get all the vertial scroll bar information
    Local $tSCROLLINFO = _GUIScrollBars_GetScrollInfoEx($hWnd, $SB_VERT)
    $Min = DllStructGetData($tSCROLLINFO, "nMin")
    $Max = DllStructGetData($tSCROLLINFO, "nMax")
    $Page = DllStructGetData($tSCROLLINFO, "nPage")
; Save the position for comparison later on
    $yPos = DllStructGetData($tSCROLLINFO, "nPos")
    $Pos = $yPos
    $TrackPos = DllStructGetData($tSCROLLINFO, "nTrackPos")

    Switch $nScrollCode
        Case $SB_TOP; user clicked the HOME keyboard key
            DllStructSetData($tSCROLLINFO, "nPos", $Min)

        Case $SB_BOTTOM; user clicked the END keyboard key
            DllStructSetData($tSCROLLINFO, "nPos", $Max)

        Case $SB_LINEUP; user clicked the top arrow
            DllStructSetData($tSCROLLINFO, "nPos", $Pos - 1)

        Case $SB_LINEDOWN; user clicked the bottom arrow
            DllStructSetData($tSCROLLINFO, "nPos", $Pos + 1)

        Case $SB_PAGEUP; user clicked the scroll bar shaft above the scroll box
            DllStructSetData($tSCROLLINFO, "nPos", $Pos - $Page)

        Case $SB_PAGEDOWN; user clicked the scroll bar shaft below the scroll box
            DllStructSetData($tSCROLLINFO, "nPos", $Pos + $Page)

        Case $SB_THUMBTRACK; user dragged the scroll box
            DllStructSetData($tSCROLLINFO, "nPos", $TrackPos)
    EndSwitch

;~  // Set the position and then retrieve it.  Due to adjustments
;~  //   by Windows it may not be the same as the value set.

    DllStructSetData($tSCROLLINFO, "fMask", $SIF_POS)
    _GUIScrollBars_SetScrollInfo($hWnd, $SB_VERT, $tSCROLLINFO)
    _GUIScrollBars_GetScrollInfo($hWnd, $SB_VERT, $tSCROLLINFO)
;// If the position has changed, scroll the window and update it
    $Pos = DllStructGetData($tSCROLLINFO, "nPos")

    If ($Pos <> $yPos) Then
        _GUIScrollBars_ScrollWindow($hWnd, 0, $yChar * ($yPos - $Pos))
        $yPos = $Pos
    EndIf

    Return $GUI_RUNDEFMSG

EndFunc  ;==>WM_VSCROLL

Share this post


Link to post
Share on other sites

Yea, I believe you gave me that already and it still doesn't answer my last post.


While Alive() {
	 DrinkWine();
}
AutoIt Programmer

Share this post


Link to post
Share on other sites

That ain't no XSkin GUI I've ever seen. :)

Now I will say it again, as you didn't answer my question.

How in God's name are we able to help you if we don't have any code?

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
Sign in to follow this
Followers 0
