new2this

Move from GuictrlcreateTab to _Guictrltab_create is messy

6 posts in this topic

I have a gui with 7 different tabs on it with each tab having it's own series of buttons, combo boxes, labels, and input boxes. Everything works great with the gui, but I would like to make it look nicer, so I moved from using GuiCtrlCreateTab() to _guictrltab_create and _guictrltab_insertitem. The tabs get created alright, but every button, combo box, label, and input box is visible on the entire GUI, no matter which tab you are on. I have included some screen captures of the "before" and "after" in addition to my code.

#include <GUIConstants.au3>
#Include <GuiComboBox.au3>
#Include <GuiListBox.au3>
#include <Array.au3>
#include <file.au3>
#include <GuiConstantsEx.au3>
#include <GuiTab.au3>


$Form1 = GUICreate("Toolbox", 706, 390, 193, 115,$WS_SIZEBOX+$WS_SYSMENU+$WS_MAXIMIZEBOX+$WS_MINIMIZEBOX)
GUISetFont(12, 400);, 0, "Comic Sans MS")
GUISetBkColor(0xFFFFFF,$Form1)


$lblMain = GUICtrlCreateLabel("SAN Toolbox", 115, 35, 430, 60, $SS_CENTER)
GUICtrlSetResizing ($lblMain,$GUI_DOCKHEIGHT + $GUI_DOCKTOP)
GUICtrlSetBkColor($lblMain, $GUI_BKCOLOR_TRANSPARENT)
GUICtrlSetFont($lblMain, 22)

;***************************************************************************************************

********************************************************************
;Sets up the GUI in Tabbed mode
;***************************************************************************************************

********************************************************************
$tab = _GUICtrlTab_Create($Form1, 0, 120, 706, 250)
GUICtrlSetResizing ($tab,$GUI_DOCKBORDERS)
GUISetState()

;***************************************************************************************************

********************************************************************
;Sets up the first tab "My Volumes"
;***************************************************************************************************

********************************************************************
;$myVolumeGroup = GUICtrlCreateTabItem("My Volumes")

$myVolumeGroup=_GUICtrlTab_InsertItem($tab, 0, "My Volumes")
GUICtrlSetResizing (-1,$GUI_DOCKBORDERS)
$lblMyVolumes = GUICtrlCreateLabel("Volume location, Volume Name, Size", 30, 150, 400, 25)
GUICtrlSetResizing (-1,$GUI_DOCKBORDERS)
$lstMyVolumes = GUICtrlCreateList("", 30, 180, 400, 100)
GUICtrlSetResizing (-1,$GUI_DOCKBORDERS)

;***************************************************************************************************

********************************************************************
;Sets up the Create tab
;***************************************************************************************************

********************************************************************
;$Group1 = GUICtrlCreateTabItem("Create")
$Group1=_GUICtrlTab_InsertItem($tab, 1, "Create")
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$lblCreateSize = GUICtrlCreateLabel("Size(GB):", 5, 160, 100, 24, $SS_CENTER)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$inptCreateSize = GUICtrlCreateInput("", 110, 160, 117, 28)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$lblCreateVolumeName = GUICtrlCreateLabel("SAN Volume Name:", 5, 202, 100, 34, $SS_CENTER)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$inptCreateName = GUICtrlCreateInput("", 110, 202, 117, 28)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$lblCreateServername = GUICtrlCreateLabel("Server name:", 256, 160, 98, 24)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$cmbCreateServername = GUICtrlCreateCombo("", 350, 160, 141, 25, $CBS_Dropdownlist + $WS_VSCROLL)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$lblCreateFolderName = GUICtrlCreateLabel("Destination:", 256, 202, 98, 24)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$cmbCreateFolderName = GUICtrlCreateCombo("", 350, 202, 141, 24, $CBS_Dropdownlist + $WS_VSCROLL)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$btnCreateVolume = GUICtrlCreateButton("Create\Attach Volume", 514, 175, 169, 25, 0)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)

;***************************************************************************************************

********************************************************************
;Sets up the Delte tab
;***************************************************************************************************

********************************************************************
;$Group2 = GUICtrlCreateTabItem("Delete")
$Group2=_GUICtrlTab_InsertItem($tab, 2, "Delete")
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$lblDeleteVolume = GUICtrlCreateLabel("SAN Volume Name:", 5, 160, 100, 34, $SS_CENTER)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$cmbDeleteVolume = GUICtrlCreateCombo("", 110, 160, 187, 28, $CBS_Dropdownlist + $WS_VSCROLL)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$btnDeleteVolume = GUICtrlCreateButton("Unmap\Delete Volume", 504, 160, 169, 25, 0)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)

;***************************************************************************************************

********************************************************************
;Sets up the Expand tab
;***************************************************************************************************

********************************************************************
;$Group3 = GUICtrlCreateTabItem("Expand")
$Group3=_GUICtrlTab_InsertItem($tab, 3, "Expand")
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$lblExpandVolume = GUICtrlCreateLabel("SAN Volume Name:", 5, 160, 100, 34, $SS_CENTER)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$cmbExpandVolume = GUICtrlCreateCombo("", 110, 160, 187, 28, $CBS_Dropdownlist + $WS_VSCROLL)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$lblExpandSize = GUICtrlCreateLabel("Amount (GB):", 5, 202, 100, 34, $SS_CENTER)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$inptExpandSize = GUICtrlCreateInput("", 110, 202, 187, 28)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$btnExpandVolume = GUICtrlCreateButton("Expand Volume", 504, 175, 169, 25, 0)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$lblExpandLocalMachine = GUICtrlCreateLabel("NOTE: You must perform this procedure on the computer where the SAN volume for expansion is LUN mapped.", 10, 250, 686, 40, $SS_CENTER)
GUICtrlSetFont($lblExpandLocalMachine, 14, 400)
GUICtrlSetResizing ($lblExpandLocalMachine,$GUI_DOCKAUTO)


;***************************************************************************************************

********************************************************************
;Sets up the Snapshot tab
;***************************************************************************************************

********************************************************************
;$Group4 = GUICtrlCreateTabItem("Snapshot")
$Group4=_GUICtrlTab_InsertItem($tab, 4, "Snapshot")
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$radPostImaging = GUICtrlCreateRadio("Post Imaging", 8, 160, 120, 18)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$radPostProcessing = GUICtrlCreateRadio("Post Processing", 8, 185, 150, 18)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$radUserProvided = GUICtrlCreateRadio("User Provided Label ------------->", 8, 210, 250, 18)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$lblSnapShotVolume = GUICtrlCreateLabel("Volume Name:", 180, 158, 120, 25)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$inptUserProvided = GUICtrlCreateInput("", 290, 210, 189, 28)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$cmbSnapshotVolume = GUICtrlCreateCombo("", 290, 158, 189, 25, $CBS_Dropdownlist + $WS_VSCROLL + $CBS_SORT)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$chkMapReplayToServer = GUICtrlCreateCheckbox("Map snapshot to this server:", 20, 255, 220, 18)
GUICtrlSetResizing(-1, $GUI_DOCKAUTO)
$cmbServerForSnapshot = GUICtrlCreateCombo("", 290, 250, 189, 25, $CBS_Dropdownlist + $WS_VSCROLL)
$lblFolderForView = GUICtrlCreateLabel("Place snapshot ""view"" in this folder:", 20, 290, 260, 18)
$cmbFolderForView = GUICtrlCreateCombo("", 290, 285, 189, 25, $CBS_Dropdownlist + $WS_VSCROLL)
GUICtrlSetState($cmbFolderForView, $gui_disable)
GUICtrlSetState($cmbServerForSnapshot, $gui_disable)
$btnSnapshotCreate = GUICtrlCreateButton("Create SnapShot", 504, 220, 169, 35, 0)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)

;***************************************************************************************************

********************************************************************
;Sets up the Move tab
;***************************************************************************************************

********************************************************************
;$Group5 = GUICtrlCreateTabItem("Move")
$Group5=_GUICtrlTab_InsertItem($tab, 5, "Move")
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$lblMoveVolumes = GUICtrlCreateLabel("Volume location, Volume Name, Size", 10, 155, 400, 25)
GUICtrlSetResizing (-1,$GUI_DOCKTOP)
$lstMoveVolumes = GUICtrlCreateList("", 10, 180, 350, 100)
GUICtrlSetResizing (-1,$GUI_DOCKTOP + $GUI_DOCKBOTTOM)
$radMoveFolder = GUICtrlCreateRadio("Move to folder:", 370, 185, 150, 12)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$cmbMoveFolder = GUICtrlCreateCombo("", 395, 205, 150, 20, $CBS_Dropdownlist + $WS_VSCROLL)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$radMoveMap = GUICtrlCreateRadio("Move LUN Mapping:", 370, 235, 185, 18)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$cmbMoveMapping = GUICtrlCreateCombo("", 395, 260, 150, 20, $CBS_Dropdownlist + $WS_VSCROLL)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$btnMoveFolder = GUICtrlCreateButton("Move to folder", 568, 205, 120, 24)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$btnMoveMapping = GUICtrlCreateButton("Move LUN Mapping", 553, 255, 150, 24)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
GUICtrlSetState($btnMoveFolder, $gui_disable)
GUICtrlSetState($btnMoveMapping, $gui_disable)

;***************************************************************************************************

********************************************************************
;Sets up the Map\Unmap tab
;***************************************************************************************************

********************************************************************
;$Group6 = GUICtrlCreateTabItem("Map\Unmap")
$group6=_GUICtrlTab_InsertItem($tab, 6, "Map\Unmap")
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$lblMapVolumesList = GUICtrlCreateLabel("Volume location, Volume Name, Size", 10, 155, 400, 25)
GUICtrlSetResizing (-1,$GUI_DOCKTOP)
$lstMapVolumes = GUICtrlCreateList("", 10, 180, 350, 100)
GUICtrlSetResizing (-1,$GUI_DOCKTOP + $GUI_DOCKBOTTOM)
$radUnmapVolume = GUICtrlCreateRadio("Remove LUN Map:", 370, 185, 170, 18)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$radMapVolumes = GUICtrlCreateRadio("Add LUN Map:", 370, 215, 120, 18)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$cmbMapVolumes = GUICtrlCreateCombo("", 395, 235, 150, 20, $CBS_Dropdownlist + $WS_VSCROLL)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$btnUnmapVolumes = GUICtrlCreateButton("Unmap Now", 563, 205, 120, 24)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$btnMapVolumes = GUICtrlCreateButton("Map Now", 563, 255, 120, 24)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
GUICtrlSetState($btnMapVolumes, $gui_disable)
GUICtrlSetState($btnUnmapVolumes, $gui_disable)

;***************************************************************************************************

********************************************************************
;Sets up the Back this up II tab
;***************************************************************************************************

********************************************************************
;$Group7 = GUICtrlCreateTabItem("Back This UP II")
$Group7=_GUICtrlTab_InsertItem($tab, 7, "Back This Up II")
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$lblBackupServer = GUICtrlCreateLabel("Backup Server Name:", 8, 160, 180, 25)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$inptBackupServer = GUICtrlCreateInput("server", 190, 160, 108, 25)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$lblBackupName = GUICtrlCreateLabel("Backup Job Name:", 8, 190, 180, 24)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$inptBackupName = GUICtrlCreateInput("", 190, 190, 108, 25)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$lblUserName = GUICtrlCreateLabel(@UserName & " password:", 8, 220, 180, 25)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$inptBackupPassword = GUICtrlCreateInput("", 190, 220, 108, 25, $ES_PASSWORD)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$radDerivitive = GUICtrlCreateRadio("Derivitive", 340, 167, 110, 18)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$radNearline = GUICtrlCreateRadio("Nearline", 340, 197, 110, 18)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$chkBackup = GUICtrlCreateCheckbox("Export Tapes", 340, 227, 120, 18)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$btnBackupBrowse = GUICtrlCreateButton("Browse For Target", 505, 168, 169, 25, 0)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$btnBackupSchedule = GUICtrlCreateButton("Schedule Backup", 505, 213, 169, 25, 0)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
$lblBackupTarget = GUICtrlCreateLabel("Current backup selection: ", 20, 270, 680, 40)
GUICtrlSetResizing (-1,$GUI_DOCKAUTO)
GUICtrlSetBkColor($lblBackupTarget, $GUI_BKCOLOR_TRANSPARENT)
GUICtrlSetFont($lblBackupTarget, 14, 400)

$btnCloseToolbox = GUICtrlCreateButton("Close Toolbox", 102, 320, 180, 30)
GUICtrlSetResizing ($btnCloseToolbox,$GUI_DOCKBOTTOM+$GUI_DOCKSIZE+$GUI_DOCKHCENTER)
$btnRefreshToolbox = GUICtrlCreateButton("Refresh Toolbox", 404, 320, 180, 30)
GUICtrlSetResizing ($btnRefreshToolbox,$GUI_DOCKBOTTOM+$GUI_DOCKSIZE+$GUI_DOCKHCENTER)
#EndRegion ### END Koda GUI section ###



ProgramMain()

Func ProgramMain()


GUISetState(@SW_SHOW, $Form1)
While 1
$nMsg = GUIGetMsg()
Switch $nMsg
    Case $GUI_EVENT_CLOSE
        Exit
    Case $btnCloseToolbox
        Exit
EndSwitch
WEnd
EndFunc





Share this post


Link to post
Share on other sites

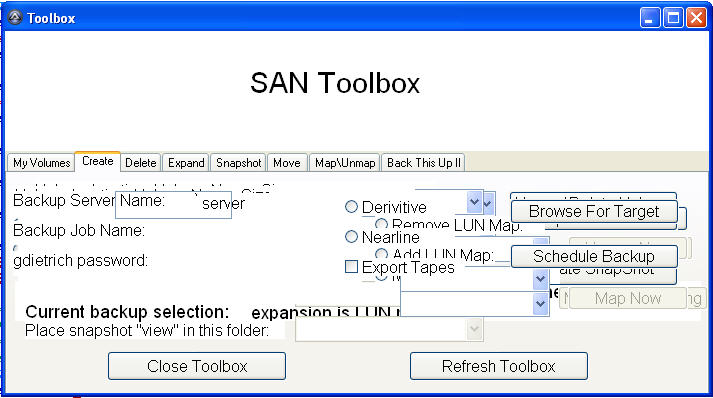

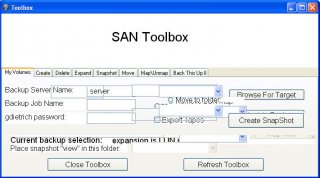

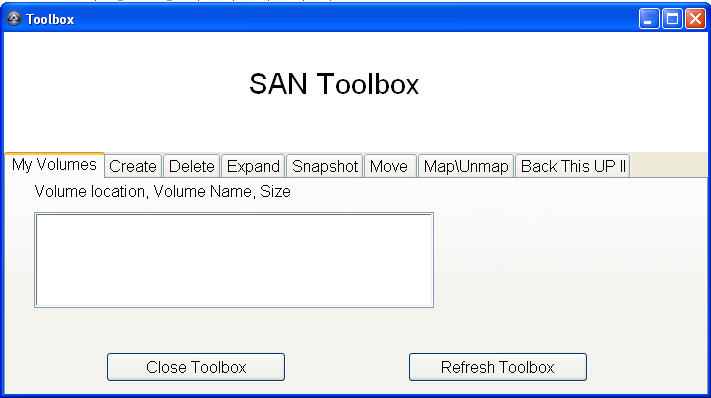

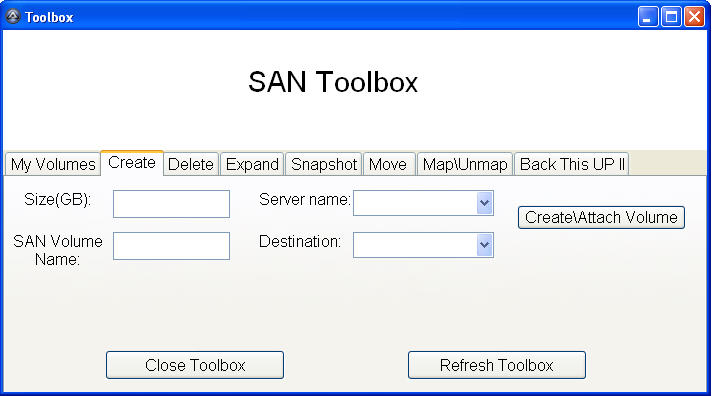

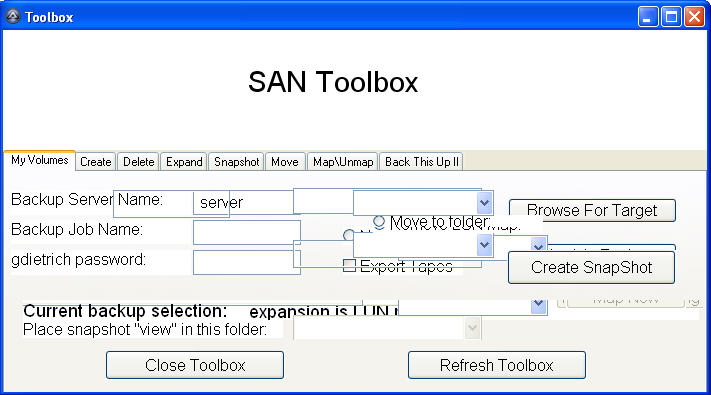

Everything works great with the gui, but I would like to make it look nicer, so I moved from using GuiCtrlCreateTab() to _guictrltab_create

I'm kinda curious how exactly _GUICtrlTab_Create() makes the tabs look nicer...

If anything, it looks like you've just discovered ancient wisdom - "if it ain't broke, don't fix it" :)


"be smart, drink your wine"

Share this post


Link to post
Share on other sites

It appears that the _GuiCtrlTab_Create has more extended styles (like highlighting).

Share this post


Link to post
Share on other sites

It appears that the _GuiCtrlTab_Create has more extended styles (like highlighting).

You should be able to apply anything that the UDF has to the built-in control


SciTE for AutoItDirections for Submitting Standard UDFs



Don't argue with an idiot; people watching may not be able to tell the difference.



Share this post


Link to post
Share on other sites

Thanks for all of the replies...

I think I'll revert to the GuiCtrlCreateTab and try the extended styles there. Thanks again.

Share this post
