Displaying text in Alphablend Window/Control

Recommended Posts

ManojB

Following code is an example file that demonstrates the Alphablend capabilities of AutoIt. (This file is included in the AutoIt installation). I tried to display text in the layered window, ie, the alpha blended window; but ended in vein. Can you help me to figure it out how it can be done.

CODE

#include <GDIPlus.au3>

#include <WinAPI.au3>

#include <WindowsConstants.au3>

#include <GuiConstantsEx.au3>

Opt("MustDeclareVars", 1)

; ====================================================================================================

===========================

; Description ...: Shows how to create an alpha blended form

; Author ........: Paul Campbell (PaulIA)

; Notes .........: The images used for this demo MUST be 32 bpp with alpha channel

; Credits .......: Thanks to lod3n for supplying links to the technical documentation that was necessary to build this demo

; ====================================================================================================

===========================

; ====================================================================================================

===========================

; Global constants

; ====================================================================================================

===========================

Global Const $AC_SRC_ALPHA = 1

; ====================================================================================================

===========================

; Global variables

; ====================================================================================================

===========================

Global $hGUI1, $hGUI2, $iLabel1, $iLabel2, $iSlider, $hImage

; Create GUI

$hGUI1 = GUICreate("Alpha Blend", 400, 100)

$iLabel1 = GUICtrlCreateLabel ("Adjust slider to change opacity level: (0-255)", 84, 10, 380, 20)

$iSlider = GUICtrlCreateSlider(10, 32, 380, 40)

$iLabel2 = GUICtrlCreateLabel ("Drag the layered window around your desktop" , 80, 74, 380, 20)

GUICtrlSetLimit($iSlider, 255, 0)

GUICtrlSetData ($iSlider, 255)

GUISetState()

; Create layered child window

$hGUI2 = GUICreate("Test", 250, 250, -1, -1, -1, $WS_EX_LAYERED, $hGUI1)

; Load layered image

_GDIPlus_Startup()

$hImage = _GDIPlus_ImageLoadFromFile(@ScriptDir & "\Images\Button.png")

;~ $hImage = _GDIPlus_ImageLoadFromFile(@ScriptDir & "\Images\Torus.png")

SetBitMap($hGUI2, $hImage, 255)

GUISetState()

; Register notification messages

GUIRegisterMsg($WM_HSCROLL , "WM_HSCROLL" )

GUIRegisterMsg($WM_NCHITTEST, "WM_NCHITTEST")

; Loop until user exits

do

until GUIGetMsg() =$GUI_EVENT_CLOSE

; Release resources

_GDIPlus_ImageDispose($hImage)

_GDIPlus_Shutdown()

; ====================================================================================================

===========================

; Handle the WM_HSCROLL notificaton so that we can change the opacity in real time

; ====================================================================================================

===========================

Func WM_HSCROLL($hWnd, $iMsg, $iwParam, $ilParam)

SetBitMap($hGUI2, $hImage, GUICtrlRead($iSlider))

EndFunc

; ====================================================================================================

===========================

; Handle the WM_NCHITTEST for the layered window so it can be dragged by clicking anywhere on the image.

; ====================================================================================================

===========================

Func WM_NCHITTEST($hWnd, $iMsg, $iwParam, $ilParam)

if ($hWnd = $hGUI2) and ($iMsg = $WM_NCHITTEST) then Return $HTCAPTION

EndFunc

; ====================================================================================================

===========================

; SetBitMap

; ====================================================================================================

===========================

Func SetBitmap($hGUI, $hImage, $iOpacity)

Local $hScrDC, $hMemDC, $hBitmap, $hOld, $pSize, $tSize, $pSource, $tSource, $pBlend, $tBlend

$hScrDC = _WinAPI_GetDC(0)

$hMemDC = _WinAPI_CreateCompatibleDC($hScrDC)

$hBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage)

$hOld = _WinAPI_SelectObject($hMemDC, $hBitmap)

$tSize = DllStructCreate($tagSIZE)

$pSize = DllStructGetPtr($tSize )

DllStructSetData($tSize, "X", _GDIPlus_ImageGetWidth ($hImage))

DllStructSetData($tSize, "Y", _GDIPlus_ImageGetHeight($hImage))

$tSource = DllStructCreate($tagPOINT)

$pSource = DllStructGetPtr($tSource)

$tBlend = DllStructCreate($tagBLENDFUNCTION)

$pBlend = DllStructGetPtr($tBlend)

DllStructSetData($tBlend, "Alpha" , $iOpacity )

DllStructSetData($tBlend, "Format", $AC_SRC_ALPHA)

_WinAPI_UpdateLayeredWindow($hGUI, $hScrDC, 0, $pSize, $hMemDC, $pSource, 0, $pBlend, $ULW_ALPHA)

_WinAPI_ReleaseDC (0, $hScrDC)

_WinAPI_SelectObject($hMemDC, $hOld)

_WinAPI_DeleteObject($hBitmap)

_WinAPI_DeleteDC ($hMemDC)

EndFunc

AlphaBlend.au3

Share this post


Link to post
Share on other sites
ProgAndy

You could add following lines after $hImage = _GDIPlus_ImageLoadFromFile(@ScriptDir & "\Images\Button.png")

Local $hGraphic = _GDIPlus_ImageGetGraphicsContext($hImage)
_GDIPlus_GraphicsDrawString($hGraphic,"TEST",10,10)
_GDIPlus_GraphicsDispose    ($hGraphic)

*GERMAN* [note: you are not allowed to remove author / modified info from my UDFs]My UDFs:[_SetImageBinaryToCtrl] [_TaskDialog] [AutoItObject] [Animated GIF (GDI+)] [ClipPut for Image] [FreeImage] [GDI32 UDFs] [GDIPlus Progressbar] [Hotkey-Selector] [Multiline Inputbox] [MySQL without ODBC] [RichEdit UDFs] [SpeechAPI Example] [WinHTTP]UDFs included in AutoIt: FTP_Ex (as FTPEx), _WinAPI_SetLayeredWindowAttributes

Share this post


Link to post
Share on other sites
ManojB

You could add following lines after $hImage = _GDIPlus_ImageLoadFromFile(@ScriptDir & "\Images\Button.png")

Local $hGraphic = _GDIPlus_ImageGetGraphicsContext($hImage)
_GDIPlus_GraphicsDrawString($hGraphic,"TEST",10,10)
_GDIPlus_GraphicsDispose    ($hGraphic)
Wow! That much simple... Thanks for helping me out.

Why this string is displayed weird/not smooth finish ? Is there any way to do that?

Share this post


Link to post
Share on other sites
JRowe

There's a bug in your original code...

change the line

_WinAPI_UpdateLayeredWindow($hGUI, $hScrDC, 0, $pSize, $hMemDC, $pSource, 0, $pBlend, $ULW_ALPHA)

to

_WinAPI_UpdateLayeredWindow($hGUI, $hScrDC, 0, $pSize, $hMemDC, $pSource, 0, $pBlend, 2)

Or just set $ULW_ALPHA to 2 somewhere else in the code.

That makes everything nice on my system.

Share this post


Link to post
Share on other sites
ManojB

There's a bug in your original code...

change the line

_WinAPI_UpdateLayeredWindow($hGUI, $hScrDC, 0, $pSize, $hMemDC, $pSource, 0, $pBlend, $ULW_ALPHA)

to

_WinAPI_UpdateLayeredWindow($hGUI, $hScrDC, 0, $pSize, $hMemDC, $pSource, 0, $pBlend, 2)

Or just set $ULW_ALPHA to 2 somewhere else in the code.

That makes everything nice on my system.

This doesn't help the situation. The displayed text seems to be bricky type. (No Smoothness). Please go through my code

CODE
#include <GDIPlus.au3>

#include <WinAPI.au3>

#include <WindowsConstants.au3>

#include <GuiConstantsEx.au3>

Opt("MustDeclareVars", 1)

; ====================================================================================================

===========================

; Description ...: Shows how to create an alpha blended form

; Author ........: Paul Campbell (PaulIA)

; Notes .........: The images used for this demo MUST be 32 bpp with alpha channel

; Credits .......: Thanks to lod3n for supplying links to the technical documentation that was necessary to build this demo

; ====================================================================================================

===========================

; ====================================================================================================

===========================

; Global constants

; ====================================================================================================

===========================

Global Const $AC_SRC_ALPHA = 1

; ====================================================================================================

===========================

; Global variables

; ====================================================================================================

===========================

Global $hGUI1, $hGUI2, $iLabel1, $iLabel2, $iSlider, $hImage

; Create GUI

$hGUI1 = GUICreate("Alpha Blend", 400, 100)

$iLabel1 = GUICtrlCreateLabel ("Adjust slider to change opacity level: (0-255)", 84, 10, 380, 20)

$iSlider = GUICtrlCreateSlider(10, 32, 380, 40)

$iLabel2 = GUICtrlCreateLabel ("Drag the layered window around your desktop" , 80, 74, 380, 20)

GUICtrlSetLimit($iSlider, 255, 0)

GUICtrlSetData ($iSlider, 255)

GUISetState()

; Create layered child window

$hGUI2 = GUICreate("Test", 250, 250, -1, -1, -1, $WS_EX_LAYERED, $hGUI1)

; Load layered image

_GDIPlus_Startup()

;$hImage = _GDIPlus_ImageLoadFromFile(@ScriptDir & "\Images\Button.png")

$hImage = _GDIPlus_ImageLoadFromFile(@ScriptDir & "\Images\alpha.png")

Local $hGraphic = _GDIPlus_ImageGetGraphicsContext($hImage)

_GDIPlus_GraphicsDrawString($hGraphic,"TEST",10,20,$sFont="Arial",9)

_GDIPlus_GraphicsDispose ($hGraphic)

SetBitMap($hGUI2, $hImage, 255)

GUISetState()

; Register notification messages

GUIRegisterMsg($WM_HSCROLL , "WM_HSCROLL" )

GUIRegisterMsg($WM_NCHITTEST, "WM_NCHITTEST")

; Loop until user exits

do

until GUIGetMsg() =$GUI_EVENT_CLOSE

; Release resources

_GDIPlus_ImageDispose($hImage)

_GDIPlus_Shutdown()

; ====================================================================================================

===========================

; Handle the WM_HSCROLL notificaton so that we can change the opacity in real time

; ====================================================================================================

===========================

Func WM_HSCROLL($hWnd, $iMsg, $iwParam, $ilParam)

SetBitMap($hGUI2, $hImage, GUICtrlRead($iSlider))

EndFunc

; ====================================================================================================

===========================

; Handle the WM_NCHITTEST for the layered window so it can be dragged by clicking anywhere on the image.

; ====================================================================================================

===========================

Func WM_NCHITTEST($hWnd, $iMsg, $iwParam, $ilParam)

if ($hWnd = $hGUI2) and ($iMsg = $WM_NCHITTEST) then Return $HTCAPTION

EndFunc

; ====================================================================================================

===========================

; SetBitMap

; ====================================================================================================

===========================

Func SetBitmap($hGUI, $hImage, $iOpacity)

Local $hScrDC, $hMemDC, $hBitmap, $hOld, $pSize, $tSize, $pSource, $tSource, $pBlend, $tBlend

$hScrDC = _WinAPI_GetDC(0)

$hMemDC = _WinAPI_CreateCompatibleDC($hScrDC)

$hBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage)

$hOld = _WinAPI_SelectObject($hMemDC, $hBitmap)

$tSize = DllStructCreate($tagSIZE)

$pSize = DllStructGetPtr($tSize )

DllStructSetData($tSize, "X", _GDIPlus_ImageGetWidth ($hImage))

DllStructSetData($tSize, "Y", _GDIPlus_ImageGetHeight($hImage))

$tSource = DllStructCreate($tagPOINT)

$pSource = DllStructGetPtr($tSource)

$tBlend = DllStructCreate($tagBLENDFUNCTION)

$pBlend = DllStructGetPtr($tBlend)

DllStructSetData($tBlend, "Alpha" , $iOpacity )

DllStructSetData($tBlend, "Format", $AC_SRC_ALPHA)

_WinAPI_UpdateLayeredWindow($hGUI, $hScrDC, 0, $pSize, $hMemDC, $pSource, 0, $pBlend, 2)

_WinAPI_ReleaseDC (0, $hScrDC)

_WinAPI_SelectObject($hMemDC, $hOld)

_WinAPI_DeleteObject($hBitmap)

_WinAPI_DeleteDC ($hMemDC)

EndFunc


Share this post


Link to post
Share on other sites
JRowe
ManojB

On my system, it appears just fine.

What's the blockiness look like on yours?

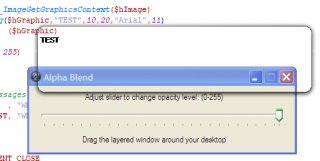

Please see the attachment. I've used Arial, 11.


Share this post


Link to post
Share on other sites
