Label Automatic Width (Fit Text)

[Der_Andi]

Ok, now I found really something weird. A very long line gets calculated too short, despite the correct use of the style parameter.

Here's a short example:

expandcollapse popup

#NoTrayIcon
Opt("GuiOnEventMode", 1)

#include <GuiConstants.au3>
#include <StaticConstants.au3>
#include <GDIPlus.au3>

$fontName = "Tahoma"
$fontSize = 9




$guiMain = GUICreate("", 500, 200)
GUISetOnEvent($gui_event_close, "quit")
GUISetFont($fontSize, 400, 0, $fontName, $guiMain)

$text = "THIS IS LOOOOOOOOOOOOOOOOOOOONG TEXT"
$len = getTextLengthInPixel($text, "Tahoma", 10, 2) ; bold
GUICtrlCreateLabel($text, 20, 20, $len, 20, $ss_leftnowordwrap)
GUICtrlSetFont(-1, 10, 600)

GUICtrlCreateLabel("Following text", 20 + $len, 20+1, 100, 20)


GUISetState()
While True
    Sleep(1000)
WEnd

Func getTextLengthInPixel($text, $font, $size = 9, $style = 0)
    ;Calculate actual width of the given text
    _GDIPlus_Startup()
    $hGraphic = _GDIPlus_GraphicsCreateFromHWND($guiMain)
    $hFamily = _GDIPlus_FontFamilyCreate($font)
    $hGDIFont = _GDIPlus_FontCreate($hFamily, $size, $style)
    $hFormat = _GDIPlus_StringFormatCreate()
    $tLayout = _GDIPlus_RectFCreate(0, 0, @DesktopWidth, @DesktopHeight)

    $aInfo = _GDIPlus_GraphicsMeasureString($hGraphic, $text, $hGDIFont, $tLayout, $hFormat)
    $width = Int(DllStructGetData($aInfo[0], 3)) + 1
    print($width)

    _GDIPlus_StringFormatDispose($hFormat)
    _GDIPlus_FontDispose($hGDIFont)
    _GDIPlus_FontFamilyDispose($hFamily)
    _GDIPlus_GraphicsDispose($hGraphic)
    _GDIPlus_Shutdown()
    Return $width
EndFunc

Func print($s)
    ConsoleWrite($s & @CRLF)
EndFunc

Func quit()
    Exit
EndFunc

For the moment, this workaround while getting the width from the structure will suffice for my thing:

$width = Int(DllStructGetData($aInfo[0], 3)) * 1.05 + 10  ;instead of +1

Maybe it's an issue after all and the dev's wanna have a look into it...

Edited August 16, 2010 by Der_Andi

[VAN0]

On 8/16/2010 at 9:35 AM, Der_Andi said:

Ok, now I found really something weird. A very long line gets calculated too short, despite the correct use of the style parameter.



Here's a short example:



expandcollapse popup

#NoTrayIcon
Opt("GuiOnEventMode", 1)

#include <GuiConstants.au3>
#include <StaticConstants.au3>
#include <GDIPlus.au3>

$fontName = "Tahoma"
$fontSize = 9




$guiMain = GUICreate("", 500, 200)
GUISetOnEvent($gui_event_close, "quit")
GUISetFont($fontSize, 400, 0, $fontName, $guiMain)

$text = "THIS IS LOOOOOOOOOOOOOOOOOOOONG TEXT"
$len = getTextLengthInPixel($text, "Tahoma", 10, 2) ; bold
GUICtrlCreateLabel($text, 20, 20, $len, 20, $ss_leftnowordwrap)
GUICtrlSetFont(-1, 10, 600)

GUICtrlCreateLabel("Following text", 20 + $len, 20+1, 100, 20)


GUISetState()
While True
    Sleep(1000)
WEnd

Func getTextLengthInPixel($text, $font, $size = 9, $style = 0)
    ;Calculate actual width of the given text
    _GDIPlus_Startup()
    $hGraphic = _GDIPlus_GraphicsCreateFromHWND($guiMain)
    $hFamily = _GDIPlus_FontFamilyCreate($font)
    $hGDIFont = _GDIPlus_FontCreate($hFamily, $size, $style)
    $hFormat = _GDIPlus_StringFormatCreate()
    $tLayout = _GDIPlus_RectFCreate(0, 0, @DesktopWidth, @DesktopHeight)

    $aInfo = _GDIPlus_GraphicsMeasureString($hGraphic, $text, $hGDIFont, $tLayout, $hFormat)
    $width = Int(DllStructGetData($aInfo[0], 3)) + 1
    print($width)

    _GDIPlus_StringFormatDispose($hFormat)
    _GDIPlus_FontDispose($hGDIFont)
    _GDIPlus_FontFamilyDispose($hFamily)
    _GDIPlus_GraphicsDispose($hGraphic)
    _GDIPlus_Shutdown()
    Return $width
EndFunc

Func print($s)
    ConsoleWrite($s & @CRLF)
EndFunc

Func quit()
    Exit
EndFunc



For the moment, this workaround while getting the width from the structure will suffice for my thing:



$width = Int(DllStructGetData($aInfo[0], 3)) * 1.05 + 10  ;instead of +1



Maybe it's an issue after all and the dev's wanna have a look into it...

Any solution to this problem? I have a floating window that being resized based on text, increasing width with static number does not work in my case...

[Melba23]

VAN0,

Have you tried my StringSize UDF - the link is in my sig.

M23

[VAN0]

6 hours ago, Melba23 said:

VAN0,

Have you tried my StringSize UDF - the link is in my sig.

M23

Thanks, just tried it, it has the same issue

P.S. the decision to have height before width in return array is odd

Edited May 14, 2022 by VAN0

[pixelsearch]

Something seems incorrect in this script, but even by modifying one line, the result won't be accurate :

; $len = getTextLengthInPixel($text, "Tahoma", 10, 2) ; bold (?) (no, 2 means italic)
$len = getTextLengthInPixel($text, "Tahoma", 10, 1) ; bold <=========================

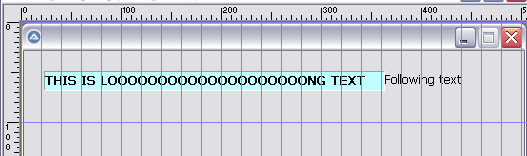

The display will change from :

to

For what it's worth...

[pixelsearch]

On 5/1/2022 at 8:19 AM, VAN0 said:

I have a floating window that being resized based on text, increasing width with static number does not work in my case...

Why not showing your code ?
I'm sure you'll get help if you do so, because Melba23's StringSize function calculates accurately the label width (I tried it just now) :

#include <GUIConstantsEx.au3>
#include "StringSize.au3" ; Melba23's

$hGUI = GUICreate("StringSize Test", 450, 80)
GUISetFont(9, 400, 0, "Arial", $hGUI)

; A label sized by StringSize
$sText = "THIS IS LOOOOOOOOOOOOOOOOOOOONG TEXT"
$aSize = _StringSize($sText, 10, 600, 0, "Tahoma")
GUICtrlCreateLabel($aSize[0], 20, 20, $aSize[2], $aSize[3])
GUICtrlSetFont(-1, 10, 600, 0, "Tahoma")
GUICtrlSetBkColor(-1, 0x80FF80)

GUICtrlCreateLabel("Another line not formatted in any way", 20, 50)

GUISetState()

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch
WEnd

Writing exactly 4 same arguments in _StringSize(...) and GUICtrlSetFont(-1, ...) gave a very accurate result as shown in the preceding pic.

Now if your (bold) text had to change within the label, it should be possible to recalculate the label's width (using the StringSize function) and re-display the label accordingly inside the (resized) floating window.

Your move
